Low-Strength Zinc-Plated Steel Threaded Rod

M36 x 4 mm Thread Size, 300 mm Long

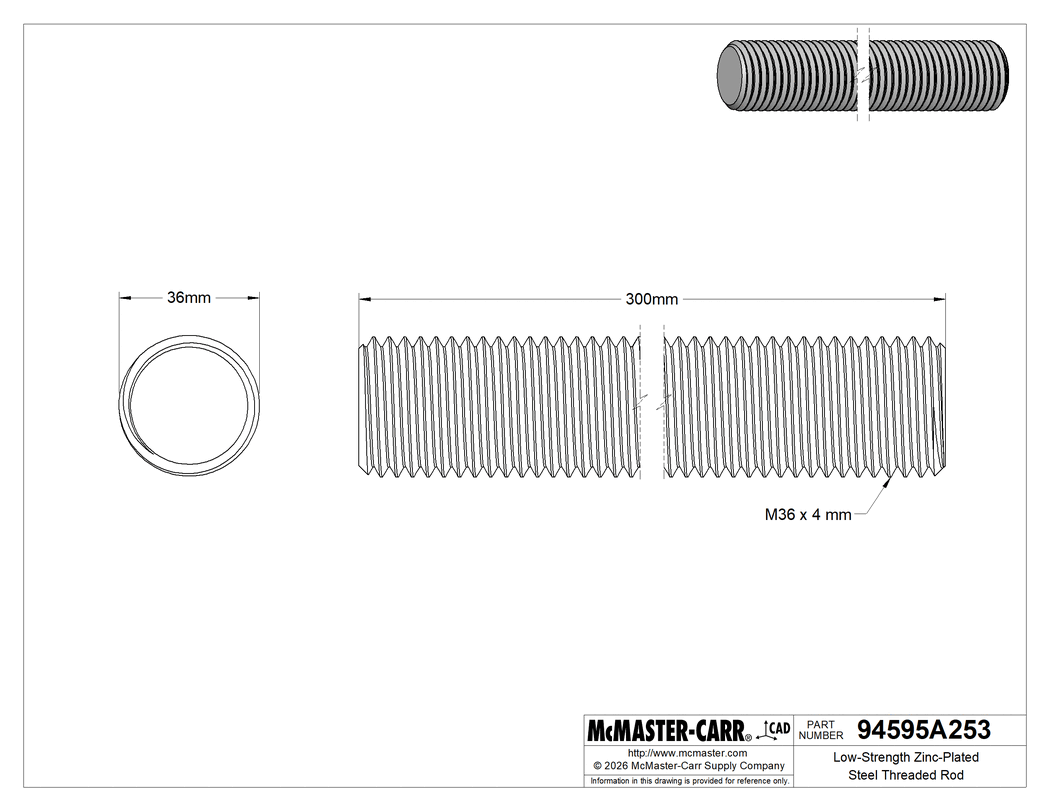

Technical Drawing of Low-Strength Zinc-Plated Steel Threaded Rod, M36 x 4 mm Thread Size, 300 mm Long.

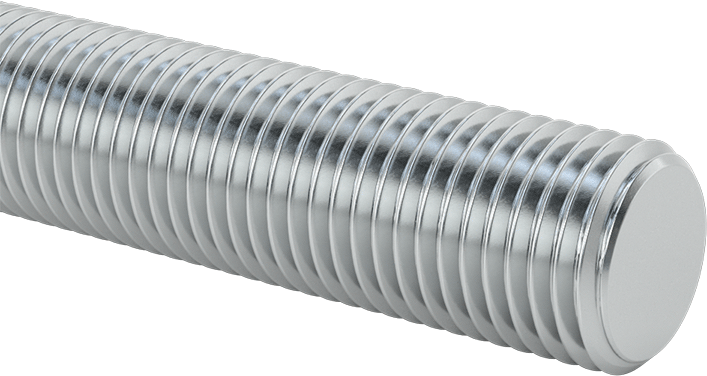

Image of Product. Side1 orientation. Contains SizingReference. Low-Strength Zinc-Plated Steel Threaded Rod, M36 x 4 mm Thread Size, 300 mm Long.

2-D PDF

0000000 per pack of 1

94595A253

Ships in 5-6 weeks

94595A253

0000000 per pack of 1

QuantityPack of 1

Ships in 5-6 weeks

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread Direction	Right Hand
Fastener Strength Rating	Low
Thread Size	M36 × 4 mm
Length	300 mm
Tensile Strength	50,000 psi
Hardness	Rockwell B49
Specifications Met	DIN 976
Certificate Form	Digital
Certificate Type	Material Certificate with Traceable Lot Number
Finish	Zinc Plated
Material	Steel
System of Measurement	Metric
Thread Fit	Metric Class 6g
Thread Spacing	Coarse
Thread Type	Metric
Threading	Fully Threaded
Country of Origin	United States, Belgium, Canada, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Mexico, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Low-Strength Fastener—With a tensile strength of 50,000 psi or 60,000 psi, these rods are often used to suspend light fixtures, cable trays, and conduit from ceilings. They're about half the strength of medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also low-strength steel.
