    Press-Fit Reamer Bushing

    0.314" ID, 1/2" OD, 1/2" Long

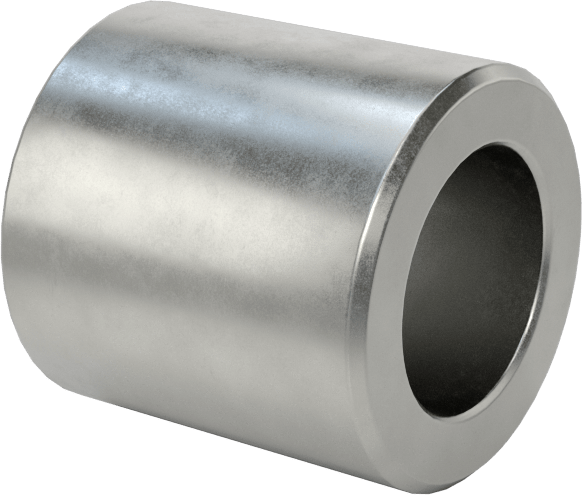

    Image of Product. Front orientation. Press-Fit Reamer Bushing, 0.314" ID, 1/2" OD, 1/2" Long.

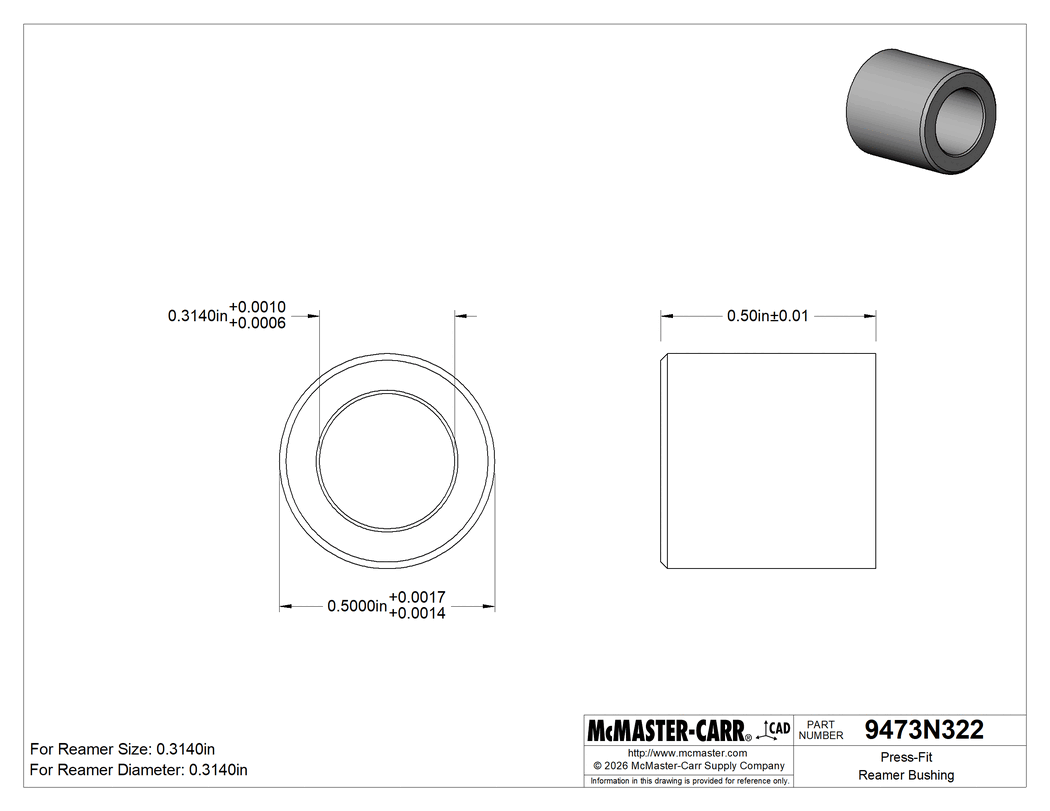

    Technical Drawing of Press-Fit Reamer Bushing, 0.314" ID, 1/2" OD, 1/2" Long.

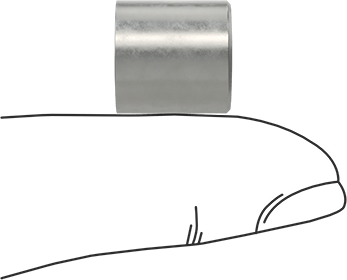

    Image of Product. Side1 orientation. Contains SizingReference. Press-Fit Reamer Bushing, 0.314" ID, 1/2" OD, 1/2" Long.
    2-D PDF
    00000 each
    9473N322
    In stock
    9473N322
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    ID

    0.314"

    OD

    1/2"

    Length

    1/2"

    For Reamer Diameter

    0.314"

    Tolerance

    ID

    0.0006" to 0.001"

    OD

    0.0014" to 0.0017"

    Length

    -0.01" to 0.01"

    Drill Bushing Type

    P

    Material

    Steel

    Hardness

    Rockwell C61

    Drill Bushing Texture

    Smooth

    Installation Permanence

    Permanent

    Country of Origin

    India

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    Schedule B Number

    848330.8090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    With ID tolerances sized specifically for reamers, these bushings ensure steady and precise hole finishing. Press them into a fixture plate with a manual or hydraulic press for permanent installation. Also known as headless bushings, these ANSI-type P bushings don’t need counterboring to be mounted flush. They are made of hardened, ground steel that holds its shape and resists wear, so they last for many cycles without needing to be replaced.
