    Zinc-Plated Steel ASME Washer

    for Number 1 Screw Size, Regular ASME Designation

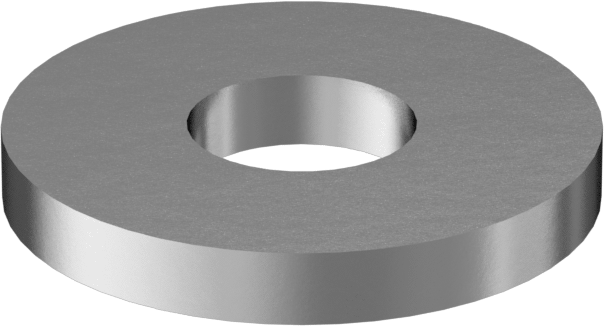

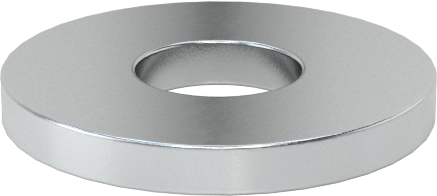

    Image of Product. Front orientation. Zinc-Plated Steel ASME Washer, for Number 1 Screw Size, Regular ASME Designation.

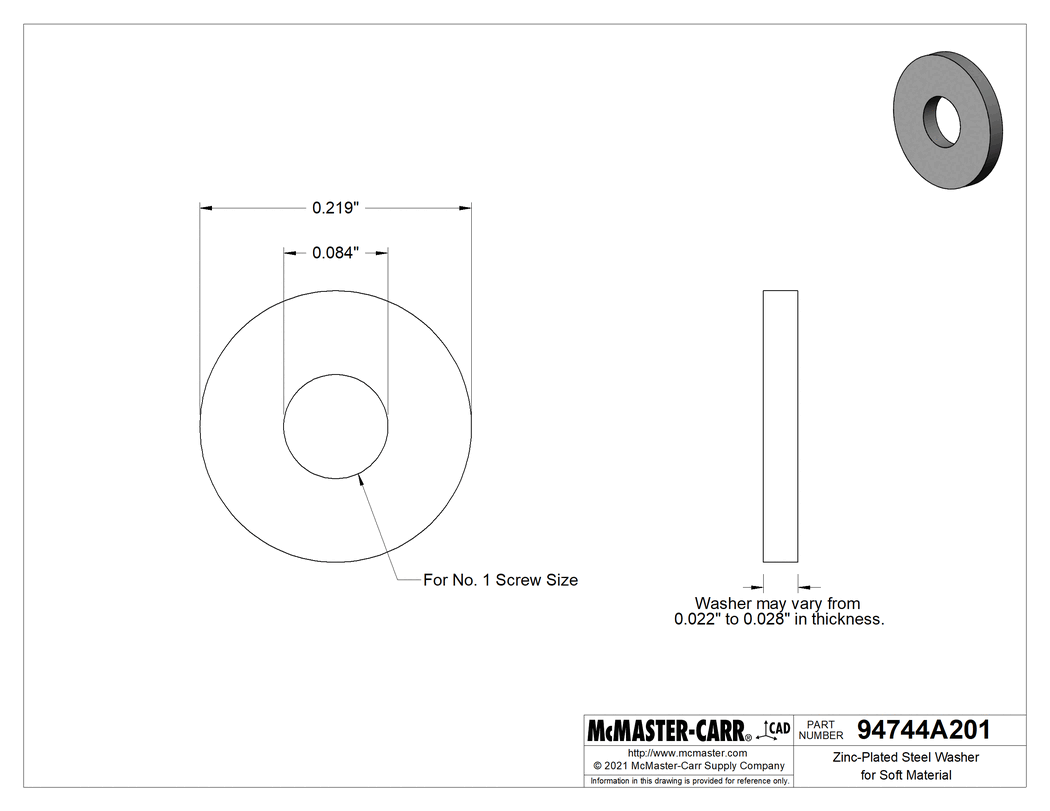

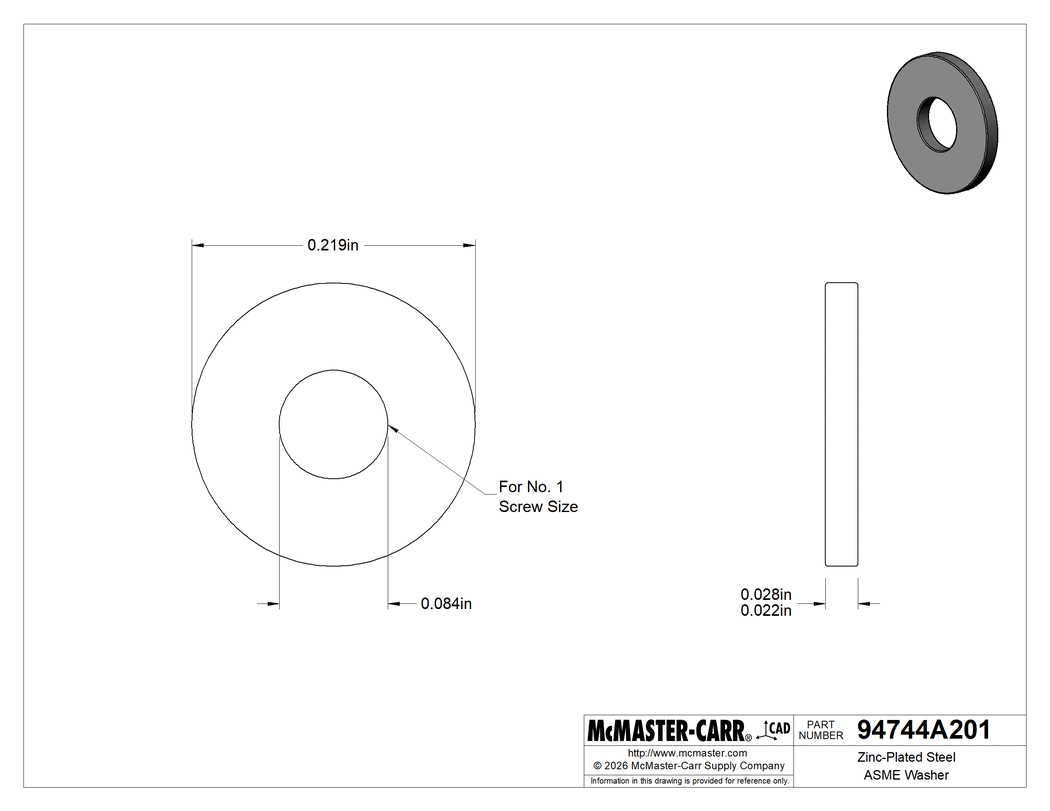

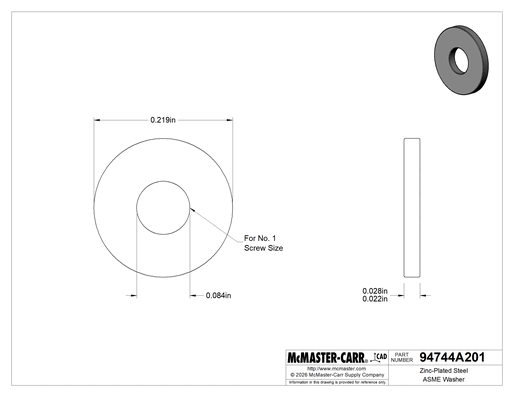

    Technical Drawing of Zinc-Plated Steel ASME Washer, for Number 1 Screw Size, Regular ASME Designation.
    2-D PDF
    000000 per pack of 25
    94744A201
    In stock
    94744A201
    000000 per pack of 25
    Pack of 25
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Washer Designation

    ASME

    Material

    Zinc-Plated Steel

    For Screw Size

    No. 1

    ASME Designation

    Regular

    ID

    0.084"

    OD

    0.219"

    Thickness

    0.022" to 0.028"

    Specifications Met

    ASME B18.21.1

    Hardness

    Rockwell B40

    System of Measurement

    Inch

    Washer Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a)

    Schedule B Number

    731822.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Also known as Type B washers, these meet ASME sizing standards. They take the pressure off screws and nuts to protect your mounting surface.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
