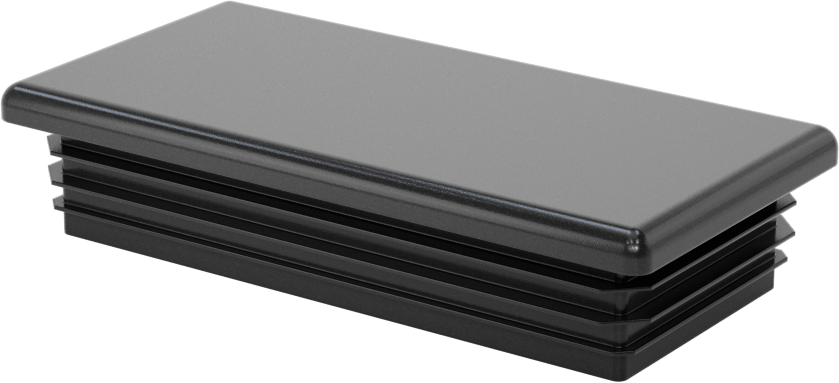

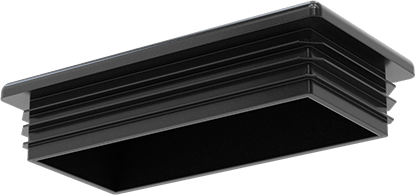

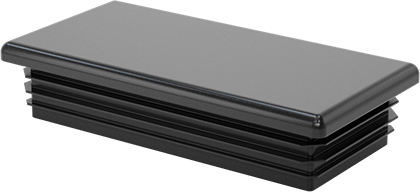

Rectangular Plugs
Snap-in, for 2.74"-2.83" Long x 1.24"-1.33" Wide Inside
Attachment Type | Snap In |
For Shape | Rectangle |
Material | Polyethylene |
For Inside | |
Length | 2.74" to 2.83" |
Width | 1.24" to 1.33" |
Height | 1/2" |
Head | |
Length | 3" |
Width | 1 1/2" |
Maximum Temperature | 150° F |
Color | Black |
For Use With | Tubing |
Hardness | Durometer 50D |
Performance | Chemical Resistant |
Profile Shape | Straight |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392350.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
For a tighter fit than push-in plugs, these have flexible ribs that grip a range of rectangular tubing sizes. They are good for semi-permanent installations, such as finishing the ends of posts, workstations, and furniture. To remove, you’ll need a tool such as a flat-head screwdriver to pop them out.
Polyethylene—A balance of wear and chemical resistance for use in a variety of environments. These plugs withstand scratches and scrapes as well as mild acids, solvents, and chemical cleaners.

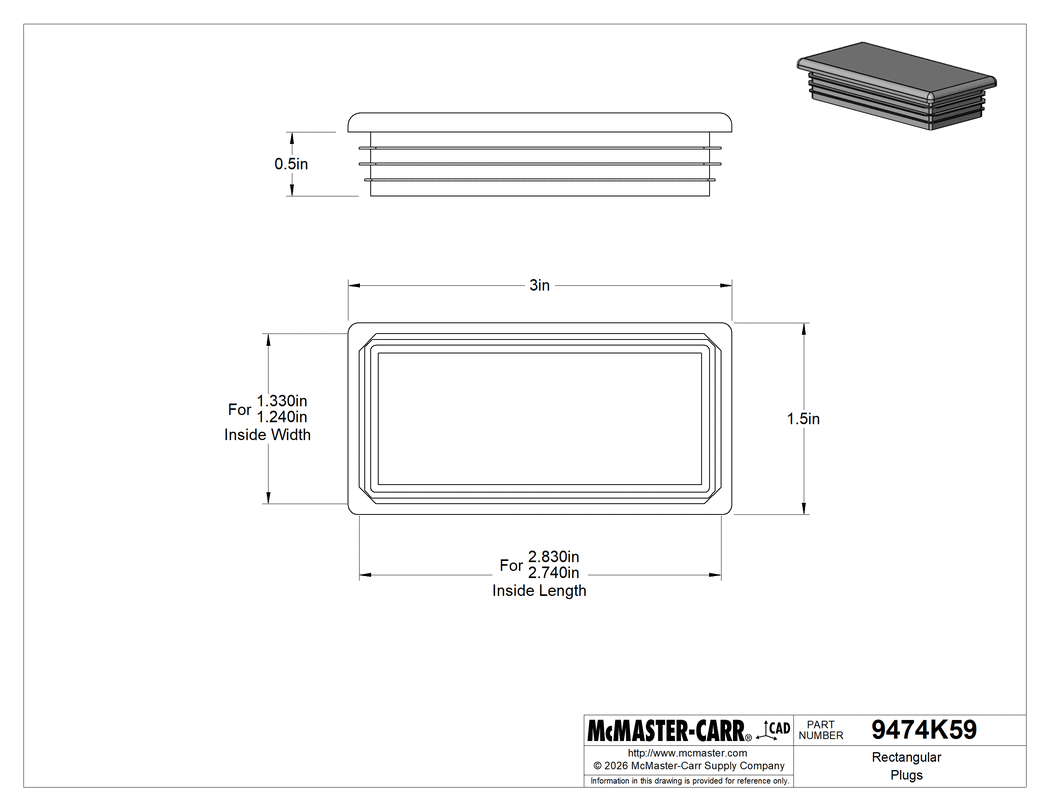

The information in this 3-D model is provided for reference only.
