    Adhesive-Back Pipe Marker

    Yellow with Black Message, for 1/4" to 3/4" Pipe OD

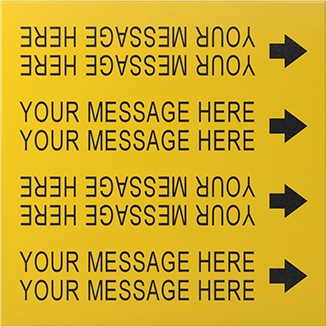

    Image of Product. Front orientation. Adhesive-Back Pipe Marker, Yellow with Black Message, for 1/4" to 3/4" Pipe OD.

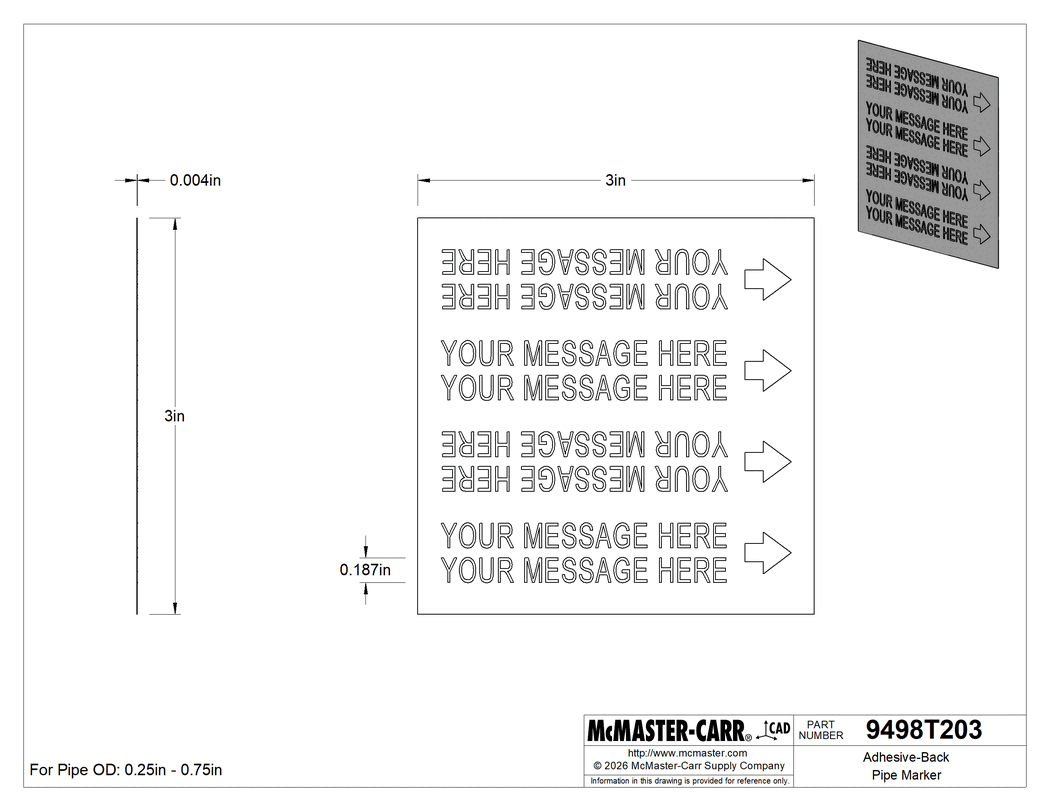

    Technical Drawing of Adhesive-Back Pipe Marker, Yellow with Black Message, for 1/4" to 3/4" Pipe OD.

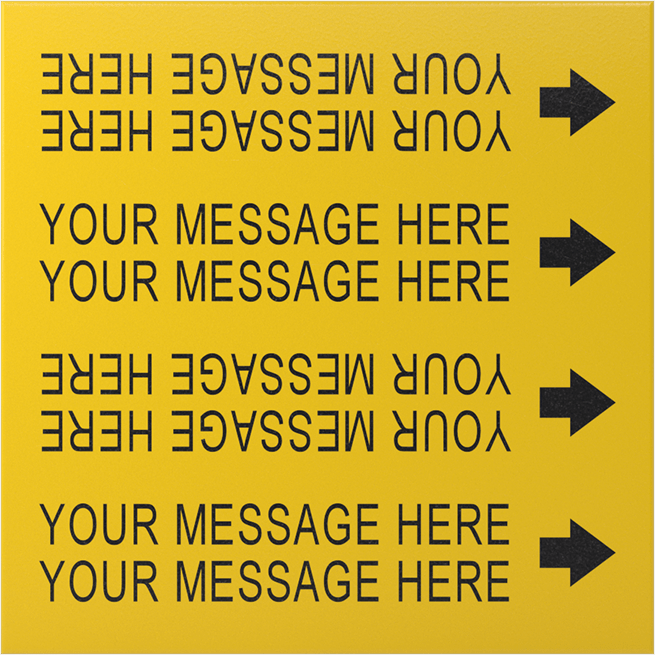

    Image of Product. Side1 orientation. Contains SizingReference. Adhesive-Back Pipe Marker, Yellow with Black Message, for 1/4" to 3/4" Pipe OD.
    2-D PDF
    000000 per pack of 10
    9498T203
    Please specify message (two lines max., up to 28 characters per line, including spaces). For multilingual pipe markers, please specify message in all languages.
    Ships in 1-2 weeks
    Please specify message (two lines max., up to 28 characters per line, including spaces). For multilingual pipe markers, please specify message in all languages.
    9498T203
    000000 per pack of 10
    Pack of 10
    Ships in 1-2 weeks
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Color

    Yellow

    Message Color

    Black

    For Pipe OD

    1/4" to 3/4"

    Character Height

    1/4"

    Height

    3"

    Width

    3"

    Thickness

    0.004"

    Flow Direction Arrow

    Yes

    Mount Type

    Adhesive Back, Wraparound

    Material

    Vinyl Plastic

    Temperature Range

    -40° F to 170° F

    Language

    English, English/Spanish, Spanish

    Message

    Made-to-Order

    Message Contains

    Text and Symbols

    Message Type

    Identification, Made-to-Order

    Performance

    Made-to-Order

    Shape

    Rectangle

    Visibility

    Standard

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    391990.5060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Specify the message you need to label the contents of a pipe (two lines maximum, up to 28 characters per line, including spaces). Apply these markers directly onto clean, dry pipes.

    Wraparound Mount—Wraparound-mount markers are secured in place with an included adhesive strip.

    The information in this 3-D model is provided for reference only.
