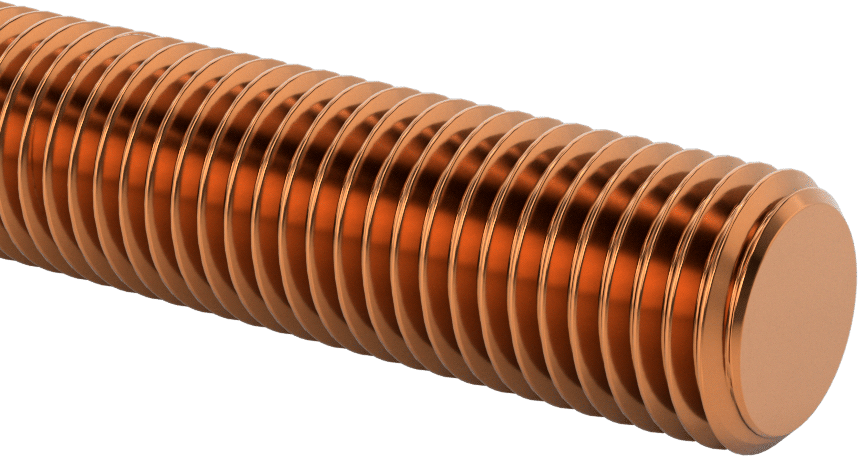

Bronze Threaded Rod
1"-8 Thread Size, 3 Feet Long

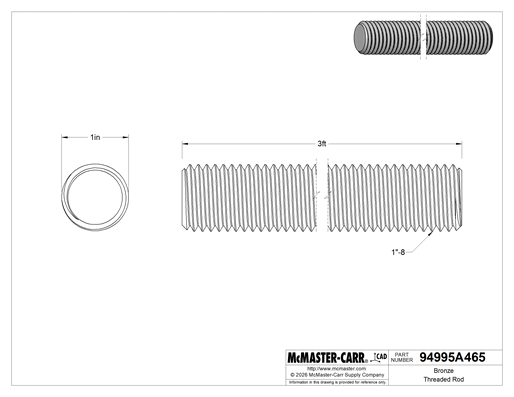

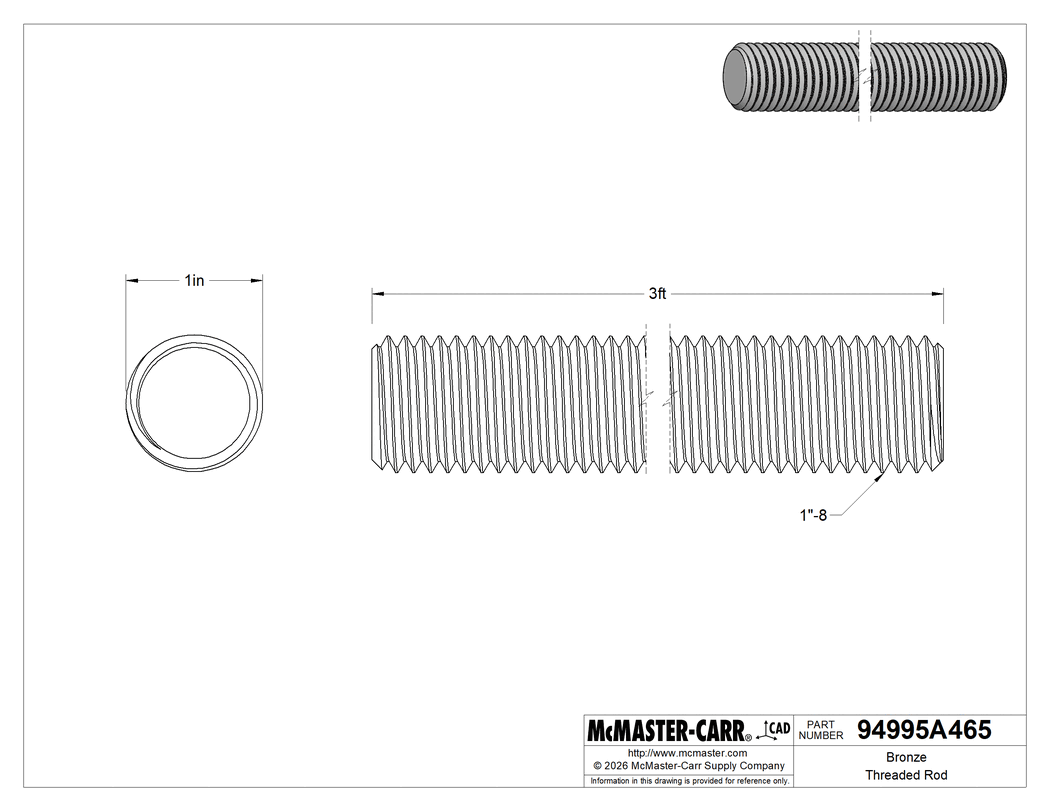

2-D PDF
0000000 each
94995A465
In stock
94995A465
0000000 each
Each
Select a compatible file type: Parasolid
Learn more about our Solidworks Add-In
Thread Direction | Right Hand |
Thread Size | 1"-8 |
Length | 3 ft. |
Tensile Strength | 50,000 psi |
Hardness | Not Rated |
Specifications Met | ASTM B98 |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Material | Silicon Bronze |
Performance | Highly Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 1A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | Brazil, Peru |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 741539.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Highly Corrosion-Resistant Silicon Bronze—More resistant to salt water than brass, these rods are a good choice for marine environments. They're also stronger than brass.
Compatible Products for This Threaded Rod
The information in this 3-D model is provided for reference only.
