    18-8 Stainless Steel Male Hex Thread Adapter

    M4 x 0.7 mm to M5 x 0.8 mm Thread Size

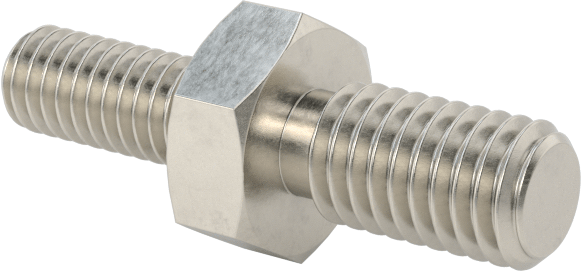

    Image of Product. Front orientation. 18-8 Stainless Steel Male Hex Thread Adapter, M4 x 0.7 mm to M5 x 0.8 mm Thread Size.

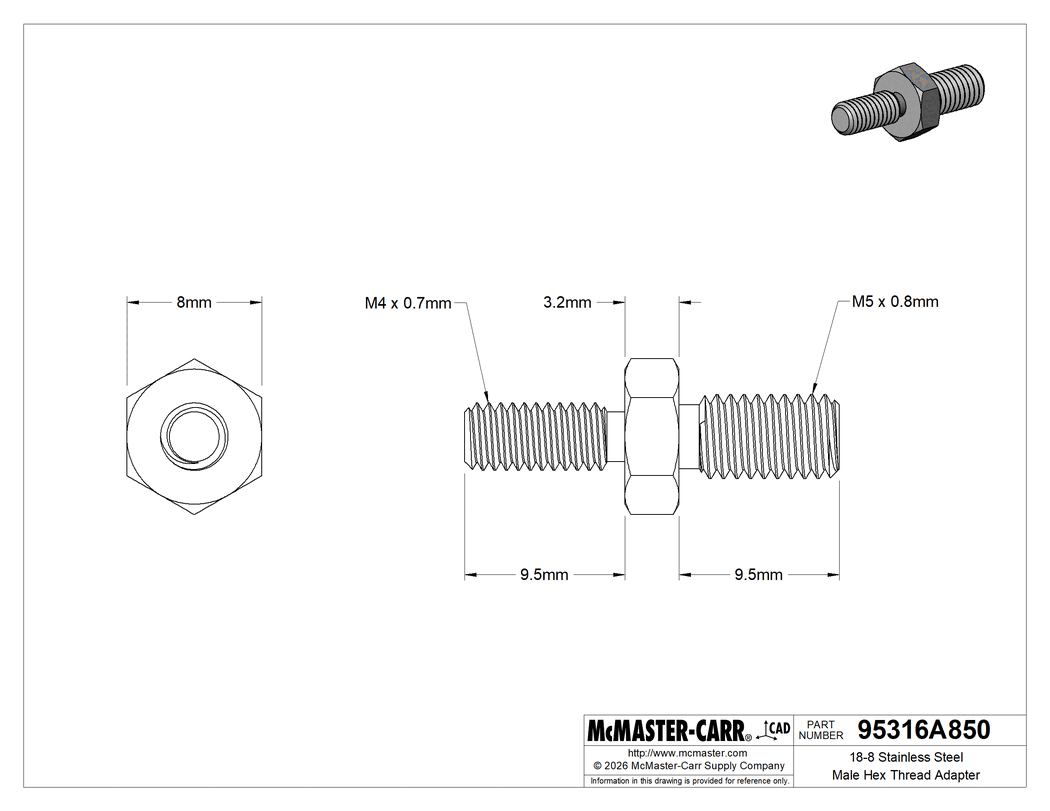

    Technical Drawing of 18-8 Stainless Steel Male Hex Thread Adapter, M4 x 0.7 mm to M5 x 0.8 mm Thread Size.
    Image of Product. Back orientation. 18-8 Stainless Steel Male Hex Thread Adapter, M4 x 0.7 mm to M5 x 0.8 mm Thread Size.

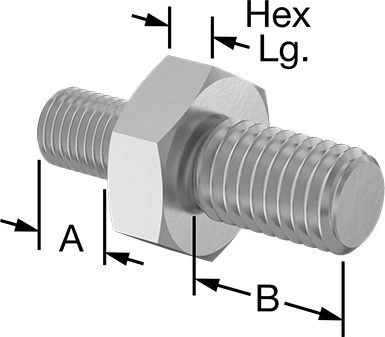

    Image of Product. Front orientation. Contains Annotated. 18-8 Stainless Steel Male Hex Thread Adapter, M4 x 0.7 mm to M5 x 0.8 mm Thread Size.

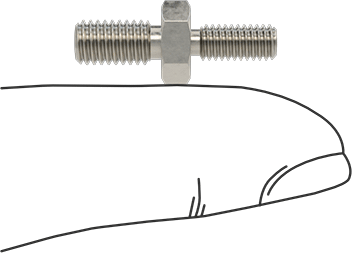

    Image of Product. Side1 orientation. Contains SizingReference. 18-8 Stainless Steel Male Hex Thread Adapter, M4 x 0.7 mm to M5 x 0.8 mm Thread Size.
    2-D PDF
    00000 each
    95316A850
    In stock
    95316A850
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    18-8 Stainless Steel

    Thread Size (A)

    M4 x 0.7 mm

    Thread Size (B)

    M5 x 0.8 mm

    Thread Length

    (A)

    9.5 mm

    (B)

    9.5 mm

    Thread Fit

    (A)

    Metric Class 6g

    (B)

    Metric Class 6g

    Hex

    Size

    8 mm

    Length

    3.2 mm

    Specifications Met

    ASTM A582

    Tensile Strength

    85,000 psi

    Hardness

    Rockwell B80

    Drive Style

    External Hex

    For Adapting

    Thread Size

    Gender

    (A)

    Male

    (B)

    Male

    Shape

    Hex

    System of Measurement

    Metric to Metric

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7009)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731819.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Twist these adapters onto female metric threads to change pitch or switch thread sizes. They can also be used as standoffs to make space between parts. Tighten or loosen with a wrench.

    18-8 Stainless Steel—18-8 stainless steel adapters can be used in wet environments, but chemicals or salt water will cause staining and rust spots.

    ASTM A582—Adapters that meet ASTM specifications are made from or plated with materials that adhere to specific standards for chemical and physical properties, such as hardness.

    The information in this 3-D model is provided for reference only.
