18-8 Stainless Steel Threaded Rod

7/8"-9 Thread Size, 4 Feet Long

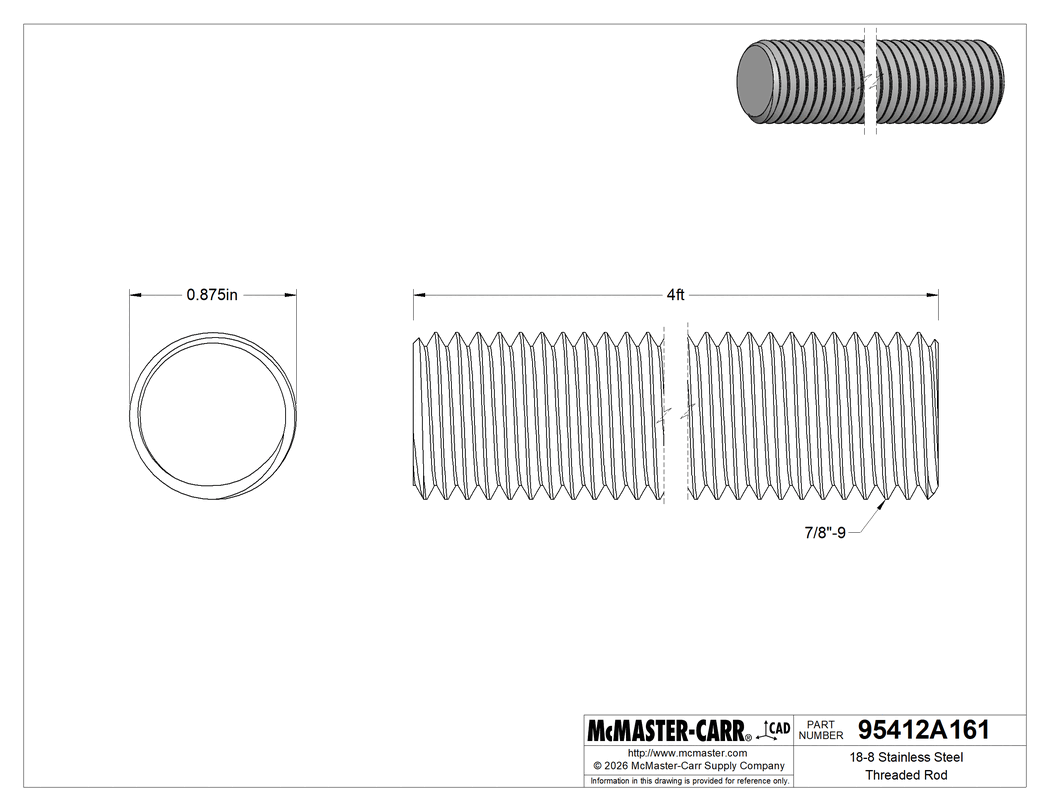

Technical Drawing of 18-8 Stainless Steel Threaded Rod, 7/8"-9 Thread Size, 4 Feet Long.

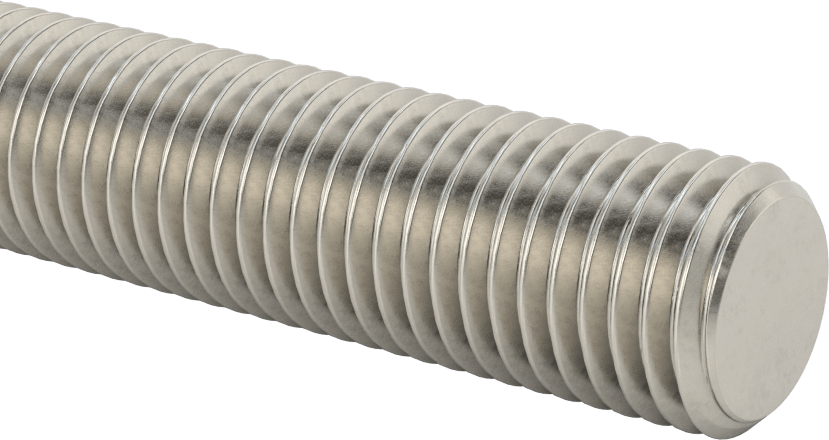

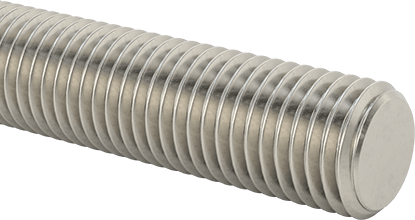

Image of Product. Side1 orientation. Contains SizingReference. 18-8 Stainless Steel Threaded Rod, 7/8"-9 Thread Size, 4 Feet Long.

2-D PDF

0000000 per pack of 1

95412A161

In stock

95412A161

0000000 per pack of 1

QuantityPack of 1

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread Direction	Right Hand
Thread Size	7/8"-9
Length	4 ft.
Tensile Strength	70,000 psi
Hardness	Rockwell B70
Material	18-8 Stainless Steel
Performance	Corrosion Resistant
System of Measurement	Inch
Thread Fit	Unified Standard Class 2A
Thread Spacing	Coarse
Thread Type	UNC
Threading	Fully Threaded
Country of Origin	United States
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Stainless Steel—More corrosion resistant than steel rods and comparable in strength to low-strength steel.

18-8 Stainless Steel—The choice for wet and outdoor environments, these rods resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
