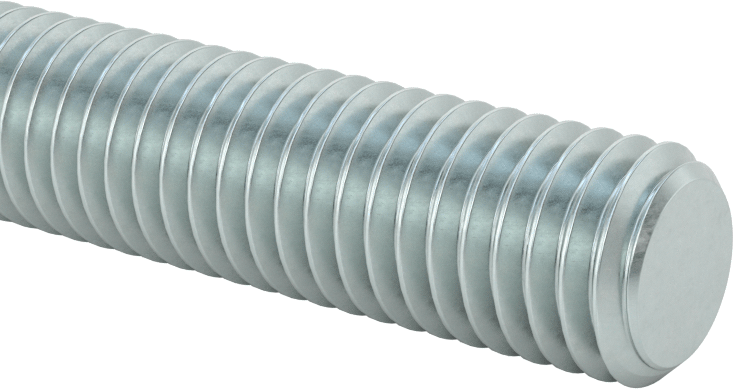

Zinc-Plated Low-Strength Steel Threaded Rod
1/2"-13 Thread Size, 7" Long
Thread Direction | Right Hand |
Fastener Strength Rating | Low |
Thread Size | 1/2"-13 |
Length | 7" |
Tensile Strength | 50,000 psi |
Hardness | Rockwell B61 |
Finish | Zinc Plated |
Material | Steel |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 1A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7008) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Low-Strength Fastener—With a tensile strength of 50,000 psi or 60,000 psi, these rods are often used to suspend light fixtures, cable trays, and conduit from ceilings. They're about half the strength of medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also low-strength steel.
Zinc-Plated Steel—The most common choice for areas with occasional exposure to moisture.

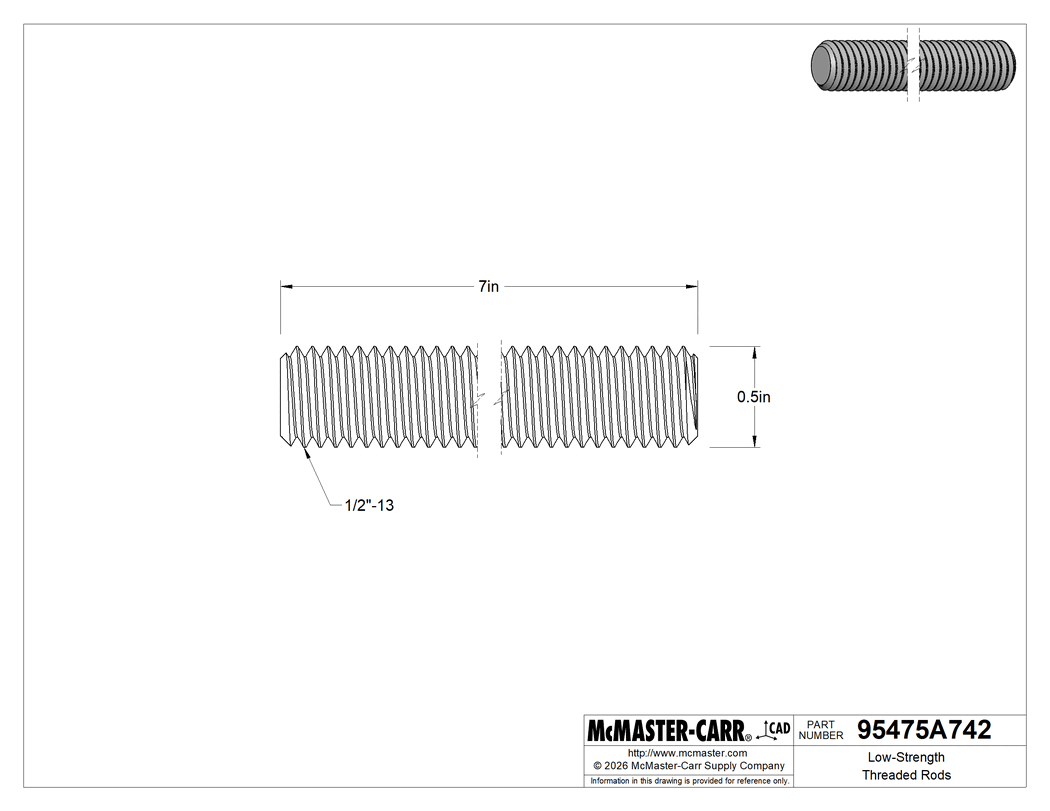

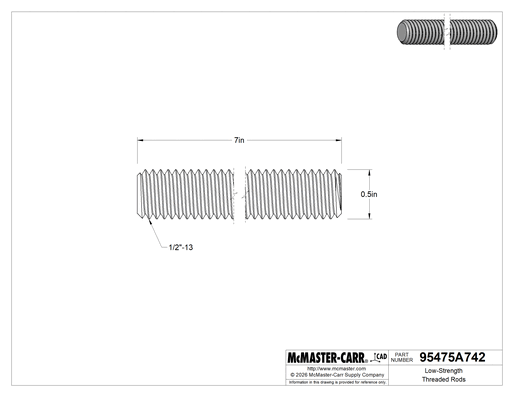

The information in this 3-D model is provided for reference only.
