    Acid-Resistant PVC Plastic Washer

    for M22 Screw Size, 23.0 mm ID, 40.0 mm OD

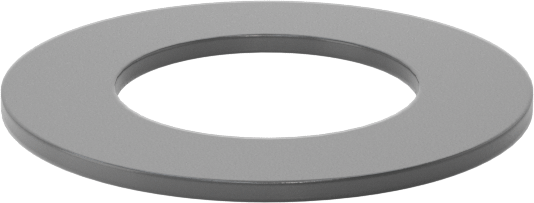

    Image of Product. Bottom orientation. Acid-Resistant PVC Plastic Washer, for M22 Screw Size, 23.0 mm ID, 40.0 mm OD.

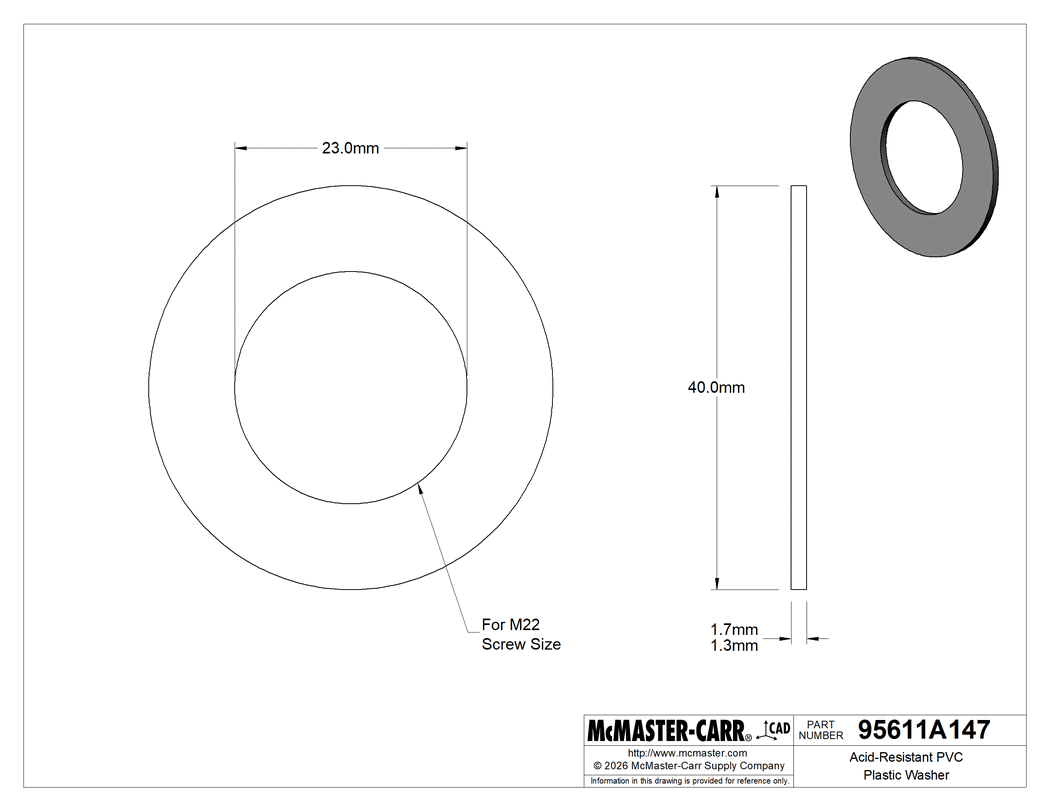

    Technical Drawing of Acid-Resistant PVC Plastic Washer, for M22 Screw Size, 23.0 mm ID, 40.0 mm OD.

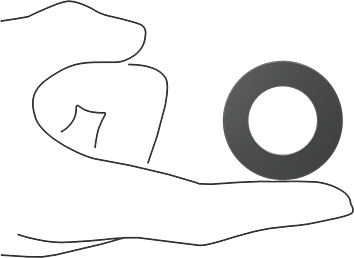

    Image of Product. Side1 orientation. Contains SizingReference. Acid-Resistant PVC Plastic Washer, for M22 Screw Size, 23.0 mm ID, 40.0 mm OD.
    2-D PDF
    000000 per pack of 5
    95611A147
    In stock
    95611A147
    000000 per pack of 5
    Pack of 5
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    PVC

    For Screw Size

    M22

    ID

    23.0 mm

    OD

    40.0 mm

    Thickness

    1.3 mm to 1.7 mm

    Temperature Range

    Minimum

    Not Rated

    Maximum

    140° F

    Color

    Gray

    Hardness

    Durometer 84D

    Performance

    Acid Resistant, Electrically Insulating, Lightweight

    System of Measurement

    Metric

    Washer Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    392690.4500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    All of these washers are lightweight, nonconductive, and naturally rust resistant. They are commonly used in electronics and automation applications to take the pressure off screws and nuts and protect mounting surfaces.

    Acid-Resistant PVC—A great choice for chemical-processing lines, these washers won't degrade when exposed to harsh acids, alkalis, and alcohols. They are also good electrical insulators.
