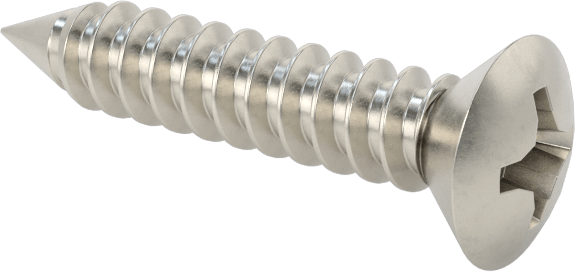

316 Stainless Steel Phillips Oval Head Screws for Sheet Metal
Highly Corrosion-Resistant, Number 10 Screw Size, 1" Long
Drive Style | Phillips |
Fastener Head Type | Oval |
Tip Type | Pointed |
Tapping Method | Thread Forming |
Material | 316 Stainless Steel |
Screw Size | No. 10 |
Length | 1" |
Head | |
Diameter | 0.362" |
Height | 0.176" |
Tapping Screw Type Designation | A |
Drive Size | No. 2 |
Approximate Threads per Inch | 12 |
Countersink Angle | 82° |
Drill Bit Size | 21 Ga. |
Drill Bit Decimal Size Equivalent | 0.159" |
For Use In | Sheet Metal |
Maximum Drilling Thickness | 0.025" |
Oval Head Profile | Standard |
Oval Top Height | 0.06" |
Performance | Chemical Resistant, Highly Corrosion Resistant, Self-Piercing |
Screw Size Decimal Equivalent | 0.190" |
Shank Cross Section | Round |
System of Measurement | Inch |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These corrosion-resistant screws have a decorative rounded top that peeks out from the surface of trim work. Beveled under the head, they’re often used in countersunk holes. Their pointed tip starts a hole in sheet metal up to 0.025" thick, but for thicker material you’ll need to drill first. The Phillips drive handles enough torque to keep drivers from slipping.
Length is measured from the edge of the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws withstand harsh weather, salt water, and most chemicals.
Prepare hole
Install

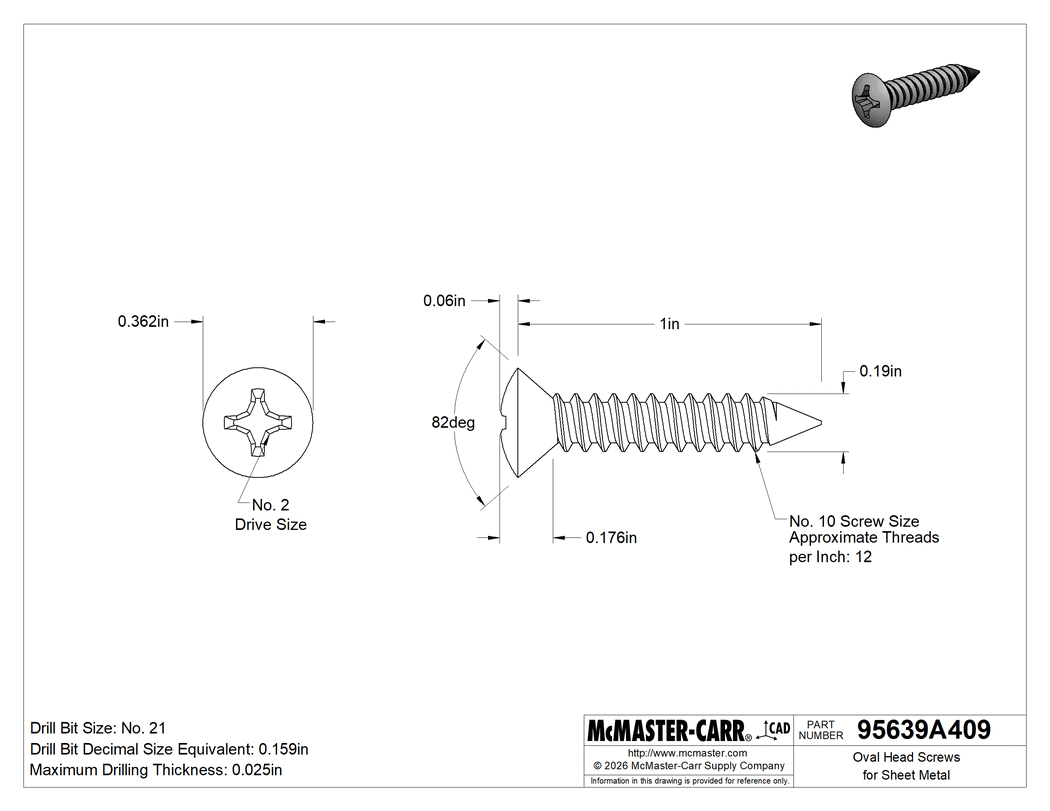

The information in this 3-D model is provided for reference only.
