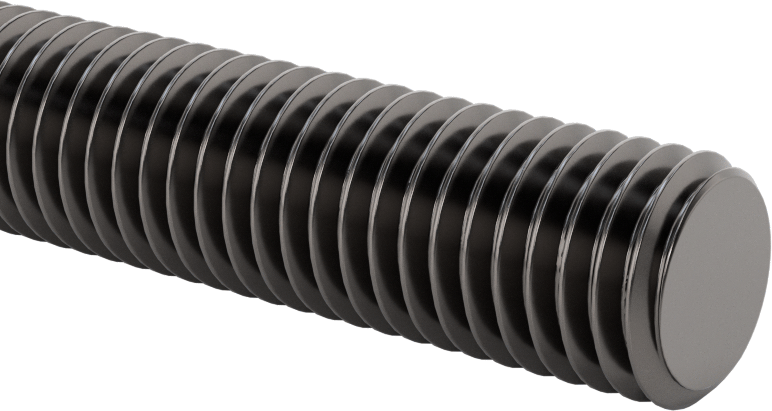

Nickel Alloy Threaded Rod
5/8"-11 Thread Size, 3 Feet Long
Thread Direction | Right Hand |
Thread Size | 5/8"-11 |
Length | 3 ft. |
Tensile Strength | 80,000 psi |
Hardness | Not Rated |
Specifications Met | ASTM B164 |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Material | 400 Nickel |
Performance | Highly Corrosion Resistant |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 750512.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Nickel—These rods have similar strength to 316 stainless steel but hold up to a wider range of harsh acids. Commonly found in the oil and gas industries, they're often used as a high-strength alternative to titanium.
Highly Corrosion-Resistant 400 Nickel—Also known as Monel, 400 nickel stands up to salt water and harsh acids.

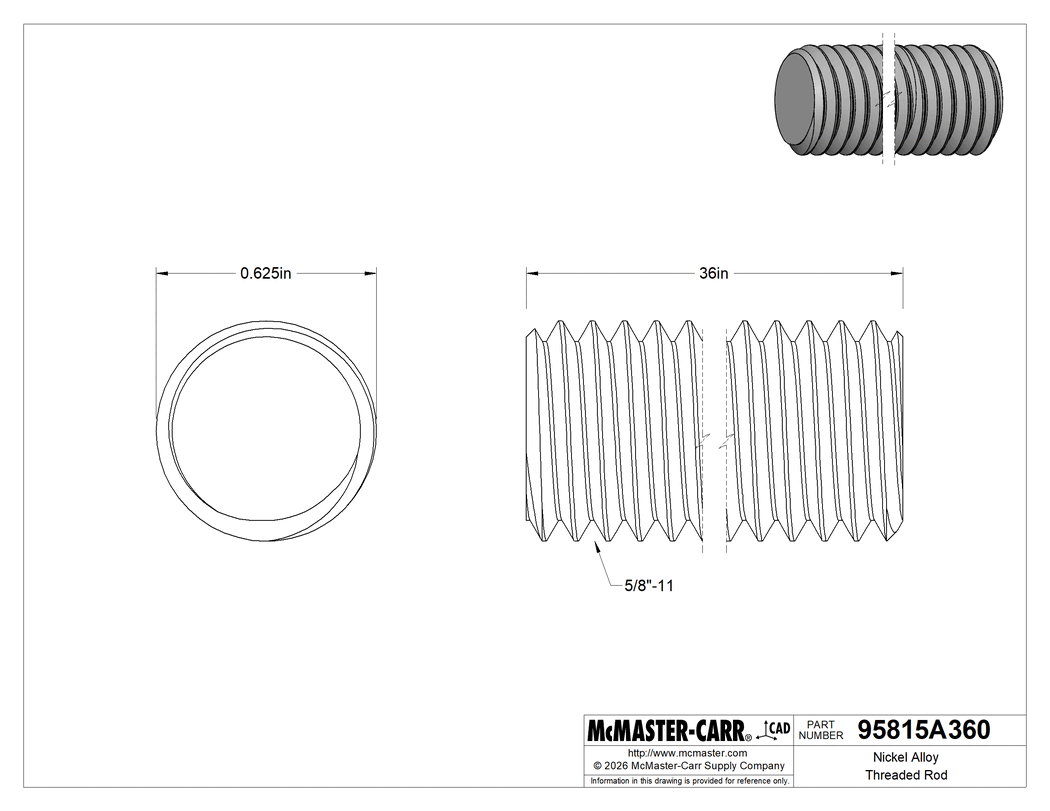

The information in this 3-D model is provided for reference only.
