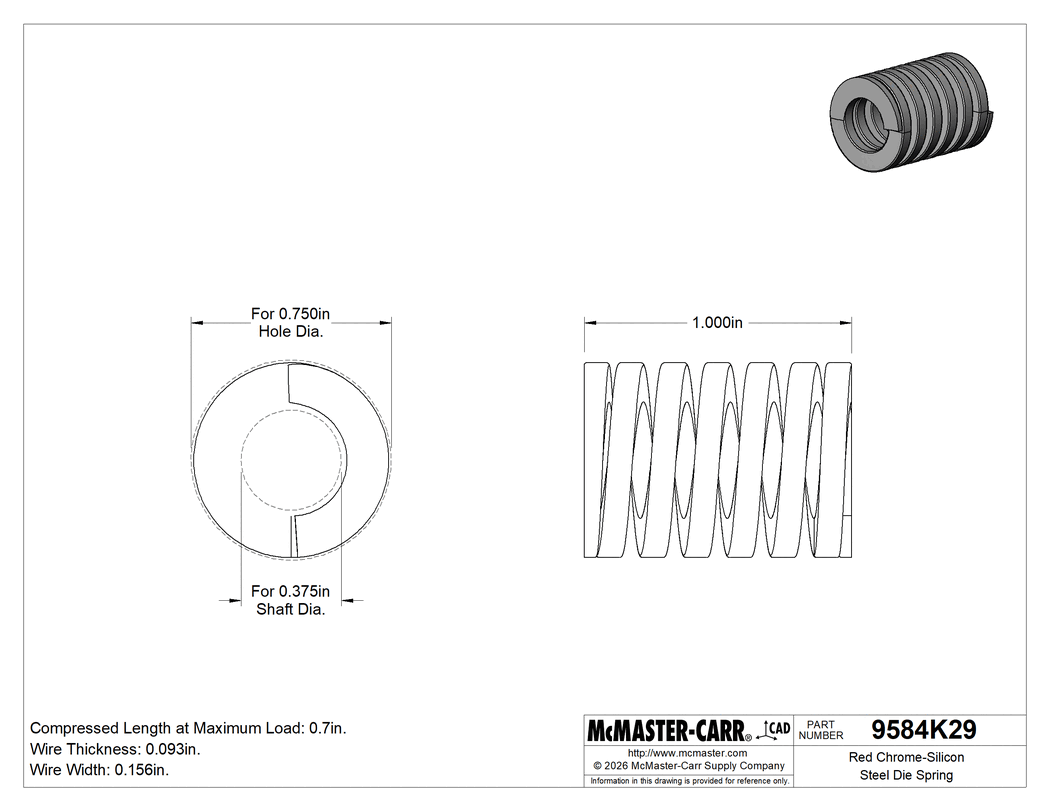

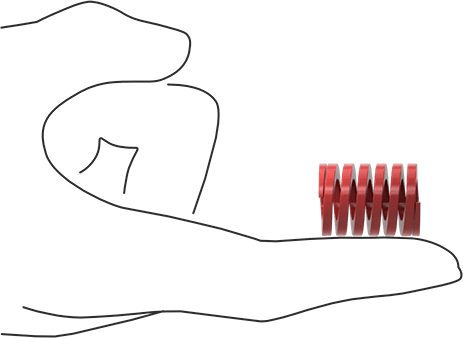

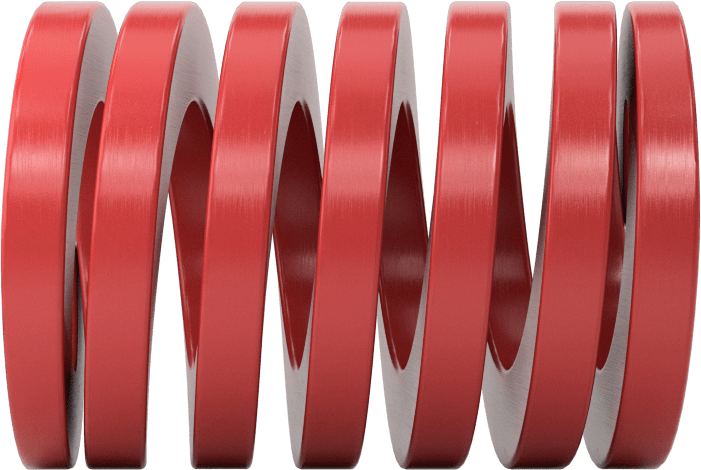

Red Chrome-Silicon Steel Die Spring
for 3/4" Hole Diameter, 1" Long
System of Measurement | Inch |
Color | Red |
Load Rating | Medium Heavy |
For Hole Diameter | 3/4" |
For Shaft Diameter | 3/8" |
Length | 1" |
Wire | |
Thickness | 0.093" |
Width | 0.156" |
Compressed Length @ Maximum Load | 0.7" |
Deflection @ Maximum Load | 30% |
Maximum Load | 150 lb. |
Spring Rate | 500 lbf/in |
Material | Chrome Silicon Steel |
End Type | Closed and Ground |
Finish | Powder Coated |
Performance | Color Coded |
Spring Type | Die |
Country of Origin | United States, Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732020.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With the Raymond color code, you'll always grab the die spring with the right load rating. The chrome-silicon steel is stronger than spring steel and handles repeated stress for longer periods of time. Rely on these springs for high-volume jobs, such as stamping and injection molding. A powder coating prevents rust in wet environments. The closed, ground ends create a flat surface that balances your load, even as it moves.
Deflection @ Maximum Load—The percentage represents how much a spring compresses from its original length.
The information in this 3-D model is provided for reference only.
