    Socket Head Captive Panel Screw

    M6 x 1 mm Thread, 20 mm Long

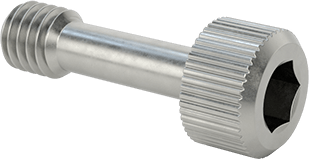

    Image of Product. Front orientation. Socket Head Captive Panel Screw, M6 x 1 mm Thread, 20 mm Long.

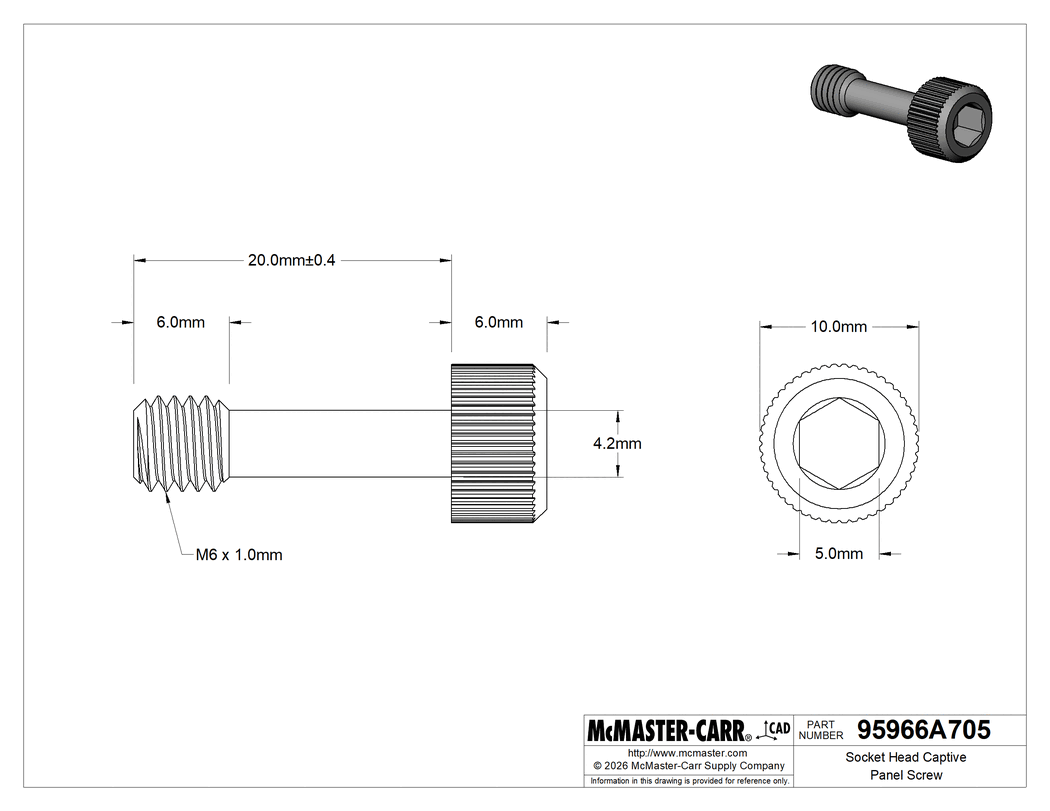

    Technical Drawing of Socket Head Captive Panel Screw, M6 x 1 mm Thread, 20 mm Long.

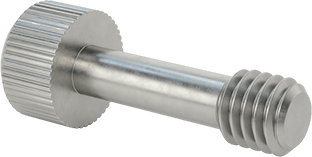

    Image of Product. Back orientation. Socket Head Captive Panel Screw, M6 x 1 mm Thread, 20 mm Long.

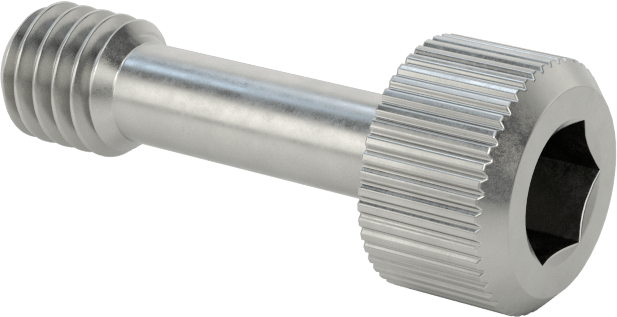

    Image of Product. Side1 orientation. Contains SizingReference. Socket Head Captive Panel Screw, M6 x 1 mm Thread, 20 mm Long.
    2-D PDF
    000000 each
    95966A705
    In stock
    95966A705
    1-24 each000000
    25-99 each00000
    100 or more00000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    18-8 Stainless Steel

    Thread Size

    M6 × 1 mm

    Drive Style

    Hex

    Length

    20 mm

    Length Tolerance

    -0.4 mm to 0.4 mm

    Thread Length

    6 mm

    Head

    Diameter

    10 mm

    Height

    6 mm

    Shank Diameter

    4.2 mm

    Drive Size

    5 mm

    Captive Panel Screw Type

    Threaded

    Fastener Head Type

    Socket

    Head Texture

    Knurled

    System of Measurement

    Metric

    Tensile Strength

    70,000 psi

    Thread Direction

    Right Hand

    Thread Fit

    Metric Class 6g

    Thread Spacing

    Coarse

    Thread Type

    Metric

    Threading

    Partially Threaded

    Country of Origin

    United States

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Related Products

    Retainers

    Springs

    Install a retainer (sold separately) to keep these screws secure—no special tools are required. Use an optional spring (sold separately) to provide even compression against panels. Screws, retainers, and springs are made from chemical-resistant 18-8 stainless steel and may be mildly magnetic. Length is measured from under the head.
