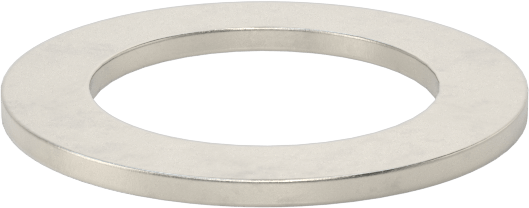

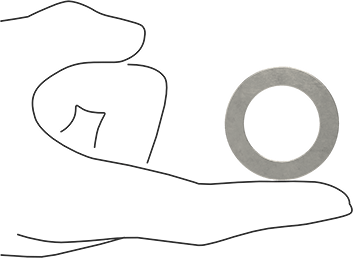

316 Stainless Steel Ring Shim
0.075" Thick, 1" ID
Shape | Round |
For Shaft Type | Round |
ID | 1" |
ID Tolerance | -0.005" to 0.005" |
OD | 1 1/2" |
OD Tolerance | -0.005" to 0.005" |
Thickness | 0.075" |
Thickness Tolerance | -0.003" to 0.005" |
Minimum Hardness | Rockwell B70 |
Specifications Met | ASTM A240 |
Magnetic Properties | May Be Mildly Magnetic |
Material | 316 Stainless Steel |
Passivation | Unpassivated |
Performance | Chemical Resistant, Highly Corrosion Resistant, Precision Adjust |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732619.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
With thickness tolerances as fine as a strand of hair, these shims precisely align, space, and level components on shafts, arbors, and machinery.
You can stack multiple shims to achieve your exact thickness, but stacking more than four may cause them to shift. Remember, fewer shims are better, so a couple of thicker shims are more stable than a bunch of thin shims.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these shims won't degrade when exposed to harsh weather, salt water, and most chemicals.

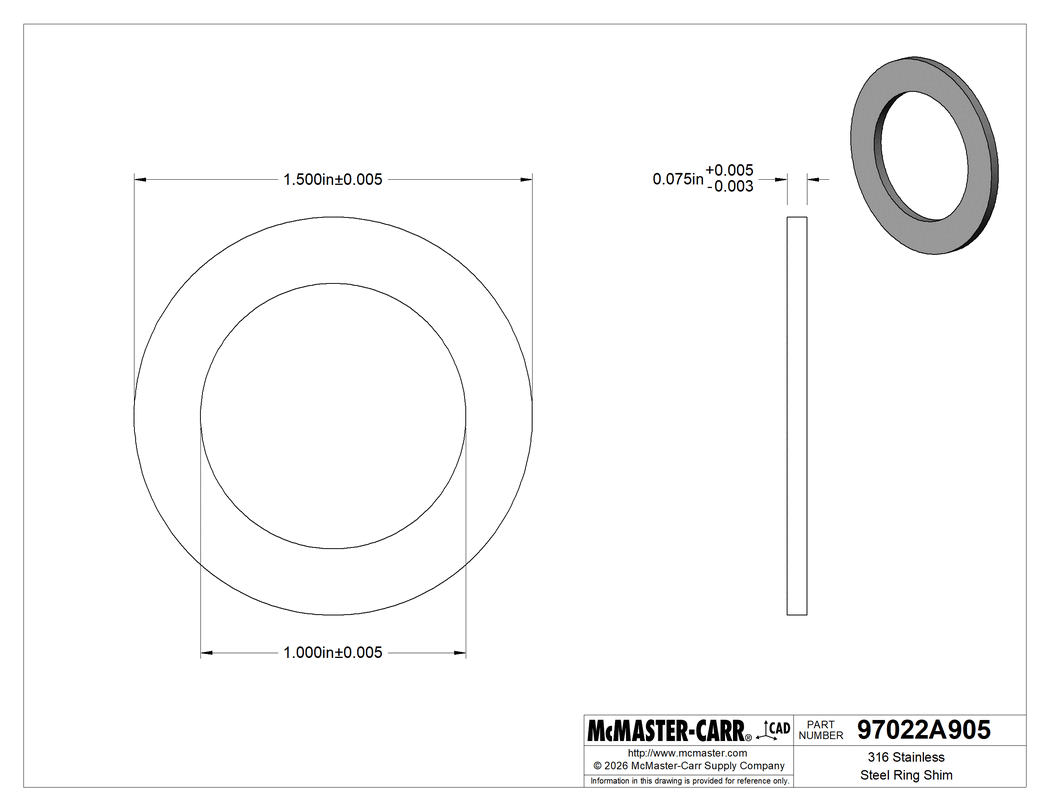

The information in this 3-D model is provided for reference only.
