    Brass Flush-Mount Solid Rivets

    1/8" Diameter, for 0.385" Maximum Material Thickness

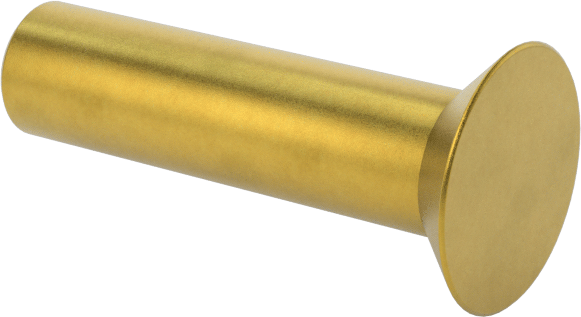

    Image of Product. Front orientation. Brass Flush-Mount Solid Rivets, 1/8" Diameter, for 0.385" Maximum Material Thickness.

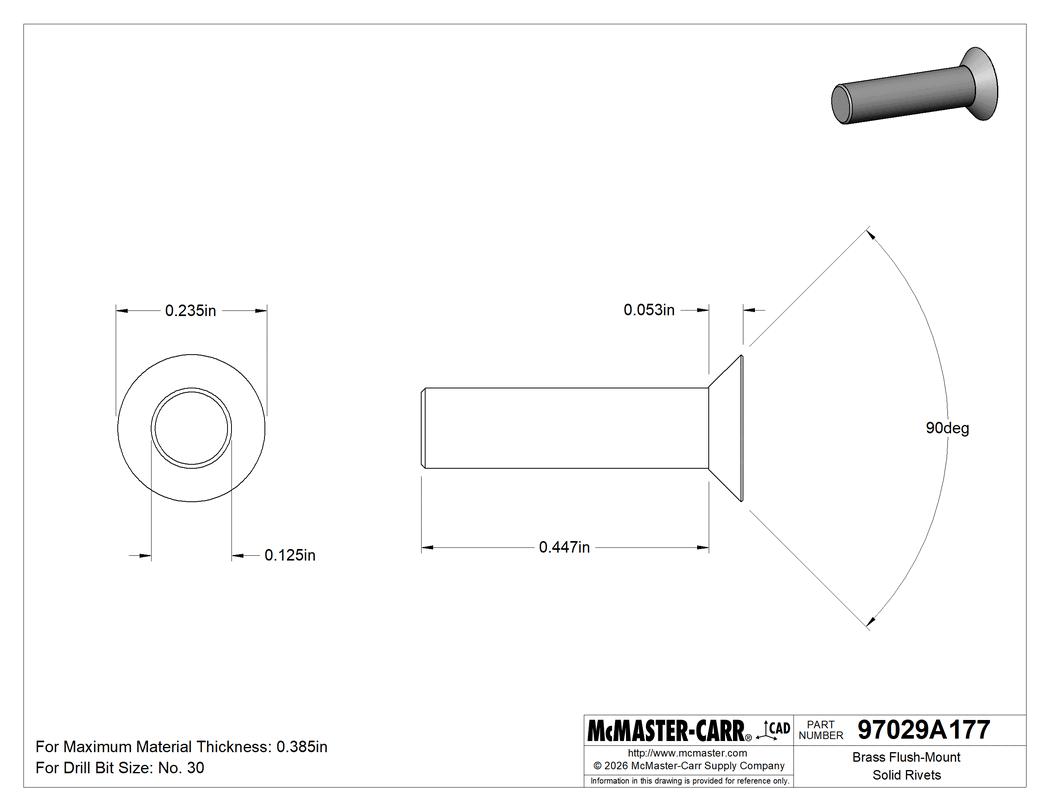

    Technical Drawing of Brass Flush-Mount Solid Rivets, 1/8" Diameter, for 0.385" Maximum Material Thickness.
    Image of Product. Back orientation. Brass Flush-Mount Solid Rivets, 1/8" Diameter, for 0.385" Maximum Material Thickness.

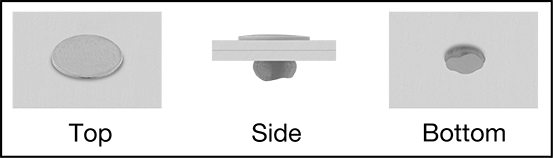

    Image of ProductInUse. Installed. Top orientation. Contains Annotated, Border. Brass Flush-Mount Solid Rivets, 1/8" Diameter, for 0.385" Maximum Material Thickness.
    Installed
    Image of Product. Side1 orientation. Contains SizingReference. Brass Flush-Mount Solid Rivets, 1/8" Diameter, for 0.385" Maximum Material Thickness.
    2-D PDF
    000000 per pack of 100
    97029A177
    In stock
    97029A177
    000000 per pack of 100
    Pack of 100
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Diameter

    1/8"

    For Maximum Material Thickness

    0.385"

    Length

    0.447"

    Overall Length

    0.5"

    For Hole Size

    0.129"

    For Drill Bit Size

    30 Ga.

    Head Diameter

    0.235"

    Head Height

    0.053"

    Countersink Angle

    90°

    Material

    Brass

    Fastener Head Type

    Flush Mount

    Rivet Type

    Solid

    System of Measurement

    Inch

    Country of Origin

    Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    741529.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Brass rivets are electrically conductive and have good corrosion resistance. Install in a countersunk hole and the angled head sits flush with the material's surface.

    Installation of solid rivets requires access to both sides of the material as well as a hammer or a solid rivet tool. To achieve the most consistent results and a professional appearance, we recommend using a riveting air hammer with a rivet setter that matches the rivet's head style, and a bucking bar.
