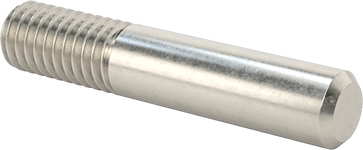

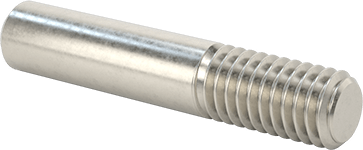

18-8 Stainless Steel Threaded on One End Stud
3/8"-16 Thread, 2" Long

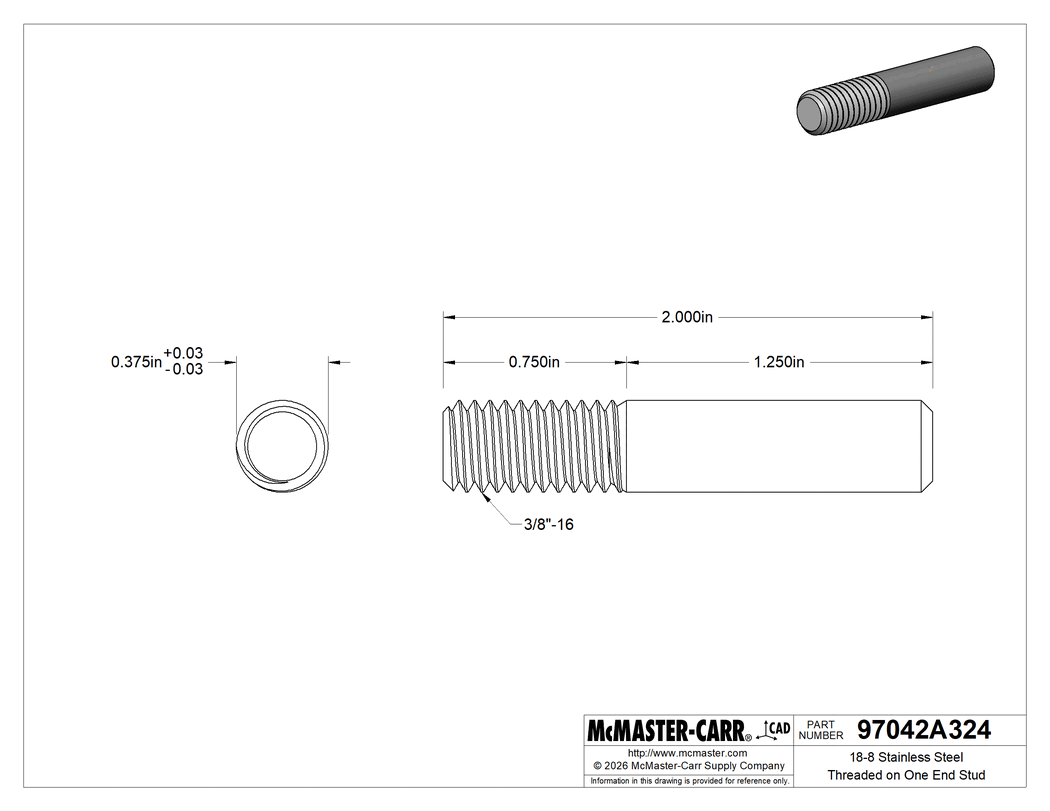

2-D PDF
00000 each
97042A324
In stock
97042A324
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | 18-8 Stainless Steel |
Thread Size | 3/8"-16 |
Length | 2" |
Thread Length | 3/4" |
Shaft | |
Length | 1 1/4" |
Diameter | 3/8" |
Diameter Tolerance | -0.03" to 0.03" |
Tensile Strength | 70,000 psi |
Hardness | Not Rated |
System of Measurement | Inch |
Thread | |
Direction | Right Hand |
Type | UNC |
Spacing | Coarse |
Fit | Unified Standard Class 2A |
Threading | Threaded on One End |
Country of Origin | Italy, United Kingdom, United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Screw the threaded end of these studs into a tapped hole, and use the unthreaded end as a pivot point, hinge, shaft, or locator pin.
18-8 Stainless Steel—Made from 18-8 stainless steel, these studs are chemical resistant and may be mildly magnetic.
The information in this 3-D model is provided for reference only.
