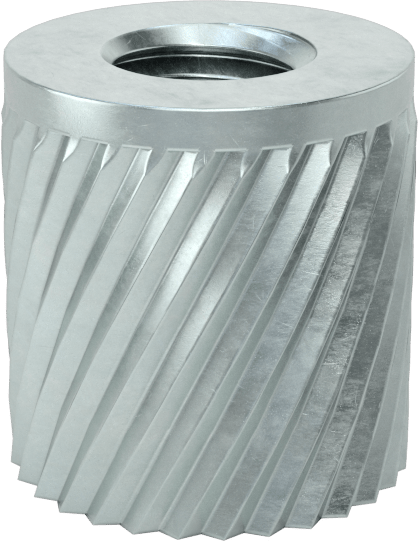

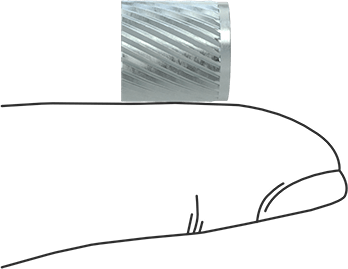

Press-Fit Insert for Soft Metal
Zinc-Plated Steel, M6 x 1 mm Thread Size
Threaded Insert Type | Press In |
Profile | Tapered |
Material | Zinc-Plated Steel |
Thread Size | M6 |
Thread Pitch | 1 mm |
Installed Length | 11.9 mm |
Drill Bit Size | 11.1 mm |
For Maximum Hole Diameter | 11.1 mm |
End Type | Open |
For Minimum Material Thickness | 11.9 mm |
For Use In | Aluminum, Bronze, Copper, Soft Metal |
System of Measurement | Metric |
Tensile Strength | Not Rated |
Thread Direction | Right Hand |
Thread Fit | Metric Class 6H |
Thread Spacing | Coarse |
Thread Type | Metric |
Threaded Insert Securing Type | Knurled |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731819.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Add threads to untapped holes in aluminum and other soft metal. Since these inserts are tapered, they align with the hole as you press them in. The knurls grip the material to keep inserts from twisting once installed. Inserts can also be used to add threads to tubing. Install them with an arbor press or similar pressure tool.
Zinc-Plated Steel—A step up from plain steel, the plating withstands occasional exposure to moisture.

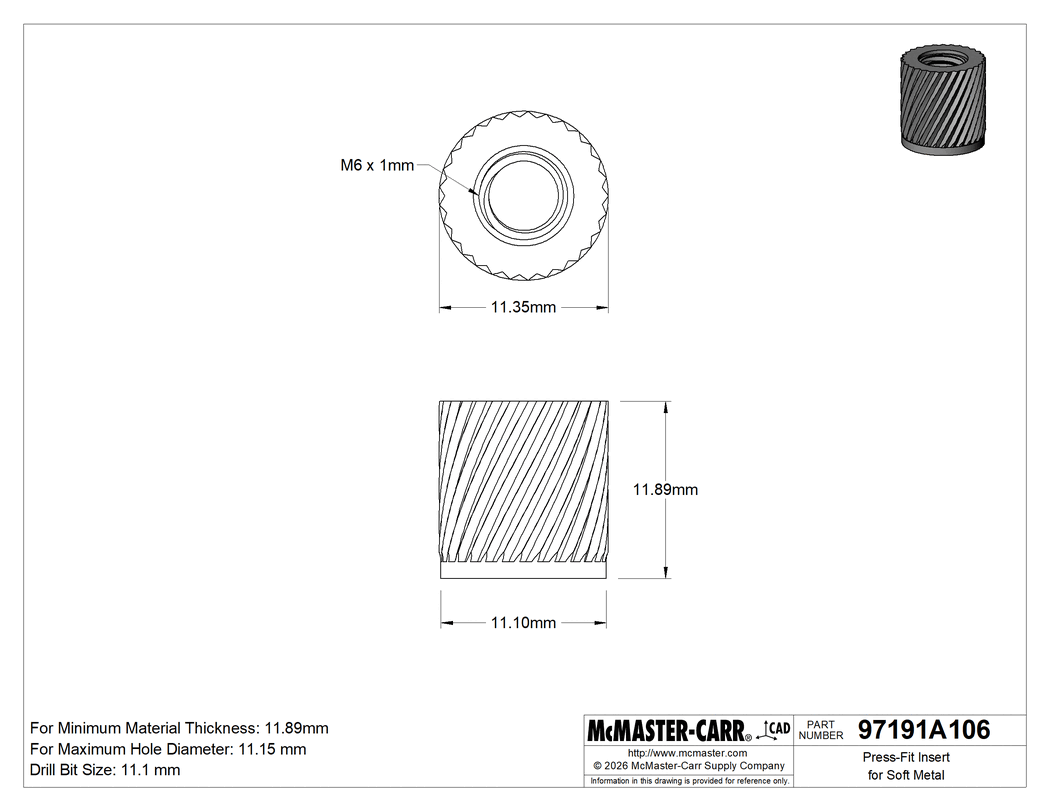

The information in this 3-D model is provided for reference only.
