    Heavy Duty Internal Retaining Rings

    for 70 mm ID, Black Phosphate 1060-1090 Spring Steel

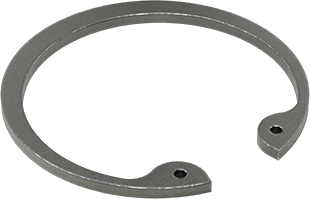

    Image of Product. Bottom orientation. Heavy Duty Internal Retaining Rings, for 70 mm ID, Black Phosphate 1060-1090 Spring Steel.

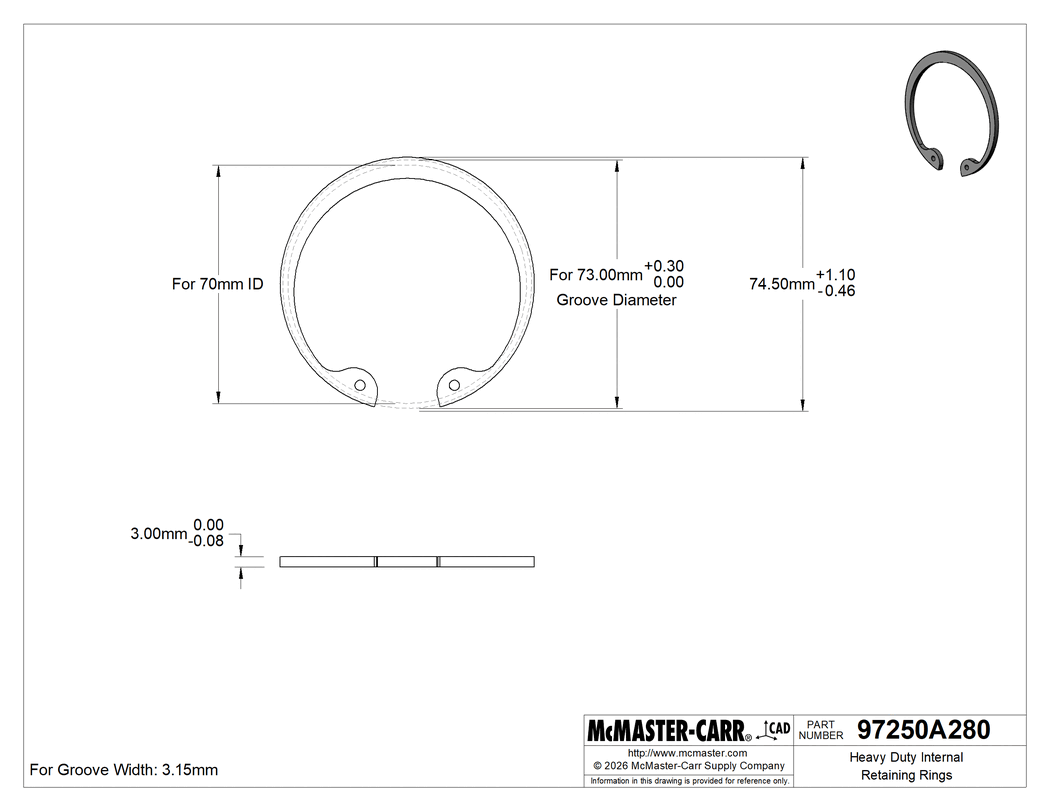

    Technical Drawing of Heavy Duty Internal Retaining Rings, for 70 mm ID, Black Phosphate 1060-1090 Spring Steel.

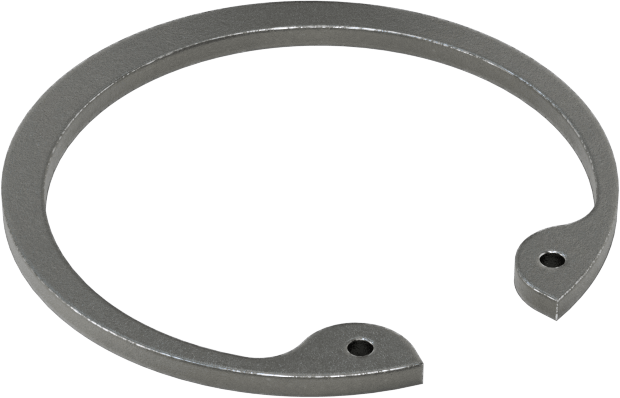

    Image of Product. Side1 orientation. Contains SizingReference. Heavy Duty Internal Retaining Rings, for 70 mm ID, Black Phosphate 1060-1090 Spring Steel.
    2-D PDF
    000000 per pack of 5
    97250A280
    In stock
    97250A280
    000000 per pack of 5
    Pack of 5
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Retaining Ring Type

    Internal

    Material

    Phosphate-Coated Carbon Steel

    For ID

    70 mm

    For Groove

    Diameter

    73 mm

    Diameter Tolerance

    0 mm to 0.3 mm

    Width

    3.15 mm

    Ring

    OD

    74.5 mm

    OD Tolerance

    -0.46 mm to 1.1 mm

    Thk.

    3 mm

    Thk. Tolerance

    -0.08 mm to 0 mm

    Thrust Load Capacity

    38,400 lbf

    Minimum Hardness

    Rockwell C47

    Specifications Met

    DIN 472

    Color

    Black

    Magnetic Properties

    Magnetic

    Performance

    High Load

    Retaining Ring Style

    Tapered

    System of Measurement

    Metric

    Country of Origin

    Czech Republic

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731824.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Related Product

    Pliers

    Thick rings manufactured for high-load applications, from power-generation systems to earth movers. Compared to the standard internal retaining rings, these have up to twice the thrust load capacity. Squeeze with retaining ring pliers and release into a groove inside a bore or housing.

    Ring OD is measured with the ring uninstalled.

    Phosphate-Coated Carbon Steel—The most popular choice, these are strong and wear resistant. Their finish adds some corrosion resistance, but only to minimal dampness.

    The information in this 3-D model is provided for reference only.
