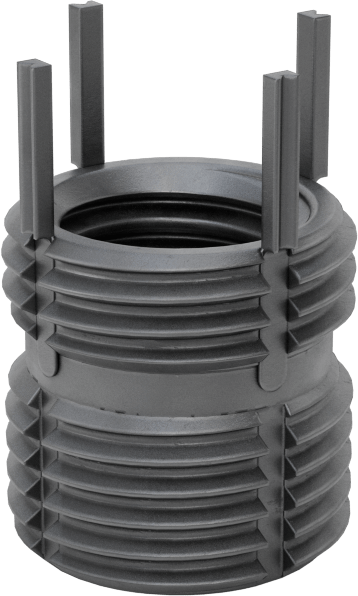

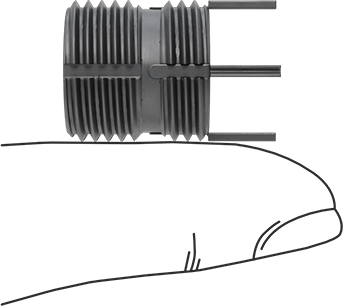

Screw-Locking Key-Locking Insert
with Thin Wall, 18-8 Stainless Steel, M12 x 1.75 mm Thread
Threaded Insert Type | Key Locking |
Key-Locking Insert Wall Type | Thin |
Profile | Standard |
Lubricant Type | Dry Film |
Material | 18-8 Stainless Steel |
Thread Size | M12 |
Thread Pitch | 1.75 mm |
For Tap | |
Thread Size | M16 |
Thread Pitch | 1.5 mm |
Installed Length | 16 mm |
Drill Bit Size | 14.75 mm |
For Maximum Hole Diameter | 14.75 mm |
Number of Locking Keys | 4 |
Comparable To | Keensert |
End Type | Open |
External Locking Type | Key |
For Minimum Material Thickness | 16 mm |
For Tap Type | Metric |
For Use In | Aluminum, Bronze, Copper, Soft Metal |
Internal Locking Type | Distorted Thread |
Passivation | Passivated |
Performance | Screw Locking, Seize Resistant |
System of Measurement | Metric |
Tensile Strength | Not Rated |
Thread Direction | Right Hand |
Thread Fit | Metric Class 4H5H |
Thread Spacing | Coarse |
Thread Type | Metric |
Threaded Insert Securing Type | External Thread |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731819.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
Create the tightest hold in aluminum and other soft metal without screws sticking. The lubricant on these inserts eases installation, and the irregularly shaped threads won’t let screws back out from vibration. Inserts have keys that drive into material to prevent them from slipping or rotating in the hole.
To install, drill and tap a hole in your material. Then, thread the insert onto the installation tool and screw it into the hole. Place the tool over the keys and hit it with a hammer to drive them in.
Thin Wall—Use these inserts near the edge of workpieces or wherever you only have space for a small hole. They're also lighter than standard and extra-thick wall inserts for applications with strict weight limitations.
Dry-Film-Lubricated 18-8 Stainless Steel—The choice for wet and outdoor environments, these inserts resist rust and mild chemicals.

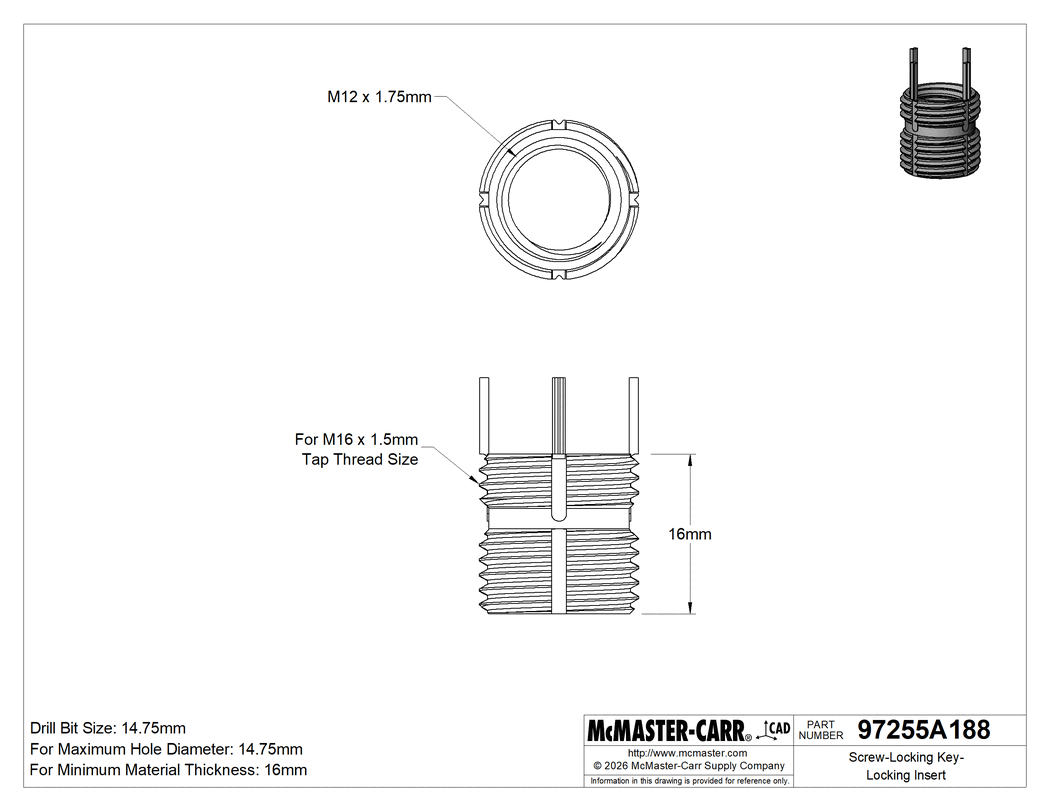

The information in this 3-D model is provided for reference only.
