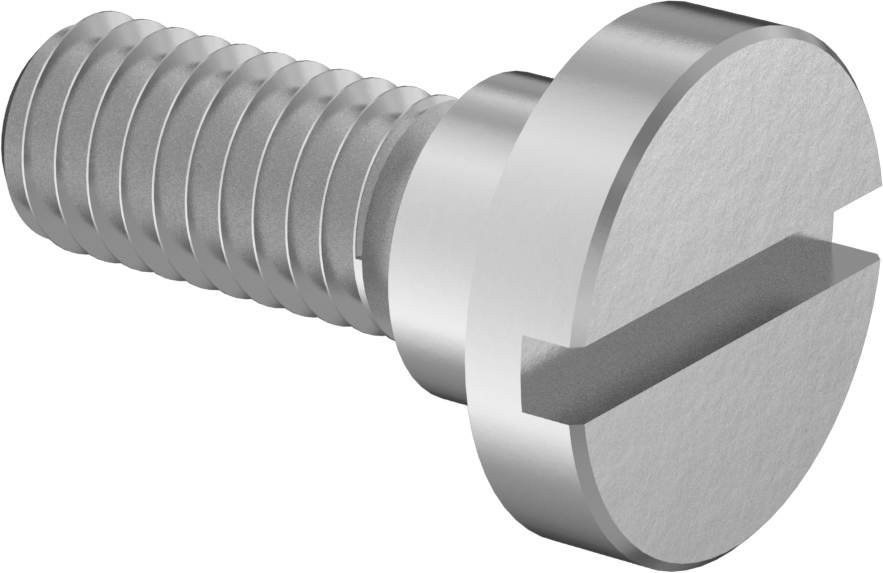

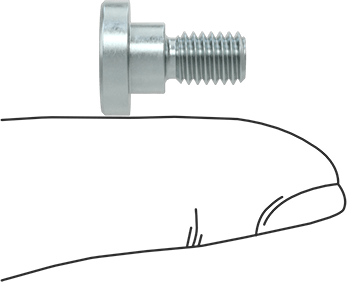

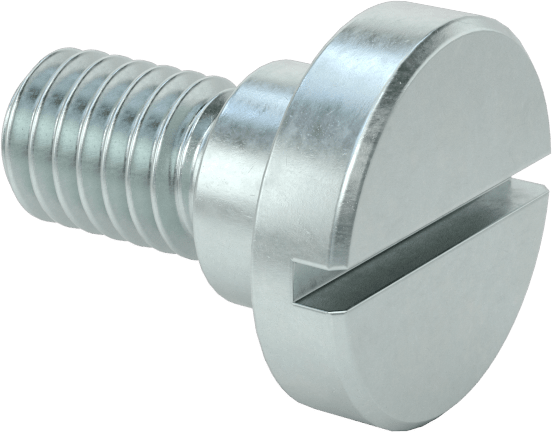

Slotted Low-Profile Steel Shoulder Screw
8 mm Shoulder Diameter, 4 mm Shoulder Length, M6 x 1 mm Thread
Shoulder Fit | Precise |
Thread Direction | Right Hand |
Socket Head Profile | Low |
Fastener Head Type | Socket |
Drive Style | Slotted |
Material | Zinc-Plated Steel |
Shoulder Diameter | 8 mm |
Shoulder Diameter Tolerance | -0.036 mm to 0 mm |
Shoulder Length | 4 mm |
Shoulder Length Tolerance | 0.07 mm to 0.15 mm |
Thread Size | M6 × 1 mm |
Thread Length | 9 mm |
Head | |
Diameter | 13 mm |
Height | 3.1 mm |
Tensile Strength | 58,000 psi |
Specifications Met | DIN 923 |
Hardness | Rockwell B71 |
Head Texture | Smooth |
Minimum Shear Strength | Not Rated |
Performance | Precision |
Relative Thread Length | Standard |
Relative Thread Size | Standard |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Country of Origin | India, Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Fit these slotted screws into shallow holes and low-clearance spaces where smooth and accurate movement is required. The head is about one-half to two-thirds the height of standard-profile screw heads, so they're not suited for high-strength fastening. They are stronger than their stainless steel counterparts, but weaker than standard-profile screws. Engineered for tight tolerances, their shoulder diameters are twice as precise as those on standard-fit screws. Hand-tighten with a slotted screwdriver to avoid damaging the drive.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

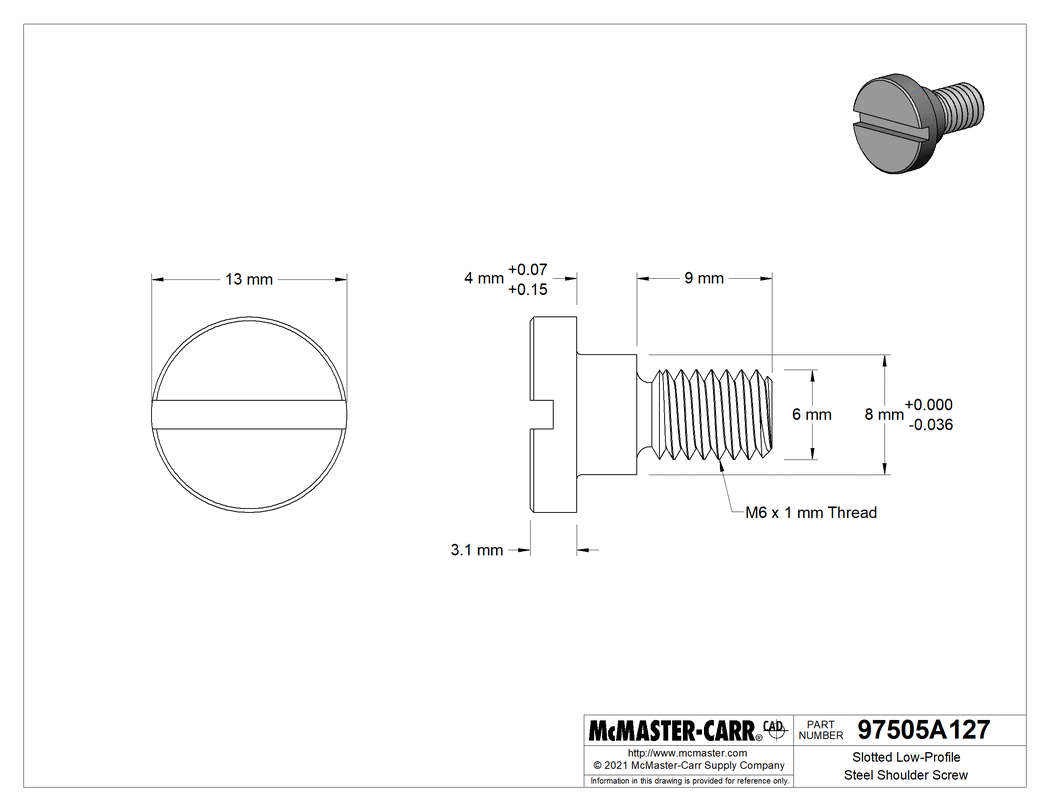

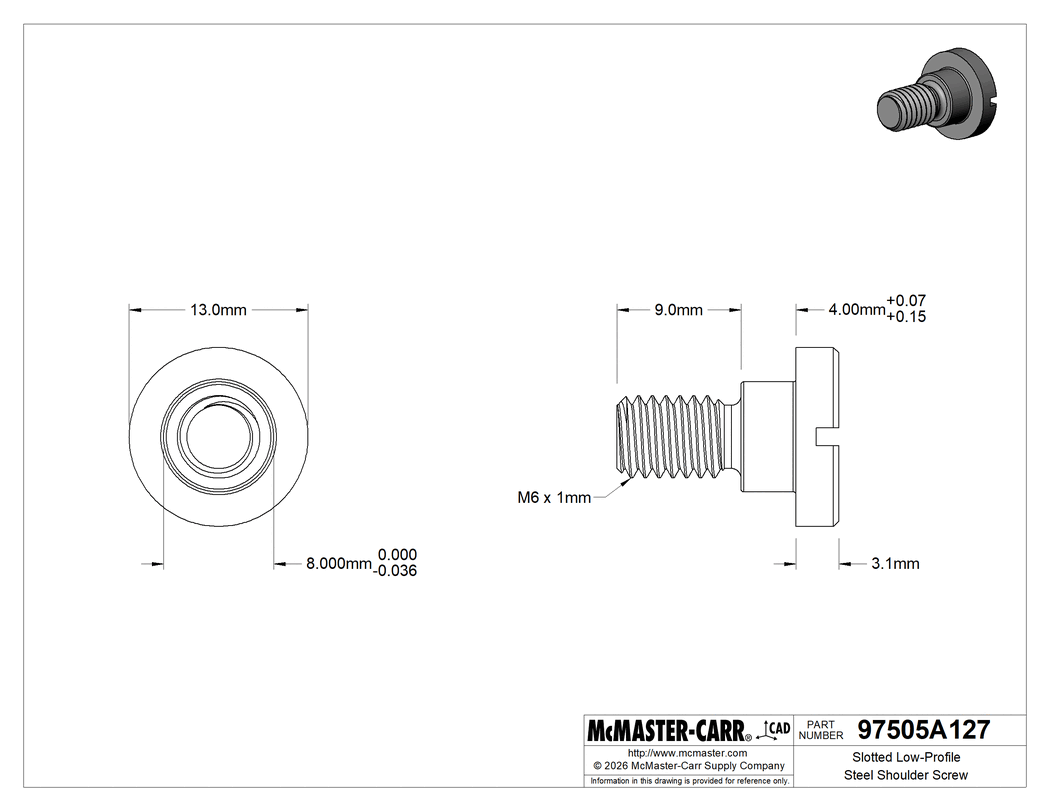

The information in this 3-D model is provided for reference only.
