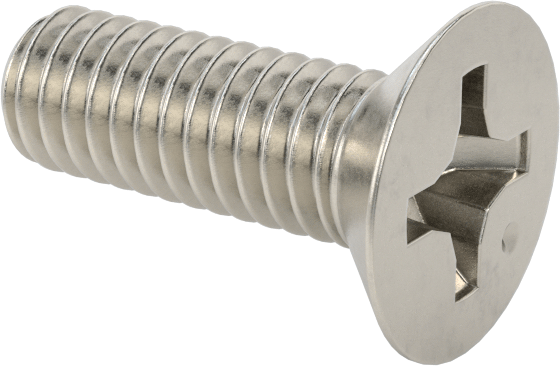

JIS Stainless Steel Flat Head Screws
M4 x 0.7 mm Thread, 12 mm Long
Thread Direction | Right Hand |
Drive Style | JIS |
Tip Type | Flat |
Thread Size | M4 |
Thread Pitch | 0.7 mm |
Length | 12 mm |
Countersink Angle | 90° |
Flat Head Profile | Standard |
Head | |
Diameter | 8 mm |
Height | 2.3 mm |
Threading | Fully Threaded |
Tensile Strength | 50,000 psi |
Drive Size | No. 2 |
Fastener Head Type | Flat |
Hardness | Not Rated |
JIS Specification | JIS B 1111 |
Material | 18-8 Stainless Steel |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most corrosion-resistant flat head screws that are made to Japanese Industrial Standards. Similar in appearance to Phillips, the JIS drive has a shallower opening with sharper angles and straighter internal walls. This lets them withstand more torque while preventing the driver from slipping and damaging the drive. Tighten them only with a JIS driver to avoid stripping the drive. Some JIS screws are marked with a dot near the drive for quick identification. They're made of stainless steel, so they won't rust or corrode when exposed to moisture and chemicals.
Length is measured from the top of the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
Standard Profile—Standard-profile heads are the most common choice for flat head screws.

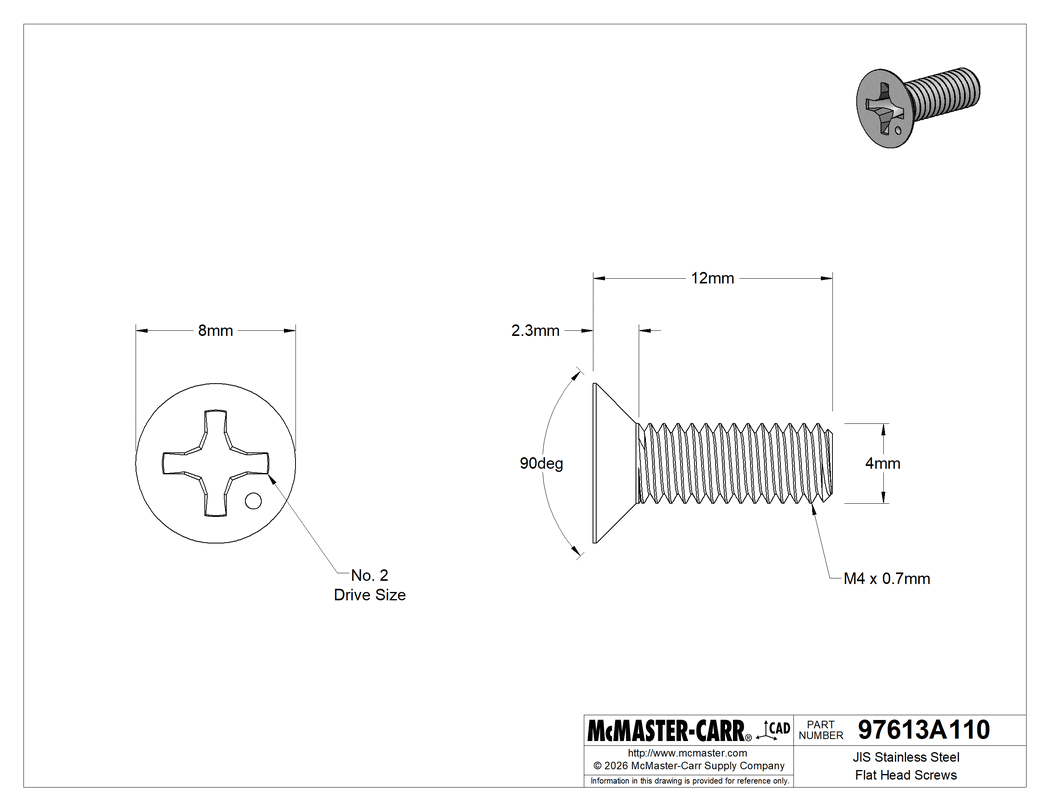

The information in this 3-D model is provided for reference only.
