410 Stainless Steel Quick-Install Thread-Cutting Screws
for Soft Metal, 10-24 Thread Size, 1/2" Long
Drive Style | Phillips |
Fastener Head Type | Rounded |
Tip Type | Blunt |
Tapping Method | Thread Cutting |
Rounded Head Style | Pan |
Material | 410 Stainless Steel |
Screw Size | No. 10 |
Length | 1/2" |
Head | |
Diameter | 0.373" |
Height | 0.133" |
Tapping Screw Type | 23/T |
Drive Size | No. 2 |
Approximate Threads per Inch | 24 |
Drill Bit Size | 17 Ga. |
Shank Cross Section | Round |
Drill Bit Decimal Size Equivalent | 0.173" |
For Use In | Soft Metal, Brass, Cast Iron, Metal, Sheet Metal |
Performance | Corrosion Resistant |
Rounded Head Profile | Standard |
Screw Size Decimal Equivalent | 0.19" |
System of Measurement | Inch |
Thread | |
Size | 10-24 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Threading | Fully Threaded |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
A wide slot at the tip cuts threads and clears chips, reducing the effort to drive these screws. They create threads in drilled holes in soft metals, such as brass, and resist rust in damp environments. The Phillips drive handles enough torque to keep drivers from slipping and the rounded head creates a finished look.
Length is measured from under the head.
410 Stainless Steel—Tougher and more wear resistant than other stainless steel screws but less corrosion resistant.
Prepare hole
Install

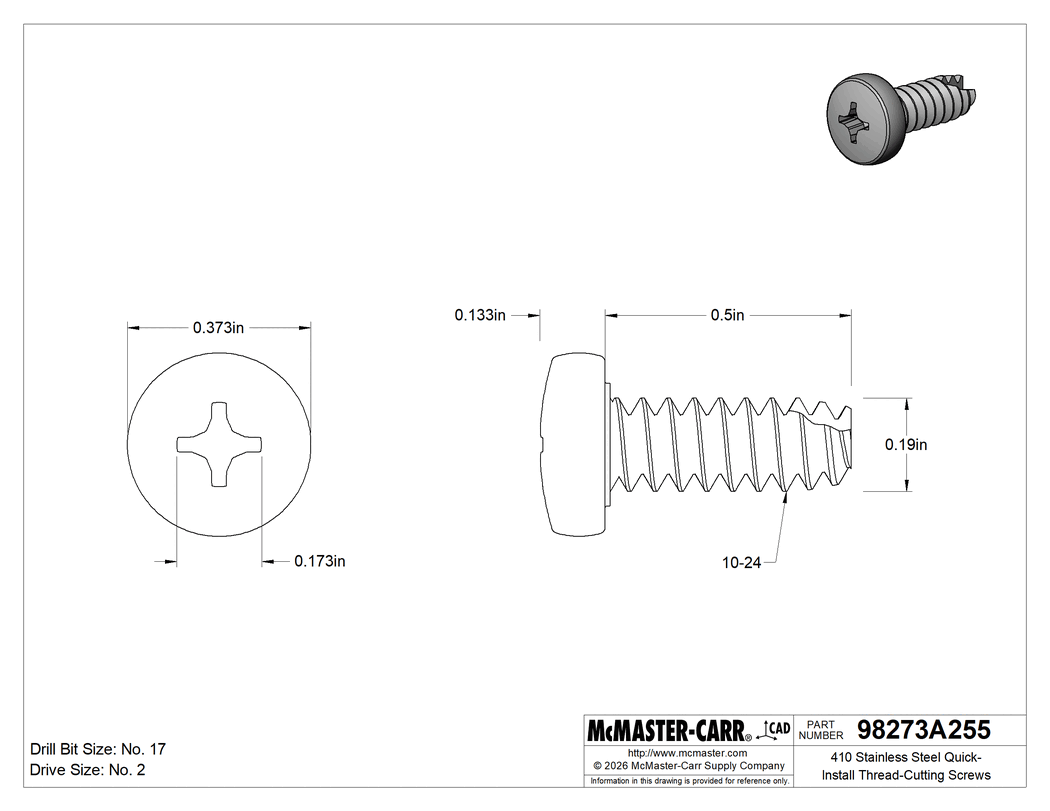

The information in this 3-D model is provided for reference only.
