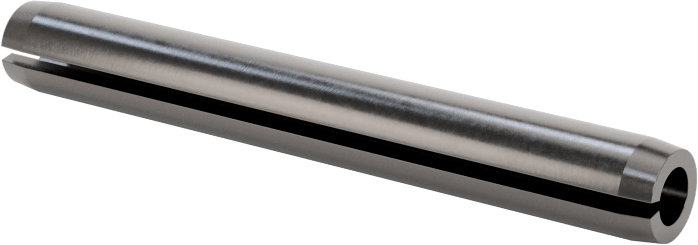

1050-1095 Spring Steel Slotted Spring Pin
3/16" Diameter, 1-1/2" Long
Shaft Type | Slotted |
Material | Spring Steel |
Diameter | 3/16" |
Length | 1 1/2" |
For Hole Diameter | 0.187" to 0.192" |
Wall Thickness | 0.04" |
Double Shear Breaking Strength | 4,100 lbf |
Minimum Hardness | Rockwell C43 |
Specifications Met | ASME B18.8.2 |
End Shape | Chamfer |
End Type | Plain |
Fastener Head Type | Plain |
Passivation | Unpassivated |
Performance | Stress Resistant |
Pin Type | Spring |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Squeeze these pins into holes and they expand slightly, creating tension to hold parts in place. They are often used as hinge pins and as fasteners for springs and power transmission components. An alternative to dowel pins, they're lighter in weight with a hollow center and don’t need a precise hole. Also known as roll pins.
Spring Steel—These pins won't deform from stress and vibration. Although they're stronger than stainless steel, they're best for dry environments since moisture will cause them to rust.

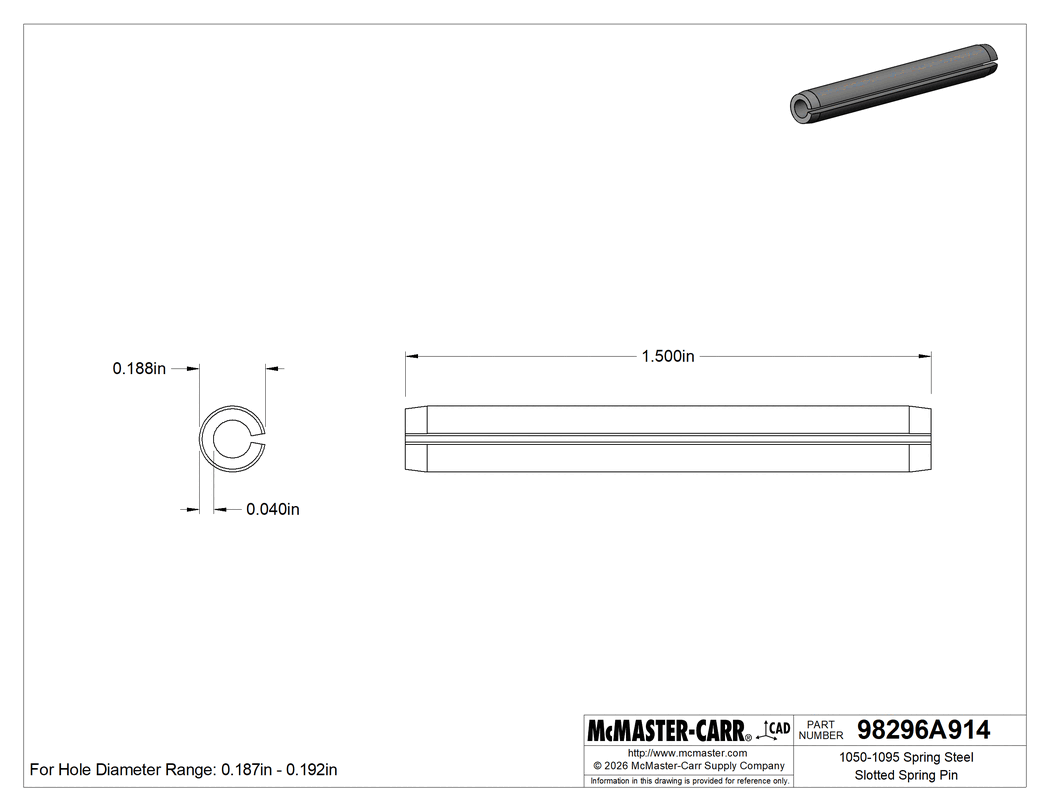

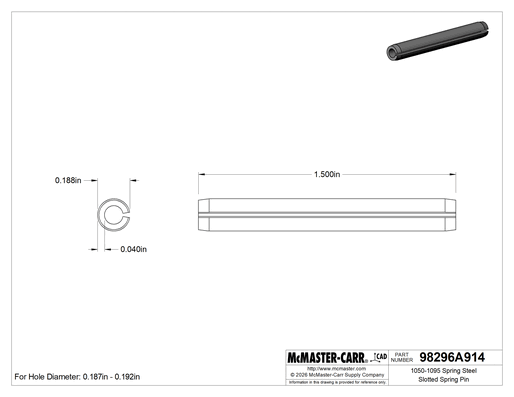

The information in this 3-D model is provided for reference only.
