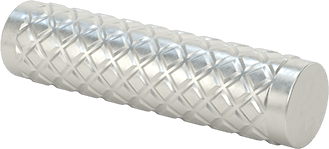

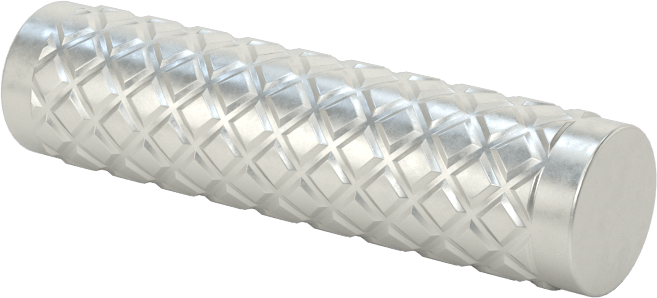

Fully Knurled Dowel Pins
1/4" Diameter, 1" Long
Tolerance Rating | Standard |
Knurl Coverage | Full |
Fastener Head Type | Plain |
Material | Low-Carbon Steel |
Diameter | 1/4" |
Diameter Tolerance | -0.005" to 0" |
Length | 1" |
Double Shear Breaking Strength | Not Rated |
Minimum Hardness | Not Rated |
End Shape | Flat |
End Type | Plain |
Knurl Location | Full |
Pin Type | Dowel |
Shaft Type | Knurled |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Etched around the entire diameter, these pins make more contact with the hole than grooved pins. This gives them better resistance to both pulling and twisting that can displace the pin and damage the hole. They're also the best choice for holding plastic and thin parts together.
Low-Carbon Steel—These pins won't deform from stress and vibration. They're stronger than stainless steel but not quite as strong as alloy steel. Pins perform best in dry environments since moisture will cause them to rust.

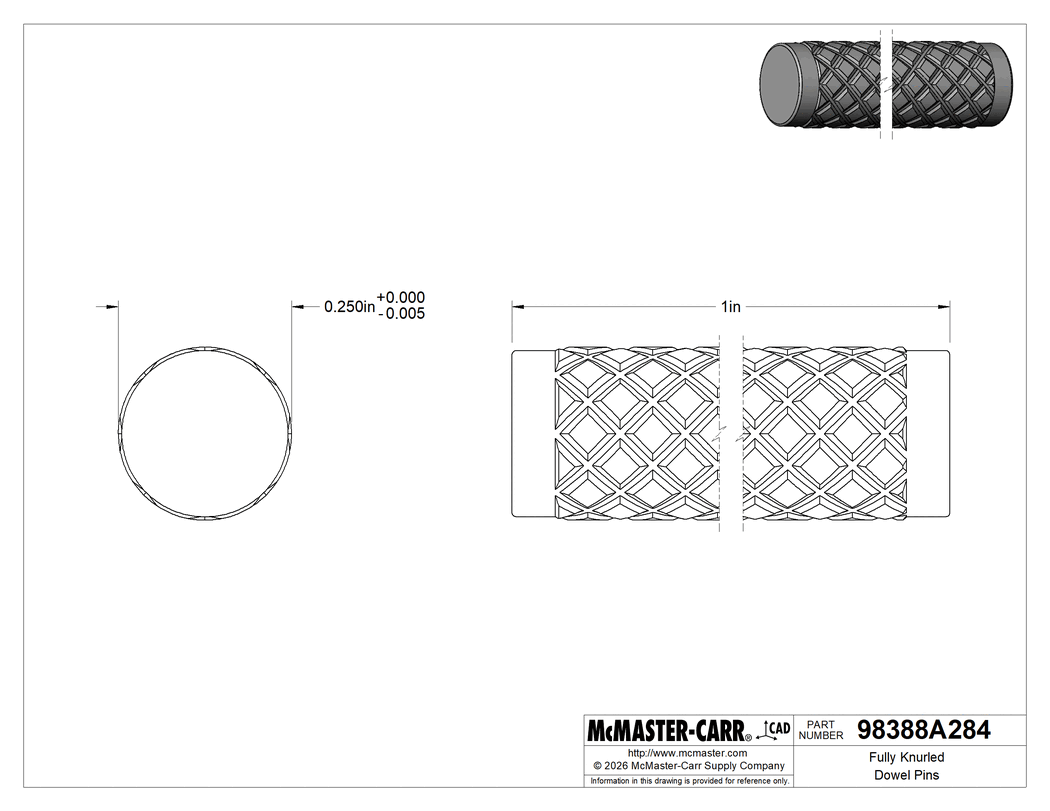

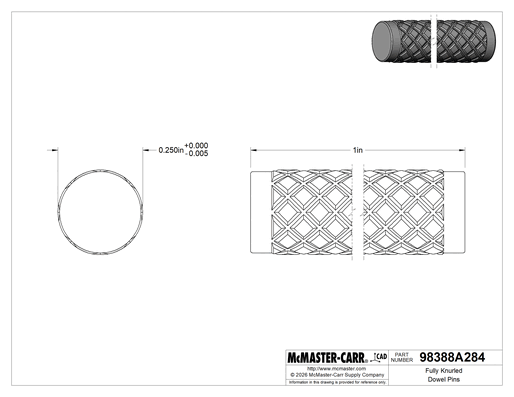

The information in this 3-D model is provided for reference only.
