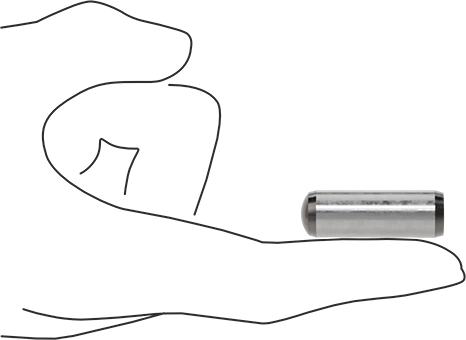

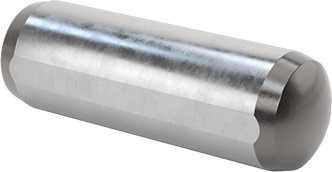

Vented Pull-Out Dowel Pin with Flat Shaft
1050-1095 Spring Steel, 12 mm Diameter, 36 mm Long
Tolerance Rating | Standard |
Construction | Vented |
Removal Method | Pull Out |
Fastener Head Type | Tapped |
Shaft Type | Flat |
Material | Spring Steel |
Diameter | 12 mm |
Diameter Tolerance | 0.007 mm to 0.018 mm |
Length | 36 mm |
Thread Size | M6 × 1 mm |
Double Shear Breaking Strength | 24,000 lbf |
Minimum Hardness | Rockwell C52 |
Specifications Met | DIN 7979D-m6 |
End Shape | Chamfer |
End Type | Plain |
For Use With | Blind Holes |
Performance | Easy Removal |
Pin Type | Dowel |
System of Measurement | Metric |
Country of Origin | Germany |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |

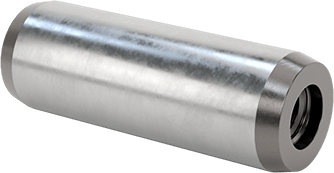

Insert and remove from blind holes with less effort than pins that aren't vented. The vent relieves trapped air, so pressure doesn't create resistance as you install the pin. Because they have a tapped end, you can thread in a screw and pull the pin out with a removal tool (sold separately). You can also pull using pliers, but there’s more risk of damaging the hole.

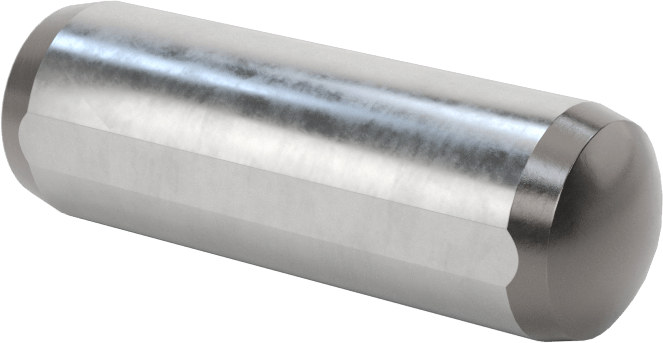

Flat Shaft—The flat side of these pins creates a vent that's less likely to be blocked than a spiral shaft, but doesn’t offer quite as strong of a hold.
Spring Steel—These pins won't deform from stress and vibration. They're stronger than stainless steel but not quite as strong as alloy steel. Pins perform best in dry environments since moisture will cause them to rust.
Prepare hole
Remove

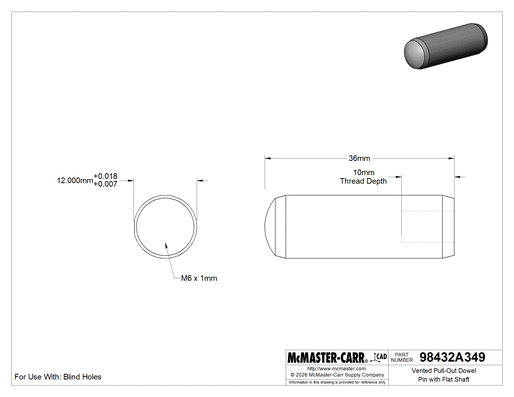

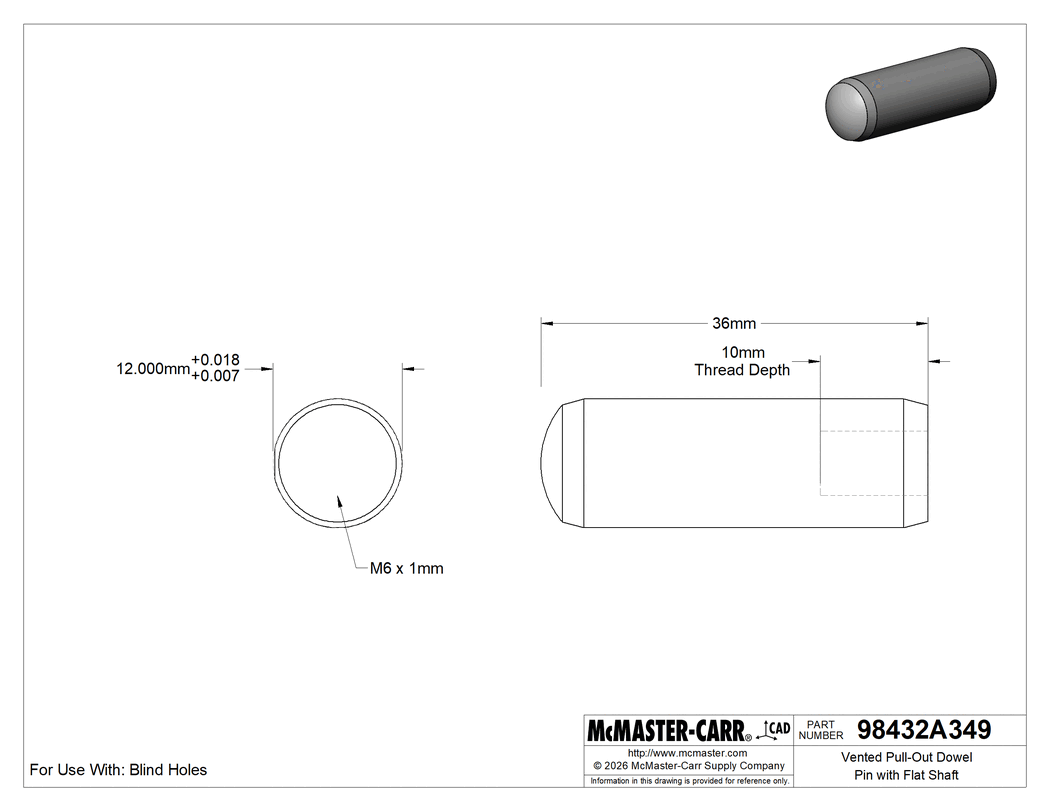

The information in this 3-D model is provided for reference only.
