Low-Strength Steel Threaded Rod

1-1/4"-12 Thread Size, 6 Feet Long

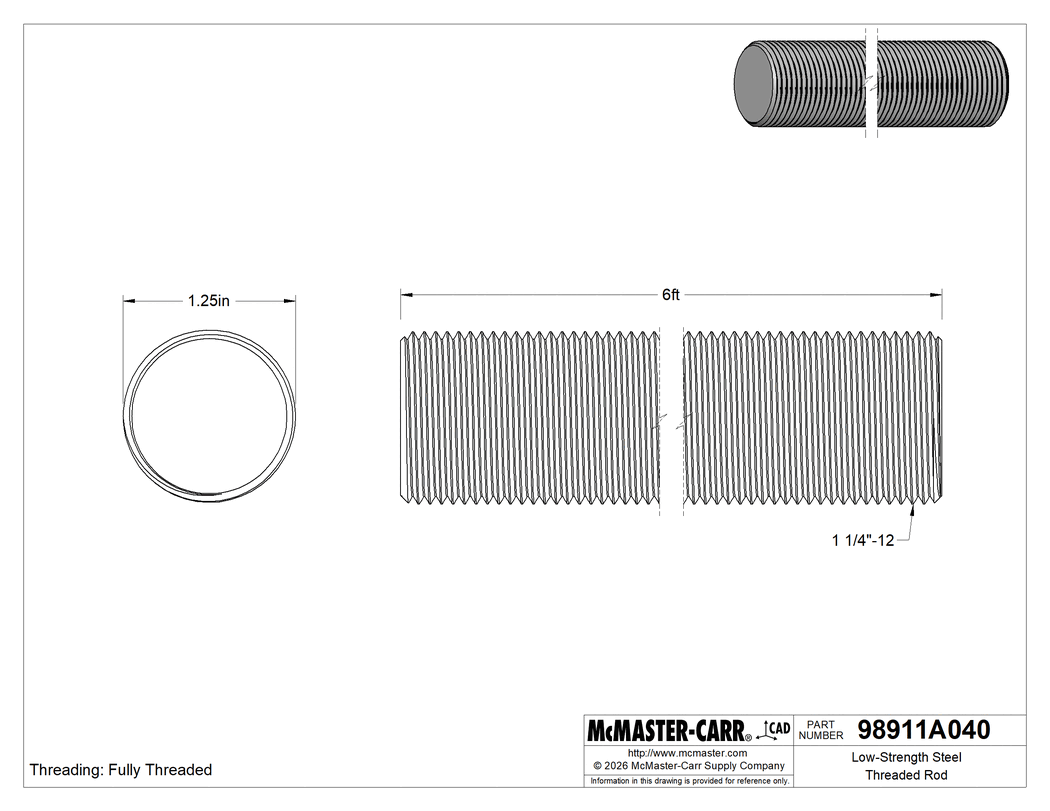

Technical Drawing of Low-Strength Steel Threaded Rod, 1-1/4"-12 Thread Size, 6 Feet Long.

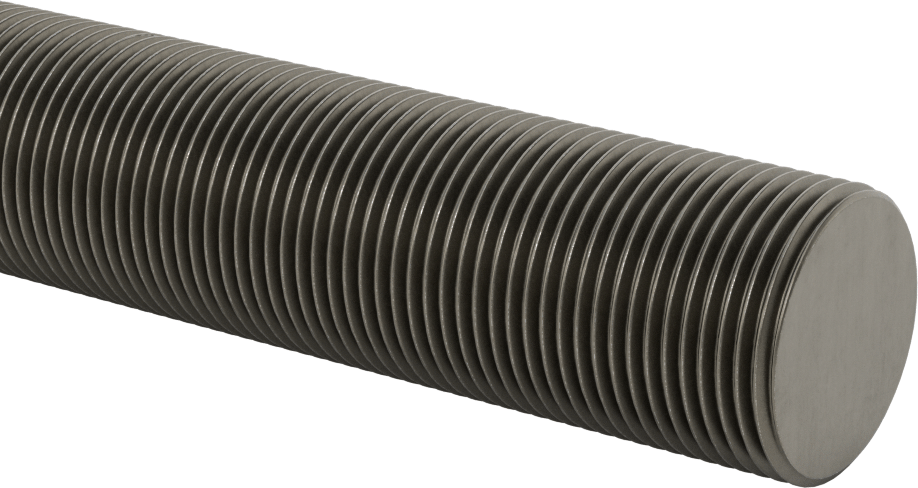

Image of Product. Side1 orientation. Contains SizingReference. Low-Strength Steel Threaded Rod, 1-1/4"-12 Thread Size, 6 Feet Long.

2-D PDF

0000000 per pack of 1

98911A040

In stock

98911A040

0000000 per pack of 1

QuantityPack of 1

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread Direction	Right Hand
Fastener Strength Rating	Low
Thread Size	1 1/4"-12
Length	6 ft.
Tensile Strength	50,000 psi
Hardness	Rockwell B61
Material	Steel
System of Measurement	Inch
Thread Fit	Unified Standard Class 1A
Thread Spacing	Fine
Thread Type	UNF
Threading	Fully Threaded
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Low-Strength Fastener—With a tensile strength of 50,000 psi or 60,000 psi, these rods are often used to suspend light fixtures, cable trays, and conduit from ceilings. They're about half the strength of medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also low-strength steel.
