Brass Threaded Rod

10-32 Thread Size, 6 Feet Long

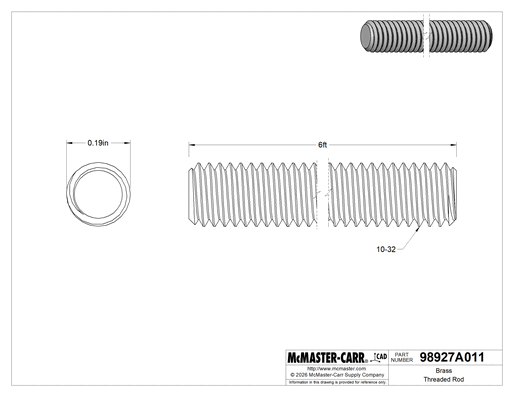

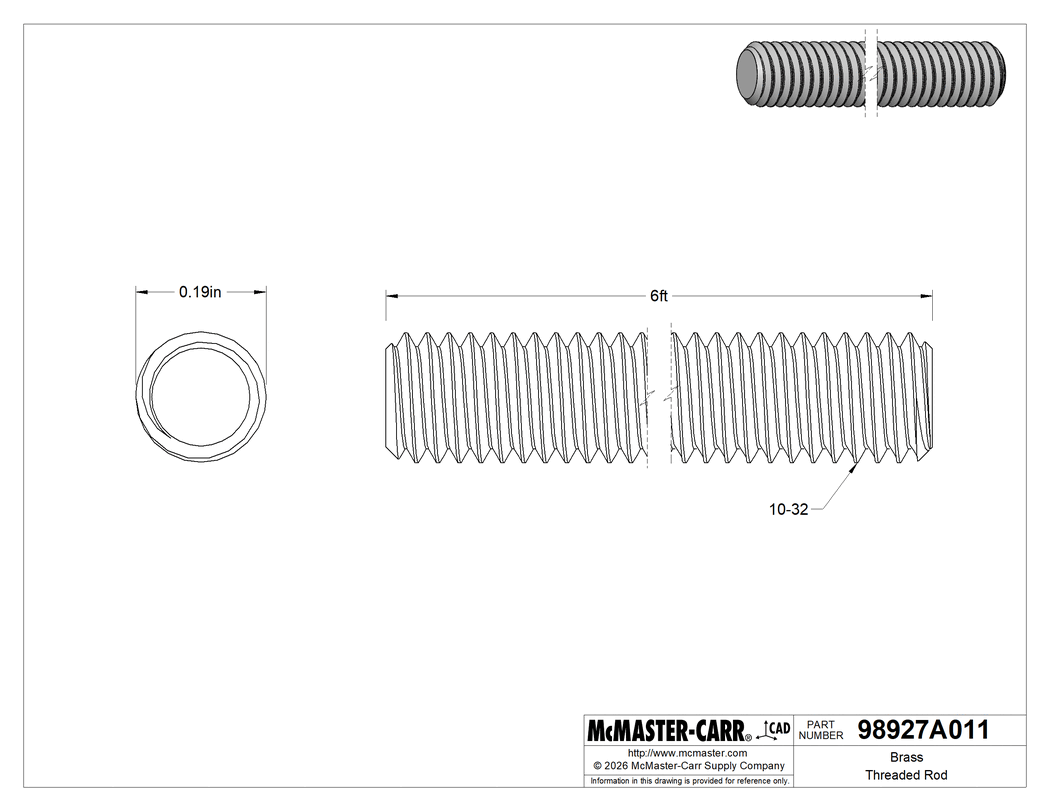

Technical Drawing of Brass Threaded Rod, 10-32 Thread Size, 6 Feet Long.

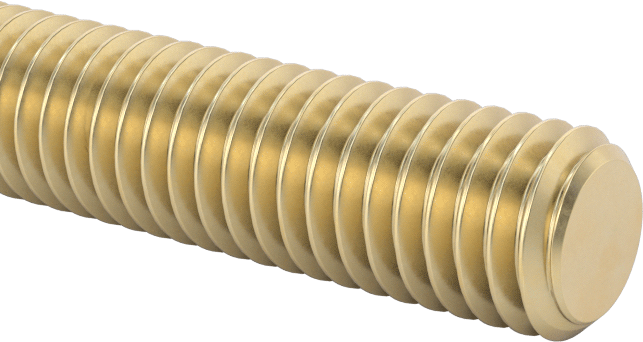

Image of Product. Side1 orientation. Contains SizingReference. Brass Threaded Rod, 10-32 Thread Size, 6 Feet Long.

2-D PDF

000000 per pack of 1

98927A011

In stock

98927A011

000000 per pack of 1

QuantityPack of 1

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread Direction	Right Hand
Thread Size	10-32
Length	6 ft.
Tensile Strength	50,000 psi
Hardness	Rockwell B55
Material	Brass
Performance	Corrosion Resistant
System of Measurement	Inch
Thread Fit	Unified Standard Class 2A
Thread Spacing	Fine
Thread Type	UNF
Threading	Fully Threaded
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	Not Compliant
RoHS Compliance	Not Compliant
Schedule B Number	741539.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Brass—Conductive and nonmagnetic, brass rods are commonly used to secure electrical equipment, such as circuit board assemblies and mounting brackets, inside enclosures.
