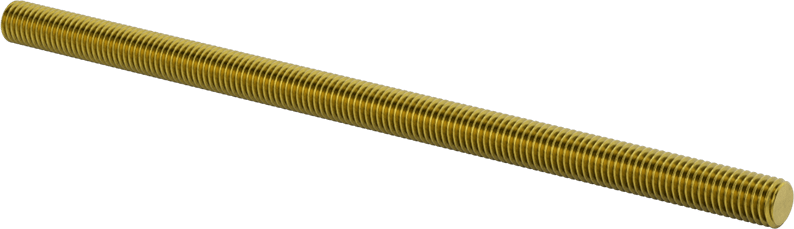

Grade B7 Medium-Strength Steel Threaded Rod
Zinc Yellow-Chromate Plated, M10 x 1.5 mm Thread, 200 mm Long
Thread Direction | Right Hand |
Fastener Strength Rating | Medium |
Thread Size | M10 × 1.5 mm |
Length | 200 mm |
Tensile Strength | 125,000 psi |
Fastener Strength Grade/Class | ASTM Grade B7 |
Hardness | Rockwell C35 |
Specifications Met | ASTM A193, DIN 976 |
Finish | Zinc Yellow-Chromate Plated |
Material | Steel |
Performance | High Pressure |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Threading | Fully Threaded |
Country of Origin | Belgium, Canada, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Mexico, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Medium-Strength Fastener—With tensile strengths from 110,000 psi to 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also medium-strength steel.
Zinc-Yellow-Chromate-Plated Steel—The most common choice for areas with occasional exposure to moisture.
Adhere

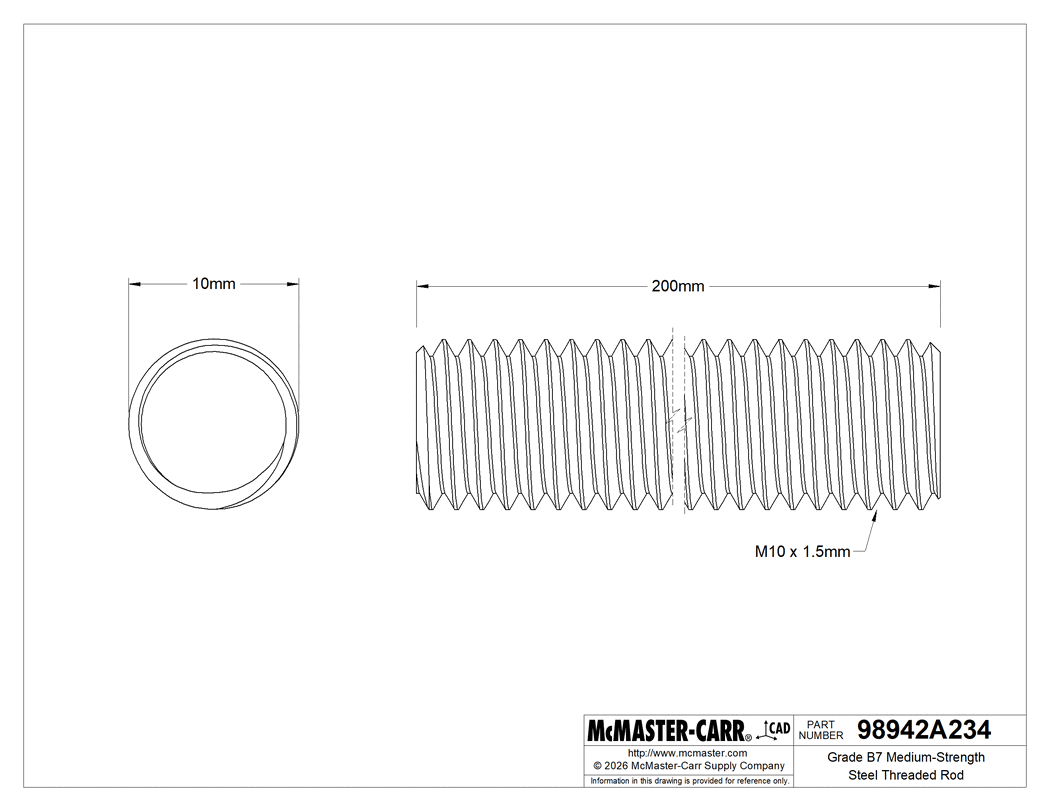

The information in this 3-D model is provided for reference only.
