Class 8.8 Medium-Strength Steel Threaded Rod

M20 x 2.5 mm Thread Size, 2 M Long

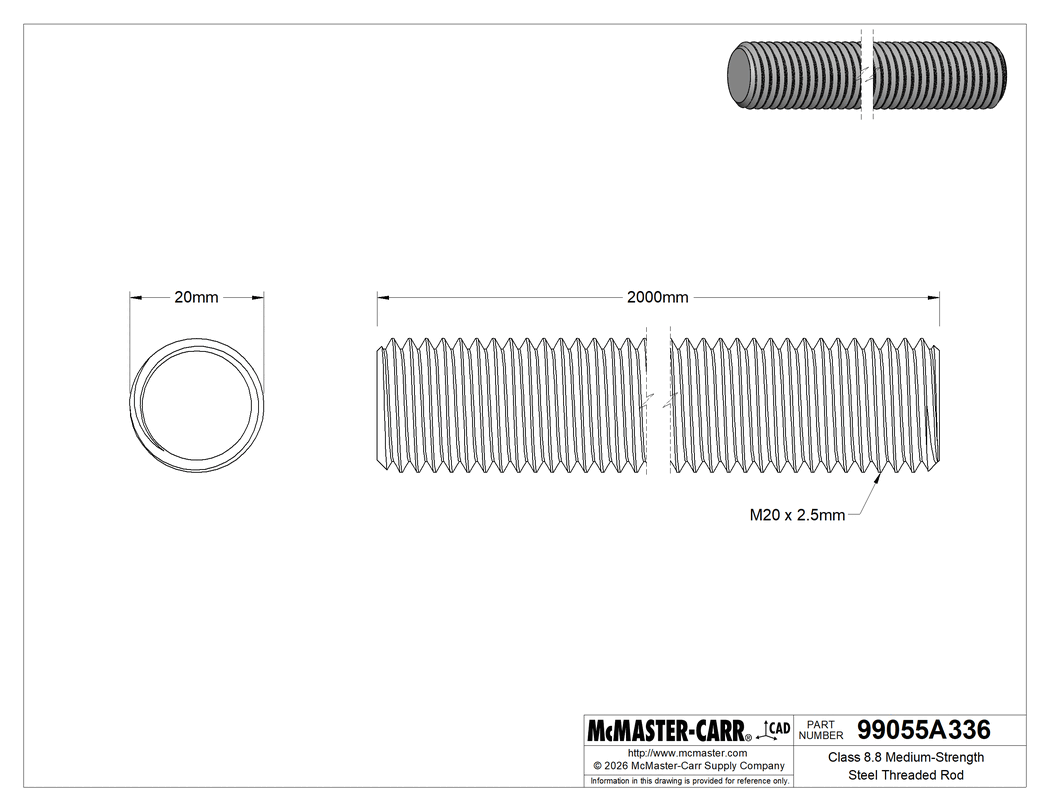

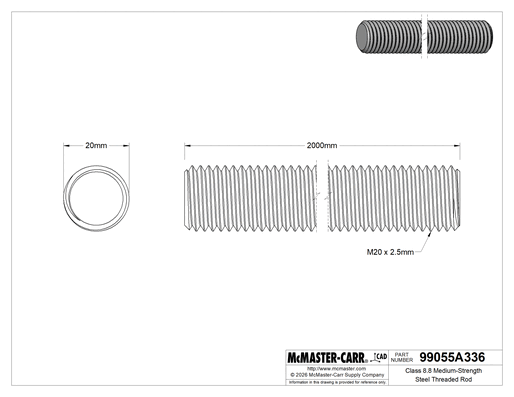

Technical Drawing of Class 8.8 Medium-Strength Steel Threaded Rod, M20 x 2.5 mm Thread Size, 2 M Long.

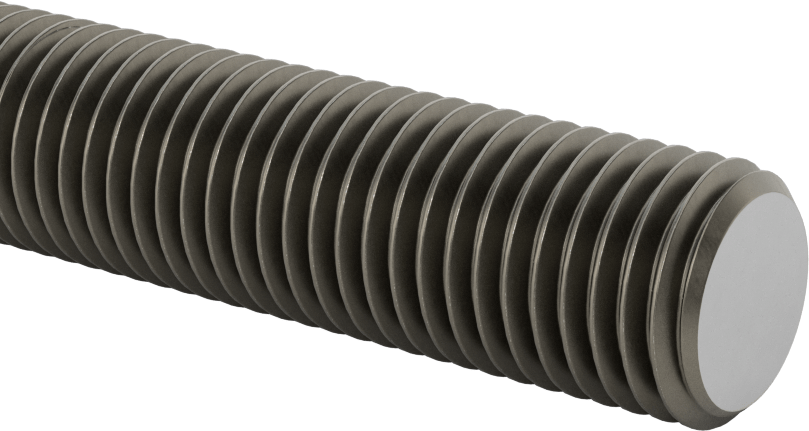

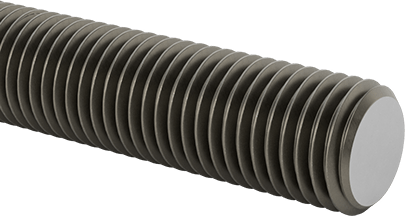

Image of Product. Side1 orientation. Contains SizingReference. Class 8.8 Medium-Strength Steel Threaded Rod, M20 x 2.5 mm Thread Size, 2 M Long.

2-D PDF

000000 each

99055A336

In stock

99055A336

000000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Learn more about our Solidworks Add-In

Thread Direction	Right Hand
Fastener Strength Rating	Medium
Thread Size	M20 × 2.5 mm
Length	2 m
Tensile Strength	110,000 psi
Fastener Strength Grade/Class	Class 8.8
Hardness	Rockwell C20
Specifications Met	DIN 976
Certificate Form	Digital
Certificate Type	Material Certificate with Traceable Lot Number
Material	Steel
System of Measurement	Metric
Thread Fit	Metric Class 6g
Thread Spacing	Coarse
Thread Type	Metric
Threading	Fully Threaded
Country of Origin	United States
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Medium-Strength Fastener—With tensile strengths from 110,000 psi to 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also medium-strength steel.
