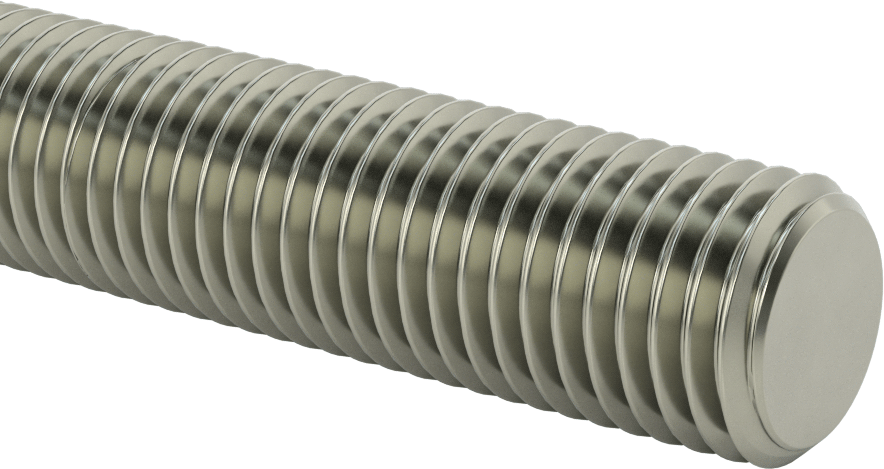

Grade B16 Medium-Strength Steel Threaded Rod
1-1/8"-7 Thread Size, 1 Foot Long
Thread Direction | Right Hand |
Fastener Strength Rating | Medium |
Thread Size | 1 1/8"-7 |
Length | 1 ft. |
Tensile Strength | 120,000 psi |
Fastener Strength Grade/Class | ASTM Grade B16 |
Hardness | Not Rated |
Specifications Met | ASTM A193 |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Material | Steel |
Performance | High Pressure, High Temperature |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | United States, Finland |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Medium-Strength Fastener—With tensile strengths from 110,000 psi to 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also medium-strength steel.
Steel—Best for dry environments since moisture will cause these rods to rust.

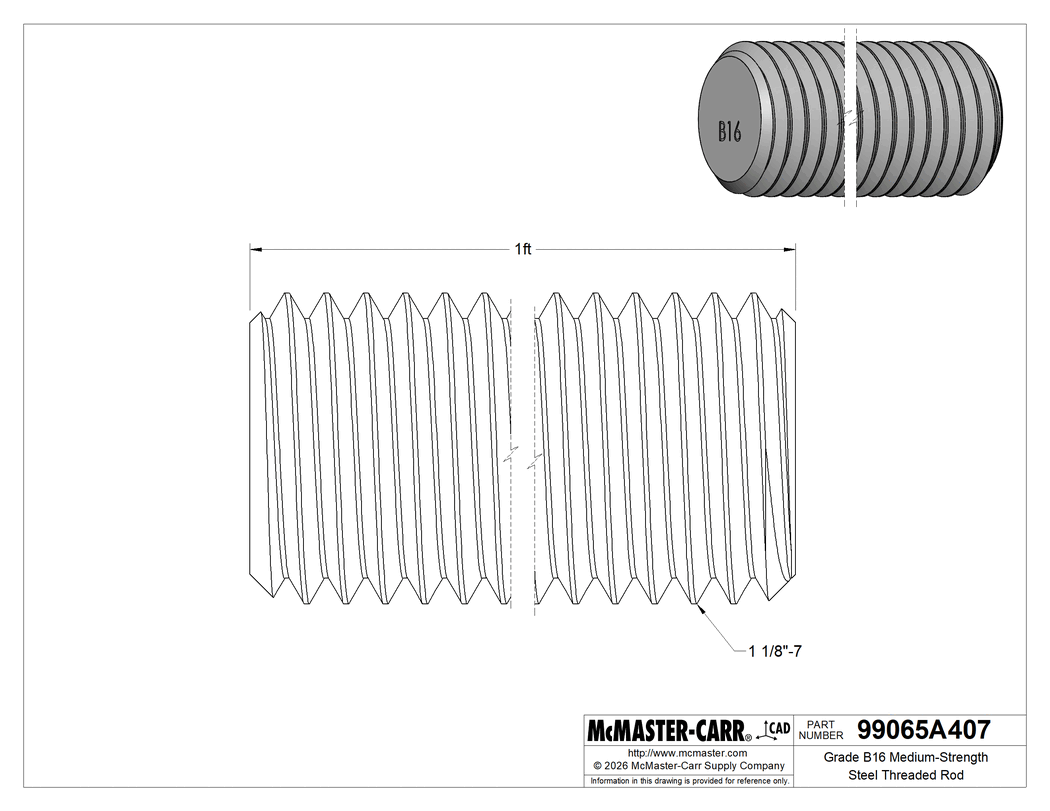

The information in this 3-D model is provided for reference only.
