Medium-Strength Threaded Rod

Class 8.8 Zinc-Plated Steel, M12 x 1.75mm Thread, 300 mm Long

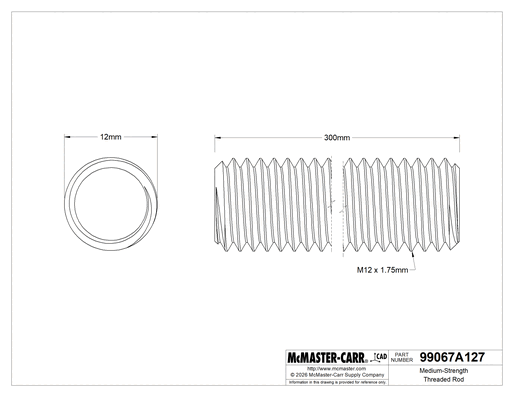

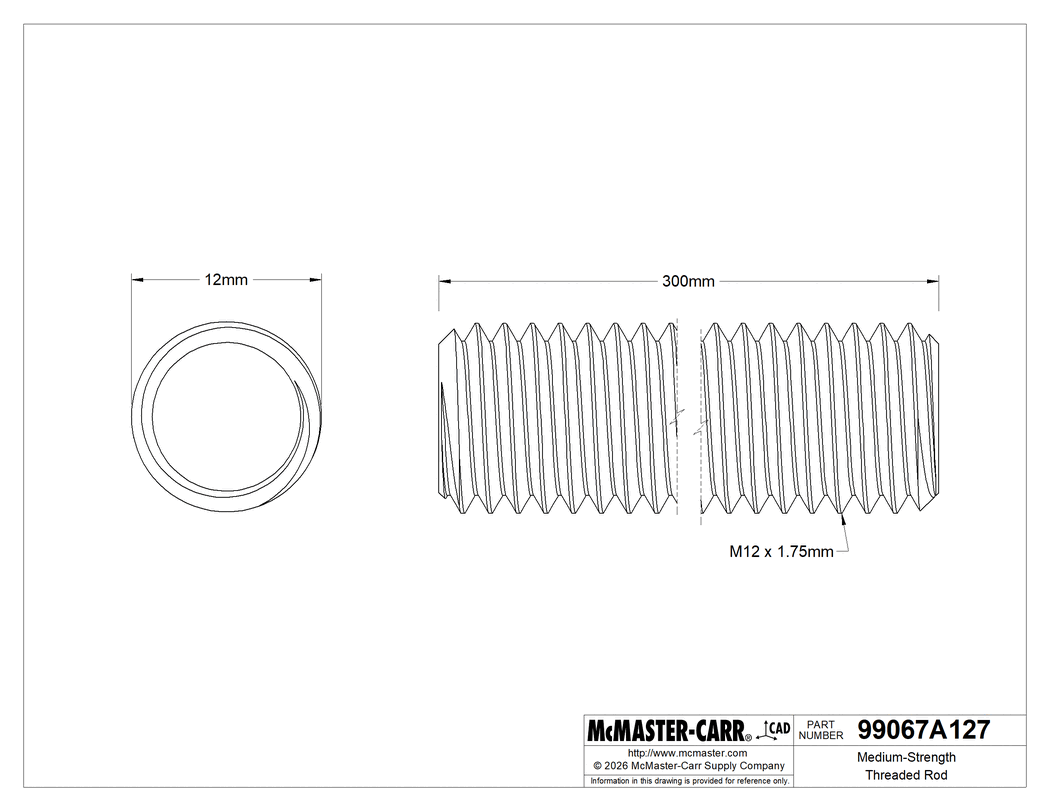

Technical Drawing of Medium-Strength Threaded Rod, Class 8.8 Zinc-Plated Steel, M12 x 1.75mm Thread, 300 mm Long.

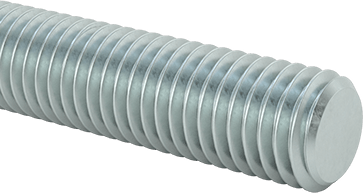

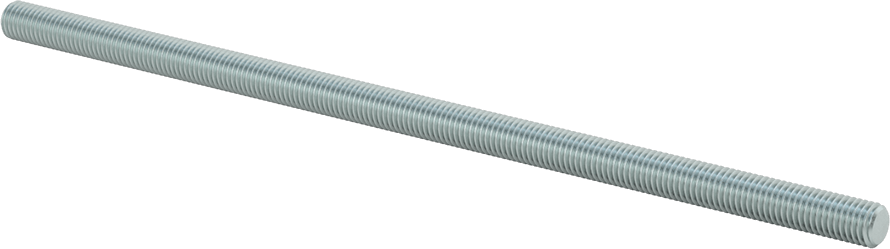

Image of Product. Side1 orientation. Contains SizingReference. Medium-Strength Threaded Rod, Class 8.8 Zinc-Plated Steel, M12 x 1.75mm Thread, 300 mm Long.

2-D PDF

000000 each

99067A127

In stock

99067A127

000000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Learn more about our Solidworks Add-In

Thread Direction	Right Hand
Fastener Strength Rating	Medium
Thread Size	M12 × 1.75 mm
Length	300 mm
Tensile Strength	110,000 psi
Fastener Strength Grade/Class	Class 8.8
Hardness	Rockwell C20
Specifications Met	DIN 976
Finish	Zinc Plated
Material	Steel
System of Measurement	Metric
Thread Fit	Metric Class 6g
Thread Spacing	Coarse
Thread Type	Metric
Threading	Fully Threaded
Country of Origin	United States
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.

Medium-Strength Fastener—With tensile strengths from 110,000 psi to 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also medium-strength steel.
