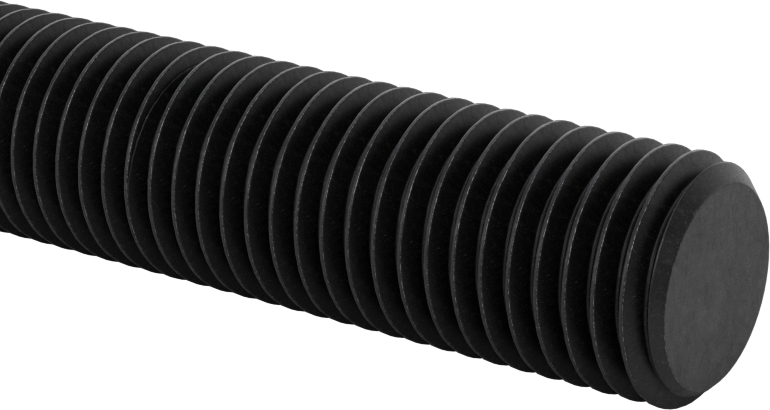

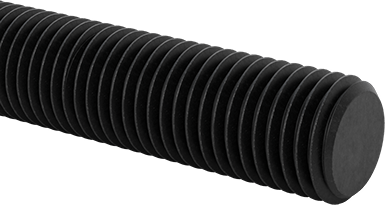

Medium-Strength Threaded Rod
M16 x 2 mm Thread Size, 1 M Long
Thread Direction | Right Hand |
Fastener Strength Rating | Medium |
Thread Size | M16 × 2 mm |
Length | 1 m |
Tensile Strength | 110,000 psi |
Fastener Strength Grade/Class | Class 8.8 |
Hardness | Rockwell C20 |
Specifications Met | DIN 976 |
Finish | Black Oxide |
Material | Steel |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Threading | Fully Threaded |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
Medium-Strength Fastener—With tensile strengths from 110,000 psi to 125,000 psi, these rods are strong enough for most industrial applications, such as anchoring machinery and connecting pipe flanges. They are about twice as strong as low-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also medium-strength steel.
Black-Oxide Steel—Typically chosen for their appearance, these rods have a dark, matte coating that creates a finished look. They offer minimal corrosion resistance, so they're best for dry environments.

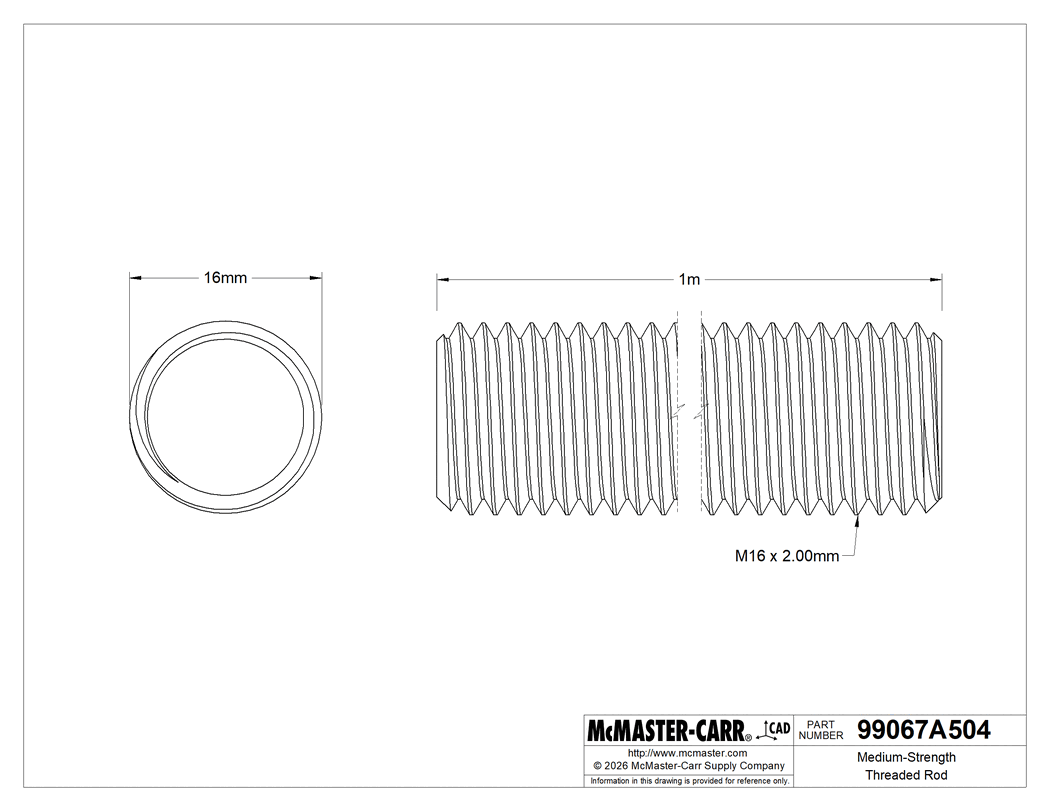

The information in this 3-D model is provided for reference only.
