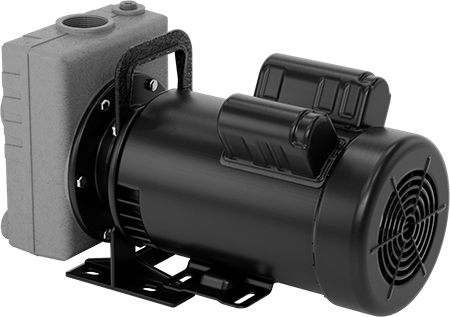

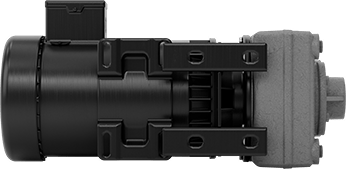

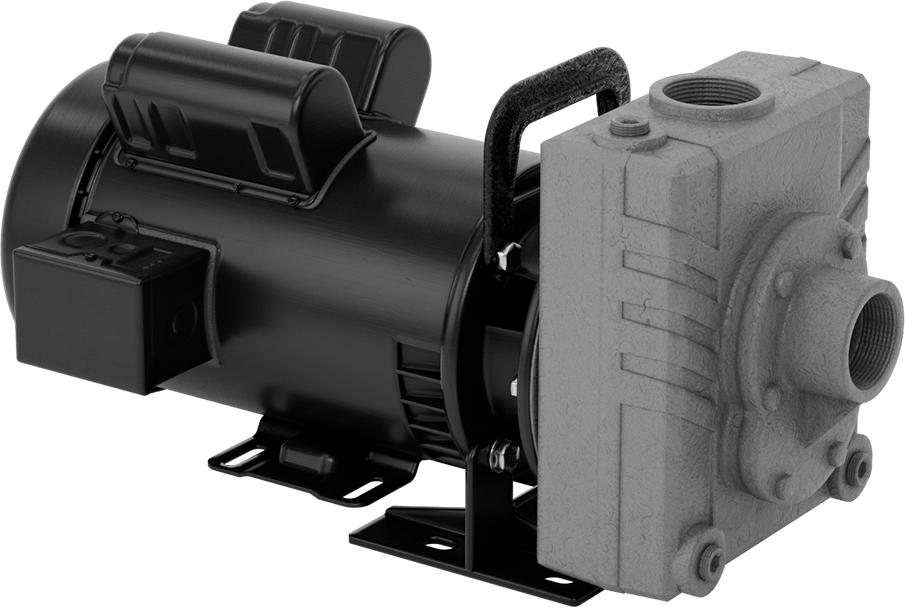

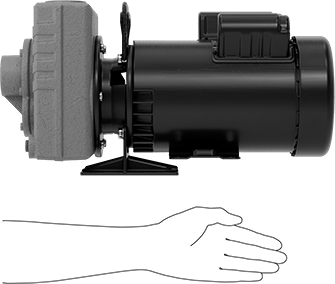

Self-Priming Circulation Pump
Harsh-Environment, 120/240V AC, 2 hp, 1-1/2 NPT Female
Voltage | 120V AC/240V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
Electrical Connection Type | Hardwire |
Maximum Viscosity | 1 cP |
Maximum Flow Rate | 120 gpm |
Flow Rate | |
@ 50 Feet of Head | 65 gpm |
@ 60 Feet of Head | 54 gpm |
@ 70 Feet of Head | 42 gpm |
Maximum Feet of Head | 95 ft. |
Maximum Pressure | 75 psi |
Temperature | |
Minimum | 40° F |
Maximum | 180° F |
Power | 2 hp |
Current | 22 amp/11 amp |
Intake | |
Location | Front |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 1/2 Female NPT |
Discharge | |
Location | Top |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 1/2 Female NPT |
Overall | |
Length | 19" |
Width | 9 1/8" |
Height | 10" |
Chemical Resistance | |
Excellent | Ethylene Glycol, Methanol (Methyl Alcohol), Water |
Moderate | Ammonia, Ethanol, Mineral Spirits, Sodium Hydroxide (Caustic Soda) (25% Concentration) |
Poor | Acetone, Air, Butane, Carbon Dioxide, Chlorine, Deionized Water, Diesel Fuel, Fuel Oil, Gasoline, Inert Gas, Isopropyl Alcohol, Kerosene, Liquid Carbon Dioxide, Methyl Ethyl Ketone (MEK), Natural Gas, Nitrogen, Potable Water, Propane, Salt Water, Soap Solutions, Sulfuric Acid, Toluene (Methylbenzene), Xylene, Citric Acid (25% Concentration), Citric Acid (50% Concentration), Citric Acid (100% Concentration), Hydrochloric Acid (25% Concentration), Hydrochloric Acid (37% Concentration), Hydrochloric Acid (100% Concentration), Nitric Acid (25% Concentration), Nitric Acid (50% Concentration), Nitric Acid (100% Concentration), Phosphoric Acid (25% Concentration), Phosphoric Acid (50% Concentration), Phosphoric Acid (100% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration), Sodium Hydroxide (Caustic Soda) (100% Concentration), Sodium Hypochlorite (Bleach) (25% Concentration), Sodium Hypochlorite (Bleach) (50% Concentration), Sodium Hypochlorite (Bleach) (100% Concentration) |
Duty Cycle | Continuous |
Environment | Harsh |
For Use With | Ethylene Glycol, Methanol (Methyl Alcohol), Water |
Frequency | 60 Hz |
Housing Material | Cast Iron |
Impeller Material | Cast Iron |
Maximum Solids Diameter | 3/8" |
Motor Enclosure Type | Totally Enclosed Fan-Cooled (TEFC) |
Number of Mounting Holes | 4 |
Number of Mounting Plates | 2 |
Optimal Operating Point @ Feet of Head | 54 gpm @ 60 ft. |
Optimal Operating Range @ ft. of Head | 39 gpm to 72 gpm @ 72 ft. of head to 42 ft. of head |
Performance | Self-Priming |
Power Source | Electric |
Priming Type | Initial Fill |
Pump Style | Circulating |
Pump Type | Centrifugal |
Runs Dry | No |
Self-Priming Height | |
Minimum | Not Rated |
Maximum | 20 ft. |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wetted Parts Material | 304 Stainless Steel, Buna-N, Carbon, Cast Iron, Ceramic |
Wire Connection | Spade Terminal |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 841370.2005 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
The motor is totally enclosed fan-cooled (TEFC) for use in dusty, dirty, and damp environments. Install these pumps up to 20 ft. above your liquid source to drain underground tanks and process wastewater. They are self-priming after you fill the pump chamber with liquid. As liquid in the chamber is expelled, a suction force is created which allows the pump to draw liquid upward.
Note: Pumps must be filled with liquid before use. They need a constant flow of liquid and cannot run dry. If flow control is needed, place valves or reducers on the discharge side; never restrict the inlet of a pump with a valve or reducer.

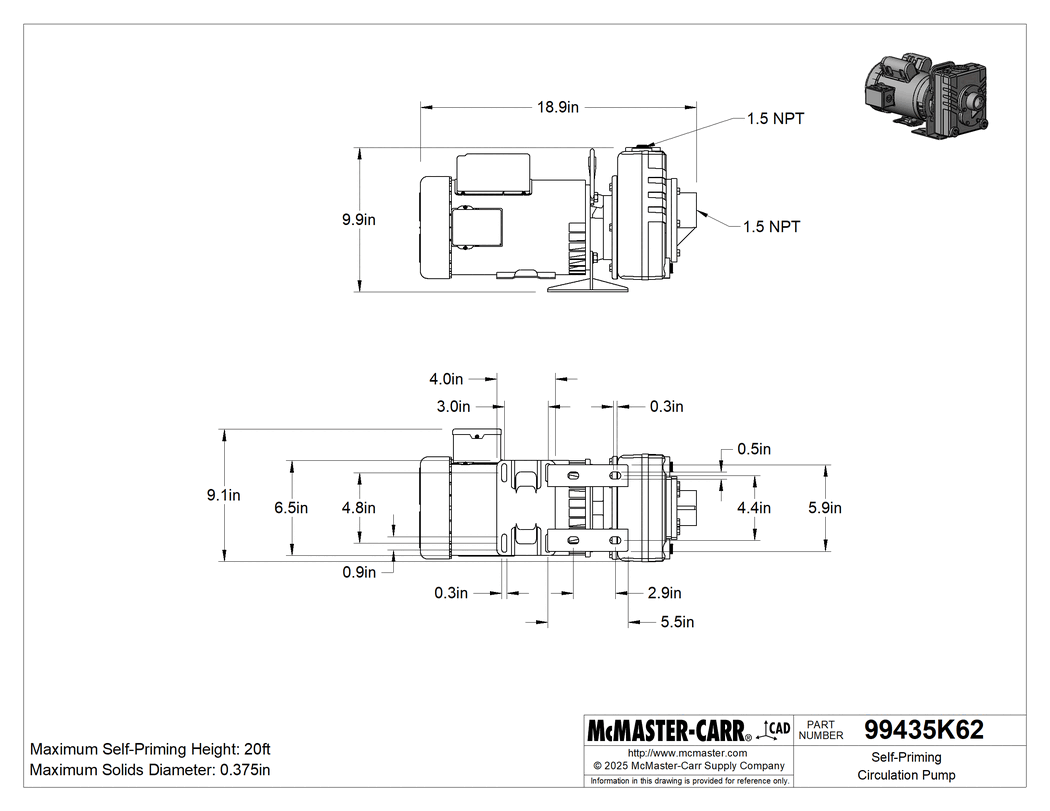

The information in this 3-D model is provided for reference only.
