Phillips Rounded Head Thread-Forming Screws
for Plastic, 18-8 Stainless Steel, M2.5 Screw Size, 8 mm Long
Drive Style | Phillips |
Fastener Head Type | Rounded |
Tip Type | Blunt |
Tapping Method | Thread Forming |
Rounded Head Style | Pan |
Material | 18-8 Stainless Steel |
Screw Size | M2.5 |
Length | 8 mm |
Head | |
Diameter | 4.4 mm |
Height | 1.8 mm |
Tapping Screw Type | TRS |
Drive Size | No. 1 |
Drill Bit Size | 45 Ga. |
Shank Cross Section | Round |
Approximate Thread Pitch | 1.12 mm |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Drill Bit Decimal Size Equivalent | 0.082" |
For Use In | Plastic |
Performance | Corrosion Resistant |
Rounded Head Profile | Standard |
System of Measurement | Metric |
Thread Direction | Right Hand |
Threading | Fully Threaded |
Country of Origin | Canada, China, Germany, India, Italy, Japan, Mexico, Taiwan, Thailand, United States, Vietnam |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731814.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most popular thread-forming screws for plastic also resist rust. Thread them directly into molded or cast holes—no inserts needed. Screws won’t crack or distort material when fastening enclosures, panels, and other plastic components. The Phillips drive handles enough torque to keep drivers from slipping and the rounded head creates a finished look.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.
Round—The sharply angled threads drive into plastic with less force and a lower risk of cracking than other tapping screws. The base of the threads is recessed to bite deep into material and hold tight. You can reuse these screws a few times without stripping the threads. They're comparable to PT screws.
Prepare hole
Install

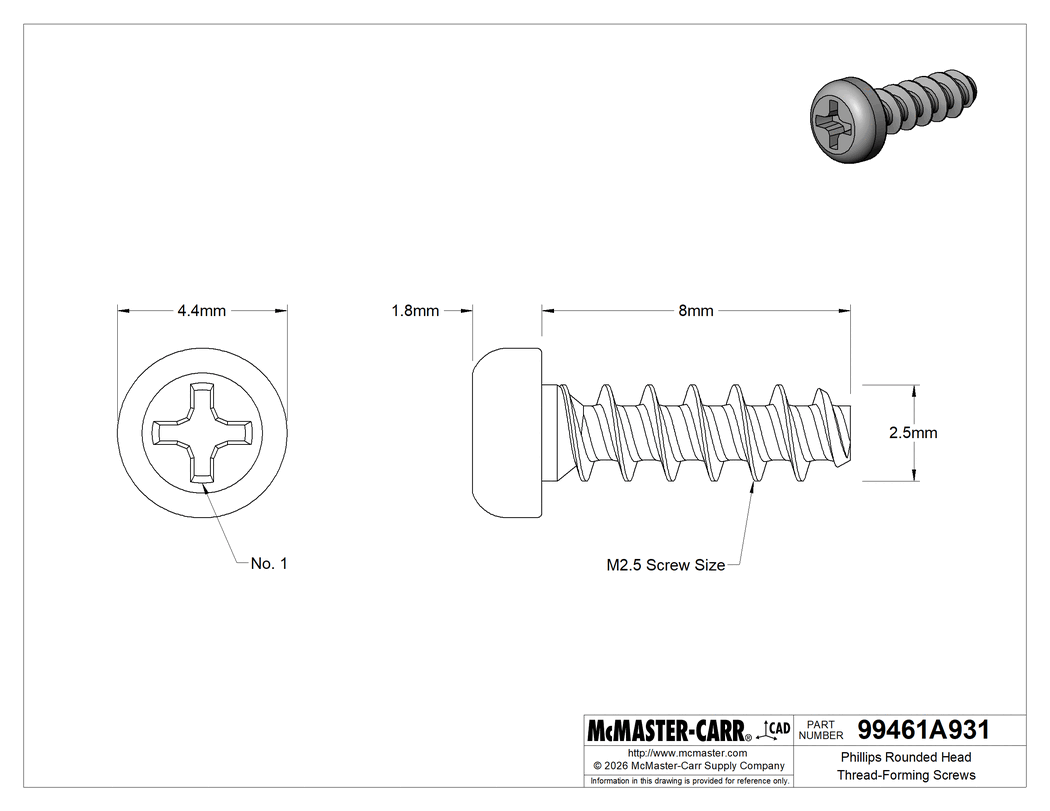

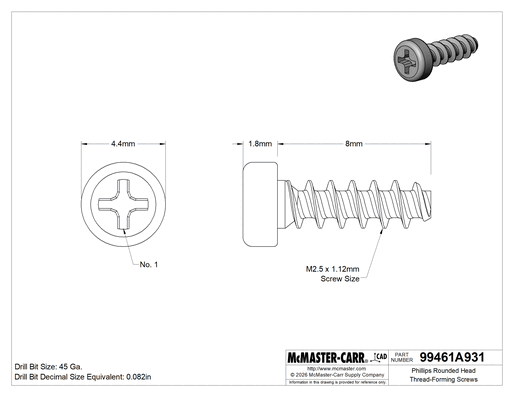

The information in this 3-D model is provided for reference only.
