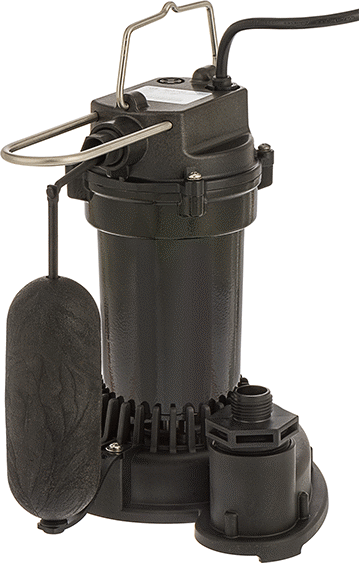

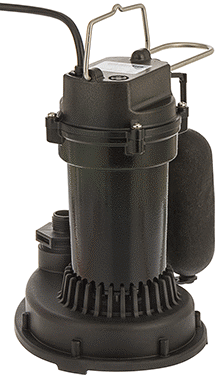

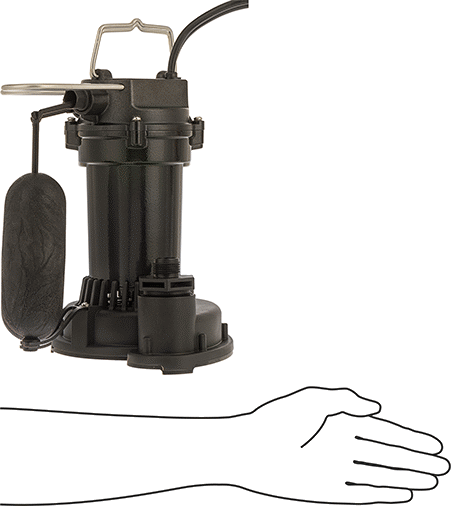

Sump Pump for Water
Float-Switch Activated, 1/4 hp, Plug with 10 Feet Cord
Voltage | 120V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
Electrical Connection Type | Plug In |
Cord Length | 10 ft. |
Maximum Flow Rate | |
@ 5 Feet Of Head | 35 gpm |
@ 10 Feet Of Head | 30 gpm |
@ 20 Feet Of Head | 10 gpm |
Maximum Feet of Head | 25 ft. |
Housing Material | Aluminum |
Level | |
Turn-On | 10" |
Turn-Off | 5" |
Temperature Range | 35° F to 120° F |
Power | 1/4 hp |
Current | 3.5 amp |
Intake Inlet Type | Screened |
Discharge | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1 1/2 |
Thread Type | NPT |
Gender | Female |
Minimum Sump Pit | |
Diameter | 18" |
Depth | 24" |
Overall | |
Height | 11" |
Width | 10" |
Length | 9" |
Certification | CSA Certified |
Duty Cycle | Continuous |
Electrical Connection | Straight Blade |
For Use With | Water |
Frequency | 60 Hz |
Intake Connection Port | Inlet |
Intake Type | Screened |
Number of Blades | 3 |
Power Source | Electric |
Pump Activation Type | Float Switch |
Pump Type | Wastewater, Sump |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 841370.2004 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Remove accumulated water from sump pits, loading docks, and cooling towers. These pumps turn on and off automatically as water levels change—the float switch is wired directly to the pump, so there's no need to monitor water levels. An aluminum housing resists corrosion for long service life in wet environments, and a screened intake prevents clogs from fine particles. Built-in thermal overload protection shuts the motor down before it overheats to help prevent burnout. Use with debris-free water only. Designed for submerged operation only.
