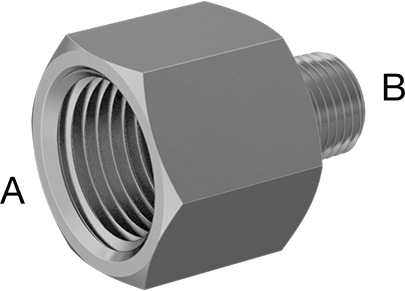

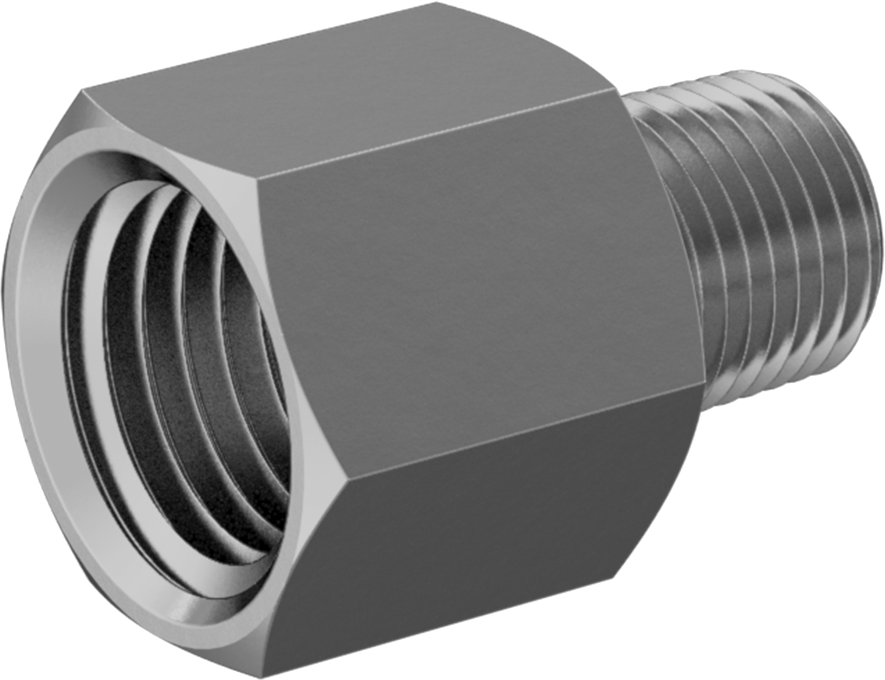

Threaded Brass Pipe Fitting for Drinking Water
High-Pressure, Adapter, 1/4 NPTF Female x 1/8 NPTF Male
Female × Male

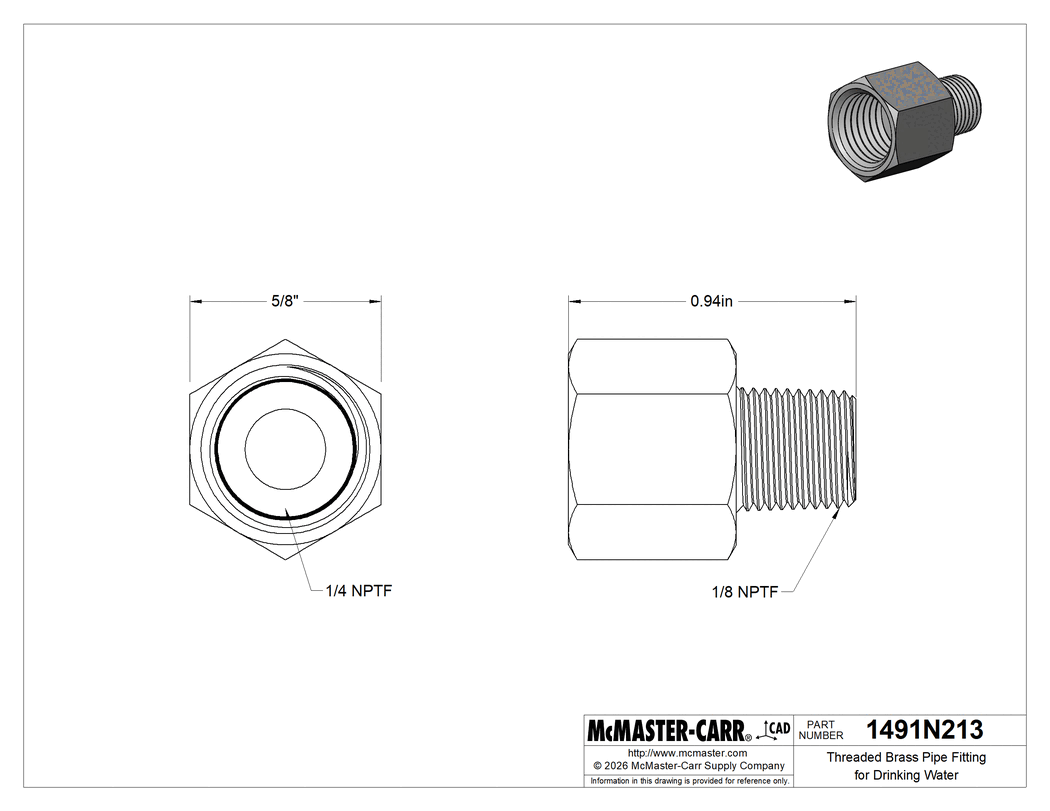

2-D PDF
1491N213
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Drinking Water |
Shape | Straight |
Type | Reducing Adapter |
Body Shape | Hex |
Fabrication | Machined |
Connection Type | Pipe |
Connection Style | Threaded |
Connection | NPTF Female × NPTF Male |
Pipe Size | |
(A) | 1/4 |
(B) | 1/8 |
Length | 61/64" |
Hex Width | 5/8" |
Maximum Pressure | 1,000 psi @ 72° F |
Material | Brass |
Specifications Met | NSF/ANSI 61 |
Environment | Food Industry |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | India |
Schedule B | 741220.0000 |
ECCN | EAR99 |
Use these heavy duty fittings for high-pressure drinking water applications. They are brass which has good corrosion resistance. They meet NSF/ANSI 61 safety standards for use with drinking water systems.
NPTF (Dryseal) threads are compatible with NPT threads.
The information in this 3-D model is provided for reference only.
