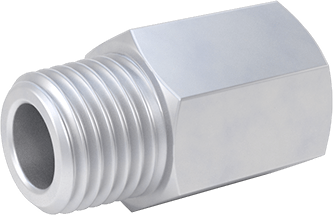

Miniature Medium-Pressure Aluminum Pipe Fitting
Adapter, 9/16"-18 UN/UNF Female x 1/4 NPT Male

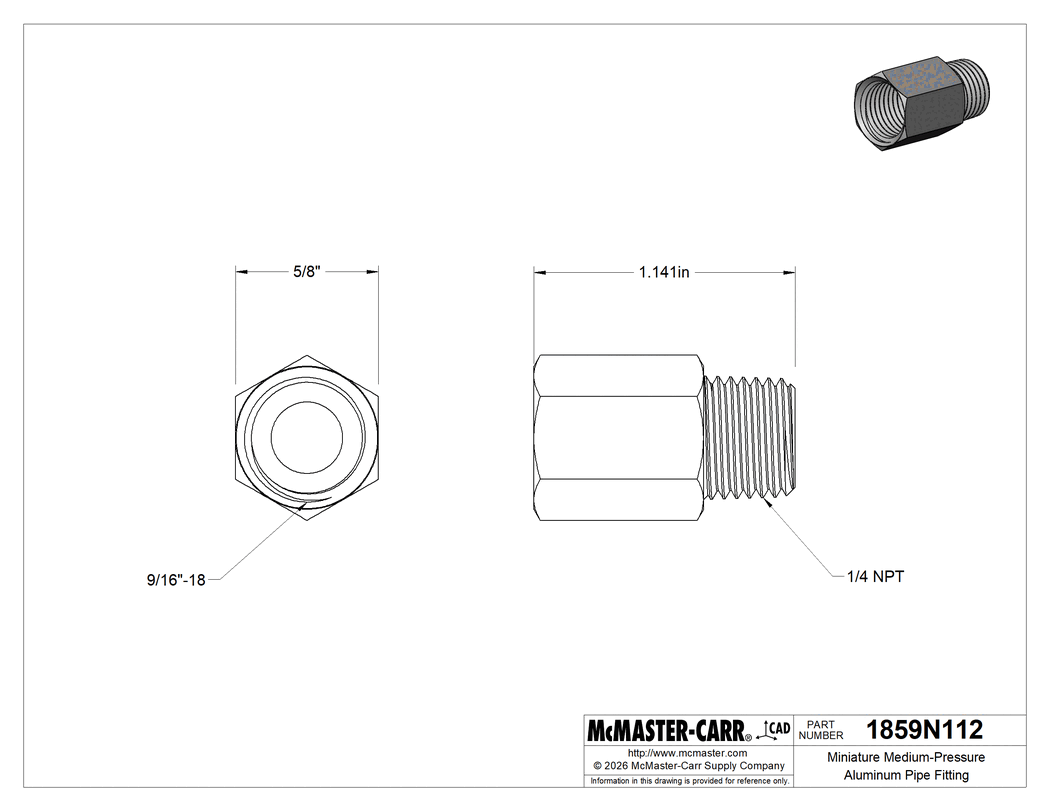

2-D PDF
$23.52 Each
In stock
1859N112
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Oil, Water |
Shape | Straight |
Type | Adapter |
Body Shape | Hex |
Connection Type | Pipe |
Connection Style | Threaded |
Connection | UN/UNF (SAE Straight) Female × NPT Male |
Thread Size | 9/16"-18 |
Pipe Size | 1/4 |
Length | 1 9/64" |
Hex Width | 5/8" |
Maximum Pressure | 150 psi @ 72° F |
Material | 6061 Aluminum |
Specifications Met | ASME B1.20.1, ASTM B241 |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | Yes |
Schedule B | 760900.0000 |
ECCN | EAR99 |
Their small size makes these miniature fittings a good choice for cramped, confined spaces. They are designed to handle medium-pressure applications. Fittings are aluminum, which is lightweight with good corrosion resistance.
The information in this 3-D model is provided for reference only.
