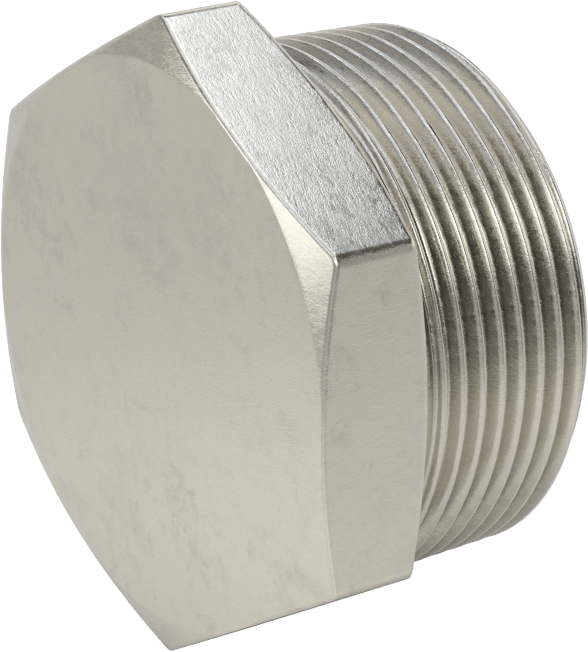

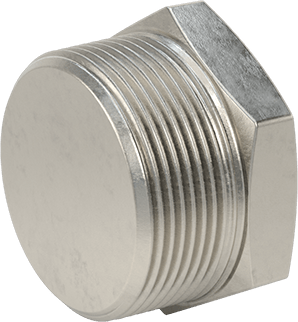

304 Stainless Steel Threaded Pipe Fitting
High-Pressure, Plug with External Hex Drive, 2-1/2 NPT

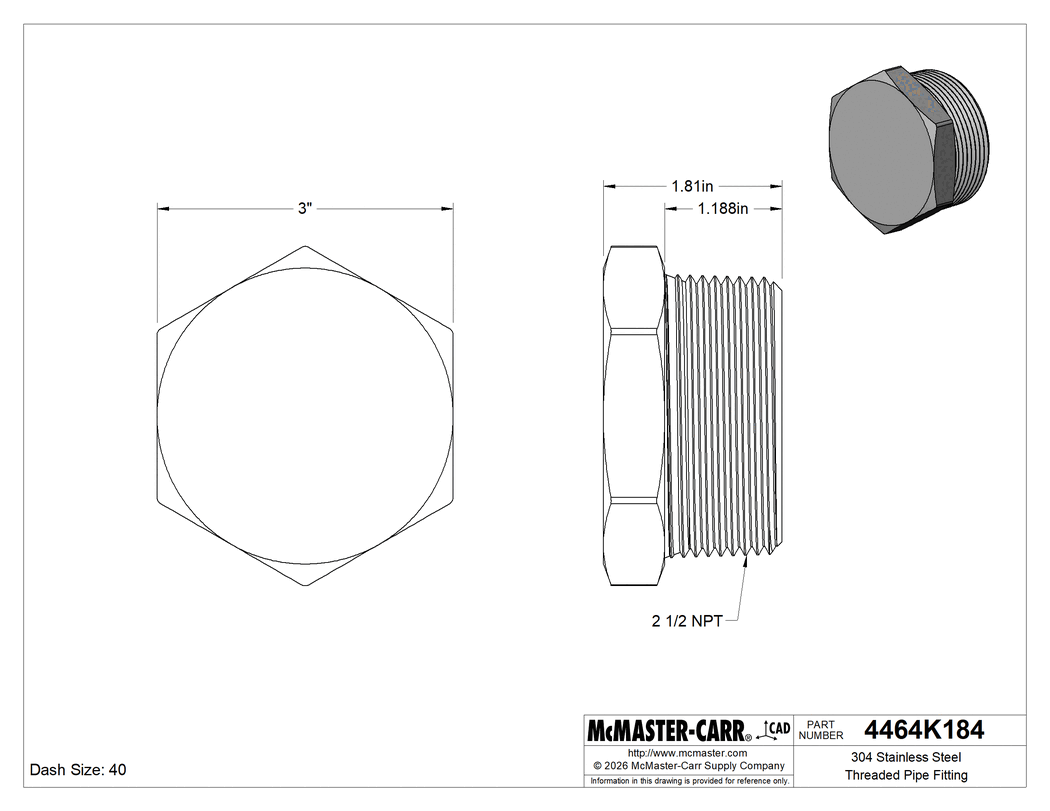

2-D PDF
4464K184
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
Shape | Cap/Plug |
Type | Plug |
Drive Style | External Hex |
Body Shape | Hex |
Material | 304 Stainless Steel |
Pressure Class | 3000 |
Fabrication | Forged |
Connection Type | Pipe |
Connection Style | Threaded |
Connection | NPT Male |
Pipe Size | 2 1/2 |
Dash Size | 40 |
Length | 1 15/16" |
Drive Size | 3" |
Plug Construction | Solid |
For Pipe | |
Schedule | 80 |
Material | 304 Stainless Steel, 304/304L Stainless Steel |
Specifications Met | ASTM A182 |
Maximum Pressure | 2,500 psi @ 72° F |
Maximum Steam Pressure | 1,900 psi @ 350° F |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | Taiwan |
Schedule B | 730722.5000 |
ECCN | 2B999 |
Use these heavy duty fittings in high-pressure flow applications.
304 stainless steel fittings have very good corrosion resistance.
The information in this 3-D model is provided for reference only.
