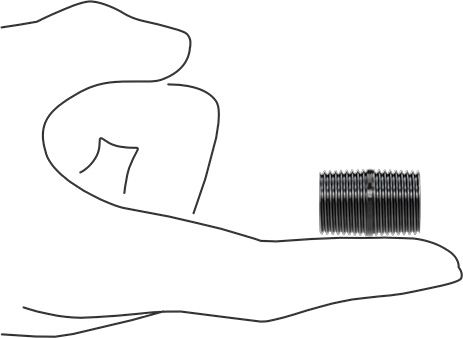

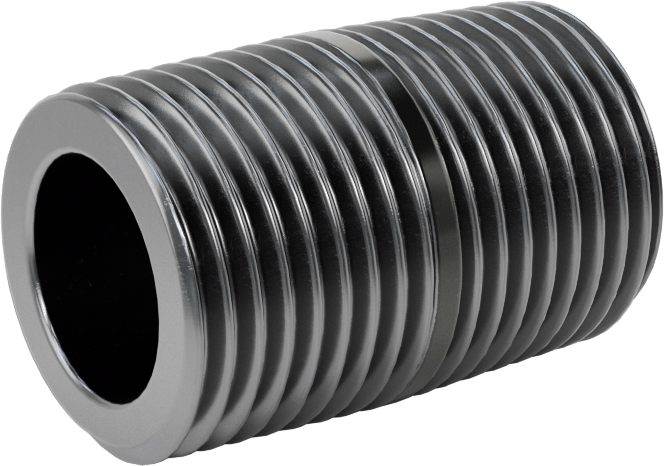

Thick-Wall Welded Steel Pipe Nipple
Fully Threaded, 3/8 Pipe Size

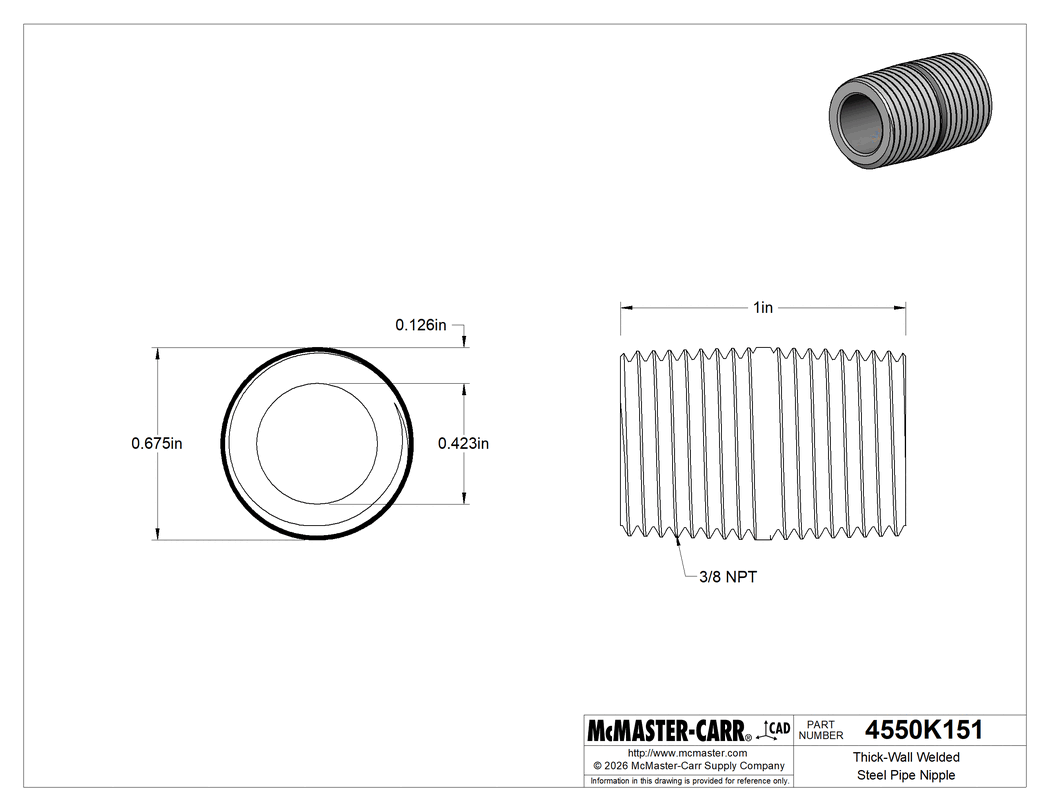

2-D PDF
$3.41 Each
In stock
4550K151
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Natural Gas, Oil, Steam, Water |
Shape | Straight |
Type | Pipe |
Schedule | 80 |
Threading | Fully Threaded |
Connection Type | Pipe |
Connection Style | Threaded |
Gender | Male |
Pipe Size | 3/8 |
Length | 1" |
OD | 43/64" |
ID | 0.423" |
Wall Thickness | 0.126" |
Thread Type | NPT |
Construction | Welded |
Material | Steel |
For Fitting | |
Class | 300 |
Material | Iron, Steel |
For Flange | |
Class | 300, 600 |
Material | Steel |
Specifications Met | ASME B1.20.1, ASTM A53, ASTM A733 |
RoHS | Not Compliant |
REACH | Not Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | South Korea or United States |
USMCA Qualifying | No |
Schedule B | 730799.4000 |
ECCN | EAR99 |
Also known as Schedule 80, this pipe has thick walls for good strength in medium-pressure applications.
Welded pipe has a weld bead on the inside.
Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.
The information in this 3-D model is provided for reference only.
