    Standard-Wall PVC Pipe Fitting for Water

    Cap, White, 8 Pipe Size Socket-Connect Female

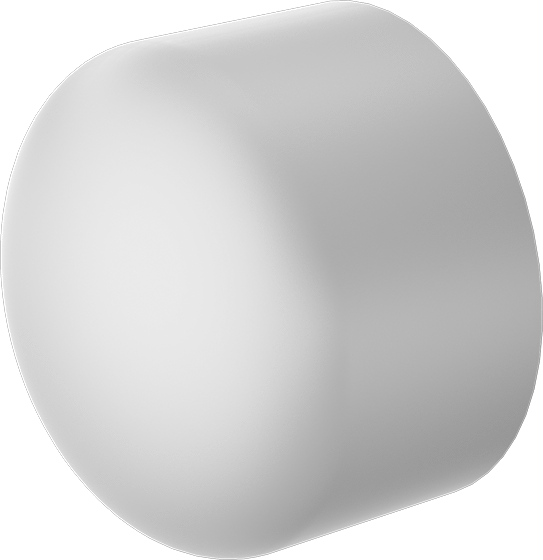

    Image of Product. Front orientation. Standard-Wall PVC Pipe Fitting for Water, Cap, White, 8 Pipe Size Socket-Connect Female.

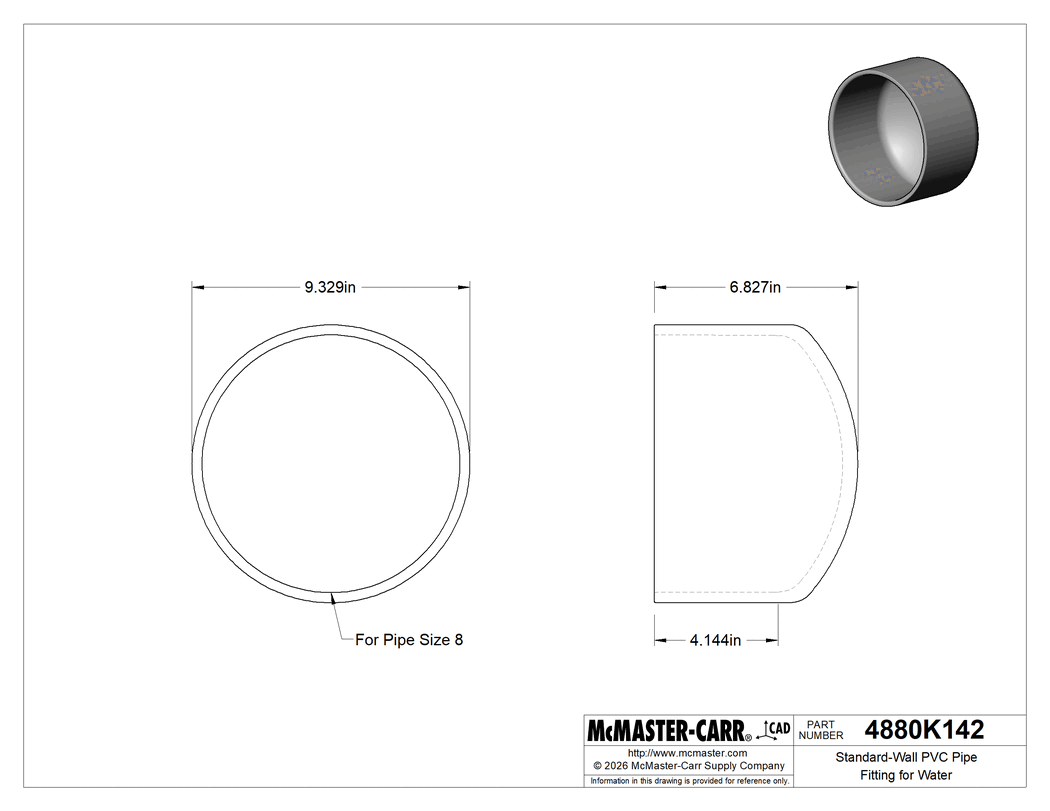

    Technical drawing of Standard-Wall PVC Pipe Fitting for Water, Cap, White, 8 Pipe Size Socket-Connect Female.
    Image of System. Front orientation. Contains Annotated. Standard-Wall PVC Pipe Fitting for Water, Cap, White, 8 Pipe Size Socket-Connect Female.
    2-D PDF
    $59.70 Each
    In stock
    4880K142
    Each
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Drinking Water, Water

    Shape

    Cap/Plug

    Type

    Cap

    Schedule

    40

    Connection Type

    Pipe

    Connection Style

    Socket Connect

    Socket Connect Type

    Cement

    System of Measurement

    Inch

    Gender

    Female

    Pipe Size

    8

    Socket Depth

    4 13/32"

    Length

    6 23/32"

    Material

    PVC Plastic

    Color

    White

    Minimum Temperature

    Not Rated

    Maximum Temperature

    140° F

    For Pipe Schedule

    40

    For Pipe Material

    PVC Plastic

    For Flange

    Class

    150

    For Flange Material

    PVC Plastic

    Environment

    Food Industry

    Specifications Met

    ASTM D1784, NSF/ANSI 61

    RoHS

    RoHS 3 (2015/863/EU) Compliant

    REACH

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    DFARS

    Specialty Metals COTS-Exempt

    Country of Origin

    United States

    USMCA Qualifying

    Yes

    Schedule B

    391740.0000

    ECCN

    EAR99

    Connect these fittings to Schedule 40 plastic pipe–they are the industry standard for residential and commercial low-pressure plumbing and water supply applications. They are plastic for good corrosion resistance.

    Fittings for drinking water meet NSF/ANSI Standard 61.

    Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

    Fittings that meet ASTM D1784, ASTM D1785, and ASTM D4066 adhere to specifications and testing requirements for material quality.

    Note: For fittings that are not rated for pressure, you can use the pressure rating of the plastic pipe as a reference. Threaded fittings are limited to 50% of the rated pressure of the pipe.

    Warning: Never use plastic pipe fittings and pipe with compressed air or gas.
