    Standard-Wall Unthreaded Rigid PVC Pipe for Water

    1/4 Pipe Size, 5 Feet Long

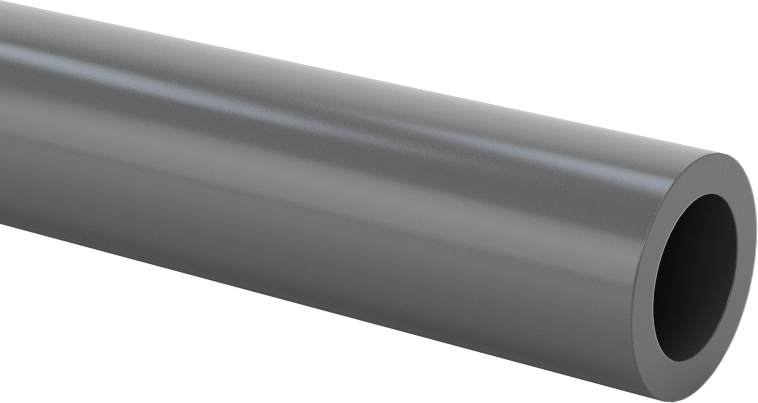

    Image of Product. Front orientation. Standard-Wall Unthreaded Rigid PVC Pipe for Water, 1/4 Pipe Size, 5 Feet Long.

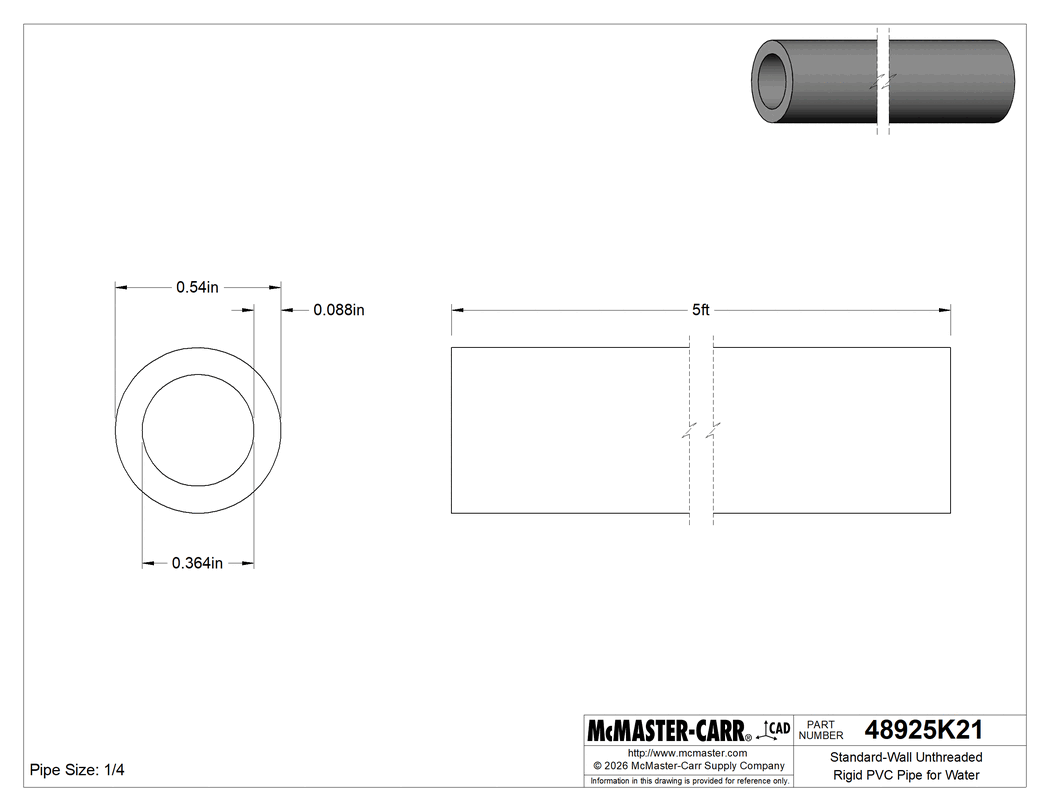

    Technical drawing of Standard-Wall Unthreaded Rigid PVC Pipe for Water, 1/4 Pipe Size, 5 Feet Long.
    Image of Product. Side1 orientation. Contains SizingReference. Standard-Wall Unthreaded Rigid PVC Pipe for Water, 1/4 Pipe Size, 5 Feet Long.
    2-D PDF
    $10.61 Each
    In stock
    48925K21
    Each
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Drinking Water, Water

    Shape

    Straight

    Type

    Pipe

    Flexibility

    Rigid

    Threading

    Unthreaded

    Connection Type

    Pipe

    Connection Style

    Socket Connect

    Socket Connect Type

    Cement

    System of Measurement

    Inch

    Gender

    Male

    Pipe Size

    1/4

    Schedule

    40

    Length

    5 ft.

    OD

    35/64"

    ID

    0.364"

    Wall Thickness

    0.088"

    Material

    PVC Plastic

    Color

    Dark Gray

    Clarity

    Opaque

    Maximum Pressure

    780 psi @ 72° F

    Minimum Temperature

    Not Rated

    Maxmimum Temperature

    140° F

    For Fitting Schedule

    40

    For Fitting Material

    PVC Plastic

    For Flange Schedule

    40

    For Flange Material

    PVC Plastic

    Environment

    Food Industry

    Specifications Met

    ASTM D1784, ASTM D1785, NSF/ANSI 61

    RoHS

    Not Compliant

    REACH

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    DFARS

    Specialty Metals COTS-Exempt

    Country of Origin

    United States

    USMCA Qualifying

    Yes

    Schedule B

    391723.0000

    ECCN

    EAR99

    Related Product

    Pipe Cement for Max. Pipe Size 6

    Connect this pipe to standard-wall plastic pipe fittings for a variety of residential and commercial low-pressure plumbing and water supply applications. It’s made of PVC, which has good corrosion resistance. Pipe meets NSF/ANSI Standard 61 for drinking water. It also meets ASTM D1784 and ASTM D1785 specifications and testing requirements for material quality. Connect this pipe to unthreaded female socket-connect fittings using a PVC primer and cement (also known as solvent weld).

    Warning: Never use plastic pipe fittings and pipe with compressed air or gas.
