    High-Pressure Steel Unthreaded Pipe Flange

    Cap, 300 Class, 4 Pipe Size

    Image of Product. Front. Front orientation. High-Pressure Steel Unthreaded Pipe Flange, Cap, 300 Class, 4 Pipe Size.
    Front

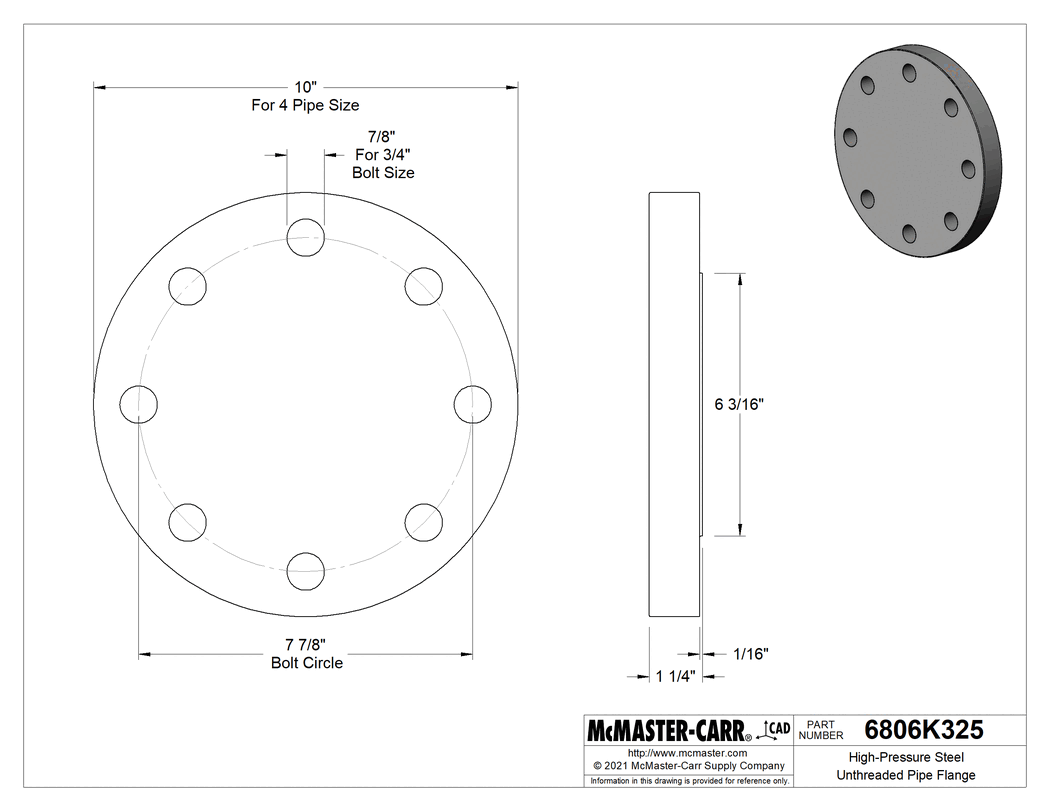

    Technical drawing of High-Pressure Steel Unthreaded Pipe Flange, Cap, 300 Class, 4 Pipe Size.

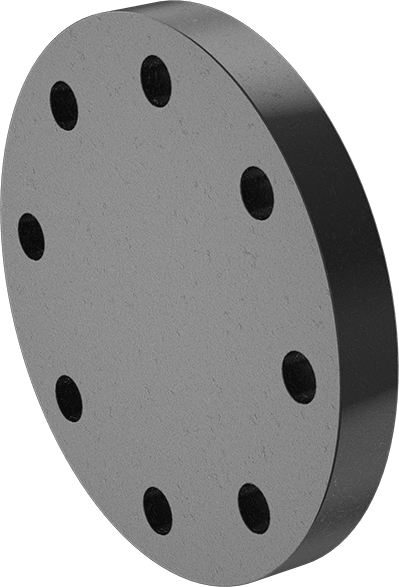

    Image of Product. Back. Back orientation. High-Pressure Steel Unthreaded Pipe Flange, Cap, 300 Class, 4 Pipe Size.
    Back
    2-D PDF
    $89.55 Each
    In stock
    6806K325
    Each
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water

    Shape

    Cap/Plug

    Type

    Flange, Cap

    Pressure Class

    300

    Fabrication

    Forged

    Connection Type

    Pipe

    Connection Style

    Flanged

    Flanged Connection Surface

    Raised

    Pipe Size

    4

    Dash Size

    64

    Flange OD

    10"

    For Bolt Diameter

    3/4"

    Bolt Hole

    Diameter

    7/8"

    Number of

    8

    Bolt Circle Diameter

    7 7/8"

    Maximum Pressure

    600 psi @ 72° F

    Maximum Steam Pressure

    300 psi @ 300° F

    Material

    Steel

    For Fitting

    Class

    3000

    Schedule

    80

    Material

    Steel

    For Pipe

    Schedule

    80

    Material

    Steel

    Certification

    Material Certificate with Traceable Lot Number and Test Report

    Specifications Met

    ASME B16.5, ASTM A105

    RoHS

    RoHS 3 (2015/863/EU) Compliant

    REACH

    Not Compliant

    DFARS

    Specialty Metals COTS-Exempt

    Country of Origin

    United States

    USMCA Qualifying

    Yes

    Schedule B

    730791.2000

    ECCN

    EAR99

    Forged for extra strength, these heavy duty flanges can withstand high-pressure applications. Bolt two flat-surface flanges or two raised-surface flanges of the same size together with a gasket (sold separately) to create an access point in a pipe line.

    Cap flanges are also known as blind flanges.
