Low-Pressure Forged Steel Pipe Flange
2-1/2 NPT

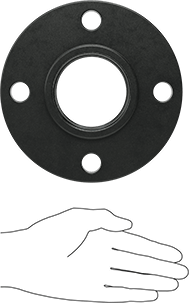

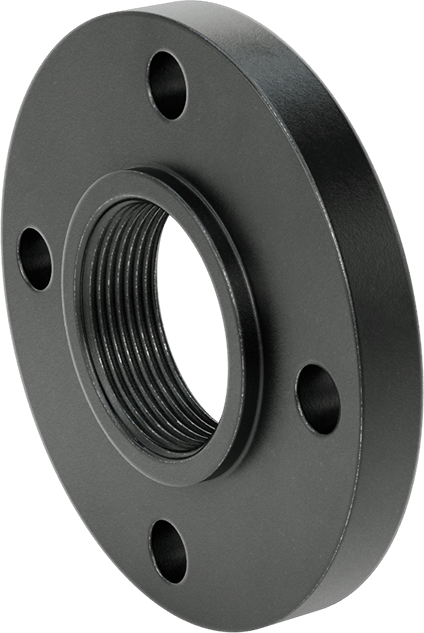

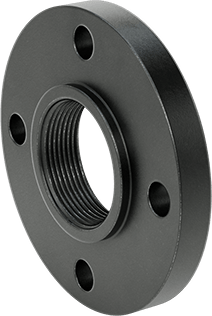

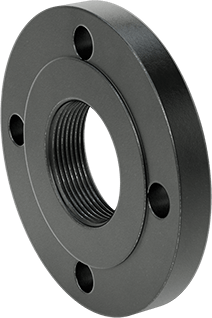

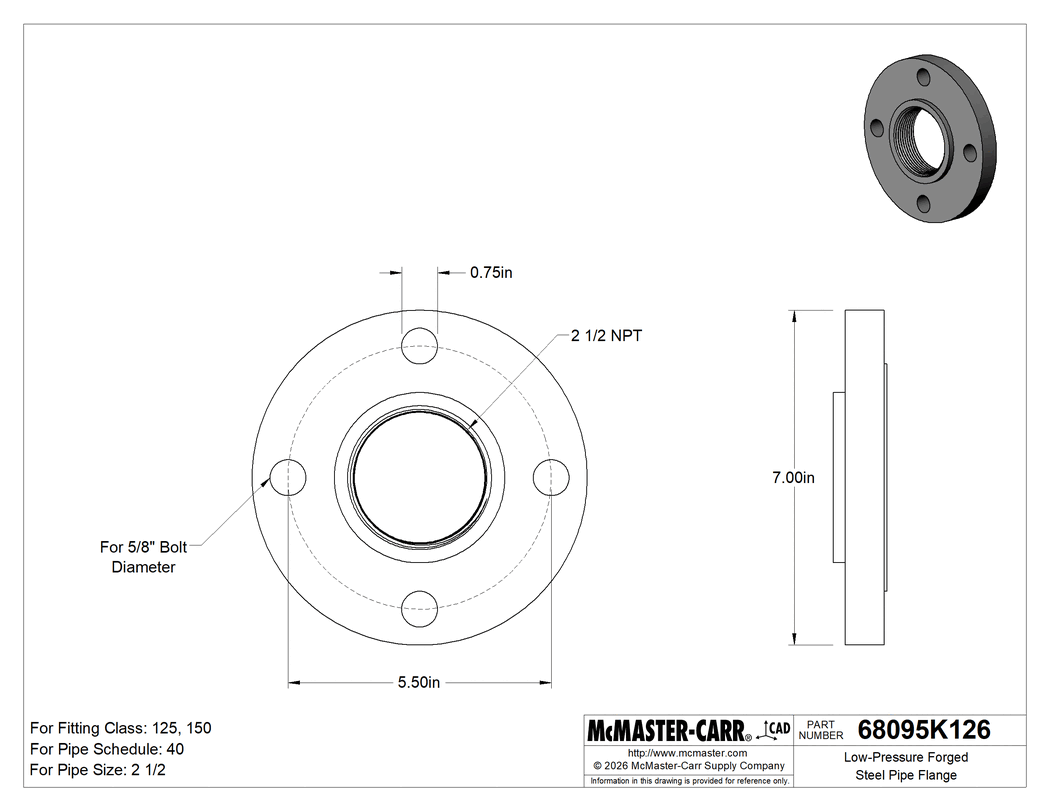

2-D PDF
$44.75 Each
In stock
68095K126
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Natural Gas, Oil, Steam, Water |
Shape | Straight |
Type | Flange, Adapter |
Pressure Class | 150 |
Fabrication | Forged |
Connection Type | Pipe |
Connection Style | Threaded × Flanged |
Thread Type | NPT |
Gender | Female |
Flanged Connection Surface | Raised |
Pipe Size | 2 1/2 |
Flange OD | 7" |
For Bolt Diameter | 5/8" |
Bolt Hole | |
Diameter | 3/4" |
Number of | 4 |
Bolt Circle Diameter | 5 1/2" |
Maximum Pressure | 285 psi @ 72° F |
Maximum Steam Pressure | 230 psi @ 300° F |
Material | Steel |
For Fitting | |
Class | 125, 150 |
Material | Iron, Steel |
For Pipe | |
Schedule | 40 |
Material | Steel |
Specifications Met | ASME B16.5, ASTM A105, MSS SP-25 |
Certificate | Material Certificate with Traceable Lot Number |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | Not Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | Yes |
Schedule B | 730791.2000 |
ECCN | EAR99 |
Use these flanges for low-pressure applications in noncorrosive environments. Bolt two flanges of the same size together with a gasket (sold separately) to create an access point within a line.
The information in this 3-D model is provided for reference only.
