86 Products

Air-Powered Chain Hoists


Aluminum Body, CM Budgit 2200 with Lever Control	Aluminum Body, CM Budgit 2200 with Pull Control	Aluminum Body, CM Budgit 6000 with Lever Control

Harrington TCR with Lever Control	Harrington TCR with Pull Control

Hoists have a cool-running motor for continuous operation. The brake stops the load and holds it in place when you're not lifting.

A filter-regulator-lubricator (not included) is required to lubricate the gears and clean and regulate the incoming air.

Warning: Never use to lift people or items over people.

Cast Iron Body—Cast iron hoists have a durable housing for longer life than aluminum hoists.

Overload Protection—Hoists with overload protection will not operate when the load exceeds capacity.

	Hook Opening Wd.	Inlet Thread Type	Inlet Pipe Size	Air Consumption @ Pressure	Duty Cycle	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift
Aluminum with Chain Container







	CM Budgit 2200 with Lever Control

	1/4 ton, 500 lb.	65	16"	1 1/8"	NPT	3/8	48 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	000000	000000000	000000000	000000000


	1/2 ton, 1,000 lb.	45	16"	1 1/8"	NPT	3/8	48 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	000000	00000000	00000000	00000000
	1 ton, 2,000 lb.	23	18"	1 1/4"	NPT	3/8	48 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	000000	00000000	00000000	00000000




			CM Budgit 2200 with Pull Control

			1/4 ton, 500 lb.	65	16"	1 1/8"	NPT	3/8	48 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	000000	00000000	00000000	00000000


			1/2 ton, 1,000 lb.	45	16"	1 1/8"	NPT	3/8	48 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	000000	00000000	00000000	00000000




					CM Budgit 6000 with Lever Control

					2 ton, 4,000 lb.	15	22"	1 3/8"	NPT	3/4	80 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	000000	00000000	00000000	00000000


					Cast Iron with Chain Container and Overload Protection







									Harrington TCR with Lever Control

									1/4 ton, 500 lb.	68	19"	1 1/8"	NPT	1/2	63 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000


									1/2 ton, 1,000 lb.	68	19"	1 1/8"	NPT	1/2	63 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000
									1 ton, 2,000 lb.	37	19"	1 1/8"	NPT	1/2	62 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000
									2 ton, 4,000 lb.	19	22"	1 1/8"	NPT	1/2	62 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000




											Harrington TCR with Pull Control

											1/4 ton, 500 lb.	68	19"	1 1/8"	NPT	1/2	63 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000


											1/2 ton, 1,000 lb.	68	19"	1 1/8"	NPT	1/2	63 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000
											1 ton, 2,000 lb.	37	19"	1 1/8"	NPT	1/2	62 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000
											2 ton, 4,000 lb.	19	22"	1 1/8"	NPT	1/2	62 ft³/min @ 90 psi	Continuous	ASME B30.10, ASME B30.16, ASME HST-5	0000000	00000000	00000000	00000000

Variable-Speed Precise-Positioning Compact Air-Powered Chain Hoists

Change or hold the speed at any time during operation so you can start the hoist softly and gradually decelerate. They are small and lightweight so you can easily move them between jobs. Hoists have a cool-running motor for continuous operation. The brake stops the load and holds it in place when you're not lifting, and overload protection prevents hoists from operating if the load exceeds capacity.

A filter-regulator-lubricator (not included) is required to lubricate the gears and clean and regulate the incoming air.

Warning: Never use to lift people or items over people.

	Hook Opening Wd.	Inlet Thread Type	Inlet Pipe Size	Air Consumption @ Pressure	Duty Cycle	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift
Aluminum with Chain Container and Overload Protection







	CM ShopAir

	0.15 ton, 300 lb.	31	11"	1"	NPT	3/8	34 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	0000000	000000000	000000000	000000000


	1/4 ton, 500 lb.	21	11"	1"	NPT	3/8	34 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	0000000	00000000	00000000	00000000
	0.3 ton, 600 lb.	16	12"	1"	NPT	3/8	34 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	0000000	00000000	00000000	00000000
	1/2 ton, 1,000 lb.	11	12"	1"	NPT	3/8	34 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	0000000	00000000	00000000	00000000

Accessories and Replacements for Hoists

For Inlet Thread Type	For Inlet Pipe Size		Each
NPT	3/8	0000000	0000000

For Inlet Thread Type	For Inlet Pipe Size		Each
NPT	3/8	0000000	000000

For Lift Lg., ft.		Each
10	0000000	000000000
15	0000000	00000000
20	0000000	00000000

Air-Powered Wire Rope Hoists

These hoists are quieter and more stable than air-powered chain hoists. Change or hold the speed at any time during operation, so you can start the hoist softly and gradually decelerate. Hoists have a cool-running motor for continuous operation. The brake stops the load and holds it in place when you're not lifting. The gears are enclosed to protect them from debris and contamination for smooth operation.

Warning: Never use to lift people or items over people.

	Lift Lg., ft.	Lifting Speed, fpm	Clearance	Hook Opening Wd.	Inlet Thread Type	Inlet Pipe Size	Air Consumption @ Pressure	Duty Cycle	Wire Rope Dia.		Each
Cast Iron with Enclosed Gears



	1/8 ton, 300 lb.	7	36	23"	7/8"	NPT	3/8	21.2 ft³/min @ 90 psi	Continuous	5/32"	0000000	000000000

Spark-Resistant Air-Powered Chain Hoists


Aluminum, CM Budgit 2200 with Pull Control	Aluminum with Overload Protection, CM Budgit 6000 with Lever Control

These hoists have an aluminum body, stainless steel chain, and bronze hooks for spark resistance. They have a cool-running motor for continuous operation. The brake stops the load and holds it in place when you're not lifting.

A filter-regulator-lubricator (not included) is required to lubricate the gears and clean and regulate the incoming air.

Warning: Never use to lift people or items over people.

Overload Protection—Hoists with overload protection will not operate when the load exceeds capacity.

	Hook Opening Wd.	Inlet Thread Type	Inlet Pipe Size	Air Consumption @ Pressure	Duty Cycle	Specs. Met		10 ft. Long Lift	15 ft. Long Lift	20 ft. Long Lift
Aluminum







	CM Budgit 2200 with Pull Control

	1/4 ton, 820 lb.	60	16"	1 1/8"	NPT	3/8	48 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	0000000	000000000	000000000	000000000


	Aluminum with Overload Protection







					CM Budgit 6000 with Lever Control

					1/2 ton, 1,100 lb.	16	17"	1 1/4"	NPT	3/4	80 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	0000000	00000000	00000000	00000000


					1 ton, 2,200 lb.	8	22"	1 1/4"	NPT	3/4	80 ft³/min @ 90 psi	Continuous	ASME B30.16, ASME HST-5, CSA B167	0000000	00000000	00000000	000000000

Wire-Rope-Travel Hoist Cable and Hose Trolleys


For Round Cable/Air Hose Style A	For Round Cable/Air Hose Style B

For Round Cable/Air Hose Style C	For Round Cable/Air Hose Style D

Mount these trolleys to your existing wire rope to create a cable and hose travel system. Also known as festoon trolleys.

Warning: Never use to lift people or items over people.

Zinc-Plated Steel Trolley—Zinc-plated steel trolleys resist corrosion in humid and washdown environments. They are more durable than plastic trolleys.

Style B—Style B slide open from the top so you can install them on an existing wire rope without having to unhook it and stretch it again. Style B hold two runs of cable or hose. This saves the space and hassle of installing a second wire rope and trolley system.

Style C—Styles C and E slide open from the top so you can install them on an existing wire rope without having to unhook it and stretch it again.

	Wt. Cap., lb.	No. of Clamps	Clamp Material	Wheel Material		Each
For Round Cable/Air Hose







	Nylon Trolley

	A	0.5" to 1"	1/4" to 3/8"	25	1	Steel	Nylon	0000000	000000


	B	0.31" to 0.59"	3/16" to 3/8"	20	2	Steel	Nylon	00000000	000000
	B	0.6" to 0.94"	3/16" to 3/8"	20	2	Steel	Nylon	00000000	000000
	C	0.31" to 0.59"	3/16" to 3/8"	15	1	Steel	Nylon	00000000	00000
	C	0.95" to 1.25"	3/16" to 3/8"	15	1	Steel	Nylon	0000000	00000




			Zinc-Plated Steel Trolley

			D	0.31" to 0.59"	1/8" to 1/4"	20	1	Steel	Nylon	00000000	000000


			D	0.6" to 0.94"	1/8" to 1/4"	20	1	Steel	Nylon	00000000	000000
			D	0.95" to 1.25"	1/8" to 1/4"	20	1	Steel	Nylon	00000000	000000

Channel-Travel Hoist Cable and Hose Trolleys

For Round Cable/Air Hose

Mount these trolleys to your existing channel to create a cable and hose travel system. They’re also known as festoon trolleys.

Warning: Never use to lift people or items over people.

Stainless Steel Trolley—Stainless steel trolleys are more corrosion resistant than steel trolleys. You can use them in a variety of environments, including those with exposure to chemicals or moisture.

			For Channel
	For Cable/Hose OD	Wt. Cap., lb.	Wd.	Ht.	Clamp Material	Wheel Material		Each
For Round Cable/Air Hose







				Steel Trolley

				0.4" to 0.63"	30	1 1/4"	1 3/16"	Plastic	Steel	0000000	000000


				0.67" to 0.98"	30	1 1/4"	1 3/16"	Plastic	Steel	0000000	00000
				1.02" to 1.42"	30	1 1/4"	1 3/16"	Plastic	Steel	0000000	00000




						Stainless Steel Trolley

						0.4" to 0.63"	40	1 1/4"	1 3/16"	Stainless Steel	Stainless Steel	0000000	000000


						0.67" to 0.98"	40	1 1/4"	1 3/16"	Stainless Steel	Stainless Steel	0000000	000000
						1.02" to 1.42"	40	1 1/4"	1 3/16"	Stainless Steel	Stainless Steel	0000000	000000

Beam-Travel Hoist Cable and Hose Trolleys

For Round

Cable/Air Hose

Mount these trolleys to your existing beam to create a cable and hose travel system. Also known as festoon trolleys.

Warning: Never use to lift people or items over people.

		For Beam
	For Cable/Hose OD	Wd.	Shape	Wt. Cap., lb.	Clamp Material	Wheel Material	Features		Each
For Round Cable/Air Hose







				Steel Trolley

				0.5" to 1.5"	2 1/2" to 5"	Flat, Taper	35	Steel	Nylon	Wheel Bumpers	0000000	000000

Air-Powered Winches for Wire Rope—For Lifting

Because this winch runs on compressed air, it gives you a longer operating time than electric winches. It has an automatic brake that holds the load when the motor stops. To lift, mount winch above the load, or use winch with a pulley that’s mounted above the load. Enclosed gears offer protection from dirt and debris.

For wire rope, see Wire Rope with Hook for Winches.

Note: Capacity is highest for the first layer of rope (at least five wraps of rope on the winch) and decreases as each additional layer of rope is wound on the winch.

Warning: Never use to lift people or items over people.

	Wt. Cap., lb.					Base		Overall								Inlet
	Max.	Fully Wound	Min. Line Speed, fpm	For Max. Rope Lg., ft.	For Rope Dia.	Wd.	Lg.	Wd.	Lg.	Ht.	Material	No. of Speeds	Rope with Hook Included	Air Hose Included	Air Consumption @ Pressure	Gender	Thread Type	Pipe Size	Brake Type	Features		Each
Enclosed Gears







				15 Minutes On, 45 Minutes Off

				2,000	1,200	13	90	5/16"	8 7/8"	14 3/8"	8 7/8"	14 3/8"	15"	Aluminum, Steel	1	No	No	80 ft³/min @ 100 psi	Female	NPT	1/2	Automatic	Reversible Pulling Directions	00000000	000000000

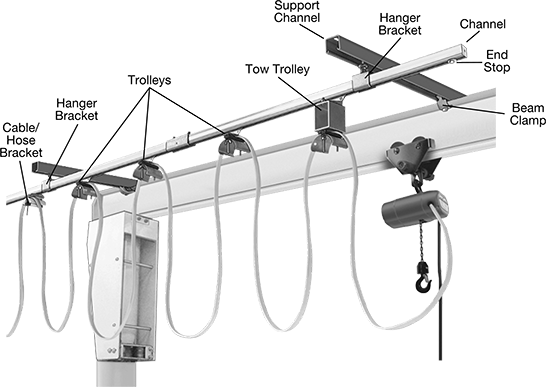

Channel-Travel Hoist Cable and Hose Trolley Systems

Also known as festoon kits, these systems keep your hoist’s cable or hose tangle-free and out of the way. They include a series of small trolleys that travel along steel channel so they are stronger and run straighter than wire rope-travel systems and are better for high speeds. Round cable, air hose, and flat cable are sold separately.

Accessory parts can be used to expand a trolley system or build your own trolley system.

Warning: Never use to lift people or items over people.

For 0.4" to 0.63" OD Round Cable/Air Hose

Minimum Required Cable/Hose Length—Minimum required cable/hose length is based on 6 ft. of cable or hose between trolleys plus an additional 7 _1/2 ft. at each end.

Max. Travel Lg., ft.	Overall Lg., ft.	Min. Req. Cable/Hose Lg., ft.	Wt. Cap., lb.	Channel Lg., ft.	Trolley Material	Wheel Material	Channel Material	Includes	Each
18	20	52	160	10	Steel	Steel	Steel	4 Trolleys, 2 Channels, 4 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 10 Beam Clamps, 5 Support Channels	0000000
37	40	74	320	10	Steel	Steel	Steel	8 Trolleys, 4 Channels, 8 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 9 Support Channels, 18 Beam Clamps	000000
46	50	85	400	10	Steel	Steel	Steel	10 Trolleys, 5 Channels, 10 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 22 Beam Clamps, 11 Support Channels	000000
75	80	119	640	10	Steel	Steel	Steel	16 Trolleys, 8 Channels, 16 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 34 Beam Clamps, 17 Support Channels	00000000

Accessories for Cable and Hose Trolleys

		Each
Trolley	0000000	000000
Tow Trolley	0000000	00000
Cable/Hose Bracket	0000000	00000
Anchor Bracket	0000000	00000
Hanger Bracket	0000000	0000
Joint Bracket	0000000	00000
10-ft. Channel	0000000	00000
End Stop	0000000	0000

For 0.67" to 0.98" OD Round Cable/Air Hose

Minimum Required Cable/Hose Length—Minimum required cable/hose length is based on 6 ft. of cable or hose between trolleys plus an additional 7 _1/2 ft. at each end.

Max. Travel Lg., ft.	Overall Lg., ft.	Min. Req. Cable/Hose Lg., ft.	Wt. Cap., lb.	Channel Lg., ft.	Trolley Material	Wheel Material	Channel Material	Includes	Each
18	20	52	120	10	Steel	Steel	Steel	3 Trolleys, 2 Channels, 4 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 10 Beam Clamps, 5 Support Channels	0000000
37	40	74	280	10	Steel	Steel	Steel	7 Trolleys, 4 Channels, 8 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 9 Support Channels, 18 Beam Clamps	000000
46	50	85	360	10	Steel	Steel	Steel	9 Trolleys, 5 Channels, 10 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 22 Beam Clamps, 11 Support Channels	000000
75	80	119	600	10	Steel	Steel	Steel	15 Trolleys, 8 Channels, 16 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 34 Beam Clamps, 17 Support Channels	00000000

Accessories for Cable and Hose Trolleys

		Each
Trolley	0000000	000000
Tow Trolley	0000000	00000
Cable/Hose Bracket	0000000	00000
Anchor Bracket	0000000	00000
Hanger Bracket	0000000	0000
Joint Bracket	0000000	00000
10-ft. Channel	0000000	00000
End Stop	0000000	0000

For 1.02" to 1.42" OD Round Cable/Air Hose

Minimum Required Cable/Hose Length—Minimum required cable/hose length is based on 6 ft. of cable or hose between trolleys plus an additional 7 _1/2 ft. at each end.

Max. Travel Lg., ft.	Overall Lg., ft.	Min. Req. Cable/Hose Lg., ft.	Wt. Cap., lb.	Channel Lg., ft.	Trolley Material	Wheel Material	Channel Material	Includes	Each
18	20	52	120	10	Steel	Steel	Steel	3 Trolleys, 2 Channels, 4 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 10 Beam Clamps, 5 Support Channels	0000000
37	40	74	280	10	Steel	Steel	Steel	7 Trolleys, 4 Channels, 8 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 9 Support Channels, 18 Beam Clamps	000000
46	50	85	360	10	Steel	Steel	Steel	9 Trolleys, 5 Channels, 10 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 22 Beam Clamps, 11 Support Channels	000000
75	80	119	600	10	Steel	Steel	Steel	14 Trolleys, 8 Channels, 16 Hanger Brackets, 1 Cable/Hose Bracket, 1 Tow Trolley, 2 End Stops, 34 Beam Clamps, 17 Support Channels	00000000

Accessories for Cable and Hose Trolleys

		Each
Trolley	0000000	000000
Tow Trolley	0000000	00000
Cable/Hose Bracket	0000000	00000
Anchor Bracket	0000000	00000
Hanger Bracket	0000000	0000
Joint Bracket	0000000	00000
10-ft. Channel	0000000	00000
End Stop	0000000	0000

Heavy Duty Air-Powered Winches for Wire Rope—For Lifting

These winches operate longer and require shorter breaks than standard air-powered winches. Because they run on compressed air, they give you longer operating times than electric winches. They have an automatic brake that holds the load when the motor stops. To lift, mount winches above the load, or use winches with a pulley that’s mounted above the load. Enclosed gears offer protection from dirt and debris.

For wire rope, see Wire Rope with Hook for Winches.

Note: Capacity is highest for the first layer of rope (at least five wraps of rope on the winch) and decreases as each additional layer of rope is wound on the winch.

Warning: Never use to lift people or items over people.

	Wt. Cap., lb.					Base		Overall								Inlet
	Max.	Fully Wound	Min. Line Speed, fpm	For Max. Rope Lg., ft.	For Rope Dia.	Wd.	Lg.	Wd.	Lg.	Ht.	Material	No. of Speeds	Rope with Hook Included	Air Hose Included	Air Consumption @ Pressure	Gender	Thread Type	Pipe Size	Brake Type	Features		Each
Enclosed Gears







				30 Minutes On, 10 Minutes Off

				1,500	1,000	40	170	1/4"	9 1/4"	16 3/4"	17 1/2"	21 1/2"	12 1/2"	Aluminum, Steel	1	No	No	100 ft³/min @ 90 psi	Female	NPT	1/2	Automatic	Reversible Pulling Directions	0000000	000000000

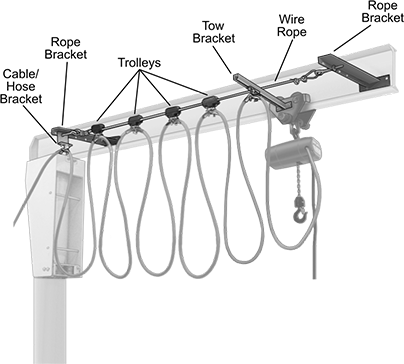

Wire-Rope-Travel Hoist Cable and Hose Trolley Systems

Also known as festoon kits, these systems keep your hoist’s cable or hose tangle-free and out of the way. They consist of a series of small trolleys that travel on the included wire rope, carrying your cable or hose along with them. Because these systems mount to the side of your crane, they require minimal structural support. Round cable, air hose, and flat cable are sold separately.

Accessory parts can be used to expand a trolley system or build your own trolley system.

Warning: Never use to lift people or items over people.

For 0.31" to 0.59" OD Round Cable/Air Hose

Minimum Required Cable/Hose Length—Minimum required cable/hose length is based on 6 ft. of cable or hose between trolleys plus an additional 7 _1/2 ft. at each end.

				Wire Rope
Max. Travel Lg., ft.	Overall Lg., ft.	Min. Req. Cable/Hose Lg., ft.	Wt. Cap., lb.	Dia.	Lg., ft.	Trolley Material	Includes		Each
22	25	43	60	1/4"	29	Nylon	4 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	00000000	0000000
35	39	64	105	1/4"	43	Nylon	7 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	00000000	000000

Accessories for Cable and Hose Trolleys

		Each
Trolley	00000000	000000
Cable/Hose Bracket	00000000	00000
Tow Bracket	0000000	00000
Tow Clamp	00000000	00000
Wire Rope Bracket	0000000	00000

For 0.6" to 0.94" OD Round Cable/Air Hose

Minimum Required Cable/Hose Length—Minimum required cable/hose length is based on 6 ft. of cable or hose between trolleys plus an additional 7 _1/2 ft. at each end.

				Wire Rope
Max. Travel Lg., ft.	Overall Lg., ft.	Min. Req. Cable/Hose Lg., ft.	Wt. Cap., lb.	Dia.	Lg., ft.	Trolley Material	Includes		Each
22	25	43	60	1/4"	29	Nylon	4 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	0000000
35	39	64	105	1/4"	43	Nylon	7 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	000000
50	56	85	150	1/4"	62	Nylon	10 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	000000
65	72	106	195	1/4"	79	Nylon	13 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	00000000

Accessories for Cable and Hose Trolleys

		Each
Trolley	0000000	000000
Cable/Hose Bracket	0000000	00000
Tow Bracket	0000000	00000
Tow Clamp	0000000	00000
Wire Rope Bracket	0000000	00000

For 0.95" to 1.25" OD Round Cable/Air Hose

Minimum Required Cable/Hose Length—Minimum required cable/hose length is based on 6 ft. of cable or hose between trolleys plus an additional 7 _1/2 ft. at each end.

				Wire Rope
Max. Travel Lg., ft.	Overall Lg., ft.	Min. Req. Cable/Hose Lg., ft.	Wt. Cap., lb.	Dia.	Lg., ft.	Trolley Material	Includes		Each
22	25	43	60	1/4"	29	Nylon	4 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	0000000
35	39	64	105	1/4"	43	Nylon	7 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	000000
50	56	85	150	1/4"	62	Nylon	10 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	000000
65	72	106	195	1/4"	79	Nylon	13 Trolleys, 1 Wire Rope, 1 Cable/Hose Bracket, 2 Wire Rope Brackets, 1 Tow Bracket	0000000	000000

Accessories for Cable and Hose Trolleys
