Clean Room Table Air Slides

Move optical equipment and other electronics sensitive to dust and fine particles from a range of mounting positions. These air slides have a port that connects to a vacuum or exhaust system to remove particles created by friction inside the slide before they contaminate your space. Compared to standard air slides, these slides have a platform that extends the mounting surface to the top of the slide. This design reduces the total space needed for a full stroke length. Two guide rods keep the head steady as it extends and retracts.

A magnetic piston inside these slides activates relays and controllers when used with a sensor (sold separately). When the piston moves past the sensor, the sensor activates. You can use multiple sensors—one for each action you want to trigger.

Sensor Ready

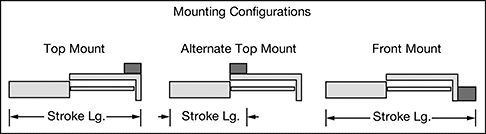

Image of Attribute. Side1 orientation. Contains Annotated. Clean Room Table Air Slides.

Image of Specification. Front orientation. Contains Annotated. Clean Room Table Air Slides.

	Lg., mm						Air Inlet
	Stroke	Retracted	Extended	Force @ 100 psi, lbf	Carriage Material	Air Inlet Thread Size	Thread Type	Gender	Dynamic Horiz. Load Cap., lb.	Clean Room Std.		Each
12 mm Bore (47 mm Wide)



		10	99	109	35	Aluminum	M5 x 0.8 mm	Metric	Female	22	Fed. Std. Class 10, ISO Class 4	7058N11	0000000


		20	99	119	35	Aluminum	M5 x 0.8 mm	Metric	Female	22	Fed. Std. Class 10, ISO Class 4	7058N12	000000
		40	111	151	35	Aluminum	M5 x 0.8 mm	Metric	Female	22	Fed. Std. Class 10, ISO Class 4	7058N13	000000
		50	131	181	35	Aluminum	M5 x 0.8 mm	Metric	Female	22	Fed. Std. Class 10, ISO Class 4	7058N14	000000
		75	177	252	35	Aluminum	M5 x 0.8 mm	Metric	Female	22	Fed. Std. Class 10, ISO Class 4	7058N15	000000

Reed Sensors with LED
