3,218 Products

About Pipe and Fittings

Measure your pipe and fittings to identify their pipe size, thread size, schedule, and thread type. Then, find compatible components.

Fitting Type

Pipe

Pair with fittings to transfer water, air, and other materials

Fitting Type

Adapter

Bridge the gap between pipe with different fitting connections

1,106 products

Reducing Adapter

Join pipe of different sizes and fitting connections

538 products

Standard-Wall Brass and Bronze Threaded Pipe Nipples and Pipe

Also known as Schedule 40, this pipe is for use in low-pressure flow applications. It is brass, which offers good corrosion resistance.

Pipe—Fully Threaded

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Lg.	Construction	Pipe Schedule	Material	Food Industry Std.		Each
NPT Male
Male


	1/8	3/4"	Seamless	40	230 Brass	NSF/ANSI 61	4568K111	00000


	1/4	7/8"	Seamless	40	230 Brass	NSF/ANSI 61	4568K131	0000
	3/8	1"	Seamless	40	230 Brass	NSF/ANSI 61	4568K151	0000
	1/2	1 1/8"	Seamless	40	230 Brass	NSF/ANSI 61	4568K171	0000
	3/4	1 3/8"	Seamless	40	230 Brass	NSF/ANSI 61	4568K191	0000
	1	1 1/2"	Seamless	40	230 Brass	NSF/ANSI 61	4568K221	0000
	1 1/4	1 5/8"	Seamless	40	230 Brass	NSF/ANSI 61	4568K241	00000
	1 1/2	1 3/4"	Seamless	40	230 Brass	NSF/ANSI 61	4568K261	00000
	2	2"	Seamless	40	230 Brass	NSF/ANSI 61	4568K281	00000
	2 1/2	2 1/2"	Seamless	40	230 Brass	NSF/ANSI 61	4568K301	00000
	3	2 5/8"	Seamless	40	230 Brass	NSF/ANSI 61	4568K311	00000


	4	2 7/8"	Seamless	40	230 Brass	NSF/ANSI 61	4568K321	00000


	BSPT Male
	Male


			1/8	3/4"	Seamless	40	230 Brass	—	4824K111	0000


			1/4	7/8"	Seamless	40	230 Brass	—	4824K112	0000
			3/8	1"	Seamless	40	230 Brass	—	4824K113	0000
			1/2	1 1/8"	Seamless	40	230 Brass	—	4824K114	0000
			3/4	1 3/8"	Seamless	40	230 Brass	—	4824K115	0000
			1	1 1/2"	Seamless	40	230 Brass	—	4824K116	00000
			1 1/4	1 5/8"	Seamless	40	230 Brass	—	4824K117	00000
			1 1/2	1 3/4"	Seamless	40	230 Brass	—	4824K118	00000
			2	2"	Seamless	40	230 Brass	—	4824K119	00000

Pipe—Threaded on Both Ends

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Lg.	Construction	Pipe Schedule	Material	Mil. Spec.	Food Industry Std.		Each
NPT Male
Male






				1/8 Pipe Size

				1 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K112	00000


				2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K113	0000
				2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K114	0000
				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K115	0000
				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K116	0000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K117	0000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K331	0000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K119	0000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K351	0000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K122	0000
				6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K391	0000


				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K371	0000
				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K124	0000
				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K511	0000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K125	0000
				11"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K711	00000
				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K126	00000
				14"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K451	00000
				16"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K452	00000
				18"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K15	00000
				20"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K453	00000


				22"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K454	00000
				24"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K37	00000
				36"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K91	00000
				48"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K92	00000
				72"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K94	00000




						1/4 Pipe Size

						1 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K132	0000


						2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K133	0000
						2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K134	0000
						3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K135	0000
						3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K136	0000
						4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K137	0000
						4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K138	0000
						5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K139	0000
						5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K352	0000
						6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K142	0000
						6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K392	0000


						7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K372	0000
						8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K144	0000
9"						Seamless	40	230 Brass	—	NSF/ANSI 61	4568K512	00000
10"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K145	00000
11"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K712	00000
12"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K146	00000
14"	Seamless					40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K461	00000
16"	Seamless	40				230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K462	00000
18"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K16	00000
20"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K463	00000


22"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K464	00000
24"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K38	00000
36"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K11	00000
48"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K12	00000
60"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K13	00000
72"	Seamless	40	230 Brass			Fed. Spec. WW-N-351	NSF/ANSI 61	4512K14	00000




		3/8 Pipe Size

		1 1/2"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K152	0000


		2"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K153	0000
		2 1/2"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K154	0000
		3"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K155	0000
		3 1/2"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K156	0000
		4"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K157	0000
		4 1/2"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K158	0000
		5"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K159	0000
		5 1/2"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K353	0000
		6"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K162	0000
		6 1/2"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K393	00000


		7"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K373	00000
		8"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K164	00000
		9"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K513	00000
		10"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K165	00000
		11"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K713	00000
		12"	Seamless			40	230 Brass	—	NSF/ANSI 61	4568K166	00000
		14"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K471	00000
		16"	Seamless	40		230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K472	00000
		18"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K17	00000
		20"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K473	00000


		22"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K474	00000
		24"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K39	00000
		36"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K21	00000
		48"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K22	00000
		60"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K23	00000
		72"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K24	00000




				1/2 Pipe Size

				1 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K172	0000


				2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K173	0000
				2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K174	0000
				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K175	0000
				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K176	0000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K177	0000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K334	0000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K179	00000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K354	00000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K182	00000
				6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K394	00000


				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K374	00000
				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K184	00000
				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K514	00000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K185	00000
				11"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K714	00000
				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K186	00000
14"				Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K481	00000
16"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K482	00000
18"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K18	00000
20"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K483	00000


22"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K484	00000
24"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K55	00000
36"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K31	00000
48"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K32	00000
60"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K33	000000
72"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K34	000000




				3/4 Pipe Size

				1 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K199	0000


				2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K192	0000
				2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K193	0000
				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K194	0000
				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K195	0000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K196	00000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K335	00000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K198	00000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K355	00000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K211	00000
				6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K395	00000


				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K375	00000
				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K213	00000
				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K515	00000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K214	00000
				11"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K715	00000
				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K215	00000
		14"		Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K491	00000
		16"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K492	00000
		18"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K19	00000
		20"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K493	00000


		22"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K494	00000
		24"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K56	00000
		36"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K41	00000
		48"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K42	000000
		60"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K43	000000
		72"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K44	000000




				1 Pipe Size

				2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K222	0000


				2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K223	00000
				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K224	00000
				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K225	00000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K226	00000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K336	00000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K228	00000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K356	00000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K231	00000
				6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K396	00000
				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K376	00000


				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K233	00000
				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K516	00000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K234	00000
				11"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K716	00000
				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K235	00000
				14"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K751	00000
16"				Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K752	00000
18"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K25	00000
20"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K753	00000
22"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K754	00000


24"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K57	00000
36"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K51	000000
48"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K52	000000
60"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K53	000000
72"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K54	000000




				1 1/4 Pipe Size

				2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K242	00000


				2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K243	00000
				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K244	00000
				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K245	00000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K246	00000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K337	00000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K248	00000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K357	00000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K251	00000
				6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K397	00000
				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K377	00000


				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K253	00000
				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K517	00000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K254	00000
				11"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K717	00000
				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K255	00000
				14"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K761	00000
				16"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K762	00000
		18"		Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K26	00000
		20"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K763	000000
		22"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K764	000000


		24"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K58	000000
		36"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K61	000000
		48"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K62	000000
		72"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K64	000000




				1 1/2 Pipe Size

				2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K262	00000


				2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K263	00000
				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K264	00000
				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K265	00000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K266	00000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K338	00000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K268	00000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K358	00000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K271	00000
				6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K398	00000
				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K378	00000


				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K273	00000
				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K518	00000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K274	00000
				11"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K718	00000
				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K275	00000
				14"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K771	00000
				16"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K772	000000
				18"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K27	000000
20"				Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K773	000000
22"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K774	000000


24"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K59	000000
36"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K71	000000
48"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K72	000000
60"	Seamless			40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K73	000000




				2 Pipe Size

				2 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K282	00000


				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K283	00000
				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K284	00000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K285	00000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K339	00000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K287	00000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K359	00000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K289	00000
				6 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K399	00000
				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K379	00000
				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K292	00000


				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K519	00000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K293	00000
				11"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K719	00000
				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K294	00000
				14"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K781	000000
				16"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K782	000000
				18"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K28	000000
				20"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K783	000000
		22"		Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K784	000000
		24"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K65	000000


		36"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K81	000000
		48"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K82	000000
		60"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K83	000000
		72"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K84	000000




				2 1/2 Pipe Size

				3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K302	00000


				3 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K303	00000
				4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K304	00000
				4 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K341	00000
				5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K305	00000
				5 1/2"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K361	00000
				6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K306	00000
				7"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K381	000000
				8"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K307	000000
				9"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K611	000000
				10"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K308	000000


				12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K309	000000
				18"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K29	000000
				24"	Seamless	40	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	4512K66	000000




						3 Pipe Size

3"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K312	00000


3 1/2"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K313	00000
4"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K314	00000
4 1/2"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K342	000000
5"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K315	000000
5 1/2"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K362	000000
6"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K316	000000
8"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K317	000000
9"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K612	000000
10"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K318	000000
12"	Seamless					40	230 Brass	—	NSF/ANSI 61	4568K319	000000




						4 Pipe Size

						3"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K322	000000


						4"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K324	000000
						5"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K325	000000
						6"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K326	000000
						12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4568K329	000000


						BSPT Male
						Male






		1/8 Pipe Size

		1 1/2"	Seamless							40	230 Brass	—	—	4824K121	0000


		2"	Seamless							40	230 Brass	—	—	4824K131	0000
		3"	Seamless							40	230 Brass	—	—	4824K151	0000
		4"	Seamless							40	230 Brass	—	—	4824K171	0000
		6"	Seamless							40	230 Brass	—	—	4824K191	00000
		12"	Seamless							40	230 Brass	—	NSF/ANSI 61	4824K311	00000




										1/4 Pipe Size

										1 1/2"	Seamless	40	230 Brass	—	—	4824K122	0000


										2"	Seamless	40	230 Brass	—	—	4824K132	0000
										3"	Seamless	40	230 Brass	—	—	4824K152	0000
										4"	Seamless	40	230 Brass	—	—	4824K172	0000
										6"	Seamless	40	230 Brass	—	—	4824K192	00000




										3/8 Pipe Size

										1 1/2"	Seamless	40	230 Brass	—	—	4824K123	0000


										2"	Seamless	40	230 Brass	—	—	4824K133	0000
										3"	Seamless	40	230 Brass	—	—	4824K153	0000
										4"	Seamless	40	230 Brass	—	—	4824K173	00000
										6"	Seamless	40	230 Brass	—	—	4824K193	00000
										36"	Seamless	40	230 Brass	—	NSF/ANSI 61	4824K323	000000




												1/2 Pipe Size

1 1/2"												Seamless	40	230 Brass	—	—	4824K124	0000


2"	Seamless											40	230 Brass	—	—	4824K134	0000
3"	Seamless											40	230 Brass	—	—	4824K154	00000
4"	Seamless											40	230 Brass	—	—	4824K174	00000
6"	Seamless											40	230 Brass	—	—	4824K194	00000
12"	Seamless											40	230 Brass	—	NSF/ANSI 61	4824K314	00000
36"	Seamless											40	230 Brass	—	NSF/ANSI 61	4824K324	000000




												3/4 Pipe Size

						1 1/2"						Seamless	40	230 Brass	—	—	4824K125	0000


						2"	Seamless					40	230 Brass	—	—	4824K135	00000
						3"	Seamless					40	230 Brass	—	—	4824K155	00000
						4"	Seamless	40				230 Brass	—	—	4824K175	00000
						6"	Seamless	40	230 Brass			—	—	4824K195	00000
						12"	Seamless	40	230 Brass			—	NSF/ANSI 61	4824K315	00000
						36"	Seamless	40	230 Brass			—	NSF/ANSI 61	4824K325	000000




								1 Pipe Size

								2"	Seamless			40	230 Brass	—	—	4824K136	00000


		3"						Seamless	40			230 Brass	—	—	4824K156	00000
		4"	Seamless					40	230 Brass			—	—	4824K176	00000
		6"	Seamless					40	230 Brass			—	—	4824K196	00000
		12"	Seamless					40	230 Brass			—	NSF/ANSI 61	4824K316	00000
		36"	Seamless					40	230 Brass			—	NSF/ANSI 61	4824K326	000000




								1 1/4 Pipe Size

								2"	Seamless			40	230 Brass	—	—	4824K137	00000


				3"	Seamless			40	230 Brass			—	—	4824K157	00000
				4"	Seamless			40	230 Brass			—	—	4824K177	00000
				6"	Seamless			40	230 Brass			—	—	4824K197	00000
				12"	Seamless			40	230 Brass			—	NSF/ANSI 61	4824K317	000000
				36"	Seamless			40	230 Brass			—	NSF/ANSI 61	4824K327	000000




								1 1/2 Pipe Size

								2"	Seamless			40	230 Brass	—	—	4824K138	00000


								3"	Seamless			40	230 Brass	—	—	4824K158	00000
								4"	Seamless			40	230 Brass	—	—	4824K178	00000
								6"	Seamless	40		230 Brass	—	—	4824K198	00000
								12"	Seamless	40	230 Brass	—	NSF/ANSI 61	4824K318	000000
								36"	Seamless	40	230 Brass	—	NSF/ANSI 61	4824K328	000000




										2 Pipe Size

										3"	Seamless	40	230 Brass	—	—	4824K159	00000


4"										Seamless	40	230 Brass	—	—	4824K179	00000
6"	Seamless									40	230 Brass	—	—	4824K199	000000
12"	Seamless									40	230 Brass	—	NSF/ANSI 61	4824K319	000000
36"	Seamless									40	230 Brass	—	NSF/ANSI 61	4824K329	000000

Pipe Adapters—Fully Threaded

Male

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Lg.	Construction	Pipe Schedule	Material	Food Industry Std.		Each
BSPT Male × NPT Male



		1/8	1/8	3/4"	Seamless	40	230 Brass	—	5832T111	00000


		1/4	1/4	7/8"	Seamless	40	230 Brass	—	5832T112	0000
		3/8	3/8	1"	Seamless	40	230 Brass	—	5832T113	0000
		1/2	1/2	1 1/8"	Seamless	40	230 Brass	—	5832T114	0000
		3/4	3/4	1 3/8"	Seamless	40	230 Brass	—	5832T115	00000
		1	1	1 1/2"	Seamless	40	230 Brass	—	5832T116	00000
		1 1/4	1 1/4	1 5/8"	Seamless	40	230 Brass	NSF/ANSI 61	5832T311	00000
		1 1/2	1 1/2	1 3/4"	Seamless	40	230 Brass	NSF/ANSI 61	5832T312	00000
		2	2	2"	Seamless	40	230 Brass	NSF/ANSI 61	5832T313	00000

Pipe Adapters—Threaded on Both Ends

Male

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Lg.	Construction	Pipe Schedule	Material	Food Industry Std.		Each
BSPT Male × NPT Male







				1/8 Pipe Size

				1 1/2"	Seamless	40	230 Brass	—	5832T121	00000


				2"	Seamless	40	230 Brass	—	5832T131	0000
				3"	Seamless	40	230 Brass	—	5832T141	0000
				4"	Seamless	40	230 Brass	—	5832T151	0000
				6"	Seamless	40	230 Brass	—	5832T161	00000
				12"	Seamless	40	230 Brass	NSF/ANSI 61	5832T326	00000
				36"	Seamless	40	230 Brass	NSF/ANSI 61	5832T336	00000




						1/4 Pipe Size

						1 1/2"	Seamless	40	230 Brass	—	5832T122	0000


						2"	Seamless	40	230 Brass	—	5832T132	0000
						3"	Seamless	40	230 Brass	—	5832T142	0000
						4"	Seamless	40	230 Brass	—	5832T152	00000
						6"	Seamless	40	230 Brass	—	5832T162	00000
						12"	Seamless	40	230 Brass	NSF/ANSI 61	5832T327	00000
						36"	Seamless	40	230 Brass	NSF/ANSI 61	5832T337	00000




								3/8 Pipe Size

								1 1/2"	Seamless	40	230 Brass	—	5832T123	0000


								2"	Seamless	40	230 Brass	—	5832T133	0000
								3"	Seamless	40	230 Brass	—	5832T143	00000
								4"	Seamless	40	230 Brass	—	5832T153	00000
								6"	Seamless	40	230 Brass	—	5832T163	00000
								12"	Seamless	40	230 Brass	NSF/ANSI 61	5832T328	00000
								36"	Seamless	40	230 Brass	NSF/ANSI 61	5832T338	000000




										1/2 Pipe Size

										1 1/2"	Seamless	40	230 Brass	—	5832T124	0000


										2"	Seamless	40	230 Brass	—	5832T134	0000
										3"	Seamless	40	230 Brass	—	5832T144	00000
										4"	Seamless	40	230 Brass	—	5832T154	00000
										6"	Seamless	40	230 Brass	—	5832T164	00000
										12"	Seamless	40	230 Brass	NSF/ANSI 61	5832T329	00000
										36"	Seamless	40	230 Brass	NSF/ANSI 61	5832T339	000000




										3/4 Pipe Size

		1 1/2"								Seamless	40	230 Brass	—	5832T125	00000


		2"	Seamless							40	230 Brass	—	5832T135	00000
		3"	Seamless							40	230 Brass	—	5832T145	00000
		4"	Seamless							40	230 Brass	—	5832T155	00000
		6"	Seamless							40	230 Brass	—	5832T165	00000
		12"	Seamless							40	230 Brass	NSF/ANSI 61	5832T331	00000
		36"	Seamless							40	230 Brass	NSF/ANSI 61	5832T341	000000




										1 Pipe Size

				2"						Seamless	40	230 Brass	—	5832T136	00000


				3"	Seamless					40	230 Brass	—	5832T146	00000
				4"	Seamless					40	230 Brass	—	5832T156	00000
				6"	Seamless					40	230 Brass	—	5832T166	00000
				12"	Seamless					40	230 Brass	NSF/ANSI 61	5832T332	00000
				36"	Seamless					40	230 Brass	NSF/ANSI 61	5832T342	000000




										1 1/4 Pipe Size

										2"	Seamless	40	230 Brass	NSF/ANSI 61	5832T314	00000


						3"	Seamless			40	230 Brass	NSF/ANSI 61	5832T316	00000
						4"	Seamless			40	230 Brass	NSF/ANSI 61	5832T319	00000
						6"	Seamless			40	230 Brass	NSF/ANSI 61	5832T323	00000
						12"	Seamless			40	230 Brass	NSF/ANSI 61	5832T333	000000
						36"	Seamless			40	230 Brass	NSF/ANSI 61	5832T343	000000




										1 1/2 Pipe Size

										2"	Seamless	40	230 Brass	NSF/ANSI 61	5832T315	00000


								3"	Seamless	40	230 Brass	NSF/ANSI 61	5832T317	00000
								4"	Seamless	40	230 Brass	NSF/ANSI 61	5832T321	00000
								6"	Seamless	40	230 Brass	NSF/ANSI 61	5832T324	00000
								12"	Seamless	40	230 Brass	NSF/ANSI 61	5832T334	000000
								36"	Seamless	40	230 Brass	NSF/ANSI 61	5832T344	000000




										2 Pipe Size

										3"	Seamless	40	230 Brass	NSF/ANSI 61	5832T318	00000


4"										Seamless	40	230 Brass	NSF/ANSI 61	5832T322	00000
6"	Seamless									40	230 Brass	NSF/ANSI 61	5832T325	000000
12"	Seamless									40	230 Brass	NSF/ANSI 61	5832T335	000000
36"	Seamless									40	230 Brass	NSF/ANSI 61	5832T345	000000

Pipe Adapters—Threaded on One End

Male × Male

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Construction	Pipe Schedule	Material	Food Industry Std.		Each
NPT Male × Butt Weld/Socket Connect/Braze Socket Male







			1/4 Pipe Size

			1"	Seamless	40	230 Brass	NSF/ANSI 61	9580K11	00000


			1 1/2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K21	0000
			2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K31	0000
			3"	Seamless	40	230 Brass	NSF/ANSI 61	9580K41	0000
			4"	Seamless	40	230 Brass	NSF/ANSI 61	9580K51	0000




					3/8 Pipe Size

					1"	Seamless	40	230 Brass	NSF/ANSI 61	9580K12	0000


					1 1/2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K22	0000
					2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K32	0000
					3"	Seamless	40	230 Brass	NSF/ANSI 61	9580K42	0000
					4"	Seamless	40	230 Brass	NSF/ANSI 61	9580K52	0000




							1/2 Pipe Size

							1"	Seamless	40	230 Brass	NSF/ANSI 61	9580K13	0000


							1 1/2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K23	0000
							2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K33	0000
							3"	Seamless	40	230 Brass	NSF/ANSI 61	9580K43	0000
							4"	Seamless	40	230 Brass	NSF/ANSI 61	9580K53	00000




									3/4 Pipe Size

									1 1/2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K24	0000


									2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K34	0000
									3"	Seamless	40	230 Brass	NSF/ANSI 61	9580K44	00000
									4"	Seamless	40	230 Brass	NSF/ANSI 61	9580K54	00000




											1 Pipe Size

											2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K35	00000


											3"	Seamless	40	230 Brass	NSF/ANSI 61	9580K45	00000
4"											Seamless	40	230 Brass	NSF/ANSI 61	9580K55	00000




	1 1/4 Pipe Size

	2"	Seamless									40	230 Brass	NSF/ANSI 61	9580K36	00000


	3"	Seamless									40	230 Brass	NSF/ANSI 61	9580K46	00000
	4"	Seamless									40	230 Brass	NSF/ANSI 61	9580K56	00000




											1 1/2 Pipe Size

											2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K37	00000


			3"	Seamless							40	230 Brass	NSF/ANSI 61	9580K47	00000
			4"	Seamless							40	230 Brass	NSF/ANSI 61	9580K57	00000




											2 Pipe Size

											2"	Seamless	40	230 Brass	NSF/ANSI 61	9580K38	00000


					3"						Seamless	40	230 Brass	NSF/ANSI 61	9580K48	00000
					4"	Seamless					40	230 Brass	NSF/ANSI 61	9580K58	00000

High-Pressure Brass and Bronze Threaded Pipe Nipples and Pipe

Use this extra-strong pipe in a high-pressure line. It is brass for good corrosion resistance. The plating on this pipe creates a shiny finish and provides extra protection in corrosive environments. It has the strength to handle high-pressure applications.

Pipe—Fully Threaded

Male

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Thread Size	Lg.	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/16	—	5/8"	Brass	1,000 psi @ 72° F	50785K268	00000


	1/8	—	3/4"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T96	0000
	1/8	—	3/4"	Brass	1,000 psi @ 72° F	50785K151	0000
	1/8	—	3/4"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K63	0000
	1/8	—	3/4"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K76	0000
	1/4	—	7/8"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T97	0000
	1/4	—	7/8"	Brass	1,000 psi @ 72° F	50785K152	0000
	1/4	—	7/8"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K64	0000
	1/4	—	7/8"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K77	0000
	3/8	—	1"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T98	0000
	3/8	—	1"	Brass	1,000 psi @ 72° F	50785K153	0000


	3/8	—	1"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K65	0000
	3/8	—	1"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K78	0000
	1/2	—	1 1/8"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T99	0000
	1/2	—	1 1/8"	Brass	1,000 psi @ 72° F	50785K154	0000
	1/2	—	1 1/8"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K66	0000
	1/2	—	1 1/8"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K79	0000
	3/4	—	1 5/16"	Brass	1,000 psi @ 72° F	50785K155	0000


	BSPT Male



			1/8	—	3/4"	Nickel-Plated Brass	2,170 psi @ 72° F	9151K363	0000


			1/4	—	1 1/16"	Nickel-Plated Brass	1,450 psi @ 72° F	9151K364	0000
			3/8	—	1 1/8"	Nickel-Plated Brass	1,080 psi @ 72° F	9151K365	0000
			1/2	—	1 5/16"	Nickel-Plated Brass	725 psi @ 72° F	9151K366	0000
			3/4	—	1 9/16"	Nickel-Plated Brass	1,230 psi @ 72° F	9151K367	0000
			1	—	1 13/16"	Nickel-Plated Brass	1,160 psi @ 72° F	9151K368	00000


			BSPP Male



					1/8	—	5/8"	Nickel-Plated Brass	2,170 psi @ 72° F	9151K372	0000


					1/4	—	7/8"	Nickel-Plated Brass	1,450 psi @ 72° F	9151K373	0000
					3/8	—	7/8"	Nickel-Plated Brass	1,080 psi @ 72° F	9151K374	0000
					1/2	—	1"	Nickel-Plated Brass	725 psi @ 72° F	9151K375	0000
					3/4	—	1 3/16"	Nickel-Plated Brass	1,230 psi @ 72° F	9151K376	00000
					1	—	1 1/4"	Nickel-Plated Brass	1,160 psi @ 72° F	9151K377	00000


					Metric Male



							—	M3	3/8"	Nickel-Plated Brass	1,080 psi @ 72° F	9151K369	0000


							—	M5	7/16"	Nickel-Plated Brass	1,080 psi @ 72° F	9151K406	0000

Pipe—Threaded on Both Ends

Male

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Lg.	Material	Max. Pressure @ Temp.		Each
NPT Male







				1/16 Pipe Size

				1 1/2"	Brass	1,000 psi @ 72° F	50785K257	00000


				2"	Brass	1,000 psi @ 72° F	50785K258	0000




						1/8 Pipe Size

						1 1/2"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T71	0000


						1 1/2"	Brass	1,000 psi @ 72° F	50785K11	0000
						1 1/2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K67	0000
						1 1/2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K56	0000
						2"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T75	0000
						2"	Brass	1,000 psi @ 72° F	50785K171	0000
						2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K72	0000
						2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K46	0000
						2 1/2"	Brass	1,000 psi @ 72° F	50785K957	0000
						3"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T79	0000
						3"	Brass	1,000 psi @ 72° F	50785K958	0000


						3"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K76	0000
						3"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K35	0000
						3 1/2"	Brass	1,000 psi @ 72° F	50785K959	0000
						4"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T84	00000
						4"	Brass	1,000 psi @ 72° F	50785K961	0000
						4"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K81	00000
						4"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K66	0000
						5"	Brass	1,000 psi @ 72° F	50785K963	0000
						6"	Brass	1,000 psi @ 72° F	50785K965	0000




								1/4 Pipe Size

								1 1/2"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T72	0000


								1 1/2"	Brass	1,000 psi @ 72° F	50785K12	0000
								1 1/2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K68	0000
								1 1/2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K57	0000
								2"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T76	0000
								2"	Brass	1,000 psi @ 72° F	50785K172	0000
								2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K73	0000
								2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K47	0000
								2 1/2"	Brass	1,000 psi @ 72° F	50785K966	0000
								3"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T81	00000
								3"	Brass	1,000 psi @ 72° F	50785K967	0000


3"								Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K77	0000
3"	Nickel-Plated 360 Brass							1,000 psi @ 72° F	9151K45	0000
3 1/2"	Brass							1,000 psi @ 72° F	50785K968	00000
4"	Black-Zinc-Plated 360 Brass							1,000 psi @ 72° F	5799T85	00000
4"	Brass							1,000 psi @ 72° F	50785K969	00000
4"	Chrome-Plated 360 Brass	1,000 psi @ 72° F						2641K82	00000
4"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K67					0000
4 1/2"	Brass	1,000 psi @ 72° F	50785K971					00000
5"	Brass	1,000 psi @ 72° F	50785K972					00000
6"	Brass	1,000 psi @ 72° F	50785K974					00000




		3/8 Pipe Size

		1 1/2"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F				5799T73	0000


		1 1/2"	Brass	1,000 psi @ 72° F	50785K13			0000
		1 1/2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K69			0000
		1 1/2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K58			0000
		2"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T77			0000
		2"	Brass	1,000 psi @ 72° F	50785K173			0000
		2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K74			0000
		2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K48			0000
		2 1/2"	Brass	1,000 psi @ 72° F	50785K975			0000
		3"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T82			00000
		3"	Brass	1,000 psi @ 72° F	50785K976			00000


		3"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K78			00000
		3"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K55			00000
		3 1/2"	Brass	1,000 psi @ 72° F	50785K977			00000
		4"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T86			00000
		4"	Brass	1,000 psi @ 72° F	50785K978			00000
		4"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K83			00000
		4"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K68			00000
		6"	Brass	1,000 psi @ 72° F	50785K983			00000




				1/2 Pipe Size

				1 1/2"	Black-Zinc-Plated 360 Brass			1,000 psi @ 72° F	5799T74	0000


				1 1/2"	Brass	1,000 psi @ 72° F	50785K14	0000
				1 1/2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K71	00000
				1 1/2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K59	0000
				2"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T78	00000
				2"	Brass	1,000 psi @ 72° F	50785K174	0000
				2"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K75	00000
				2"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K49	0000
				2 1/2"	Brass	1,000 psi @ 72° F	50785K984	0000
				3"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T83	00000
				3"	Brass	1,000 psi @ 72° F	50785K985	00000


				3"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K79	00000
				3"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K65	00000
				3 1/2"	Brass	1,000 psi @ 72° F	50785K986	00000
				4"	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T87	00000
				4"	Brass	1,000 psi @ 72° F	50785K987	00000
				4"	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K84	00000
				4"	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K69	00000
				4 1/2"	Brass	1,000 psi @ 72° F	50785K988	00000
				5"	Brass	1,000 psi @ 72° F	50785K989	00000
				6"	Brass	1,000 psi @ 72° F	50785K992	00000




						3/4 Pipe Size

1 1/2"						Brass	1,000 psi @ 72° F	50785K15	0000


2"	Brass					1,000 psi @ 72° F	50785K175	00000
2 1/2"	Brass					1,000 psi @ 72° F	50785K993	00000
3"	Brass					1,000 psi @ 72° F	50785K994	00000
3 1/2"	Brass					1,000 psi @ 72° F	50785K871	00000
4"	Brass					1,000 psi @ 72° F	50785K872	00000
6"	Brass					1,000 psi @ 72° F	50785K876	00000




						1 Pipe Size

						1 1/2"	Brass	1,000 psi @ 72° F	50785K951	0000


						2"	Brass	1,000 psi @ 72° F	50785K877	00000
						3"	Brass	1,000 psi @ 72° F	50785K879	00000
						4"	Brass	1,000 psi @ 72° F	50785K882	00000
						5"	Brass	1,000 psi @ 72° F	50785K884	00000
						6"	Brass	1,000 psi @ 72° F	50785K886	00000




								1 1/4 Pipe Size

		1 5/8"						Brass	1,000 psi @ 72° F	50785K952	00000


		3"	Brass					1,000 psi @ 72° F	50785K889	00000
		4"	Brass					1,000 psi @ 72° F	50785K892	00000




								1 1/2 Pipe Size

								1 3/4"	Brass	1,000 psi @ 72° F	50785K953	00000


								2"	Brass	1,000 psi @ 72° F	50785K897	00000
								2 1/2"	Brass	1,000 psi @ 72° F	50785K898	00000
								3"	Brass	1,000 psi @ 72° F	50785K899	00000




										2 Pipe Size

										2"	Brass	1,000 psi @ 72° F	50785K954	00000


										2 1/2"	Brass	1,000 psi @ 72° F	50785K699	00000
										4"	Brass	1,000 psi @ 72° F	50785K703	00000
										4 1/2"	Brass	1,000 psi @ 72° F	50785K704	00000
										6"	Brass	1,000 psi @ 72° F	50785K707	00000

Low-Pressure Brass and Bronze Threaded Pipe Fittings

Use these fittings in low-pressure flow applications. They have good corrosion resistance.

Straight Connectors

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female



		1/8	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K119	000000


		1/8	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K311	00000
		1/4	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K111	00000
		1/4	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K312	00000
		3/8	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K112	00000
		3/8	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K313	00000
		1/2	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K113	00000
		1/2	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K314	00000
		3/4	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K114	00000
		3/4	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K315	00000
		1	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K115	00000


		1	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K316	00000
		1 1/4	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K116	00000
		1 1/2	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K117	00000
		2	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K118	00000
		2 1/2	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K454	000000
		3	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K455	000000
		4	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K456	000000


		NPT Male



				1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K403	0000


				1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K407	00000
				3/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K501	00000
				1	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K187	00000
				1 1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K202	00000
				1 1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K203	00000
				2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K205	00000


				BSPT Female



						1/8	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K131	0000


						1/4	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K132	0000
						3/8	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K133	0000
						1/2	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K134	00000
						3/4	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K135	00000
						1	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K136	00000
						1 1/4	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K137	00000
						1 1/2	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K138	00000
						2	125	—	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K139	00000


						BSPT Male



								1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K371	0000


3/8	125							Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K372	0000
1/2	125							Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K373	00000
3/4	125							Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K374	00000
1	125							Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K375	00000
1 1/2	125							Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K376	00000

Intermittent-Swivel Straight Connectors

Female

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

	Material	Max. Pressure @ Temp.		Each
NPT Female



	1	Bronze	300 psi @ 72° F	53845K44	0000000


	1 1/2	Bronze	300 psi @ 72° F	53845K46	000000
	2	Bronze	300 psi @ 72° F	53845K48	000000

Union Straight Connectors

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female

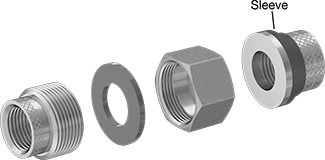

Exploded View


	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K211	000000


	1/8	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K471	00000
	1/4	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K472	00000
	1/4	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K212	00000
	3/8	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K473	00000
	3/8	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K213	00000
	1/2	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K474	00000
	1/2	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K214	00000
	3/4	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K475	00000
	3/4	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K215	00000
	1	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K476	000000


	1	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K216	00000
	1 1/4	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K217	000000
	1 1/2	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K218	000000
	2	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K219	000000
	2 1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K221	000000
	3	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K222	000000


	BSPT Female
	Exploded View


			1/8	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K161	00000


			1/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K162	00000
			3/8	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K163	00000
			1/2	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K164	00000
			3/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K165	00000
			1	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K166	00000
			1 1/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K167	00000
			1 1/2	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K168	00000
			2	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K169	000000

Straight Adapters

Female x Male

Male x Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Male



		1/2	1/2	125	—	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K298	000000


		1 1/2	1 1/2	125	—	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K323	000000
		2	2	125	—	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K324	000000


		NPT Female × BSPT Male



				1/16	1/16	—	Hex	Brass	250 psi @ 72° F	—	1786N126	0000


				1/8	1/8	—	Hex	Brass	250 psi @ 72° F	—	1786N127	0000
				1/4	1/4	—	Hex	Brass	250 psi @ 72° F	—	1786N128	00000
				3/8	3/8	—	Hex	Brass	250 psi @ 72° F	—	1786N129	00000
				1/2	1/2	—	Hex	Brass	250 psi @ 72° F	—	1786N131	00000
				3/4	3/4	—	Hex	Brass	250 psi @ 72° F	—	1786N132	00000
				1	1	—	Hex	Brass	250 psi @ 72° F	—	1786N133	00000


				NPTF Female × NPSM Male



						1/4	1/4	—	Hex	Brass	250 psi @ 72° F	—	4685T33	0000


						3/8	3/8	—	Hex	Brass	250 psi @ 72° F	—	4685T34	0000
						1/2	1/2	—	Hex	Brass	250 psi @ 72° F	—	4685T35	0000


						NPSM Male × NPTF Male



								1/4	1/4	—	Hex	Brass	250 psi @ 72° F	—	4685T11	0000


								3/8	3/8	—	Hex	Brass	250 psi @ 72° F	—	4685T12	0000
								1/2	1/2	—	Hex	Brass	250 psi @ 72° F	—	4685T13	0000


								BSPT Female × NPT Male



										1/16	1/16	—	Hex	Brass	250 psi @ 72° F	—	1786N111	0000


										1/8	1/8	—	Hex	Brass	250 psi @ 72° F	—	1786N112	0000
										1/4	1/4	—	Hex	Brass	250 psi @ 72° F	—	1786N113	00000
										3/8	3/8	—	Hex	Brass	250 psi @ 72° F	—	1786N114	00000
										1/2	1/2	—	Hex	Brass	250 psi @ 72° F	—	1786N115	00000
										3/4	3/4	—	Hex	Brass	250 psi @ 72° F	—	1786N116	00000
										1	1	—	Hex	Brass	250 psi @ 72° F	—	1786N117	00000


										BSPP Female × NPT Male



	1/8										1/8	—	Hex	Brass	250 psi @ 72° F	—	1786N119	0000


	1/4										1/4	—	Hex	Brass	250 psi @ 72° F	—	1786N121	00000
	3/8										3/8	—	Hex	Brass	250 psi @ 72° F	—	1786N122	00000
	1/2										1/2	—	Hex	Brass	250 psi @ 72° F	—	1786N123	00000
	3/4										3/4	—	Hex	Brass	250 psi @ 72° F	—	1786N124	00000
	1										1	—	Hex	Brass	250 psi @ 72° F	—	1786N125	00000

Straight Adapters with Gasket

Female x Male

Viton® Fluoroelastomer—These gaskets resist a wide range of chemicals, including benzene, butyl alcohol, and ethylene glycol.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
NPT Female × BSPP Male



		1/16	1/16	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N134	000000


		1/8	1/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N135	00000
		1/4	1/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N136	00000
		3/8	3/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N137	00000
		1/2	1/2	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N138	00000
		3/4	3/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N139	00000
		1	1	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N141	00000

Straight Reducing Adapters

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × BSPT Male
Female x Male


		1/16	1/8	Hex	Brass	250 psi @ 72° F	1786N235	00000


		1/8	1/16	Hex	Brass	250 psi @ 72° F	1786N242	0000
		1/8	1/4	Hex	Brass	250 psi @ 72° F	1786N243	00000
		1/8	3/8	Hex	Brass	250 psi @ 72° F	1786N244	00000
		1/8	1/2	Hex	Brass	250 psi @ 72° F	1786N245	00000
		1/4	1/16	Hex	Brass	250 psi @ 72° F	1786N248	00000
		1/4	1/8	Hex	Brass	250 psi @ 72° F	1786N249	00000
		1/4	3/8	Hex	Brass	250 psi @ 72° F	1786N251	00000
		1/4	1/2	Hex	Brass	250 psi @ 72° F	1786N252	00000
		1/4	3/4	Hex	Brass	250 psi @ 72° F	1786N253	00000
		3/8	1/8	Hex	Brass	250 psi @ 72° F	1786N256	00000


		3/8	1/4	Hex	Brass	250 psi @ 72° F	1786N257	00000
		3/8	1/2	Hex	Brass	250 psi @ 72° F	1786N258	00000
		3/8	3/4	Hex	Brass	250 psi @ 72° F	1786N259	00000
		1/2	1/8	Hex	Brass	250 psi @ 72° F	1786N263	00000
		1/2	1/4	Hex	Brass	250 psi @ 72° F	1786N264	00000
		1/2	3/8	Hex	Brass	250 psi @ 72° F	1786N265	00000
		1/2	3/4	Hex	Brass	250 psi @ 72° F	1786N266	00000
		1/2	1	Hex	Brass	250 psi @ 72° F	1786N267	00000
		3/4	1/4	Hex	Brass	250 psi @ 72° F	1786N271	00000
		3/4	3/8	Hex	Brass	250 psi @ 72° F	1786N272	00000


		3/4	1/2	Hex	Brass	250 psi @ 72° F	1786N273	00000
		3/4	1	Hex	Brass	250 psi @ 72° F	1786N274	00000
		1	1/2	Hex	Brass	250 psi @ 72° F	1786N279	00000
		1	3/4	Hex	Brass	250 psi @ 72° F	1786N281	00000


		BSPT Female × NPT Male
		Female x Male


				1/16	1/8	Hex	Brass	250 psi @ 72° F	1786N142	0000


				1/8	1/16	Hex	Brass	250 psi @ 72° F	1786N148	0000
				1/8	1/4	Hex	Brass	250 psi @ 72° F	1786N149	00000
				1/8	3/8	Hex	Brass	250 psi @ 72° F	1786N151	00000
				1/8	1/2	Hex	Brass	250 psi @ 72° F	1786N152	00000
				1/4	1/16	Hex	Brass	250 psi @ 72° F	1786N155	00000
				1/4	1/8	Hex	Brass	250 psi @ 72° F	1786N156	00000
				1/4	3/8	Hex	Brass	250 psi @ 72° F	1786N157	00000
				1/4	1/2	Hex	Brass	250 psi @ 72° F	1786N158	00000
				1/4	3/4	Hex	Brass	250 psi @ 72° F	1786N159	00000
				3/8	1/8	Hex	Brass	250 psi @ 72° F	1786N163	00000


				3/8	1/4	Hex	Brass	250 psi @ 72° F	1786N164	00000
				3/8	1/2	Hex	Brass	250 psi @ 72° F	1786N165	00000
				3/8	3/4	Hex	Brass	250 psi @ 72° F	1786N166	00000
				3/8	1	Hex	Brass	250 psi @ 72° F	1786N167	00000
				1/2	1/8	Hex	Brass	250 psi @ 72° F	1786N169	00000
				1/2	1/4	Hex	Brass	250 psi @ 72° F	1786N171	00000
				1/2	3/8	Hex	Brass	250 psi @ 72° F	1786N172	00000
				1/2	3/4	Hex	Brass	250 psi @ 72° F	1786N173	00000
				1/2	1	Hex	Brass	250 psi @ 72° F	1786N174	00000
3/4				1/4	Hex	Brass	250 psi @ 72° F	1786N177	00000


3/4	3/8			Hex	Brass	250 psi @ 72° F	1786N178	00000
3/4	1/2			Hex	Brass	250 psi @ 72° F	1786N179	00000
3/4	1			Hex	Brass	250 psi @ 72° F	1786N181	00000
1	1/2			Hex	Brass	250 psi @ 72° F	1786N186	00000
1	3/4			Hex	Brass	250 psi @ 72° F	1786N187	00000


BSPP Female × NPT Male
Female x Male


				1/16	1/8	Hex	Brass	250 psi @ 72° F	1786N188	0000


				1/16	1/4	Hex	Brass	250 psi @ 72° F	1786N189	00000
				1/8	1/16	Hex	Brass	250 psi @ 72° F	1786N195	0000
				1/8	1/4	Hex	Brass	250 psi @ 72° F	1786N196	00000
				1/8	3/8	Hex	Brass	250 psi @ 72° F	1786N197	00000
				1/8	1/2	Hex	Brass	250 psi @ 72° F	1786N198	00000
				1/4	1/16	Hex	Brass	250 psi @ 72° F	1786N202	00000
				1/4	1/8	Hex	Brass	250 psi @ 72° F	1786N203	00000
				1/4	3/8	Hex	Brass	250 psi @ 72° F	1786N204	00000
				1/4	1/2	Hex	Brass	250 psi @ 72° F	1786N205	00000
				1/4	3/4	Hex	Brass	250 psi @ 72° F	1786N206	00000


				1/4	1	Hex	Brass	250 psi @ 72° F	1786N207	00000
				3/8	1/8	Hex	Brass	250 psi @ 72° F	1786N209	00000
				3/8	1/4	Hex	Brass	250 psi @ 72° F	1786N211	00000
				3/8	1/2	Hex	Brass	250 psi @ 72° F	1786N212	00000
				3/8	3/4	Hex	Brass	250 psi @ 72° F	1786N213	00000
				3/8	1	Hex	Brass	250 psi @ 72° F	1786N214	00000
				1/2	1/8	Hex	Brass	250 psi @ 72° F	1786N216	00000
				1/2	1/4	Hex	Brass	250 psi @ 72° F	1786N217	00000
				1/2	3/8	Hex	Brass	250 psi @ 72° F	1786N218	00000
		1/2		3/4	Hex	Brass	250 psi @ 72° F	1786N219	00000


		1/2	1	Hex	Brass	250 psi @ 72° F	1786N221	00000
		3/4	1/4	Hex	Brass	250 psi @ 72° F	1786N224	00000
		3/4	3/8	Hex	Brass	250 psi @ 72° F	1786N225	00000
		3/4	1/2	Hex	Brass	250 psi @ 72° F	1786N226	00000
		3/4	1	Hex	Brass	250 psi @ 72° F	1786N227	00000
		1	1/4	Hex	Brass	250 psi @ 72° F	1786N231	00000
		1	1/2	Hex	Brass	250 psi @ 72° F	1786N233	00000
		1	3/4	Hex	Brass	250 psi @ 72° F	1786N234	00000

Straight Reducing Adapters with Gasket

Female x

Male

Viton® Fluoroelastomer—These gaskets resist a wide range of chemicals, including benzene, butyl alcohol, and ethylene glycol.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
NPT Female × BSPP Male



		1/16	1/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N282	000000


		1/16	1/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N283	00000
		1/8	1/16	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N288	00000
		1/8	1/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N289	00000
		1/8	3/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N291	00000
		1/8	1/2	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N292	00000
		1/4	1/16	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N295	00000
		1/4	1/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N296	00000
		1/4	3/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N297	00000
		1/4	1/2	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N298	00000
		1/4	3/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N299	00000


		1/4	1	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N311	00000
		3/8	1/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N313	00000
		3/8	1/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N314	00000
		3/8	1/2	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N315	00000
		3/8	3/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N316	00000
		3/8	1	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N317	00000
		1/2	1/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N319	00000
		1/2	1/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N321	00000
		1/2	3/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N322	00000
		1/2	3/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N323	00000


		1/2	1	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N324	00000
		3/4	1/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N327	00000
		3/4	3/8	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N328	00000
		3/4	1/2	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N329	00000
		3/4	1	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N331	00000
		1	1/2	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N336	00000
		1	3/4	Hex	Brass	250 psi @ 72° F	Viton® Fluoroelastomer	1786N337	00000

Bushing Straight Reducing Adapters

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Male × NPT Female
Male x Female


		1/4	1/8	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 372	4429K917	000000


		1/4	1/8	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K241	0000
		1/4	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K411	0000
		1/4	1/8	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K221	0000
		3/8	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K471	0000
		3/8	1/8	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K222	0000
		3/8	1/4	125	—	Brass	200 psi @ 72° F	—	NSF/ANSI 372	4429K913	00000
		3/8	1/4	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K243	0000
		3/8	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K412	0000
		3/8	1/4	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K223	0000
		1/2	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K421	0000


		1/2	1/8	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K227	00000
		1/2	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K701	0000
		1/2	1/4	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K228	00000
		1/2	3/8	125	—	Brass	200 psi @ 72° F	—	—	4429K524	0000
		1/2	3/8	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K244	0000
		1/2	3/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K413	0000
		1/2	3/8	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K224	00000
		3/4	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K439	00000
		3/4	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K423	00000
		3/4	1/4	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K232	00000


		3/4	3/8	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K245	00000
		3/4	3/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K418	0000
		3/4	3/8	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K225	00000
		3/4	1/2	125	—	Brass	200 psi @ 72° F	—	—	4429K527	0000
		3/4	1/2	125	—	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K246	00000
		3/4	1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K414	00000
		3/4	1/2	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K226	00000
		1	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K271	00000
		1	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K461	00000
		1	1/4	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K233	00000


		1	3/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K272	00000
		1	1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K424	00000
		1	1/2	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K234	00000
		1	3/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K415	00000
		1	3/4	125	Hex	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K229	00000
		1 1/4	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K295	00000
		1 1/4	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K292	00000
		1 1/4	3/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K273	00000
		1 1/4	1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K462	00000
		1 1/4	3/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K472	00000


		1 1/4	1	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K416	00000
		1 1/2	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K293	00000
		1 1/2	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K429	00000
		1 1/2	3/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K294	00000
		1 1/2	1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K436	00000
		1 1/2	3/4	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K425	00000
		1 1/2	1	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K426	00000
		1 1/2	1 1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K417	00000
		2	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K296	00000
		2	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K274	00000

2	3/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K297	00000
2	1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K463	00000
2	3/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K401	00000
2	1	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K801	00000
2	1	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K473	00000
2	1 1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K474	00000
2	1 1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K427	00000
2 1/2	3/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K394	000000
2 1/2	1	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K442	00000
2 1/2	1 1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K475	000000
2 1/2	1 1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K395	000000
2 1/2	2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K428	000000
3	1	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K275	000000
3	1 1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K276	000000
3	1 1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K443	000000
3	2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K476	000000
3	2 1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K477	000000
4	1	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K811	000000
4	1 1/2	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K812	000000
4	2	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K813	000000
4	2 1/2	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K814	000000
4	3	125	Octagon	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K815	000000
4	3 1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K478	000000

BSPT Male × BSPT Female
Male x Female


		1/4	1/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K321	0000


		3/8	1/4	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K322	0000
		1/2	1/8	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K171	0000
		1/2	1/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K172	0000
		1/2	3/8	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K323	0000
		1/2	3/8	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K173	0000
		3/4	1/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K174	00000
		3/4	3/8	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K175	0000
		3/4	1/2	125	Hex	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K324	00000
		3/4	1/2	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K176	0000
		1	1/2	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K177	00000


		1	3/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K178	00000
		1 1/4	3/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K179	00000
		1 1/4	1	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K181	00000
		1 1/2	1/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K182	00000
		1 1/2	1/2	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K183	00000
		1 1/2	3/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K184	00000
		1 1/2	1	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K185	00000
		1 1/2	1 1/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K186	00000
		2	1	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K188	00000
		2	1 1/4	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K189	00000


		2	1 1/2	125	Hex	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K191	00000

Straight Reducers

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Female



		1/4	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K731	00000


		1/4	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K261	00000
		3/8	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K349	0000
		3/8	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K732	0000
		3/8	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K263	00000
		1/2	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K733	00000
		1/2	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K262	00000
		1/2	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K734	0000
		1/2	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K267	00000
		1/2	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K736	00000
		1/2	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K264	00000


		3/4	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K738	00000
		3/4	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K271	00000
		3/4	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K735	00000
		3/4	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K265	00000
		3/4	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K737	00000
		3/4	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K266	00000
		1	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K371	00000
		1	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K751	00000
		1	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K741	00000
		1	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K272	00000


		1	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K742	00000
		1	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K269	00000
		1 1/4	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K372	00000
		1 1/4	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K761	00000
		1 1/4	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K743	00000
		1 1/2	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K752	00000
		1 1/2	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K746	00000
		1 1/2	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K744	00000
		1 1/2	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K745	00000
		2	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K373	00000


		2	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K749	00000
		2	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K762	000000
		2	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K763	00000
		2	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K748	000000
		2 1/2	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K764	000000
		2 1/2	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K374	00000
		2 1/2	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K747	00000
		3	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K765	000000
		3	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K766	000000
		4	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K376	000000


		4	3	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K375	000000


		BSPT Female × BSPT Female



				1/4	1/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K211	0000


3/8				1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K212	0000
1/2	1/8			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K213	00000
1/2	1/4			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K214	00000
1/2	3/8			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K215	00000
3/4	1/4			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K216	00000
3/4	3/8			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K217	00000
3/4	1/2			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K218	00000
1	1/2			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K219	00000
1	3/4			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K221	00000
1 1/4	3/4			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K222	00000


1 1/4	1			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K223	00000
1 1/2	3/4			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K224	00000
1 1/2	1			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K225	00000
1 1/2	1 1/4			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K226	00000
2	1			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K227	00000
2	1 1/4			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K228	00000
2	1 1/2			125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K229	00000

90° Elbow Connectors

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female



	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K169	000000


	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K111	00000
	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K161	00000
	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K112	00000
	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K162	00000
	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K113	00000
	1/2	125	Brass	200 psi @ 72° F	—	—	4429K485	00000
	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K163	00000
	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K114	00000
	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K164	00000
	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K115	00000


	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K165	00000
	1	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K116	00000
	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K166	00000
	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K167	00000
	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K168	00000
	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K431	000000
	3	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K432	000000
	4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K433	000000


	BSPT Female



			1/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K101	0000


			1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K102	0000
			3/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K103	0000
			1/2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K104	00000
			3/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K105	00000
			1	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K106	00000
			1 1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K107	00000
			1 1/2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K108	00000
			2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K109	00000

Intermittent-Swivel 90° Elbow Connectors

Female

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

	Material	Max. Pressure @ Temp.		Each
NPT Female



	1	Bronze	300 psi @ 72° F	53845K54	0000000


	1 1/2	Bronze	300 psi @ 72° F	53845K56	000000
	2	Bronze	300 psi @ 72° F	53845K58	000000

90° Elbow Adapters

Female x male 90° elbow adapters are also known as street elbows.

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Male



		1/8	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K159	000000


		1/8	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K131	00000
		1/4	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K151	00000
		1/4	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K132	00000
		3/8	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K152	00000
		3/8	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K133	00000
		1/2	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K153	00000
		1/2	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K134	00000
		3/4	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K154	00000
		3/4	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K135	00000
		1	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K155	00000


		1	1	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K136	00000
		1 1/4	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K156	00000
		1 1/2	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K157	00000
		2	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K158	000000
		2 1/2	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K437	000000
		3	3	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K438	000000


		BSPT Female × BSPT Male



				1/8	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K325	00000


				1/4	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K326	00000
				3/8	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K327	00000
				1/2	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K328	00000
				3/4	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K329	00000
				1	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K331	00000
				1 1/4	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K332	00000
				1 1/2	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K333	00000
				2	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K334	000000

90° Elbow Reducers

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Female



		1/4	1/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K131	000000


		3/8	1/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K132	00000
		3/8	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K133	00000
		1/2	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K134	00000
		1/2	3/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K135	00000
		3/4	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K136	00000
		3/4	3/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K137	00000
		3/4	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K138	00000
		1	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K817	00000
		1	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K139	00000
		1	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K141	00000


		1 1/4	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K819	00000
		1 1/4	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K172	00000
		1 1/4	1	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K173	00000
		1 1/2	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K821	00000
		1 1/2	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K174	00000
		1 1/2	1	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K175	00000
		1 1/2	1 1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K176	00000
		2	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K822	00000
		2	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K823	00000
		2	1	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K177	00000


		2	1 1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K178	00000
		2	1 1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K179	00000
		2 1/2	1 1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K824	000000
		2 1/2	2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K181	000000
		3	2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K182	000000
		3	2 1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K825	000000


		BSPT Female × BSPT Female



				1/4	1/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K335	00000


				3/8	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K336	00000
				1/2	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K337	00000
				1/2	3/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K338	00000
				3/4	3/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K339	00000
				3/4	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K341	00000
				1	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K342	00000
				1	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K343	00000

45° Elbow Connectors

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female



	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K269	00000


	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K121	00000
	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K261	0000
	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K262	00000
	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K123	00000
	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K263	00000
	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K124	00000
	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K264	00000
	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K125	00000
	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K265	00000
	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K266	00000


	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K267	00000
	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K268	000000
	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K434	000000
	3	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K435	000000


	BSPT Female



			1/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K111	0000


			1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K112	0000
			3/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K113	0000
			1/2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K114	00000
			3/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K115	00000
			1	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K116	00000
			1 1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K117	00000

45° Elbow Adapters

Female x

Male

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Male



		1/8	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K211	000000


		1/4	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K651	00000
		3/8	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K652	00000
		3/8	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K213	00000
		1/2	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K653	00000
		1/2	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K214	00000
		3/4	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K654	00000
		3/4	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K215	00000
		1	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K655	00000
		1 1/4	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K656	00000
		1 1/2	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K657	00000


		2	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K658	00000

Tee Connectors

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female



	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K259	000000


	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K141	00000
	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K251	0000
	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K142	00000
	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K252	00000
	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K143	00000
	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K253	00000
	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K144	00000
	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K254	00000
	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K145	00000
	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K255	00000


	1	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K146	00000
	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K256	00000
	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K257	00000
	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K258	000000
	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K447	000000
	3	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K448	000000
	4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K449	00000000


	BSPT Female



			1/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K121	00000


			1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K122	00000
			3/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K123	00000
			1/2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K124	00000
			3/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K125	00000
			1	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K126	00000
			1 1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K127	00000
			1 1/2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K128	00000
			2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K129	000000

Right Angle Tee Adapters

Female x Female x

Male

Right-angle tees are also known as run tees.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	(C)	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Female × NPT Male



		1/2	1/2	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K326	000000


		3/4	3/4	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K327	00000
		1	1	1	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K328	000000
		1 1/4	1 1/4	1 1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K329	000000
		2	2	2	125	—	200 psi @ 72° F	NSF/ANSI 61	4429K331	000000

Inline Tee Reducers

Inline tees are also known as branch tees.

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	(C)	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Female × NPT Female



		1/4	1/8	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K223	000000


		3/8	1/8	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K827	00000
		3/8	1/4	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K224	00000
		1/2	1/4	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K226	00000
		1/2	1/4	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K101	00000
		1/2	3/8	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K377	00000
		1/2	3/4	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K228	00000
		3/4	1/4	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K229	00000
		3/4	1/4	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K102	00000
		3/4	3/8	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K333	00000
		3/4	1/2	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K232	00000


		3/4	1/2	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K103	00000
		3/4	1	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K234	00000
		1	1/4	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K235	00000
		1	3/8	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K837	00000
		1	1/2	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K236	00000
		1	3/4	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K238	00000
		1	1 1/4	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K838	00000
		1	1 1/2	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K334	00000
		1 1/4	1/2	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K242	00000
		1 1/4	3/4	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K381	00000


		1 1/4	1	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K379	00000
		1 1/4	1 1/2	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K378	00000
		1 1/2	1/2	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K384	00000
		1 1/2	3/4	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K341	00000
		1 1/2	1	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K339	00000
		1 1/2	2	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K338	000000
		2	1/2	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K389	00000
		2	3/4	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K243	000000
		2	1	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K244	000000
		2	1 1/4	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K388	00000


		2	1 1/2	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K387	00000
		2 1/2	3/4	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K393	000000


		BSPT Female × BSPT Female × BSPT Female



				1/4	1/8	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K344	00000


				1/2	1/4	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K345	00000
				3/4	1/4	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K346	00000
				3/4	1/2	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K347	00000
				1	1/4	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K348	00000
				1	1/2	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K349	00000
				1	3/4	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K351	00000

Right Angle Tee Reducers

Female x Female

x Female

Right-angle tees are also known as run tees.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	(C)	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Female × NPT Female



		3/8	3/8	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K828	000000


		1/2	1/2	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K227	00000
		1/2	1/2	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K231	00000
		3/4	3/4	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K233	00000
		3/4	3/4	1	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K237	00000
		1	1	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K239	00000
		1	1	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K241	00000
		1	1	1 1/2	125	—	200 psi @ 72° F	NSF/ANSI 61	4429K342	00000
		1 1/4	1 1/4	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K383	00000
		1 1/4	1 1/4	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K337	00000
		1 1/4	1 1/4	1	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K336	00000


		1 1/2	1 1/2	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K343	00000
		1 1/2	1 1/2	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K386	00000
		2	2	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K344	00000
		2	2	1 1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K391	000000

Dual Tee Reducers

Female x

Female

Dual tees reduce on all three ends.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	(C)	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Female × NPT Female



		3/4	1/2	3/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K831	000000


		1	1/2	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K835	00000
		1	3/4	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K834	00000

Wye Connectors

Female

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Wye Angle	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Female



	1/4	45°	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K368	000000


	3/8	45°	125	—	200 psi @ 72° F	NSF/ANSI 61	4429K361	00000
	1/2	45°	125	—	200 psi @ 72° F	NSF/ANSI 61	4429K362	00000
	3/4	45°	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K363	00000
	1	45°	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K364	000000
	1 1/4	45°	125	—	200 psi @ 72° F	NSF/ANSI 61	4429K365	000000
	1 1/2	45°	125	—	200 psi @ 72° F	NSF/ANSI 61	4429K366	000000
	2	45°	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K367	000000

Cross Connectors

Female

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female



	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K359	000000


	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K351	00000
	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K152	00000
	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K352	00000
	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K353	00000
	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K154	00000
	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K354	00000
	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K355	00000
	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K356	00000
	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K357	00000
	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K358	000000


	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K451	000000

Caps

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female



	1/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K149	00000


	1/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K161	00000
	1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K171	0000
	1/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K162	00000
	3/8	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K142	0000
	3/8	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K163	00000
	1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K143	0000
	1/2	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K164	00000
	3/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K144	00000
	3/4	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K165	00000
	1	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K145	00000


	1	125	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K166	00000
	1 1/4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K146	00000
	1 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K147	00000
	2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K148	00000
	2 1/2	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K457	000000
	3	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K458	000000
	4	125	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K459	000000


	BSPT Female



			1/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K141	0000


			1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K142	0000
			3/8	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K143	0000
			1/2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K144	0000
			3/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K145	00000
			1	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K146	00000
			1 1/4	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K147	00000
			1 1/2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K148	00000
			2	125	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K149	00000

Square-Drive Plugs

Male

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Construction	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Male



	1/2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K191	000000


	3/4	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K192	00000
	1	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K193	00000
	1 1/4	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K396	00000
	1 1/2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K194	00000
	2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K195	00000
	2 1/2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K397	000000
	3	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K196	000000
	4	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4429K197	000000


	BSPT Male



			3/4	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K352	00000


			1	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K353	00000
			1 1/2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K354	00000
			2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	4978K355	00000

External-Square-Drive Plugs

Chrome-Plated Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Construction	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Male



	1/8	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K311	00000


	1/8	Solid	125	Square	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K191	00000
	1/4	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K312	0000
	1/4	Solid	125	Square	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K192	00000
	3/8	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K281	0000
	3/8	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K313	0000
	3/8	Solid	125	Square	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K193	00000
	1/2	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K282	0000
	1/2	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K314	0000
	1/2	Solid	125	Square	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K194	00000
	3/4	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K283	00000


	3/4	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K315	00000
	3/4	Solid	125	Square	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K195	00000
	1	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K316	00000
	1	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K287	00000
	1	Solid	125	Square	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K196	00000
	1 1/4	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K317	00000
	1 1/4	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K288	00000
	1 1/2	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K318	00000
	1 1/2	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K289	00000
	2	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K319	00000


	2	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K291	00000
	2 1/2	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K284	00000
	2 1/2	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K467	000000
	3	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K285	000000
	3	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K468	000000
	4	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K286	000000
	4	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4429K469	000000


	BSPT Male



			1/8	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K356	0000


			1/4	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K357	0000
			3/8	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K358	0000
			1/2	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K366	00000
			1/2	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K359	00000
			3/4	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K367	00000
			3/4	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K361	00000
			1	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K368	00000
			1	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K362	00000
			1 1/4	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K363	00000
			1 1/2	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K364	00000


			2	Hollow	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K369	00000
			2	Solid	125	Square	Brass	200 psi @ 72° F	—	NSF/ANSI 61	4978K365	00000

Locknuts

NPSL Thread—NPSL (National Pipe Straight Locknut) threads are compatible with NPT threads.

DIN 431—Locknuts that meet DIN 431 comply with international standards for pipe fitting locknut dimensions.

	Finished Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Specs. Met		Each
NPT Female



	1/8	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K181	000000


	1/4	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K182	00000
	3/8	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K183	00000
	1/2	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K184	00000
	3/4	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K185	00000
	1	Chrome-Plated Brass	200 psi @ 72° F	125 psi @ 400° F	—	9162K186	00000


	NPSL Female



			1/8	Brass	200 psi @ 72° F	—	—	4429K121	0000


			1/4	Brass	200 psi @ 72° F	—	—	4429K122	0000
			3/8	Brass	200 psi @ 72° F	—	—	4429K123	0000
			1/2	Brass	200 psi @ 72° F	—	—	4429K124	0000
			3/4	Brass	200 psi @ 72° F	—	—	4429K125	0000
			1	Brass	200 psi @ 72° F	—	—	4429K126	00000
			1 1/4	Brass	200 psi @ 72° F	—	—	4429K127	00000
			1 1/2	Brass	200 psi @ 72° F	—	—	4429K128	00000
			2	Brass	200 psi @ 72° F	—	—	4429K129	00000
			2 1/2	Brass	200 psi @ 72° F	—	—	4429K464	00000
			3	Brass	200 psi @ 72° F	—	—	4429K465	00000


			BSPP Female



					1/8	Brass	Not Rated	—	DIN 431	3538N11	0000


					1/4	Brass	Not Rated	—	DIN 431	3538N12	0000
					3/8	Brass	Not Rated	—	DIN 431	3538N13	0000
					1/2	Brass	Not Rated	—	DIN 431	3538N14	0000
					3/4	Brass	Not Rated	—	DIN 431	3538N15	0000
					1	Brass	Not Rated	—	DIN 431	3538N16	00000
					1 1/4	Brass	Not Rated	—	DIN 431	3538N17	00000
					1 1/2	Brass	Not Rated	—	DIN 431	3538N18	00000

High-Pressure Brass and Bronze Threaded Pipe Fittings

High pressures are no problem for these heavy-duty fittings. They are brass for good corrosion resistance.

Straight Connectors

Female

Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size	Thread Size	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female



		1/16	—	Hex	Brass	1,000 psi @ 72° F	50785K577	000000


		1/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T31	0000
		1/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K47	0000
		1/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K61	0000
		1/4	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T32	0000
		1/4	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K48	0000
		1/4	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K62	0000
		3/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T33	0000
		3/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K49	00000
		3/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K63	0000
		1/2	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T34	00000


		1/2	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K51	00000
		1/2	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K64	0000


		NPT Male



				1/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T61	0000


				1/8	—	Hex	Brass	1,000 psi @ 72° F	5485K21	0000
				1/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K52	0000
				1/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K86	0000
				1/4	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T62	0000
				1/4	—	Hex	Brass	1,000 psi @ 72° F	5485K22	0000
				1/4	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K53	0000
				1/4	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K87	0000
				3/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T63	0000
				3/8	—	Hex	Brass	1,000 psi @ 72° F	5485K23	0000
				3/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K54	0000


				3/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K88	0000
				1/2	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T64	0000
				1/2	—	Hex	Brass	1,000 psi @ 72° F	5485K24	0000
				1/2	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K55	0000
				1/2	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K89	0000
				3/4	—	Hex	Brass	1,000 psi @ 72° F	5485K25	00000
				1	—	Hex	Brass	1,000 psi @ 72° F	5485K26	00000


				NPTF Female



						1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K91	0000


						1/8	—	Hex	Brass	3,900 psi @ 72° F	4757T61	0000
						1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K92	0000
						1/4	—	Hex	Brass	3,900 psi @ 72° F	4757T62	00000
						3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K93	0000
						3/8	—	Hex	Brass	3,900 psi @ 72° F	4757T63	00000
						1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K94	0000
						1/2	—	Hex	Brass	3,200 psi @ 72° F	4757T64	00000
3/4						—	Hex	Brass	1,000 psi @ 72° F	50785K95	0000
3/4	—					Hex	Brass	2,600 psi @ 72° F	4757T65	00000
1	—					Hex	Brass	1,000 psi @ 72° F	50785K591	00000


1 1/4	—					Hex	Brass	1,000 psi @ 72° F	50785K97	00000
1 1/2	—					Hex	Brass	1,000 psi @ 72° F	50785K89	00000


NPTF Male



						1/8	—	Hex	Brass	3,900 psi @ 72° F	4757T57	00000


						1/8	—	Hex	Brass	3,900 psi @ 72° F	4757T67	00000
						1/8	—	Hex	Brass	3,900 psi @ 72° F	4757T77	00000
						1/8	—	Hex	Brass	3,900 psi @ 72° F	4757T81	0000
						1/4	—	Hex	Brass	3,900 psi @ 72° F	4757T58	00000
						1/4	—	Hex	Brass	3,900 psi @ 72° F	4757T68	00000
						1/4	—	Hex	Brass	3,900 psi @ 72° F	4757T78	00000
						1/4	—	Hex	Brass	3,900 psi @ 72° F	4757T82	0000
						3/8	—	Hex	Brass	3,900 psi @ 72° F	4757T83	00000
		1/2				—	Hex	Brass	3,900 psi @ 72° F	4757T79	00000
		1/2	—			Hex	Brass	3,900 psi @ 72° F	4757T84	00000


		3/4	—			Hex	Brass	3,500 psi @ 72° F	4757T85	00000
		1 1/4	—			Hex	Brass	1,000 psi @ 72° F	50785K501	00000
		1 1/2	—			Hex	Brass	1,000 psi @ 72° F	50785K502	00000


		BSPT Male



						1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K237	0000


						1/8	—	Hex	Nickel-Plated Brass	2,900 psi @ 72° F	4860K631	0000
						1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K277	0000
						1/4	—	Hex	Nickel-Plated Brass	870 psi @ 72° F	9151K688	0000
						1/4	—	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	4860K633	0000
						3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K314	0000
						3/8	—	Hex	Nickel-Plated Brass	870 psi @ 72° F	9151K689	0000
						3/8	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K636	0000
						1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K33	00000
						1/2	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K639	00000
						3/4	—	Hex	Brass	1,000 psi @ 72° F	50785K368	00000


						1	—	Hex	Brass	1,000 psi @ 72° F	50785K385	00000


				BSPP Female



						1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K472	0000


						1/8	—	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K193	0000
						1/8	—	Hex	Nickel-Plated Brass	2,900 psi @ 72° F	4860K671	0000
						1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K474	0000
						1/4	—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K194	0000
						1/4	—	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	4860K673	0000
						3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K475	00000
						3/8	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K195	0000
						3/8	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K676	00000
						1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K476	00000
						1/2	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K196	0000


1/2						—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K683	00000
3/4	—					Hex	Brass	1,000 psi @ 72° F	50785K478	00000
3/4	—					Hex	Nickel-Plated Brass	1,230 psi @ 72° F	9151K197	00000
1	—					Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K198	00000


Metric Female



						—	M5 × 0.8 mm	Hex	Nickel-Plated Brass	870 psi @ 72° F	9151K895	0000


						—	M5 × 0.8 mm	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	4948N11	0000

Straight Connectors with Gasket

Male

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
BSPP Male



	1/8	Hex	Nickel-Plated Brass	2,900 psi @ 72° F	Buna-N	4860K601	00000


	1/4	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	Buna-N	4860K603	0000
	3/8	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K606	00000
	1/2	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K619	00000

Through-Wall Straight Connectors

Exploded View

Through-wall fittings are also known as bulkhead couplings; they mount through your wall or tank to create an inlet or outlet. When installing, the gasket should be on the inside of the wall.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Thread Size	For Hole Dia.	For Max. Wall Thk.	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female



	3/4	—	1 5/16"	21/32"	Hex	Brass	1,000 psi @ 72° F	50785K735	000000


	NPTF Female



			1/8	—	5/8"	57/64"	Hex	Brass	1,000 psi @ 72° F	50785K272	0000


			1/4	—	3/4"	13/16"	Hex	Brass	1,000 psi @ 72° F	50785K273	00000
			3/8	—	1"	5/8"	Hex	Brass	1,000 psi @ 72° F	50785K274	00000
			1/2	—	1 1/8"	3/4"	Hex	Brass	1,000 psi @ 72° F	50785K275	00000
			1	—	—	—	Hex	Brass	1,000 psi @ 72° F	50785K736	00000


			BSPP Female



					1/8	—	11/16"	11/32"	Hex	Brass	1,000 psi @ 72° F	50785K103	00000


					1/4	—	13/16"	37/64"	Hex	Brass	1,000 psi @ 72° F	50785K104	00000
					3/8	—	1 1/16"	35/64"	Hex	Brass	1,000 psi @ 72° F	50785K118	00000
					1/2	—	1 1/8"	25/32"	Hex	Brass	1,000 psi @ 72° F	50785K147	00000
					3/4	—	1 3/8"	7/8"	Hex	Brass	1,000 psi @ 72° F	50785K149	00000
					1	—	1 11/16"	61/64"	Hex	Brass	1,000 psi @ 72° F	50785K169	000000


					Metric Female



							—	M5 × 0.8 mm	7/16"	17/64"	Hex	Brass	1,000 psi @ 72° F	50785K119	00000

Union Straight Connectors

Exploded View

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Body Shape	Material	Max. Pressure @ Temp.		Each
NPTF Female



	1/8	Hex	Brass	1,200 psi @ 72° F	50785K247	000000


	1/4	Hex	Brass	1,200 psi @ 72° F	50785K248	00000
	3/8	Hex	Brass	1,200 psi @ 72° F	50785K278	00000
	1/2	Hex	Brass	1,000 psi @ 72° F	50785K245	00000
	3/4	Hex	Brass	1,000 psi @ 72° F	50785K246	00000
	1	Hex	Brass	1,000 psi @ 72° F	50785K249	000000

Straight Adapters


Female x Female	Female x Male

Male x Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Thread Size (B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T67	00000


		1/8	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K25	0000
		1/8	1/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K21	0000
		1/4	1/4	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T68	0000
		1/4	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K27	0000
		1/4	1/4	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K39	0000
		1/4	1/4	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K23	0000
		3/8	3/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T88	0000
		3/8	3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K617	0000
		3/8	3/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K43	0000
		3/8	3/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K26	0000


		1/2	1/2	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T89	0000
		1/2	1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K31	0000
		1/2	1/2	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K46	00000
		1/2	1/2	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K29	0000
		3/4	3/4	—	Hex	Brass	1,000 psi @ 72° F	50785K331	00000


		NPT Female × BSPT Male



				1/8	1/8	—	Hex	Brass	2,900 psi @ 72° F	4860K141	0000


				1/4	1/4	—	Hex	Brass	2,100 psi @ 72° F	4860K142	00000
				3/8	3/8	—	Hex	Brass	1,400 psi @ 72° F	4860K143	00000
				1/2	1/2	—	Hex	Brass	1,400 psi @ 72° F	4860K144	00000
				3/4	3/4	—	Hex	Brass	1,700 psi @ 72° F	4860K145	00000


				NPTF Female × NPTF Male



						1/4	1/4	—	Hex	Brass	3,900 psi @ 72° F	4757T165	00000


						3/8	3/8	—	Hex	Brass	3,900 psi @ 72° F	4757T166	00000
						1/2	1/2	—	Hex	Brass	3,200 psi @ 72° F	4757T167	00000
						1	1	—	Hex	Brass	1,000 psi @ 72° F	50785K724	00000


						NPTF Female × BSPT Male



								1/8	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K827	0000


								1/4	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K829	00000
								3/8	3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K832	00000
								1/2	1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K839	00000


								BSPT Female × BSPT Male



	1/8								1/8	—	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K127	0000


	1/4								1/4	—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K383	0000
	3/8								3/8	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K134	0000
	1/2								1/2	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K136	0000


	BSPT Male × NPT Male



										1/8	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K238	00000


										1/8	1/8	—	Hex	Brass	2,900 psi @ 72° F	4860K611	0000
										1/4	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K946	00000
										1/4	1/4	—	Hex	Brass	2,100 psi @ 72° F	4860K612	00000
										3/8	3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K315	00000
										3/8	3/8	—	Hex	Brass	1,400 psi @ 72° F	4860K613	00000
										1/2	1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K345	00000
										1/2	1/2	—	Hex	Brass	1,400 psi @ 72° F	4860K614	00000
										3/4	3/4	—	Hex	Brass	1,000 psi @ 72° F	50785K369	00000
										3/4	3/4	—	Hex	Brass	1,700 psi @ 72° F	4860K615	00000


		BSPP Female × NPT Male



										1/8	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K59	0000


										1/8	1/8	—	Hex	Brass	2,900 psi @ 72° F	4860K151	0000
										1/4	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K601	00000
										1/4	1/4	—	Hex	Brass	2,100 psi @ 72° F	4860K152	00000
										3/8	3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K603	00000
										3/8	3/8	—	Hex	Brass	1,400 psi @ 72° F	4860K153	00000
										1/2	1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K608	00000
				1/2						1/2	—	Hex	Brass	1,400 psi @ 72° F	4860K154	00000
				3/4	3/4					—	Hex	Brass	1,000 psi @ 72° F	50785K609	00000
				3/4	3/4					—	Hex	Brass	1,700 psi @ 72° F	4860K155	00000


				BSPP Female × Metric Male



										1/8	—	M5 × 0.8 mm	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K138	0000


										BSPP Female × Metric Female



										1/8	—	M5 × 0.8 mm	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K199	0000


										BSPP Female × BSPP Male



1/8												1/8	—	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K139	0000


1/8								1/8				—	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K152	0000
1/8								1/8				—	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K153	0000
1/4								1/4				—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K143	0000
1/4								1/4				—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K157	0000
3/8								3/8				—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K146	0000
3/8								3/8				—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K158	0000


BSPP Male × Metric Male



								1/8	—			M5 × 0.8 mm	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K119	0000

Straight Adapters with Gasket

Female x Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

Fluoroelastomer—These gaskets resist a wide range of chemicals, including benzene, butyl alcohol, and ethylene glycol.

	Pipe Size
	(A)	(B)	Thread Size (B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
NPTF Female × Metric Male



		1/8	—	M10 × 1 mm	Hex	Brass	1,000 psi @ 72° F	Fluoroelastomer	50785K844	000000


		1/8	—	M14 × 1.5 mm	Hex	Brass	1,000 psi @ 72° F	Fluoroelastomer	50785K864	00000
		1/4	—	M12 × 1.5 mm	Hex	Brass	1,000 psi @ 72° F	Fluoroelastomer	50785K868	00000
		1/4	—	M14 × 1.5 mm	Hex	Brass	1,000 psi @ 72° F	Fluoroelastomer	50785K87	00000
		3/8	—	M16 × 1.5 mm	Hex	Brass	1,000 psi @ 72° F	Fluoroelastomer	50785K908	00000
		3/8	—	M22 × 1.5 mm	Hex	Brass	1,000 psi @ 72° F	Fluoroelastomer	50785K936	00000
		1/2	—	M27 × 2 mm	Hex	Brass	1,000 psi @ 72° F	Fluoroelastomer	50785K944	00000


		BSPP Female × BSPP Male



				1/8	1/8	—	Hex	Nickel-Plated Brass	2,900 psi @ 72° F	Buna-N	4860K651	0000


				1/4	1/4	—	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	Buna-N	4860K654	0000
				3/8	3/8	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K658	00000
				1/2	1/2	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K664	00000

Swivels-Until-Tightened Straight Adapters

Female x Male

Fittings that swivel until tightened rotate for easy installation. They have a quick-access nut that allows you to perform maintenance without removing the fitting from your line.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
BSPT Female × BSPT Male



		1/8	1/8	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K189	00000

Through-Wall Straight Adapters

Female x Male

Through-wall fittings are also known as bulkhead couplings; they mount through your wall or tank to create an inlet or outlet. When installing, the gasket should be on the inside of the wall.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Thread Size (B)	For Max. Wall Thk.	Body Shape	Material	Max. Pressure @ Temp.		Each
BSPP Female × Metric Male



	1/8	M16 × 1.5 mm	0.394"	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K263	00000


	1/4	M20 × 1.5 mm	0.63"	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K264	0000
	3/8	M26 × 1.5 mm	0.591"	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K265	00000
	1/2	M28 × 1.5 mm	0.827"	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K266	00000
	3/4	M33 × 1.5 mm	0.886"	Hex	Nickel-Plated Brass	1,230 psi @ 72° F	9151K267	00000

Straight Reducing Adapters

Female x Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/4	1/8	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T51	00000


		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	50785K26	0000
		1/4	1/8	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K38	0000
		1/4	1/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K22	0000
		3/8	1/8	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T69	0000
		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	50785K612	0000
		3/8	1/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K24	0000
		3/8	1/4	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T52	0000
		3/8	1/4	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K42	00000
		3/8	1/4	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K25	0000
		1/2	1/8	Hex	Brass	1,000 psi @ 72° F	50785K721	00000


		1/2	1/4	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T53	0000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	50785K614	0000
		1/2	1/4	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K44	00000
		1/2	1/4	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K27	0000
		1/2	3/8	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T54	0000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	50785K29	0000
		1/2	3/8	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K45	00000
		1/2	3/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K28	0000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	50785K626	00000


		NPTF Female × NPTF Male



				1/4	1/8	Hex	Brass	3,900 psi @ 72° F	4757T121	00000


				3/8	1/4	Hex	Brass	1,000 psi @ 72° F	50785K28	0000
				3/8	1/4	Hex	Brass	3,900 psi @ 72° F	4757T122	00000
				1/2	1/8	Hex	Brass	3,200 psi @ 72° F	4757T164	00000
				1/2	1/4	Hex	Brass	3,200 psi @ 72° F	4757T123	00000
				1/2	3/8	Hex	Brass	3,200 psi @ 72° F	4757T124	00000
				3/4	1/4	Hex	Brass	1,000 psi @ 72° F	50785K722	00000
				3/4	1/4	Hex	Brass	2,600 psi @ 72° F	4757T125	00000
				3/4	3/8	Hex	Brass	1,000 psi @ 72° F	50785K723	00000
				3/4	1/2	Hex	Brass	2,600 psi @ 72° F	4757T126	00000
				1	1/4	Hex	Brass	1,000 psi @ 72° F	50785K725	00000


				1	3/8	Hex	Brass	1,000 psi @ 72° F	50785K726	00000
				1	1/2	Hex	Brass	1,000 psi @ 72° F	50785K727	00000
				1	3/4	Hex	Brass	1,000 psi @ 72° F	50785K728	00000


				BSPT Female × BSPT Male



						1/4	1/8	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K128	0000


						3/8	1/8	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K129	0000
						1/2	3/8	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K135	0000


BSPP Female × BSPP Male



						1/4	1/8	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K384	0000


						3/8	1/4	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K144	0000
						1/2	1/4	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K145	0000
						1/2	3/8	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K147	0000
						3/4	1/2	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K149	00000

Straight Reducing Adapters with Gasket

Female x Male

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
BSPP Female × BSPP Male



		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K747	00000


		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K755	00000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K761	00000

Bushing Straight Reducing Adapters

Male x Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Thread Size (B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male × NPT Female



		1/8	1/16	—	Hex	Brass	1,000 psi @ 72° F	50785K259	00000


		1/4	1/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T46	0000
		1/4	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K61	0000
		1/4	1/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K56	0000
		1/4	1/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K91	0000
		3/8	1/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T65	0000
		3/8	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K62	0000
		3/8	1/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K57	0000
		3/8	1/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K92	0000
		3/8	1/4	—	—	Brass	1,000 psi @ 72° F	50785K262	0000
		3/8	1/4	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T47	0000


		3/8	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K63	0000
		3/8	1/4	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K58	0000
		3/8	1/4	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K93	0000
		1/2	1/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T66	0000
		1/2	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K64	0000
		1/2	1/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K59	0000
		1/2	1/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K94	0000
		1/2	1/4	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T48	0000
		1/2	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K65	0000
		1/2	1/4	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K61	0000


		1/2	1/4	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K95	0000
		1/2	3/8	—	—	Brass	1,000 psi @ 72° F	50785K264	0000
		1/2	3/8	—	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T49	0000
		1/2	3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K66	0000
		1/2	3/8	—	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K62	00000
		1/2	3/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K96	0000
		3/4	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K67	0000
		3/4	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K68	0000
		3/4	3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K69	0000
		3/4	1/2	—	—	Brass	1,000 psi @ 72° F	50785K265	0000


		3/4	1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K71	0000
		1	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K85	00000
		1	3/8	—	Hex	Brass	1,000 psi @ 72° F	50785K77	00000
		1	1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K78	00000
		1	3/4	—	Hex	Brass	1,000 psi @ 72° F	50785K79	00000
		2	1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K555	00000
		2	3/4	—	Hex	Brass	1,000 psi @ 72° F	50785K556	00000
		2	1	—	Hex	Brass	1,000 psi @ 72° F	50785K557	00000
		2	1 1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K945	00000
		2	1 1/2	—	Hex	Brass	1,000 psi @ 72° F	50785K558	00000


		NPTF Male × NPTF Female



				1/4	1/8	—	Hex	Brass	3,900 psi @ 72° F	4757T91	0000


				3/8	1/8	—	Hex	Brass	3,900 psi @ 72° F	4757T168	0000
				3/8	1/4	—	Hex	Brass	3,900 psi @ 72° F	4757T92	0000
				1/2	1/8	—	Hex	Brass	3,200 psi @ 72° F	4757T169	00000
1/2				1/4	—	Hex	Brass	3,200 psi @ 72° F	4757T93	00000
1/2	3/8			—	Hex	Brass	3,200 psi @ 72° F	4757T94	00000
3/4	1/4			—	—	Brass	1,000 psi @ 72° F	5183N103	00000
3/4	1/4			—	Hex	Brass	3,700 psi @ 72° F	4757T95	00000
3/4	3/8			—	—	Brass	1,000 psi @ 72° F	5183N104	00000
3/4	3/8			—	Hex	Brass	3,700 psi @ 72° F	4757T171	00000
3/4	1/2			—	Hex	Brass	3,300 psi @ 72° F	4757T96	00000


1	3/8			—	Hex	Brass	3,000 psi @ 72° F	4757T172	00000
1	1/2			—	—	Brass	1,000 psi @ 72° F	5183N102	00000
1	1/2			—	Hex	Brass	3,000 psi @ 72° F	4757T173	00000
1	3/4			—	—	Brass	1,000 psi @ 72° F	5183N101	00000
1	3/4			—	Hex	Brass	2,700 psi @ 72° F	4757T174	00000
1 1/4	3/4			—	Hex	Brass	1,000 psi @ 72° F	5183N201	00000
1 1/4	1			—	Hex	Brass	1,000 psi @ 72° F	5183N202	00000
1 1/2	1			—	Hex	Brass	1,000 psi @ 72° F	5183N203	00000
1 1/2	1 1/4			—	Hex	Brass	1,000 psi @ 72° F	5183N204	00000


BSPT Male × BSPT Female



				1/4	1/8	—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K385	0000


				3/8	1/8	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K162	0000
				3/8	1/4	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K164	0000
				1/2	1/8	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K163	0000
				1/2	1/4	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K165	0000
				1/2	3/8	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K166	0000
				3/4	3/8	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K167	0000
				3/4	1/2	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K168	0000
				1	1/2	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K169	00000
				1	3/4	—	Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K386	00000
				1 1/4	3/4	—	Hex	Nickel-Plated Brass	1,230 psi @ 72° F	9151K173	00000


				1 1/4	1	—	Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K174	00000
				1 1/2	1	—	Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K175	00000
				2	1	—	Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K176	00000


				BSPT Male × BSPP Female



						1/4	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K506	0000


						1/4	1/8	—	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	4860K691	0000
						3/8	1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K509	0000
						3/8	1/8	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K692	0000
						3/8	1/4	—	Hex	Brass	1,000 psi @ 72° F	50785K525	0000
						3/8	1/4	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K593	0000
		1/2				1/8	—	Hex	Brass	1,000 psi @ 72° F	50785K526	00000
		1/2	1/4			—	Hex	Brass	1,000 psi @ 72° F	50785K528	0000
		1/2	1/4			—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K694	0000
		1/2	3/8			—	Hex	Brass	1,000 psi @ 72° F	50785K55	0000
		1/2	3/8			—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K695	00000


		3/4	1/4			—	Hex	Brass	1,000 psi @ 72° F	50785K57	00000
		3/4	3/8			—	Hex	Brass	1,000 psi @ 72° F	50785K58	00000
		3/4	1/2			—	Hex	Brass	1,000 psi @ 72° F	50785K581	00000
		3/4	1/2			—	Hex	Nickel-Plated Brass	1,700 psi @ 72° F	4860K696	00000


		BSPP Male × Metric Female



						1/8	—	M5 × 0.8 mm	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K177	0000


						1/4	—	M5 × 0.8 mm	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K178	0000


						BSPP Male × BSPP Female



								1/4	1/8	—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K179	0000


3/8	1/8							—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K387	0000
3/8	1/4							—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K182	0000
1/2	1/8							—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K183	0000
1/2	1/4							—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K184	0000
1/2	3/8							—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K185	0000
3/4	1/4							—	Hex	Nickel-Plated Brass	1,230 psi @ 72° F	9151K186	00000
3/4	3/8							—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K187	00000
3/4	1/2							—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K188	00000

Bushing Straight Reducing Adapters with Gasket

Male x Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Thread Size (B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
BSPP Male × Metric Female



		1/8	—	M5 × 0.8 mm	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K635	00000


		1/4	—	M5 × 0.8 mm	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K675	0000


		BSPP Male × BSPP Female



				1/4	1/8	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K644	0000


				1/4	1/8	—	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	Buna-N	4860K653	0000
				3/8	1/8	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K676	0000
				3/8	1/8	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K656	0000
				3/8	1/4	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K677	0000
				3/8	1/4	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K657	0000
				1/2	1/8	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K683	00000
				1/2	1/4	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K684	00000
				1/2	1/4	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K662	00000
				1/2	3/8	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K685	0000
				1/2	3/8	—	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K663	00000


				3/4	1/4	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K692	00000
				3/4	1/2	—	Hex	Brass	1,000 psi @ 72° F	Polymer	50785K745	00000
				3/4	1/2	—	Hex	Nickel-Plated Brass	1,700 psi @ 72° F	Buna-N	4860K666	00000

Through-Wall Bushing Straight Reducing Adapters

Male x Female

Through-wall fittings are also known as bulkhead couplings; they mount through your wall or tank to create an inlet or outlet. When installing, the gasket should be on the inside of the wall.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Thread Size
	(A)	(B)	For Max. Wall Thk.	Body Shape	Material	Max. Pressure @ Temp.		Each
Metric Male × Metric Female



		M10 × 1 mm	M5 × 0.8 mm	0.276"	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K262	00000

Straight Reducers

Female x Female

Male x Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Female



		1/8	1/16	Hex	Brass	1,000 psi @ 72° F	50785K578	000000


		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	50785K181	0000
		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	50785K182	0000
		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	50785K183	0000
		1/2	1/8	Hex	Brass	1,000 psi @ 72° F	50785K184	0000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	50785K185	0000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	50785K186	0000
		3/4	1/4	Hex	Brass	1,000 psi @ 72° F	50785K579	00000
		3/4	3/8	Hex	Brass	1,000 psi @ 72° F	50785K582	00000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	50785K187	0000
		1	1/4	Hex	Brass	1,000 psi @ 72° F	50785K584	00000


		1	1/2	Hex	Brass	1,000 psi @ 72° F	50785K586	00000
		1	3/4	Hex	Brass	1,000 psi @ 72° F	50785K588	00000


		NPT Male × NPT Male



				1/8	1/16	Hex	Brass	1,000 psi @ 72° F	5485K37	0000


				1/4	1/8	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T56	0000
				1/4	1/8	Hex	Brass	1,000 psi @ 72° F	5485K31	0000
				1/4	1/8	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K85	0000
				1/4	1/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K36	0000
				3/8	1/8	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T15	0000
				3/8	1/8	Hex	Brass	1,000 psi @ 72° F	5485K35	0000
				3/8	1/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K37	0000
				3/8	1/4	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T57	0000
				3/8	1/4	Hex	Brass	1,000 psi @ 72° F	5485K32	0000
				3/8	1/4	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K87	0000


				3/8	1/4	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K38	0000
				1/2	1/8	Hex	Brass	1,000 psi @ 72° F	50785K559	00000
				1/2	1/4	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T58	0000
				1/2	1/4	Hex	Brass	1,000 psi @ 72° F	5485K36	0000
				1/2	1/4	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K88	00000
				1/2	1/4	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K39	0000
				1/2	3/8	Hex	Brass	1,000 psi @ 72° F	5485K33	0000
				3/4	1/8	Hex	Brass	1,000 psi @ 72° F	50785K561	00000
				3/4	3/8	Hex	Brass	1,000 psi @ 72° F	50785K562	0000
				3/4	1/2	Hex	Brass	1,000 psi @ 72° F	5485K34	00000


				1	1/4	Hex	Brass	1,000 psi @ 72° F	50785K563	00000
				1	3/8	Hex	Brass	1,000 psi @ 72° F	50785K564	00000
				1	1/2	Hex	Brass	1,000 psi @ 72° F	50785K565	00000
				1	3/4	Hex	Brass	1,000 psi @ 72° F	50785K567	00000


				NPTF Female × NPTF Female



						1/4	1/8	Hex	Brass	3,900 psi @ 72° F	4757T144	00000


3/8	1/8					Hex	Brass	3,900 psi @ 72° F	4757T145	00000
3/8	1/4					Hex	Brass	3,900 psi @ 72° F	4757T146	00000
1/2	1/4					Hex	Brass	3,200 psi @ 72° F	4757T147	00000
1/2	3/8					Hex	Brass	3,200 psi @ 72° F	4757T148	00000
2	1					Hex	Brass	1,000 psi @ 72° F	50785K592	000000


NPTF Male × NPTF Male



						1/4	1/8	Hex	Brass	3,900 psi @ 72° F	4757T176	0000


						3/8	1/8	Hex	Brass	3,900 psi @ 72° F	4757T177	00000
						3/8	1/4	Hex	Brass	3,900 psi @ 72° F	4757T178	00000
						1/2	1/4	Hex	Brass	3,900 psi @ 72° F	4757T181	00000
						1/2	3/8	Hex	Brass	3,900 psi @ 72° F	4757T179	00000


						BSPT Male × BSPT Male



			1/4				1/8	Hex	Brass	1,000 psi @ 72° F	50785K263	0000


			1/4				1/8	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K407	0000
			1/4				1/8	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	4860K632	0000
			3/8				1/8	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K634	0000
			3/8				1/4	Hex	Brass	1,000 psi @ 72° F	50785K307	0000
			3/8				1/4	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K114	0000
			3/8				1/4	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K635	0000
			1/2				1/4	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K115	0000
			1/2				1/4	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K637	00000
			1/2				3/8	Hex	Brass	1,000 psi @ 72° F	50785K329	00000
			1/2				3/8	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K116	0000


			1/2				3/8	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K638	00000
			3/4				3/8	Hex	Brass	1,000 psi @ 72° F	50785K351	00000
			3/4				1/2	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K117	0000
			1				3/4	Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K118	00000


			BSPP Female × BSPP Female



								1/4	1/8	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K209	0000


								1/4	1/8	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	4860K672	0000
								3/8	1/8	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K201	0000
								3/8	1/8	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K674	00000
								3/8	1/4	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K203	0000
								3/8	1/4	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K675	00000
								1/2	1/8	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K202	0000
								1/2	1/4	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K204	0000
								1/2	1/4	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K681	00000
				1/2				3/8	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K205	0000
				1/2	3/8			Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K682	00000


				3/4	1/2			Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K206	00000
				1	1/2			Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K207	00000
				1	3/4			Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K208	00000


				BSPP Male × BSPP Male



1/4	1/8							Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K382	0000


3/8	1/4							Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K123	0000
1/2	1/4							Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K124	0000
1/2	3/8							Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K125	0000
3/4	1/2							Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K126	00000

Straight Reducers with Gasket

Male x Male

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
BSPP Male × BSPP Male



		1/4	1/8	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	Buna-N	4860K602	00000


		3/8	1/8	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K604	0000
		3/8	1/4	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K605	0000
		1/2	1/4	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K607	00000
		1/2	3/8	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K608	00000
		3/4	1/2	Hex	Nickel-Plated Brass	1,700 psi @ 72° F	Buna-N	4860K622	00000

90° Elbow Connectors


Female	Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size	Thread Size	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female



		1/8	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T11	00000


		1/8	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K11	0000
		1/8	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K11	0000
		1/4	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T12	0000
		1/4	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K12	00000
		1/4	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K12	0000
		3/8	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T13	0000
		3/8	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K13	00000
		3/8	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K13	0000
		1/2	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T14	00000
		1/2	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K14	00000


		1/2	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K14	00000


		NPT Male



				3/8	—	Square	Brass	1,000 psi @ 72° F	50785K124	00000


				NPTF Female



						1/16	—	Square	Brass	1,000 psi @ 72° F	50785K511	00000


						1/8	—	—	Brass	3,200 psi @ 72° F	4757T21	00000
						1/8	—	Square	Brass	1,000 psi @ 72° F	50785K35	0000
						1/4	—	—	Brass	3,200 psi @ 72° F	4757T22	00000
						1/4	—	Square	Brass	1,000 psi @ 72° F	50785K36	0000
						3/8	—	—	Brass	3,000 psi @ 72° F	4757T23	00000
						3/8	—	Square	Brass	1,000 psi @ 72° F	50785K37	0000
						1/2	—	—	Brass	1,900 psi @ 72° F	4757T24	00000
						1/2	—	Square	Brass	1,000 psi @ 72° F	50785K38	00000
						3/4	—	—	Brass	1,900 psi @ 72° F	4757T25	00000
						3/4	—	Square	Brass	1,000 psi @ 72° F	50785K39	00000


						1	—	—	Brass	1,200 psi @ 72° F	4757T141	000000


						NPTF Male



								1/8	—	—	Brass	3,900 psi @ 72° F	4757T11	00000


								1/8	—	Square	Brass	1,000 psi @ 72° F	50785K122	0000
								1/4	—	—	Brass	3,900 psi @ 72° F	4757T12	00000
								1/4	—	Square	Brass	1,000 psi @ 72° F	50785K123	0000
								3/8	—	—	Brass	3,900 psi @ 72° F	4757T13	00000
								1/2	—	—	Brass	3,900 psi @ 72° F	4757T14	00000
								1/2	—	Square	Brass	1,000 psi @ 72° F	50785K125	00000
								3/4	—	—	Brass	2,600 psi @ 72° F	4757T15	00000
3/4								—	Square	Brass	1,000 psi @ 72° F	50785K126	00000
1	—							Square	Brass	1,000 psi @ 72° F	50785K127	00000


BSPT Male



								1/8	—	—	Nickel-Plated Brass	2,900 psi @ 72° F	4860K411	00000


								1/8	—	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K309	0000
								1/4	—	—	Nickel-Plated Brass	2,100 psi @ 72° F	4860K412	00000
								1/4	—	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K399	0000
								3/8	—	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K413	00000
								3/8	—	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K312	0000
								1/2	—	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K414	00000
								1/2	—	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K313	00000
								3/4	—	—	Nickel-Plated Brass	1,700 psi @ 72° F	4860K415	00000
								3/4	—	Square	Nickel-Plated Brass	1,230 psi @ 72° F	9151K314	00000
								1	—	Square	Nickel-Plated Brass	1,160 psi @ 72° F	9151K315	00000


		BSPP Female



								1/8	—	—	Nickel-Plated Brass	2,900 psi @ 72° F	4860K431	00000


								1/8	—	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K317	0000
				1/4				—	—	Nickel-Plated Brass	2,100 psi @ 72° F	4860K432	00000
				1/4	—			Square	Brass	1,000 psi @ 72° F	50785K395	00000
				1/4	—			Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K318	0000
				3/8	—			—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K433	00000
				3/8	—			Square	Brass	1,000 psi @ 72° F	50785K398	00000
				3/8	—			Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K319	0000
				1/2	—			—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K434	00000
				3/4	—			—	Nickel-Plated Brass	1,700 psi @ 72° F	4860K435	00000
				3/4	—			Square	Nickel-Plated Brass	1,230 psi @ 72° F	9151K322	00000


				1	—			Square	Nickel-Plated Brass	1,160 psi @ 72° F	9151K323	00000


				Metric Female



								—	M5 × 0.8 mm	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K324	0000


								Metric Male



							—		M5 × 0.8 mm	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K316	0000

Intermittent-Swivel 90° Elbow Connectors

Female

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female



	1/4	Square	Brass	3,000 psi @ 72° F	9392K51	000000


	3/8	Square	Brass	3,000 psi @ 72° F	9392K52	00000
	1/2	Square	Brass	2,500 psi @ 72° F	9392K53	000000
	3/4	—	Brass	1,200 psi @ 72° F	9392K54	000000

90° Elbow Adapters

Female x Male

Female x male 90° elbow adapters are also known as street elbows.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size		Thread Size
	(A)	(B)	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	—	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T16	00000


		1/8	1/8	—	—	Square	Brass	1,000 psi @ 72° F	50785K41	0000
		1/8	1/8	—	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K15	0000
		1/8	1/8	—	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K16	0000
		1/4	1/4	—	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T17	0000
		1/4	1/4	—	—	Square	Brass	1,000 psi @ 72° F	50785K43	0000
		1/4	1/4	—	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K16	0000
		1/4	1/4	—	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K17	0000
		3/8	3/8	—	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T18	0000
		3/8	3/8	—	—	Square	Brass	1,000 psi @ 72° F	50785K44	0000
		3/8	3/8	—	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K17	00000


		3/8	3/8	—	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K18	0000
		1/2	1/2	—	—	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T19	00000
		1/2	1/2	—	—	Square	Brass	1,000 psi @ 72° F	50785K45	0000
		1/2	1/2	—	—	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K18	00000
		1/2	1/2	—	—	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K19	0000
		3/4	3/4	—	—	Square	Brass	1,000 psi @ 72° F	50785K46	00000


		NPTF Female × NPTF Male



				1/16	1/16	—	—	Square	Brass	1,000 psi @ 72° F	50785K531	00000


				1/8	1/8	—	—	—	Brass	3,200 psi @ 72° F	4757T31	00000
				1/4	1/4	—	—	—	Brass	3,200 psi @ 72° F	4757T32	00000
				3/8	3/8	—	—	—	Brass	3,000 psi @ 72° F	4757T33	00000
				1/2	1/2	—	—	—	Brass	1,900 psi @ 72° F	4757T34	00000
				3/4	3/4	—	—	—	Brass	1,900 psi @ 72° F	4757T35	00000
				1	1	—	—	—	Brass	1,200 psi @ 72° F	4757T142	000000
				1	1	—	—	Square	Brass	1,000 psi @ 72° F	50785K47	00000


				BSPP Female × BSPT Male



						1/8	1/8	—	—	—	Nickel-Plated Brass	2,900 psi @ 72° F	4860K421	00000


						1/8	1/8	—	—	Square	Brass	1,000 psi @ 72° F	50785K409	00000
						1/8	1/8	—	—	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K326	0000
						1/4	1/4	—	—	—	Nickel-Plated Brass	2,100 psi @ 72° F	4860K422	00000
						1/4	1/4	—	—	Square	Brass	1,000 psi @ 72° F	50785K426	00000
						1/4	1/4	—	—	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K327	0000
						3/8	3/8	—	—	Square	Brass	1,000 psi @ 72° F	50785K429	00000
						3/8	3/8	—	—	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K328	0000
						3/8	3/8	—	—	Square	Nickel-Plated Brass	1,400 psi @ 72° F	4860K428	00000
						1/2	1/2	—	—	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K424	00000
						1/2	1/2	—	—	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K329	00000


						3/4	3/4	—	—	—	Nickel-Plated Brass	1,700 psi @ 72° F	4860K425	00000
						3/4	3/4	—	—	Square	Nickel-Plated Brass	1,230 psi @ 72° F	9151K402	00000
						1	1	—	—	Square	Nickel-Plated Brass	1,160 psi @ 72° F	9151K332	00000


Metric Female × Metric Male



						—	—	M5 × 0.8 mm	M5 × 0.8 mm	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K325	0000

90° Elbow Reducing Adapters

Female x Male

Female x male 90° elbow adapters are also known as street elbows.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/4	1/8	Square	Brass	1,000 psi @ 72° F	50785K42	00000


		NPTF Female × NPTF Male



				1/8	1/16	Square	Brass	1,000 psi @ 72° F	50785K532	00000


				3/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K534	00000
				3/8	1/4	Square	Brass	1,000 psi @ 72° F	50785K535	00000
				1/2	1/4	Square	Brass	1,000 psi @ 72° F	50785K536	00000
				1/2	3/8	Square	Brass	1,000 psi @ 72° F	50785K537	00000
				3/4	1/2	Square	Brass	1,000 psi @ 72° F	50785K217	00000
				1	3/4	Square	Brass	1,000 psi @ 72° F	50785K218	00000

90° Elbow Reducers

Female x Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPTF Female × NPTF Female



		1/8	1/16	Square	Brass	1,000 psi @ 72° F	50785K512	000000


		1/4	1/8	Square	Brass	1,000 psi @ 72° F	50785K513	00000
		3/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K514	00000
		3/8	1/4	Square	Brass	1,000 psi @ 72° F	50785K515	00000
		1/2	1/4	Square	Brass	1,000 psi @ 72° F	50785K516	00000
		1/2	3/8	Square	Brass	1,000 psi @ 72° F	50785K517	00000
		3/4	1/4	Square	Brass	1,000 psi @ 72° F	50785K518	00000
		3/4	1/2	Square	Brass	1,000 psi @ 72° F	50785K522	00000

45° Elbow Adapters

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male
Female x Male


		1/8	1/8	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K19	00000


		1/8	1/8	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K31	0000
		1/4	1/4	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K21	00000
		1/4	1/4	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K32	0000
		3/8	3/8	Square	Brass	1,000 psi @ 72° F	50785K83	0000
		3/8	3/8	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K22	00000
		3/8	3/8	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K33	0000
		1/2	1/2	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K23	00000
		1/2	1/2	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K34	00000


		NPTF Female × NPTF Male
		Female x Male


				1/8	1/8	—	Brass	3,200 psi @ 72° F	4757T131	00000


				1/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K81	0000
				1/4	1/4	—	Brass	3,200 psi @ 72° F	4757T132	00000
				1/4	1/4	Square	Brass	1,000 psi @ 72° F	50785K82	0000
				3/8	3/8	—	Brass	2,900 psi @ 72° F	4757T133	00000
				1/2	1/2	—	Brass	1,900 psi @ 72° F	4757T134	00000
				1/2	1/2	Square	Brass	1,000 psi @ 72° F	50785K84	0000
				3/4	3/4	—	Brass	1,900 psi @ 72° F	4757T135	00000
				3/4	3/4	Square	Brass	1,000 psi @ 72° F	50785K333	00000

Tee Connectors

Female

Male

Male Square Body

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female



		1/8	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T21	00000


		1/8	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K24	0000
		1/8	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K41	0000
		1/4	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T22	00000
		1/4	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K25	00000
		1/4	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K42	0000
		3/8	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T23	00000
		3/8	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K26	00000
		3/8	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K43	00000
		1/2	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T24	00000
		1/2	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K27	00000


		1/2	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K44	00000


		NPTF Female



				1/8	—	Brass	3,200 psi @ 72° F	4757T41	00000


				1/8	Square	Brass	1,000 psi @ 72° F	50785K75	0000
				1/4	—	Brass	3,200 psi @ 72° F	4757T42	00000
				1/4	Square	Brass	1,000 psi @ 72° F	50785K72	0000
				3/8	—	Brass	3,000 psi @ 72° F	4757T43	00000
				3/8	Square	Brass	1,000 psi @ 72° F	50785K73	0000
				1/2	—	Brass	1,900 psi @ 72° F	4757T44	00000
				1/2	Square	Brass	1,000 psi @ 72° F	50785K74	00000
				3/4	—	Brass	1,900 psi @ 72° F	4757T45	00000
				3/4	Square	Brass	1,000 psi @ 72° F	50785K76	00000
				1	—	Brass	1,200 psi @ 72° F	4757T149	000000


				NPTF Male



						1/8	—	Brass	3,900 psi @ 72° F	4757T151	00000


						1/4	—	Brass	3,900 psi @ 72° F	4757T152	00000
						3/8	—	Brass	3,900 psi @ 72° F	4757T153	00000
						1/2	—	Brass	3,900 psi @ 72° F	4757T154	00000


						BSPT Male



								1/8	—	Nickel-Plated Brass	2,900 psi @ 72° F	4860K441	00000


								1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K275	0000
								1/4	—	Nickel-Plated Brass	2,100 psi @ 72° F	4860K442	00000
								1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K276	0000
								3/8	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K443	00000
								3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K277	00000
1/2								Square	Nickel-Plated Brass	725 psi @ 72° F	9151K278	00000
3/4	Square							Nickel-Plated Brass	1,230 psi @ 72° F	9151K279	00000


BSPP Female



								1/8	—	Nickel-Plated Brass	2,900 psi @ 72° F	4860K451	00000


								1/8	Square	Brass	1,000 psi @ 72° F	50785K438	00000
								1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K268	0000
								1/4	—	Nickel-Plated Brass	2,100 psi @ 72° F	4860K452	00000
								1/4	Square	Brass	1,000 psi @ 72° F	50785K439	00000
								1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K269	0000
								3/8	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K453	00000
								3/8	Square	Brass	1,000 psi @ 72° F	50785K444	00000
								3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K396	00000
								1/2	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K454	00000
								1/2	Square	Brass	1,000 psi @ 72° F	50785K454	00000


		1/2						Square	Nickel-Plated Brass	725 psi @ 72° F	9151K272	00000
		3/4	—					Nickel-Plated Brass	1,700 psi @ 72° F	4860K455	00000
		3/4	Square					Nickel-Plated Brass	1,230 psi @ 72° F	9151K273	00000

Inline Tee Adapters

Female x Male x

Female

Male x Female x Male

Inline tees are also known as branch tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male × NPT Female



		1/8	1/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K321	00000


		1/4	1/4	1/4	Hex	Brass	1,000 psi @ 72° F	50785K322	00000
		3/8	3/8	3/8	Square	Brass	1,000 psi @ 72° F	50785K323	00000
		1/2	1/2	1/2	Square	Brass	1,000 psi @ 72° F	50785K324	00000


		NPTF Female × NPTF Male × NPTF Female



				1/8	1/8	1/8	—	Brass	3,200 psi @ 72° F	4757T155	00000


				1/4	1/4	1/4	—	Brass	3,200 psi @ 72° F	4757T156	00000
				3/8	3/8	3/8	—	Brass	3,000 psi @ 72° F	4757T157	00000
				1/2	1/2	1/2	—	Brass	1,900 psi @ 72° F	4757T158	00000
				3/4	3/4	3/4	Square	Brass	1,000 psi @ 72° F	50785K216	00000


				BSPT Male × BSPP Female × BSPT Male



						1/8	1/8	1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K282	0000


						1/4	1/4	1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K283	0000
						3/8	3/8	3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K284	00000
						1/2	1/2	1/2	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K285	00000
						3/4	3/4	3/4	Square	Nickel-Plated Brass	1,230 psi @ 72° F	9151K286	00000


						BSPP Female × BSPT Male × BSPP Female



								1/8	1/8	1/8	—	Nickel-Plated Brass	2,900 psi @ 72° F	4860K461	00000


								1/8	1/8	1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K295	0000
								1/4	1/4	1/4	—	Nickel-Plated Brass	2,100 psi @ 72° F	4860K462	00000
								1/4	1/4	1/4	Square	Brass	1,000 psi @ 72° F	50785K492	00000
								1/4	1/4	1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K296	0000
								3/8	3/8	3/8	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K463	00000
								3/8	3/8	3/8	Square	Brass	1,000 psi @ 72° F	50785K495	00000
								3/8	3/8	3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K297	00000
								1/2	1/2	1/2	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K464	00000
								1/2	1/2	1/2	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K298	00000
								3/4	3/4	3/4	Square	Nickel-Plated Brass	1,230 psi @ 72° F	9151K299	00000

Right Angle Tee Adapters

Female x Female x

Male

Male x Male x Female

Right-angle tees are also known as run tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Female × NPT Male



		1/8	1/8	1/8	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T26	00000


		1/8	1/8	1/8	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K28	0000
		1/8	1/8	1/8	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K51	0000
		1/4	1/4	1/4	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T27	00000
		1/4	1/4	1/4	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K29	00000
		1/4	1/4	1/4	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K52	0000
		3/8	3/8	3/8	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T28	00000
		3/8	3/8	3/8	Square	Brass	1,000 psi @ 72° F	50785K223	0000
		3/8	3/8	3/8	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K53	0000
		1/2	1/2	1/2	Square	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T29	00000
		1/2	1/2	1/2	Square	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K32	00000


		1/2	1/2	1/2	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K54	00000


		NPTF Female × NPTF Female × NPTF Male



				1/8	1/8	1/8	—	Brass	3,200 psi @ 72° F	4757T51	00000


				1/8	1/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K219	0000
				1/4	1/4	1/4	—	Brass	3,200 psi @ 72° F	4757T52	00000
				1/4	1/4	1/4	Square	Brass	1,000 psi @ 72° F	50785K222	0000
				3/8	3/8	3/8	—	Brass	3,000 psi @ 72° F	4757T53	00000
				1/2	1/2	1/2	—	Brass	1,900 psi @ 72° F	4757T54	00000
				1/2	1/2	1/2	Square	Brass	1,000 psi @ 72° F	50785K224	00000
				3/4	3/4	3/4	Square	Brass	1,000 psi @ 72° F	50785K339	00000


				BSPT Male × BSPT Male × BSPP Female



						1/8	1/8	1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K288	0000


						1/4	1/4	1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K289	0000
						3/8	3/8	3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K398	00000
						1/2	1/2	1/2	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K292	00000
						3/4	3/4	3/4	Square	Nickel-Plated Brass	1,230 psi @ 72° F	9151K293	00000
						1	1	1	Square	Nickel-Plated Brass	1,160 psi @ 72° F	9151K294	00000


						BSPP Female × BSPP Female × BSPT Male



								1/8	1/8	1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K303	0000


								1/4	1/4	1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K304	0000
								3/8	3/8	3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K305	00000
								1/2	1/2	1/2	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K306	00000
								3/4	3/4	3/4	Square	Nickel-Plated Brass	1,230 psi @ 72° F	9151K307	00000
								1	1	1	Square	Nickel-Plated Brass	1,160 psi @ 72° F	9151K308	00000

Inline Tee Reducing Adapters

Female x Male x

Female

Inline tees are also known as branch tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male × NPT Female



		3/8	1/4	3/8	Square	Brass	1,000 psi @ 72° F	50785K546	000000


		NPTF Female × NPTF Male × NPTF Female



				1/4	1/8	1/4	Square	Brass	1,000 psi @ 72° F	50785K545	00000


				1/2	3/8	1/2	Square	Brass	1,000 psi @ 72° F	50785K547	00000
				3/4	1/2	3/4	Square	Brass	1,000 psi @ 72° F	50785K548	00000

Right Angle Tee Reducing Adapters

Female x Female

x Male

Right-angle tees are also known as run tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPTF Female × NPTF Female × NPTF Male



		1/8	1/8	1/16	Square	Brass	1,000 psi @ 72° F	50785K549	000000


		1/4	1/4	1/8	Square	Brass	1,000 psi @ 72° F	50785K551	00000
		3/8	3/8	1/4	Square	Brass	1,000 psi @ 72° F	50785K552	00000
		1/2	1/2	3/8	Square	Brass	1,000 psi @ 72° F	50785K553	00000

Inline Tee Reducers

Female x Female

x Female

Inline tees are also known as branch tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPTF Female × NPTF Female × NPTF Female



		1/8	1/16	1/8	Square	Brass	1,000 psi @ 72° F	50785K538	000000


		1/4	1/8	1/4	Square	Brass	1,000 psi @ 72° F	50785K539	00000
		3/8	1/4	3/8	Square	Brass	1,000 psi @ 72° F	50785K541	00000
		1/2	3/8	1/2	Square	Brass	1,000 psi @ 72° F	50785K542	00000
		3/4	1/2	3/4	Square	Brass	1,000 psi @ 72° F	50785K543	00000

Wye Connectors

Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Wye Angle	Body Shape	Material	Max. Pressure @ Temp.		Each
BSPP Female



	1/8	90°	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K337	00000


	1/4	90°	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K338	0000
	3/8	90°	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K339	00000
	1/2	90°	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K403	00000

Wye Adapters

Male x Female x

Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	Wye Angle	Body Shape	Material	Max. Pressure @ Temp.		Each
BSPT Male × BSPP Female × BSPP Female



		1/8	1/8	1/8	90°	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K333	00000


		1/4	1/4	1/4	90°	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K334	0000
		3/8	3/8	3/8	90°	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K335	00000
		1/2	1/2	1/2	90°	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K336	00000

Cross Connectors

Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female



	3/8	Square	Brass	1,000 psi @ 72° F	50785K234	000000


	NPTF Female



			1/8	Square	Brass	1,000 psi @ 72° F	50785K232	00000


			1/4	—	Brass	3,200 psi @ 72° F	4757T161	00000
			1/4	Square	Brass	1,000 psi @ 72° F	50785K233	00000
			1/2	—	Brass	1,900 psi @ 72° F	4757T162	00000
			1/2	Square	Brass	1,000 psi @ 72° F	50785K235	00000
			3/4	Square	Brass	1,000 psi @ 72° F	50785K236	00000


			BSPP Female



					1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K342	0000


					1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K343	00000
					3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K344	00000
					1/2	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K345	00000


					BSPP Male



							1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K352	0000

Cross Adapters

Female x Male x

Female x Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	(D)	Body Shape	Material	Max. Pressure @ Temp.		Each
BSPP Female × BSPT Male × BSPP Female × BSPP Female



		1/8	1/8	1/8	1/8	Square	Nickel-Plated Brass	2,170 psi @ 72° F	9151K346	00000


		1/4	1/4	1/4	1/4	Square	Nickel-Plated Brass	1,450 psi @ 72° F	9151K347	00000
		3/8	3/8	3/8	3/8	Square	Nickel-Plated Brass	1,080 psi @ 72° F	9151K348	00000
		1/2	1/2	1/2	1/2	Square	Nickel-Plated Brass	725 psi @ 72° F	9151K349	00000

Caps

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female
Female


	1/8	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K94	00000


	1/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K85	0000
	1/4	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T35	0000
	1/4	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K95	0000
	1/4	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K97	0000
	3/8	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K96	0000
	3/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K98	0000
	1/2	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K97	00000
	1/2	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K99	00000


	NPTF Female
	Female


			1/8	Hex	Brass	1,000 psi @ 72° F	50785K161	0000


			1/4	Hex	Brass	1,000 psi @ 72° F	50785K162	0000
			3/8	Hex	Brass	1,000 psi @ 72° F	50785K163	0000
			1/2	Hex	Brass	1,000 psi @ 72° F	50785K164	0000
			3/4	Hex	Brass	1,000 psi @ 72° F	50785K165	0000
			1	Hex	Brass	1,000 psi @ 72° F	50785K176	00000
			1 1/4	Hex	Brass	1,000 psi @ 72° F	50785K101	00000
			1 1/2	Hex	Brass	1,000 psi @ 72° F	50785K102	00000


			BSPP Female
			Female


					1/8	—	Nickel-Plated Brass	2,170 psi @ 72° F	9151K257	0000


					1/8	Hex	Nickel-Plated Brass	2,900 psi @ 72° F	4860K175	0000
					1/4	—	Nickel-Plated Brass	1,450 psi @ 72° F	9151K258	0000
					1/4	Hex	Nickel-Plated Brass	2,100 psi @ 72° F	4860K176	0000
					3/8	—	Nickel-Plated Brass	1,080 psi @ 72° F	9151K259	0000
					3/8	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K177	00000
					1/2	—	Nickel-Plated Brass	725 psi @ 72° F	9151K395	0000
					1/2	Hex	Nickel-Plated Brass	1,400 psi @ 72° F	4860K178	00000

Hex-Drive Plugs

Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size	Thread Size	Construction	Material	Max. Pressure @ Temp.		Each
NPT Male



		1/16	—	—	Brass	1,000 psi @ 72° F	50785K267	00000


		1/8	—	—	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T41	0000
		1/8	—	—	Brass	1,000 psi @ 72° F	50785K112	0000
		1/8	—	—	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K89	0000
		1/8	—	—	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K81	0000
		1/4	—	—	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T42	0000
		1/4	—	—	Brass	1,000 psi @ 72° F	50785K113	0000
		1/4	—	—	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K91	0000
		1/4	—	—	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K82	0000
		3/8	—	—	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T43	0000
		3/8	—	—	Brass	1,000 psi @ 72° F	50785K114	0000


		3/8	—	—	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K92	0000
		3/8	—	—	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K83	0000
		1/2	—	—	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T44	0000
		1/2	—	—	Brass	1,000 psi @ 72° F	50785K115	0000
		1/2	—	—	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K93	0000
		1/2	—	—	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K84	0000
		3/4	—	—	Brass	1,000 psi @ 72° F	50785K116	0000


		NPTF Male



				1	—	—	Brass	1,000 psi @ 72° F	50785K407	00000


				BSPT Male



						1/8	—	—	Nickel-Plated Brass	2,170 psi @ 72° F	9151K253	0000


						1/8	—	—	Nickel-Plated Brass	2,900 psi @ 72° F	4860K131	0000
						1/4	—	—	Nickel-Plated Brass	1,450 psi @ 72° F	9151K254	0000
						1/4	—	—	Nickel-Plated Brass	2,100 psi @ 72° F	4860K132	0000
						3/8	—	—	Nickel-Plated Brass	1,080 psi @ 72° F	9151K255	0000
						3/8	—	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K133	0000
						1/2	—	—	Nickel-Plated Brass	725 psi @ 72° F	9151K256	0000
						1/2	—	—	Nickel-Plated Brass	1,400 psi @ 72° F	4860K134	0000
						3/4	—	—	Brass	1,700 psi @ 72° F	4860K135	00000


						BSPP Male



								1/8	—	—	Nickel-Plated Brass	2,170 psi @ 72° F	9151K223	0000


								1/8	—	—	Nickel-Plated Brass	2,170 psi @ 72° F	9151K227	0000
								1/8	—	—	Nickel-Plated Brass	2,170 psi @ 72° F	9151K389	0000
								1/4	—	—	Nickel-Plated Brass	1,450 psi @ 72° F	9151K212	0000
								1/4	—	—	Nickel-Plated Brass	1,450 psi @ 72° F	9151K224	0000
								1/4	—	—	Nickel-Plated Brass	1,450 psi @ 72° F	9151K228	0000
								3/8	—	—	Nickel-Plated Brass	1,080 psi @ 72° F	9151K213	0000
3/8								—	—	Nickel-Plated Brass	1,080 psi @ 72° F	9151K225	0000
3/8	—							—	Nickel-Plated Brass	1,080 psi @ 72° F	9151K229	0000
1/2	—							—	Nickel-Plated Brass	725 psi @ 72° F	9151K214	0000
1/2	—							—	Nickel-Plated Brass	725 psi @ 72° F	9151K226	0000


1/2	—							—	Nickel-Plated Brass	725 psi @ 72° F	9151K392	0000
3/4	—							—	Nickel-Plated Brass	1,230 psi @ 72° F	9151K219	00000
3/4	—							—	Nickel-Plated Brass	1,230 psi @ 72° F	9151K232	0000
1	—							—	Nickel-Plated Brass	1,160 psi @ 72° F	9151K408	00000


Metric Male



								—	M5 × 0.8 mm	Solid	Nickel-Plated Brass	2,100 psi @ 72° F	4948N12	0000


								—	M5 × 0.8 mm	Solid	Nickel-Plated Brass	2,100 psi @ 72° F	4948N15	0000
								—	M8 × 1 mm	Solid	Nickel-Plated Brass	1,000 psi @ 72° F	4948N13	0000
								—	M10 × 1 mm	Solid	Nickel-Plated Brass	2,100 psi @ 72° F	4948N14	0000
								—	M12 × 1.25 mm	—	Nickel-Plated Brass	1,080 psi @ 72° F	9151K218	0000

Hex-Drive Plugs with Gasket

Male

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Material	Max. Pressure @ Temp.	Gasket Material		Each
BSPP Male



	1/8	Nickel-Plated Brass	2,900 psi @ 72° F	Buna-N	4860K125	00000


	1/4	Nickel-Plated Brass	2,100 psi @ 72° F	Buna-N	4860K126	0000
	3/8	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K127	0000
	1/2	Nickel-Plated Brass	1,400 psi @ 72° F	Buna-N	4860K128	00000

Slotted-Drive Plugs

Male

	Construction	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/8	Solid	Brass	1,000 psi @ 72° F	50785K137	00000


	1/4	Solid	Brass	1,000 psi @ 72° F	50785K138	0000
	3/8	Solid	Brass	1,000 psi @ 72° F	50785K139	0000

Slotted-Drive Plugs with Gasket

Male

	Construction	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
Metric Male



	M5 × 0.8 mm	Hollow	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K824	00000

External-Hex-Drive Plugs

Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Black-Zinc-Plated 360 Brass—Black zinc–plated brass pipe has a shiny finish that offers better corrosion resistance than nickel-plated brass and stands up to salt-spray applications.

Chrome-Plated 360 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

Nickel-Plated 360 Brass and Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size	Thread Size	Construction	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male



		1/8	—	Hollow	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T36	00000


		1/8	—	Hollow	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K33	0000
		1/8	—	Hollow	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K71	0000
		1/8	—	Solid	Hex	Brass	1,000 psi @ 72° F	50785K334	0000
		1/4	—	Hollow	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T37	0000
		1/4	—	Hollow	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K34	0000
		1/4	—	Hollow	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K72	0000
		1/4	—	Solid	Hex	Brass	1,000 psi @ 72° F	50785K335	0000
		3/8	—	Hollow	Hex	Black-Zinc-Plated 360 Brass	1,000 psi @ 72° F	5799T38	0000
		3/8	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K23	0000
		3/8	—	Hollow	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K35	0000


		3/8	—	Hollow	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K73	0000
		3/8	—	Solid	Hex	Brass	1,000 psi @ 72° F	50785K336	0000
		1/2	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K24	0000
		1/2	—	Hollow	Hex	Chrome-Plated 360 Brass	1,000 psi @ 72° F	2641K36	0000
		1/2	—	Hollow	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	9151K74	0000
		1/2	—	Solid	Hex	Brass	1,000 psi @ 72° F	50785K337	0000
		3/4	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K521	0000
		3/4	—	Solid	Hex	Brass	1,000 psi @ 72° F	50785K338	0000
		1	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K332	00000


		NPTF Male



				1/8	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K21	0000


				1/8	—	Solid	Hex	Brass	3,900 psi @ 72° F	4757T71	0000
				1/4	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K22	0000
				1/4	—	Hollow	Hex	Brass	3,900 psi @ 72° F	4757T72	0000
				3/8	—	Hollow	Hex	Brass	3,900 psi @ 72° F	4757T73	0000
				1/2	—	Hollow	Hex	Brass	3,900 psi @ 72° F	4757T74	0000
				3/4	—	Hollow	Hex	Brass	3,500 psi @ 72° F	4757T75	00000
				1	—	Hollow	Hex	Brass	3,000 psi @ 72° F	4757T163	00000
				1	—	Solid	Hex	Brass	1,000 psi @ 72° F	50785K308	00000
				1 1/4	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K305	00000
				1 1/2	—	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K306	00000


				BSPT Male



						1/8	—	—	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K246	0000


						1/4	—	—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K247	0000
						3/8	—	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K248	0000
						1/2	—	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K249	0000
						3/4	—	—	Hex	Nickel-Plated Brass	1,230 psi @ 72° F	9151K394	0000
						1	—	—	Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K252	00000


						BSPP Male



	1/8						—	—	Hex	Nickel-Plated Brass	2,170 psi @ 72° F	9151K233	0000


	1/4						—	—	Hex	Nickel-Plated Brass	1,450 psi @ 72° F	9151K234	0000
	3/8						—	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K235	0000
	1/2						—	—	Hex	Nickel-Plated Brass	725 psi @ 72° F	9151K236	0000
	3/4						—	—	Hex	Nickel-Plated Brass	1,230 psi @ 72° F	9151K237	0000
	1						—	—	Hex	Nickel-Plated Brass	1,160 psi @ 72° F	9151K238	00000


	Metric Male



								—	M5 × 0.8 mm	Solid	—	Nickel-Plated Brass	2,100 psi @ 72° F	4948N16	0000


								—	M6 × 1 mm	Solid	—	Nickel-Plated Brass	1,400 psi @ 72° F	4948N17	0000
								—	M8 × 1.25 mm	Solid	—	Nickel-Plated Brass	2,100 psi @ 72° F	4948N19	0000
								—	M12 × 1 mm	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K245	0000
								—	M12 × 1.25 mm	—	Hex	Nickel-Plated Brass	1,080 psi @ 72° F	9151K242	0000

External-Hex-Drive Plugs with Gasket

Male

	Construction	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material		Each
BSPP Male



	1/8	Solid	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K812	00000


	1/4	Hollow	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K813	0000
	3/8	Hollow	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K823	00000
	1/2	Hollow	Hex	Brass	1,000 psi @ 72° F	Nylon	50785K826	00000

External-Square-Drive Plugs

	Construction	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male
Male


	1/8	Hollow	Square	Brass	1,000 psi @ 72° F	50785K131	00000


	1/8	Solid	Square	Brass	1,000 psi @ 72° F	50785K252	0000
	1/4	Hollow	Square	Brass	1,000 psi @ 72° F	50785K132	0000
	1/4	Solid	Square	Brass	1,000 psi @ 72° F	50785K253	0000
	3/8	Hollow	Square	Brass	1,000 psi @ 72° F	50785K133	0000
	3/8	Solid	Square	Brass	1,000 psi @ 72° F	50785K254	0000
	1/2	Hollow	Square	Brass	1,000 psi @ 72° F	50785K255	0000
	1/2	Solid	Square	Brass	1,000 psi @ 72° F	50785K135	0000
	3/4	Hollow	Square	Brass	1,000 psi @ 72° F	50785K256	00000
	3/4	Solid	Square	Brass	1,000 psi @ 72° F	50785K136	00000
	1	Hollow	Square	Brass	1,000 psi @ 72° F	50785K134	00000


	BSPT Male
	Male


			1/8	Hollow	Square	Brass	1,000 psi @ 72° F	4860K315	0000


			1/8	Hollow	Square	Brass	1,000 psi @ 72° F	50785K798	0000
			1/4	Hollow	Square	Brass	1,000 psi @ 72° F	4860K316	00000
			1/4	Hollow	Square	Brass	1,000 psi @ 72° F	50785K8	00000
			3/8	Hollow	Square	Brass	1,000 psi @ 72° F	4860K317	00000
			3/8	Hollow	Square	Brass	1,000 psi @ 72° F	50785K803	00000
			1/2	Hollow	Square	Brass	1,000 psi @ 72° F	4860K318	00000
			3/4	Hollow	Square	Brass	1,000 psi @ 72° F	4860K319	00000
			3/4	Hollow	Square	Brass	1,000 psi @ 72° F	50785K806	00000

Locknuts

NPSL Thread—NPSL (National Pipe Straight Locknut) threads are compatible with NPT threads.

	Finished Material	Max. Pressure @ Temp.		Each
NPSL Female



	1/8	Brass	1,000 psi @ 72° F	50785K141	00000


	1/4	Brass	1,000 psi @ 72° F	50785K142	0000
	3/8	Brass	1,000 psi @ 72° F	50785K143	0000
	1/2	Brass	1,000 psi @ 72° F	50785K144	0000
	3/4	Brass	1,000 psi @ 72° F	50785K145	0000


	NPTF Female



			1	Brass	1,000 psi @ 72° F	50785K146	00000

Medium-Pressure Brass and Bronze Threaded Pipe Fittings

Choose these fittings when you need better strength than our low-pressure brass and bronze pipe fittings. They offer good corrosion resistance.

Straight Connectors


Female	Male

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/4	250	—	Brass	400 psi @ 72° F	—	9152K51	000000


	3/8	250	—	Brass	400 psi @ 72° F	—	9152K52	00000
	1/2	250	—	Brass	400 psi @ 72° F	—	9152K53	00000
	3/4	250	—	Brass	400 psi @ 72° F	—	9152K54	00000
	1	250	—	Brass	400 psi @ 72° F	—	9152K55	000000
	1 1/2	250	—	Brass	400 psi @ 72° F	—	9152K57	000000
	2	—	Hex	Brass	500 psi @ 72° F	—	50785K593	00000
	2	250	—	Brass	400 psi @ 72° F	—	9152K58	000000


	NPT Male



			2	—	Hex	Brass	500 psi @ 72° F	—	50785K574	00000


			BSPT Male



					1/2	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N113	00000


					3/4	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N115	00000


					BSPP Male



							1/8	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N1	0000


							1/4	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N102	0000
							3/8	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N108	0000
							1/2	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N112	0000
							3/4	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N118	00000
							1	—	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N12	00000

Union Straight Connectors

Exploded View

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female



	1/4	250	Hex	Brass	400 psi @ 72° F	9152K61	000000


	3/8	250	Hex	Brass	400 psi @ 72° F	9152K62	00000
	1/2	250	Hex	Brass	400 psi @ 72° F	9152K63	00000
	3/4	250	Hex	Brass	400 psi @ 72° F	9152K64	00000
	1	250	Hex	Brass	400 psi @ 72° F	9152K65	000000
	1 1/4	250	Hex	Brass	400 psi @ 72° F	9152K66	000000
	1 1/2	250	Hex	Brass	400 psi @ 72° F	9152K67	000000
	2	250	Hex	Brass	400 psi @ 72° F	9152K68	000000

Straight Adapters


Female x Male	Male x Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		2	2	Hex	Brass	500 psi @ 72° F	—	50785K734	0000000


		BSPP Male × BSPP Female



				1/8	1/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N129	0000


				1/4	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N126	0000
				3/8	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N124	0000
				1/2	1/2	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N122	00000

Straight Reducing Adapters

Female x Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPTF Male



		2	1/2	Hex	Brass	500 psi @ 72° F	—	50785K729	0000000


		2	3/4	Hex	Brass	500 psi @ 72° F	—	50785K731	000000
		2	1	Hex	Brass	500 psi @ 72° F	—	50785K732	000000
		2	1 1/2	Hex	Brass	500 psi @ 72° F	—	50785K733	000000


		BSPP Female × BSPP Male



				1/4	1/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N128	0000


				3/8	1/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N127	0000
				3/8	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N125	0000
				1/2	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N123	0000
				3/4	1/2	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N121	00000

Bushing Straight Reducing Adapters

Male x Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPP Male × BSPP Female



		1/4	1/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N13	00000


		3/8	1/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N131	0000
		3/8	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N132	0000
		1/2	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N133	0000
		1/2	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N134	0000
		3/4	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N135	00000
		3/4	1/2	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N136	0000

Straight Reducers

Male x Male

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Male × NPT Male



		2	1	Hex	Brass	500 psi @ 72° F	—	50785K572	000000


		2	1 1/2	Hex	Brass	500 psi @ 72° F	—	50785K573	00000


		BSPT Male × BSPT Male



				1/2	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N107	00000


				BSPP Male × BSPP Male



						1/8	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N101	0000


						3/8	1/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N105	0000
						3/8	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N103	0000
						1/2	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N104	0000
						1/2	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N109	0000
						3/4	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N111	0000
						3/4	1/2	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N11	0000
						1	3/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N117	00000

90° Elbow Connectors


Female	Male

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/4	250	Brass	400 psi @ 72° F	—	9152K11	000000


	3/8	250	Brass	400 psi @ 72° F	—	9152K12	00000
	1/2	250	Brass	400 psi @ 72° F	—	9152K13	00000
	3/4	250	Brass	400 psi @ 72° F	—	9152K14	00000
	1	250	Brass	400 psi @ 72° F	—	9152K15	00000
	1 1/4	250	Brass	400 psi @ 72° F	—	9152K16	000000
	1 1/2	250	Brass	400 psi @ 72° F	—	9152K17	000000
	2	250	Brass	400 psi @ 72° F	—	9152K18	000000


	BSPT Male



			1/8	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N151	0000


			1/4	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N152	0000
			3/8	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N153	0000
			1/2	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N154	00000


			BSPP Female



					1/8	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N155	0000


					1/4	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N156	0000
					3/8	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N157	0000
					1/2	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N158	00000

90° Elbow Adapters

Male x Female

Female x male 90° elbow adapters are also known as street elbows.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPT Male × BSPP Female



		1/4	1/4	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N16	00000


		3/8	3/8	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N161	0000
		1/2	1/2	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N162	00000

45° Elbow Connectors

Female

	Pressure Class	Material	Max. Pressure @ Temp.		Each
NPT Female



	3/4	250	Brass	400 psi @ 72° F	9152K21	000000


	1	250	Brass	400 psi @ 72° F	9152K22	000000

Tee Connectors

Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/4	250	Brass	400 psi @ 72° F	—	9152K76	000000


	3/8	250	Brass	400 psi @ 72° F	—	9152K31	00000
	1/2	250	Brass	400 psi @ 72° F	—	9152K32	00000
	3/4	250	Brass	400 psi @ 72° F	—	9152K33	00000
	1	250	Brass	400 psi @ 72° F	—	9152K34	000000
	1 1/4	250	Brass	400 psi @ 72° F	—	9152K35	000000
	1 1/2	250	Brass	400 psi @ 72° F	—	9152K36	000000
	2	250	Brass	400 psi @ 72° F	—	9152K37	000000


	BSPP Female



			1/4	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N141	0000


			3/8	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N142	0000
			1/2	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N143	00000

Inline Tee Adapters

Female x Male x Female

Inline tees are also known as branch tees.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPP Female × BSPT Male × BSPP Female



		1/4	1/4	1/4	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N145	00000


		3/8	3/8	3/8	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N146	00000
		1/2	1/2	1/2	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N147	00000

Right Angle Tee Adapters

Female x Male x Female

Right-angle tees are also known as run tees.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPP Female × BSPT Male × BSPP Female



		1/4	1/4	1/4	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N148	00000


		3/8	3/8	3/8	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N149	0000
		1/2	1/2	1/2	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N15	00000

Wye Connectors

Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPP Female



	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N165	00000


	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N164	00000
	1/2	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N163	00000

Wye Adapters

Male x Female x

Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPT Male × BSPP Female × BSPP Female



		1/4	1/4	1/4	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N166	00000


		3/8	3/8	3/8	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N167	00000
		1/2	1/2	1/2	Hex	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N168	00000

Cross Connectors

Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/2	250	Brass	400 psi @ 72° F	—	9152K77	0000000


	3/4	250	Brass	400 psi @ 72° F	—	9152K41	000000
	1	250	Brass	400 psi @ 72° F	—	9152K42	000000


	BSPP Female



			1/4	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N171	0000


			1/2	—	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N17	00000

Cross Adapters

Female x Male x

Female x Female

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	(C)	(D)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPP Female × BSPT Male × BSPP Female × BSPP Female



		1/4	1/4	1/4	1/4	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N173	000000

Caps

Female

	Pressure Class	Material	Max. Pressure @ Temp.		Each
NPT Female



	1/2	250	Brass	400 psi @ 72° F	9152K71	000000


	3/4	250	Brass	400 psi @ 72° F	9152K72	00000
	1	250	Brass	400 psi @ 72° F	9152K73	000000
	2	250	Brass	400 psi @ 72° F	9152K75	000000

External-Hex-Drive Plugs

Male

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Thread Size	Construction	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
BSPP Male



	1/4	—	Hollow	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N137	00000


	3/8	—	Hollow	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N138	0000
	1/2	—	Hollow	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N139	0000
	3/4	—	Hollow	Nickel-Plated Brass	500 psi @ 72° F	500 psi @ 212° F	9491N14	0000


	Metric Male



			—	M10 × 1 mm	Solid	Nickel-Plated Brass	700 psi @ 72° F	—	4948N18	0000

Locknuts

NPSL Thread—NPSL (National Pipe Straight Locknut) threads are compatible with NPT threads.

	Finished Material	Max. Pressure @ Temp.		Each
NPSL Female



	1/2	Brass	1,000 psi @ 72° F	50785K144	00000


	3/4	Brass	1,000 psi @ 72° F	50785K145	0000


	NPTF Female



			1	Brass	1,000 psi @ 72° F	50785K146	00000

Thick-Wall Brass and Bronze Threaded Pipe Nipples and Pipe

A thick wall gives this Schedule 80 pipe the strength to handle high-pressure applications. It is brass for good corrosion resistance.

Pipe—Fully Threaded

Male

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

	Lg.	Construction	Pipe Schedule	Material		Each
NPT Male



	1/8	3/4"	Seamless	80	230 Brass	9149K11	00000


	1/4	7/8"	Seamless	80	230 Brass	9149K12	0000
	3/8	1"	Seamless	80	230 Brass	9149K13	0000
	1/2	1 1/8"	Seamless	80	230 Brass	9149K14	0000
	3/4	1 3/8"	Seamless	80	230 Brass	9149K15	00000
	1	1 1/2"	Seamless	80	230 Brass	9149K16	00000
	1 1/4	1 5/8"	Seamless	80	230 Brass	9149K17	00000
	1 1/2	1 3/4"	Seamless	80	230 Brass	9149K18	00000
	2	2"	Seamless	80	230 Brass	9149K19	00000
	2 1/2	2 1/2"	Seamless	80	230 Brass	9149K491	000000

Pipe—Threaded on Both Ends

Male

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

	Lg.	Construction	Pipe Schedule	Material		Each
NPT Male







				1/8 Pipe Size

				1 1/2"	Seamless	80	230 Brass	9149K21	00000


				2"	Seamless	80	230 Brass	9149K31	0000
				2 1/2"	Seamless	80	230 Brass	9149K41	0000
				3"	Seamless	80	230 Brass	9149K51	0000
				3 1/2"	Seamless	80	230 Brass	9149K71	0000
				4"	Seamless	80	230 Brass	9149K61	00000
				5"	Seamless	80	230 Brass	9149K81	00000
				6"	Seamless	80	230 Brass	9149K91	00000
				8"	Seamless	80	230 Brass	9149K26	00000
				10"	Seamless	80	230 Brass	9149K121	00000
				12"	Seamless	80	230 Brass	9149K131	00000


				18"	Seamless	80	230 Brass	5085T11	00000
				24"	Seamless	80	230 Brass	5085T21	00000
				36"	Seamless	80	230 Brass	5085T31	000000
				48"	Seamless	80	230 Brass	5085T41	000000
				60"	Seamless	80	230 Brass	5085T51	000000
				72"	Seamless	80	230 Brass	5085T61	000000




						1/4 Pipe Size

						1 1/2"	Seamless	80	230 Brass	9149K22	0000


						2"	Seamless	80	230 Brass	9149K32	0000
						2 1/2"	Seamless	80	230 Brass	9149K42	0000
						3"	Seamless	80	230 Brass	9149K52	00000
						3 1/2"	Seamless	80	230 Brass	9149K72	00000
						4"	Seamless	80	230 Brass	9149K62	00000
						5"	Seamless	80	230 Brass	9149K82	00000
						6"	Seamless	80	230 Brass	9149K92	00000
						8"	Seamless	80	230 Brass	9149K27	00000
						10"	Seamless	80	230 Brass	9149K122	00000
						12"	Seamless	80	230 Brass	9149K132	00000


						18"	Seamless	80	230 Brass	5085T12	00000
						24"	Seamless	80	230 Brass	5085T22	00000
						36"	Seamless	80	230 Brass	5085T32	000000
						48"	Seamless	80	230 Brass	5085T42	000000
						60"	Seamless	80	230 Brass	5085T52	000000
						72"	Seamless	80	230 Brass	5085T62	000000




								3/8 Pipe Size

								1 1/2"	Seamless	80	230 Brass	9149K23	0000


2"	Seamless							80	230 Brass	9149K33	0000
2 1/2"	Seamless							80	230 Brass	9149K43	00000
3"	Seamless							80	230 Brass	9149K53	00000
3 1/2"	Seamless	80						230 Brass	9149K73	00000
4"	Seamless	80	230 Brass					9149K63	00000
5"	Seamless	80	230 Brass					9149K83	00000
6"	Seamless	80	230 Brass					9149K93	00000
8"	Seamless	80	230 Brass					9149K28	00000
10"	Seamless	80	230 Brass					9149K123	00000
12"	Seamless	80	230 Brass					9149K133	00000


18"	Seamless	80	230 Brass					5085T13	00000
24"	Seamless	80	230 Brass					5085T23	000000
36"	Seamless	80	230 Brass					5085T33	000000
48"	Seamless	80	230 Brass					5085T43	000000
60"	Seamless	80	230 Brass					5085T53	000000
72"	Seamless	80	230 Brass					5085T63	000000




		1/2 Pipe Size

		1 1/2"	Seamless					80	230 Brass	9149K24	00000


		2"	Seamless					80	230 Brass	9149K34	00000
		2 1/2"	Seamless					80	230 Brass	9149K44	00000
		3"	Seamless					80	230 Brass	9149K54	00000
		3 1/2"	Seamless					80	230 Brass	9149K74	00000
		4"	Seamless	80				230 Brass	9149K64	00000
		5"	Seamless	80	230 Brass			9149K84	00000
		6"	Seamless	80	230 Brass			9149K94	00000
		8"	Seamless	80	230 Brass			9149K29	00000
		10"	Seamless	80	230 Brass			9149K124	00000
		12"	Seamless	80	230 Brass			9149K134	00000


		18"	Seamless	80	230 Brass			5085T14	000000
		24"	Seamless	80	230 Brass			5085T24	000000
		36"	Seamless	80	230 Brass			5085T34	000000
		48"	Seamless	80	230 Brass			5085T44	000000
		60"	Seamless	80	230 Brass			5085T54	000000
		72"	Seamless	80	230 Brass			5085T64	000000




				3/4 Pipe Size

				1 1/2"	Seamless			80	230 Brass	9149K25	00000


				2"	Seamless			80	230 Brass	9149K35	00000
				2 1/2"	Seamless			80	230 Brass	9149K45	00000
				3"	Seamless			80	230 Brass	9149K55	00000
				3 1/2"	Seamless			80	230 Brass	9149K75	00000
				4"	Seamless			80	230 Brass	9149K65	00000
				5"	Seamless	80		230 Brass	9149K85	00000
				6"	Seamless	80	230 Brass	9149K95	00000
				8"	Seamless	80	230 Brass	9149K39	00000
				10"	Seamless	80	230 Brass	9149K125	00000
				12"	Seamless	80	230 Brass	9149K135	00000


				18"	Seamless	80	230 Brass	5085T15	000000
				24"	Seamless	80	230 Brass	5085T25	000000
				36"	Seamless	80	230 Brass	5085T35	000000
				48"	Seamless	80	230 Brass	5085T45	000000
				60"	Seamless	80	230 Brass	5085T55	000000
				72"	Seamless	80	230 Brass	5085T65	000000




						1 Pipe Size

						2"	Seamless	80	230 Brass	9149K36	00000


						2 1/2"	Seamless	80	230 Brass	9149K46	00000
						3"	Seamless	80	230 Brass	9149K56	00000
						3 1/2"	Seamless	80	230 Brass	9149K76	00000
4"						Seamless	80	230 Brass	9149K66	00000
5"	Seamless					80	230 Brass	9149K86	00000
6"	Seamless					80	230 Brass	9149K96	00000
8"	Seamless					80	230 Brass	9149K111	00000
10"	Seamless					80	230 Brass	9149K126	00000
12"	Seamless					80	230 Brass	9149K136	000000
18"	Seamless					80	230 Brass	5085T16	000000


24"	Seamless					80	230 Brass	5085T26	000000
36"	Seamless					80	230 Brass	5085T36	000000
48"	Seamless					80	230 Brass	5085T46	000000
60"	Seamless					80	230 Brass	5085T56	000000
72"	Seamless					80	230 Brass	5085T66	000000




						1 1/4 Pipe Size

						2"	Seamless	80	230 Brass	9149K37	00000


						2 1/2"	Seamless	80	230 Brass	9149K47	00000
						3"	Seamless	80	230 Brass	9149K57	00000
						3 1/2"	Seamless	80	230 Brass	9149K77	00000
						4"	Seamless	80	230 Brass	9149K67	00000
		5"				Seamless	80	230 Brass	9149K87	00000
		6"	Seamless			80	230 Brass	9149K97	00000
		8"	Seamless			80	230 Brass	9149K112	000000
		10"	Seamless			80	230 Brass	9149K127	000000
		12"	Seamless			80	230 Brass	9149K137	000000




						1 1/2 Pipe Size

						2"	Seamless	80	230 Brass	9149K38	00000


						2 1/2"	Seamless	80	230 Brass	9149K48	00000
						3"	Seamless	80	230 Brass	9149K58	00000
						3 1/2"	Seamless	80	230 Brass	9149K78	00000
						4"	Seamless	80	230 Brass	9149K68	00000
						5"	Seamless	80	230 Brass	9149K88	00000
						6"	Seamless	80	230 Brass	9149K98	000000
						8"	Seamless	80	230 Brass	9149K113	000000
						12"	Seamless	80	230 Brass	9149K138	000000




								2 Pipe Size

				2 1/2"	Seamless			80	230 Brass	9149K49	00000


				3"	Seamless			80	230 Brass	9149K59	00000
				3 1/2"	Seamless			80	230 Brass	9149K79	00000
				4"	Seamless			80	230 Brass	9149K69	00000
				5"	Seamless			80	230 Brass	9149K89	000000
				6"	Seamless			80	230 Brass	9149K99	000000
				8"	Seamless			80	230 Brass	9149K114	000000
				12"	Seamless			80	230 Brass	9149K139	000000




								2 1/2 Pipe Size

								3"	Seamless	80	230 Brass	9149K591	000000


								3 1/2"	Seamless	80	230 Brass	9149K791	000000
								4"	Seamless	80	230 Brass	9149K691	000000
								6"	Seamless	80	230 Brass	9149K991	000000
								8"	Seamless	80	230 Brass	9149K115	000000
								12"	Seamless	80	230 Brass	9149K142	000000

Low-Pressure Threaded Pipe Fittings for Joining Dissimilar Metals

Use these unions to connect different metals in a piping or plumbing system. They have a plastic sleeve that inhibits destructive corrosion. Use them for connections that must be electrically insulated. Unions separate into three pieces for access to your line.

Union Straight Connectors with Gasket

Exploded View

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

	Pipe Size			Material
	(A)	(B)	Body Shape	(A)	(B)	Max. Pressure @ Temp.	Gasket Material		Each
NPT Female × NPT Female



		1/2	1/2	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K74	000000


		3/4	3/4	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K75	00000
		1	1	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K76	00000
		1 1/4	1 1/4	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K77	00000
		1 1/2	1 1/2	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K78	000000
		2	2	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K79	000000

Union Straight Adapters with Gasket

NPT Female × Socket Connect Female (Exploded View)

NPT Male x Socket Connect Female (Exploded View)

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

				Material
	Pipe Size (A)	For Tube OD (B)	Body Shape	(A)	(B)	Max. Pressure @ Temp.	Gasket Material		Each
NPT Female × Socket Connect Female



		1/2	1/2"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K101	000000


		1/2	5/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K1	00000
		3/4	5/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K2	00000
		3/4	7/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K3	00000
		1	7/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K4	00000
		1	1 1/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K5	00000
		1 1/4	1 3/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K6	00000
		1 1/2	1 5/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K7	00000
		2	2 1/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K8	00000


		NPT Male × Socket Connect Female



				1/2	5/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K102	00000


				3/4	5/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K105	00000
				3/4	7/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K103	00000
				3/4	7/8"	Hex	Iron	Brass	250 psi @ 72° F	Buna-N	4838K106	00000

Low-Pressure Iron and Steel Threaded Pipe Fittings

Use these fittings for low-pressure applications in noncorrosive environments.

Union Straight Connectors with Gasket


Female (Hex)	Female (Octogon)

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Gasket Material	Certification		Each
NPT Female



	1/8	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	—	44605K489	000000


	1/4	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K49	00000
	3/8	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K491	00000
	1/2	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K492	00000
	3/4	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K493	00000
	1	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K494	00000
	1 1/4	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K495	00000
	1 1/2	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K496	00000
	2	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K497	00000
	2 1/2	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K498	000000
	3	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	44605K499	000000


	4	150	Octagon	Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	—	44605K528	000000


	BSPT Female



			1/4	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K162	00000


			3/8	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K163	00000
			1/2	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K164	00000
			3/4	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K165	00000
			1	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K166	00000
			1 1/4	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K167	00000
			1 1/2	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K168	00000
			2	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K169	00000
			2 1/2	150	Hex	Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4778K17	00000

180° Bend Connectors

Image of Product. Front orientation. Pipe Traps. Low-Pressure Iron and Steel Threaded Pipe Fittings.

180° bend connectors are also known as U-bends.

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Certification	Shape		Each
NPT Female



	1/2	Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	44605K563	000000


	3/4	Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	44605K564	00000
	1	Iron	150 psi @ 72° F	150 psi @ 350° F	—	180° Bend	44605K565	00000
	1 1/4	Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	44605K566	00000
	1 1/2	Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	44605K567	000000
	2	Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	44605K568	000000

Precision High-Pressure Brass and Bronze Threaded Pipe Fittings

Also known as instrumentation fittings, these have the most precise threads and the tightest tolerances of all the brass pipe fittings we offer. Fittings are brass for good corrosion resistance.

Straight Connectors

	OD	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female
Female


	1/8	—	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K71	000000


	1/4	—	Hex	360 Brass	4,300 psi @ 72° F	1,500 psi @ 300° F	9171K73	00000
	3/8	—	Hex	360 Brass	3,500 psi @ 72° F	1,500 psi @ 300° F	9171K75	00000
	1/2	—	Hex	360 Brass	2,400 psi @ 72° F	1,500 psi @ 300° F	9171K811	00000
	3/4	—	Hex	360 Brass	2,300 psi @ 72° F	1,500 psi @ 300° F	9171K812	00000
	1	—	Hex	360 Brass	2,200 psi @ 72° F	1,500 psi @ 300° F	9171K101	00000


	NPT Male
	Male Male with Hex Body


			1/8	—	Hex	360 Brass	5,000 psi @ 72° F	1,500 psi @ 300° F	9171K821	00000


			1/8	—	Hex	360 Brass	5,000 psi @ 72° F	1,500 psi @ 300° F	9171K822	00000
			1/8	—	Hex	360 Brass	5,600 psi @ 72° F	1,500 psi @ 300° F	9171K121	00000
			1/8	—	Hex	360 Brass	5,600 psi @ 72° F	1,500 psi @ 300° F	9171K212	0000
			1/8	1/2"	—	360 Brass	5,600 psi @ 72° F	1,500 psi @ 300° F	9171K111	0000
			1/4	—	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K823	00000
			1/4	—	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K824	00000
			1/4	—	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K825	00000
			1/4	—	Hex	360 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K122	00000
			1/4	—	Hex	360 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K214	00000
			1/4	0.56"	—	360 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K112	00000


			3/8	—	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K826	00000
			3/8	—	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K217	00000
			3/8	0.69"	—	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K113	00000
			1/2	—	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K124	00000
			1/2	—	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K134	000000
			1/2	—	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K138	00000
			1/2	—	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K222	00000
			1/2	0.88"	—	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K114	00000
			3/4	—	Hex	360 Brass	3,600 psi @ 72° F	1,500 psi @ 300° F	9171K827	00000
			3/4	1.13"	—	360 Brass	3,800 psi @ 72° F	1,500 psi @ 300° F	9171K115	00000

Straight Adapters

Female × Male

Male × Male

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K61	000000


		1/4	1/4	Hex	360 Brass	4,300 psi @ 72° F	1,500 psi @ 300° F	9171K63	00000
		3/8	3/8	Hex	360 Brass	2,600 psi @ 72° F	1,500 psi @ 300° F	9171K831	00000
		1/2	1/2	Hex	360 Brass	3,600 psi @ 72° F	1,500 psi @ 300° F	9171K68	00000
		3/4	3/4	Hex	360 Brass	2,200 psi @ 72° F	1,500 psi @ 300° F	9171K102	00000


		BSPT Female × NPT Male



				1/8	1/8	Hex	360 Brass	3,200 psi @ 72° F	1,500 psi @ 300° F	9171K165	00000


				1/4	1/4	Hex	360 Brass	3,300 psi @ 72° F	1,500 psi @ 300° F	9171K166	00000
				3/8	3/8	Hex	360 Brass	2,600 psi @ 72° F	1,500 psi @ 300° F	9171K167	00000
				1/2	1/2	Hex	360 Brass	2,400 psi @ 72° F	1,500 psi @ 300° F	9171K168	00000


				BSPT Male × NPT Male



						1/8	1/8	Hex	360 Brass	5,000 psi @ 72° F	1,500 psi @ 300° F	9171K841	00000


						1/4	1/4	Hex	360 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K161	00000
						3/8	3/8	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K162	00000
						1/2	1/2	Hex	360 Brass	3,800 psi @ 72° F	1,500 psi @ 300° F	9171K842	00000
						3/4	3/4	Hex	360 Brass	3,600 psi @ 72° F	1,500 psi @ 300° F	9171K843	00000


						BSPP Female × NPT Male



								1/8	1/8	Hex	360 Brass	3,200 psi @ 72° F	1,500 psi @ 300° F	9171K171	00000


								1/4	1/4	Hex	360 Brass	3,300 psi @ 72° F	1,500 psi @ 300° F	9171K172	00000
								3/8	3/8	Hex	360 Brass	2,600 psi @ 72° F	1,500 psi @ 300° F	9171K173	00000
								1/2	1/2	Hex	360 Brass	2,400 psi @ 72° F	1,500 psi @ 300° F	9171K174	00000
								3/4	3/4	Hex	360 Brass	2,300 psi @ 72° F	1,500 psi @ 300° F	9171K175	000000

Straight Reducing Adapters

Female × Male

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/16	Hex	360 Brass	3,200 psi @ 72° F	1,500 psi @ 300° F	9171K851	00000


		1/4	1/8	Hex	360 Brass	4,300 psi @ 72° F	1,500 psi @ 300° F	9171K62	00000
		3/8	1/8	Hex	360 Brass	3,500 psi @ 72° F	1,500 psi @ 300° F	9171K232	00000
		3/8	1/4	Hex	360 Brass	3,500 psi @ 72° F	1,500 psi @ 300° F	9171K64	00000
		1/2	1/4	Hex	360 Brass	2,400 psi @ 72° F	1,500 psi @ 300° F	9171K852	00000
		1/2	3/8	Hex	360 Brass	2,400 psi @ 72° F	1,500 psi @ 300° F	9171K853	00000
		3/4	1/2	Hex	360 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K233	00000

Bushing Straight Reducing Adapters

Male × Female

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Male × NPT Female



		1/4	1/8	Hex	360 Brass	3,600 psi @ 72° F	1,500 psi @ 300° F	9171K52	000000


		3/8	1/8	Hex	360 Brass	3,200 psi @ 72° F	1,500 psi @ 300° F	9171K861	0000
		3/8	1/4	Hex	360 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K54	00000
		1/2	1/8	Hex	360 Brass	3,200 psi @ 72° F	1,500 psi @ 300° F	9171K862	00000
		1/2	1/4	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K56	00000
		1/2	3/8	Hex	360 Brass	2,800 psi @ 72° F	1,500 psi @ 300° F	9171K57	00000
		3/4	1/2	Hex	360 Brass	2,800 psi @ 72° F	1,500 psi @ 300° F	9171K58	00000

Straight Reducers

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Female
Female × Female


		1/8	1/16	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K69	000000


		1/4	1/8	Hex	360 Brass	3,200 psi @ 72° F	1,500 psi @ 300° F	9171K871	00000
		3/8	1/4	Hex	360 Brass	2,600 psi @ 72° F	1,500 psi @ 300° F	9171K872	00000
		1/2	1/4	Hex	360 Brass	3,600 psi @ 72° F	1,500 psi @ 300° F	9171K76	00000
		1/2	3/8	Hex	360 Brass	2,400 psi @ 72° F	1,500 psi @ 300° F	9171K873	00000
		3/4	1/2	Hex	360 Brass	2,300 psi @ 72° F	1,500 psi @ 300° F	9171K874	00000


		NPT Male × NPT Male
		Male × Male


				1/8	1/16	Hex	360 Brass	5,000 psi @ 72° F	1,500 psi @ 300° F	9171K881	00000


				1/4	1/8	Hex	360 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K213	00000
				3/8	1/8	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K882	0000
				3/8	1/4	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K216	00000
				1/2	1/4	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K219	00000
				1/2	3/8	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K221	00000
				3/4	1/2	Hex	360 Brass	3,800 psi @ 72° F	1,500 psi @ 300° F	9171K223	00000

90° Elbow Connectors

NPT Female

NPT Male

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/8	360 Brass	2,900 psi @ 72° F	1,500 psi @ 300° F	9171K11	000000


	1/4	360 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K12	00000
	3/8	360 Brass	2,700 psi @ 72° F	1,500 psi @ 300° F	9171K13	00000
	1/2	360 Brass	2,500 psi @ 72° F	1,500 psi @ 300° F	9171K14	00000
	3/4	360 Brass	2,000 psi @ 72° F	1,500 psi @ 300° F	9171K15	000000


	NPT Male



			1/8	377 Brass	5,000 psi @ 72° F	1,500 psi @ 300° F	9171K21	00000


			1/4	377 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K22	00000
			3/8	377 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K23	00000
			1/2	377 Brass	3,100 psi @ 72° F	1,500 psi @ 300° F	9171K24	00000
			3/4	377 Brass	3,400 psi @ 72° F	1,500 psi @ 300° F	9171K25	000000

90° Elbow Adapters

Female × Male

Female x male 90° elbow adapters are also known as street elbows.

	Pipe Size
	(A)	(B)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	377 Brass	2,900 psi @ 72° F	1,500 psi @ 300° F	9171K16	000000


		1/4	1/4	377 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K17	00000
		3/8	3/8	377 Brass	2,700 psi @ 72° F	1,500 psi @ 300° F	9171K18	00000
		1/2	1/2	377 Brass	2,500 psi @ 72° F	1,500 psi @ 300° F	9171K19	00000
		3/4	3/4	377 Brass	2,000 psi @ 72° F	1,500 psi @ 300° F	9171K36	000000

90° Elbow Reducing Adapters

Female × Male

Female x male 90° elbow adapters are also known as street elbows.

	Pipe Size
	(A)	(B)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/4	377 Brass	2,900 psi @ 72° F	1,500 psi @ 300° F	9171K146	000000


		1/4	1/2	377 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K152	000000
		3/8	1/2	377 Brass	2,700 psi @ 72° F	1,500 psi @ 300° F	9171K153	000000

45° Elbow Adapters

Female × Male

	Pipe Size
	(A)	(B)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	377 Brass	2,900 psi @ 72° F	1,500 psi @ 300° F	9171K81	000000


		1/4	1/4	377 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K82	00000
		3/8	3/8	377 Brass	2,700 psi @ 72° F	1,500 psi @ 300° F	9171K83	00000

Tee Connectors

NPT Female

NPT Male

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/8	360 Brass	2,900 psi @ 72° F	1,500 psi @ 300° F	9171K26	000000


	1/4	360 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K27	00000
	3/8	360 Brass	2,700 psi @ 72° F	1,500 psi @ 300° F	9171K28	00000
	1/2	360 Brass	2,500 psi @ 72° F	1,500 psi @ 300° F	9171K29	00000
	3/4	360 Brass	2,000 psi @ 72° F	1,500 psi @ 300° F	9171K97	000000


	NPT Male



			1/8	377 Brass	5,000 psi @ 72° F	1,500 psi @ 300° F	9171K155	00000


			1/4	377 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K156	00000
			3/8	377 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K157	00000
			1/2	377 Brass	3,100 psi @ 72° F	1,500 psi @ 300° F	9171K158	00000
			3/4	377 Brass	3,400 psi @ 72° F	1,500 psi @ 300° F	9171K154	000000

Inline Tee Adapters

Female × Male ×

Female

Inline tees are also known as branch tees.

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male × NPT Female



	1/8	377 Brass	2,900 psi @ 72° F	1,500 psi @ 300° F	9171K86	000000


	1/4	377 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K87	00000
	1/2	377 Brass	2,500 psi @ 72° F	1,500 psi @ 300° F	9171K89	00000

Right Angle Tee Adapters

Female × Female ×

Male

Right-angle tees are also known as run tees.

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Female × NPT Male



	1/8	377 Brass	2,900 psi @ 72° F	1,500 psi @ 300° F	9171K31	000000


	1/4	377 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K32	00000
	3/8	377 Brass	2,700 psi @ 72° F	1,500 psi @ 300° F	9171K33	00000
	1/2	377 Brass	2,500 psi @ 72° F	1,500 psi @ 300° F	9171K34	00000
	3/4	377 Brass	2,000 psi @ 72° F	1,500 psi @ 300° F	9171K35	000000

Cross Connectors

NPT Female

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/4	360 Brass	3,000 psi @ 72° F	1,500 psi @ 300° F	9171K93	000000


	1/2	360 Brass	2,500 psi @ 72° F	1,500 psi @ 300° F	9171K95	000000

Caps

NPT Female

	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



	1/8	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K241	000000


	1/4	Hex	360 Brass	4,300 psi @ 72° F	1,500 psi @ 300° F	9171K242	00000
	1/2	Hex	360 Brass	3,600 psi @ 72° F	1,500 psi @ 300° F	9171K244	00000

Hex-Drive Plugs

NPT Male

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Male



	1/8	360 Brass	5,600 psi @ 72° F	1,500 psi @ 300° F	9171K251	00000


	1/4	360 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K252	0000
	3/8	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K253	00000

External-Hex-Drive Plugs

Male

	Construction	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Male



	1/8	Hollow	Hex	360 Brass	5,600 psi @ 72° F	1,500 psi @ 300° F	9171K46	00000


	1/4	Hollow	Hex	360 Brass	4,100 psi @ 72° F	1,500 psi @ 300° F	9171K47	0000
	3/8	Hollow	Hex	360 Brass	4,000 psi @ 72° F	1,500 psi @ 300° F	9171K48	00000
	1/2	Hollow	Hex	360 Brass	3,900 psi @ 72° F	1,500 psi @ 300° F	9171K49	00000
	3/4	Hollow	Hex	360 Brass	3,800 psi @ 72° F	1,500 psi @ 300° F	9171K45	00000


	BSPT Male



			1/4	Hollow	Hex	360 Brass	3,300 psi @ 72° F	1,500 psi @ 300° F	9171K612	00000


			1	Hollow	Hex	360 Brass	2,200 psi @ 72° F	1,500 psi @ 300° F	9171K616	00000

Standard-Wall Brass and Bronze Threaded Pipe Nipples and Pipe with Sealant

The threads on this Schedule 40 pipe have a sealant applied for extra leak protection in low-pressure applications. Pipe is brass, which offers good corrosion resistance.

Pipe—Fully Threaded

Male

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

	Lg.	Construction	Pipe Schedule	Material		Each
NPT Male



	1/8	3/4"	Seamless	40	230 Brass	2729K11	00000


	1/4	7/8"	Seamless	40	230 Brass	2729K12	0000
	3/8	1"	Seamless	40	230 Brass	2729K13	0000
	1/2	1 1/8"	Seamless	40	230 Brass	2729K14	0000
	3/4	1 3/8"	Seamless	40	230 Brass	2729K15	0000
	1	1 1/2"	Seamless	40	230 Brass	2729K16	0000
	1 1/2	1 3/4"	Seamless	40	230 Brass	2729K17	00000
	2	2"	Seamless	40	230 Brass	2729K18	00000

Pipe—Threaded on Both Ends

Male

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

	Lg.	Construction	Pipe Schedule	Material		Each
NPT Male







				1/8 Pipe Size

				1 1/2"	Seamless	40	230 Brass	2729K19	00000


				2"	Seamless	40	230 Brass	2729K25	0000
				2 1/2"	Seamless	40	230 Brass	2729K33	0000
				3"	Seamless	40	230 Brass	2729K42	0000
				3 1/2"	Seamless	40	230 Brass	2729K111	0000
				4"	Seamless	40	230 Brass	2729K51	0000
				5"	Seamless	40	230 Brass	2729K59	0000
				6"	Seamless	40	230 Brass	2729K68	0000
				8"	Seamless	40	230 Brass	2729K77	0000
				10"	Seamless	40	230 Brass	2729K119	00000
				12"	Seamless	40	230 Brass	2729K86	00000




						1/4 Pipe Size

						1 1/2"	Seamless	40	230 Brass	2729K21	0000


						2"	Seamless	40	230 Brass	2729K26	0000
						2 1/2"	Seamless	40	230 Brass	2729K34	0000
						3"	Seamless	40	230 Brass	2729K43	0000
						3 1/2"	Seamless	40	230 Brass	2729K112	0000
						4"	Seamless	40	230 Brass	2729K52	0000
						5"	Seamless	40	230 Brass	2729K61	0000
						6"	Seamless	40	230 Brass	2729K69	0000
						8"	Seamless	40	230 Brass	2729K78	00000
						10"	Seamless	40	230 Brass	2729K121	00000
						12"	Seamless	40	230 Brass	2729K87	00000




								3/8 Pipe Size

								1 1/2"	Seamless	40	230 Brass	2729K22	0000


								2"	Seamless	40	230 Brass	2729K27	0000
								2 1/2"	Seamless	40	230 Brass	2729K35	0000
								3"	Seamless	40	230 Brass	2729K44	0000
								3 1/2"	Seamless	40	230 Brass	2729K113	0000
								4"	Seamless	40	230 Brass	2729K53	0000
								5"	Seamless	40	230 Brass	2729K62	0000
								6"	Seamless	40	230 Brass	2729K71	00000
								8"	Seamless	40	230 Brass	2729K79	00000
								10"	Seamless	40	230 Brass	2729K122	00000
								12"	Seamless	40	230 Brass	2729K88	00000




1/2 Pipe Size

1 1/2"	Seamless									40	230 Brass	2729K23	0000


2"	Seamless									40	230 Brass	2729K28	0000
2 1/2"	Seamless	40								230 Brass	2729K36	0000
3"	Seamless	40	230 Brass							2729K45	0000
3 1/2"	Seamless	40	230 Brass							2729K114	0000
4"	Seamless	40	230 Brass							2729K54	00000
5"	Seamless	40	230 Brass							2729K63	00000
6"	Seamless	40	230 Brass							2729K72	00000
8"	Seamless	40	230 Brass							2729K81	00000
10"	Seamless	40	230 Brass							2729K123	00000
12"	Seamless	40	230 Brass							2729K89	00000




		3/4 Pipe Size

		1 1/2"	Seamless							40	230 Brass	2729K24	0000


		2"	Seamless							40	230 Brass	2729K29	0000
		2 1/2"	Seamless							40	230 Brass	2729K37	0000
		3"	Seamless	40						230 Brass	2729K46	0000
		3 1/2"	Seamless	40	230 Brass					2729K115	00000
		4"	Seamless	40	230 Brass					2729K55	00000
		5"	Seamless	40	230 Brass					2729K64	00000
		6"	Seamless	40	230 Brass					2729K73	00000
		8"	Seamless	40	230 Brass					2729K82	00000
		10"	Seamless	40	230 Brass					2729K124	00000
		12"	Seamless	40	230 Brass					2729K91	00000




				1 Pipe Size

				2"	Seamless					40	230 Brass	2729K31	00000


				2 1/2"	Seamless					40	230 Brass	2729K38	00000
				3"	Seamless					40	230 Brass	2729K47	00000
				3 1/2"	Seamless	40				230 Brass	2729K116	00000
				4"	Seamless	40	230 Brass			2729K56	00000
				5"	Seamless	40	230 Brass			2729K65	00000
				6"	Seamless	40	230 Brass			2729K74	00000
				8"	Seamless	40	230 Brass			2729K83	00000
				10"	Seamless	40	230 Brass			2729K125	00000
				12"	Seamless	40	230 Brass			2729K92	00000




						1 1/2 Pipe Size

						2"	Seamless			40	230 Brass	2729K32	00000


						2 1/2"	Seamless			40	230 Brass	2729K39	00000
						3"	Seamless			40	230 Brass	2729K48	00000
						3 1/2"	Seamless			40	230 Brass	2729K117	00000
						4"	Seamless	40		230 Brass	2729K57	00000
						5"	Seamless	40	230 Brass	2729K66	00000
						6"	Seamless	40	230 Brass	2729K75	00000
						8"	Seamless	40	230 Brass	2729K84	00000
						12"	Seamless	40	230 Brass	2729K93	00000




								2 Pipe Size

								2 1/2"	Seamless	40	230 Brass	2729K41	00000


								3"	Seamless	40	230 Brass	2729K49	00000
								4"	Seamless	40	230 Brass	2729K58	00000
								5"	Seamless	40	230 Brass	2729K67	00000
6"								Seamless	40	230 Brass	2729K76	00000
8"	Seamless							40	230 Brass	2729K85	00000

High-Pressure Brass and Bronze Threaded Pipe Fittings with Sealant

Not only do these fittings have the strength to handle high-pressure applications, the male threads have a sealant applied for extra protection against leaks. Fittings are brass for good corrosion resistance.

Straight Connectors

Male

	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/8	Hex	Brass	1,000 psi @ 72° F	5485K217	00000


	1/4	Hex	Brass	1,000 psi @ 72° F	5485K221	0000
	3/8	Hex	Brass	1,000 psi @ 72° F	5485K231	0000
	1/2	Hex	Brass	1,000 psi @ 72° F	5485K241	00000
	3/4	Hex	Brass	1,000 psi @ 72° F	5485K251	00000
	1	Hex	Brass	1,000 psi @ 72° F	5485K252	00000

Straight Adapters

Female x Male

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	Hex	Brass	1,000 psi @ 72° F	50785K251	00000


		1/4	1/4	Hex	Brass	1,000 psi @ 72° F	50785K271	0000
		3/8	3/8	Hex	Brass	1,000 psi @ 72° F	50785K618	0000
		1/2	1/2	Hex	Brass	1,000 psi @ 72° F	50785K311	00000
		3/4	3/4	Hex	Brass	1,000 psi @ 72° F	50785K299	00000

Straight Reducing Adapters

Female x Male

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	50785K261	00000


		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	50785K613	00000
		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	50785K281	0000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	50785K615	00000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	50785K291	00000
		3/4	3/8	Hex	Brass	1,000 psi @ 72° F	50785K927	00000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	50785K627	00000

Bushing Straight Reducing Adapters

Male x Female

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male × NPT Female



		1/8	1/16	Hex	Brass	1,000 psi @ 72° F	50785K159	00000


		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	50785K611	0000
		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	50785K621	0000
		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	50785K631	0000
		1/2	1/8	Hex	Brass	1,000 psi @ 72° F	50785K641	0000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	50785K919	0000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	50785K661	0000
		3/4	1/8	Hex	Brass	1,000 psi @ 72° F	50785K671	00000
		3/4	1/4	Hex	Brass	1,000 psi @ 72° F	50785K681	00000
		3/4	3/8	Hex	Brass	1,000 psi @ 72° F	50785K691	00000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	50785K711	00000


		1	1/2	Hex	Brass	1,000 psi @ 72° F	50785K926	00000
		1	3/4	Hex	Brass	1,000 psi @ 72° F	50785K925	00000

Straight Reducers

Male x Female

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male × NPT Male



		1/8	1/16	Hex	Brass	1,000 psi @ 72° F	5485K371	000000


		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	5485K312	0000
		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	5485K351	00000
		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	5485K321	0000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	5485K361	00000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	5485K331	00000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	5485K341	00000

90° Elbow Connectors

Male

	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/8	Square	Brass	1,000 psi @ 72° F	50785K921	00000


	1/4	Square	Brass	1,000 psi @ 72° F	50785K922	00000
	3/8	Square	Brass	1,000 psi @ 72° F	50785K923	00000
	1/2	Square	Brass	1,000 psi @ 72° F	50785K924	00000

90° Elbow Adapters

Round Body

Square Body

Female x male 90° elbow adapters are also known as street elbows.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	Round	Brass	1,000 psi @ 72° F	50785K411	00000


		1/4	1/4	Round	Brass	1,000 psi @ 72° F	50785K431	0000
		3/8	3/8	Round	Brass	1,000 psi @ 72° F	50785K441	00000
		1/2	1/2	Round	Brass	1,000 psi @ 72° F	50785K451	00000
		3/4	3/4	Square	Brass	1,000 psi @ 72° F	50785K461	00000

90° Elbow Reducing Adapters

Female x Male

Female x male 90° elbow adapters are also known as street elbows.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/4	1/8	Square	Brass	1,000 psi @ 72° F	50785K916	000000

45° Elbow Adapters

Female x Male

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K811	00000


		1/4	1/4	Square	Brass	1,000 psi @ 72° F	50785K821	00000
		3/8	3/8	Square	Brass	1,000 psi @ 72° F	50785K831	00000
		1/2	1/2	Square	Brass	1,000 psi @ 72° F	50785K841	00000

Inline Tee Adapters

Female x Male x

Female

Inline tees are also known as branch tees.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male × NPT Female



		1/8	1/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K325	00000


		1/4	1/4	1/4	Square	Brass	1,000 psi @ 72° F	50785K326	00000
		3/8	3/8	3/8	Square	Brass	1,000 psi @ 72° F	50785K327	00000
		1/2	1/2	1/2	Square	Brass	1,000 psi @ 72° F	50785K328	00000
		3/4	3/4	3/4	Square	Brass	1,000 psi @ 72° F	50785K283	00000

Right Angle Tee Adapters

Female x Female x

Male

Right-angle tees are also known as run tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Female × NPT Male



		3/8	3/8	3/8	Square	Brass	1,000 psi @ 72° F	50785K227	000000


		NPTF Female × NPTF Female × NPTF Male



				1/8	1/8	1/8	Square	Brass	1,000 psi @ 72° F	50785K225	0000


				1/4	1/4	1/4	Square	Brass	1,000 psi @ 72° F	50785K226	00000
				1/2	1/2	1/2	Square	Brass	1,000 psi @ 72° F	50785K228	00000
				3/4	3/4	3/4	Square	Brass	1,000 psi @ 72° F	50785K284	00000

Hex-Drive Plugs

Male

	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/16	Brass	1,000 psi @ 72° F	50785K167	00000


	1/8	Brass	1,000 psi @ 72° F	50785K918	0000
	1/4	Brass	1,000 psi @ 72° F	50785K213	0000
	3/8	Brass	1,000 psi @ 72° F	50785K214	0000
	1/2	Brass	1,000 psi @ 72° F	50785K215	0000
	3/4	Brass	1,000 psi @ 72° F	50785K117	00000

External-Hex-Drive Plugs

Male

	Construction	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/8	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K917	00000


	1/4	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K221	0000
	3/8	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K231	0000
	1/2	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K241	0000
	3/4	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K166	00000
	1	Hollow	Hex	Brass	1,000 psi @ 72° F	50785K298	00000

External-Square-Drive Plugs

Male

	Construction	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/8	Hollow	Square	Brass	1,000 psi @ 72° F	50785K287	00000


	1/4	Hollow	Square	Brass	1,000 psi @ 72° F	50785K288	0000
	3/8	Hollow	Square	Brass	1,000 psi @ 72° F	50785K289	0000
	1/2	Hollow	Square	Brass	1,000 psi @ 72° F	50785K341	00000
	1	Hollow	Square	Brass	1,000 psi @ 72° F	50785K292	00000

Miniature High-Pressure Brass and Bronze Threaded Pipe Fittings

When space in your pipe line is limited, choose these miniature fittings that are one inch or less in length. They are brass, which has good corrosion resistance.

Through-Wall Straight Connectors

Exploded View

Through-wall fittings are also known as bulkhead couplings; they mount through your wall or tank to create an inlet or outlet. When installing, the gasket should be on the inside of the wall.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Thread Size	For Hole Dia.	For Max. Wall Thk.	Body Shape	Material	Max. Pressure @ Temp.	Pkg. Qty.		Pkg.
NPT Female



	1/8	—	13/16"	1/2"	Hex	360 Brass	1,000 psi @ 72° F	1	5454K86	00000


	1/8	—	13/16"	1/2"	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	2	5483T92	00000
	1/4	—	13/16"	1/2"	Hex	360 Brass	1,000 psi @ 72° F	1	5454K87	0000
	1/4	—	13/16"	1/2"	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	2	5483T93	00000


	UN/UNF (SAE Straight) Female



			—	10-32	1/2"	1/4"	Hex	360 Brass	1,000 psi @ 72° F	5	5454K85	00000


			—	10-32	1/2"	1/4"	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	5	5483T91	00000

Straight Adapters with Gasket

Female x Male

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Straights									Replacement Gaskets
	Thread Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male



		10-32	10-32	Hex	360 Brass	1,000 psi @ 72° F	Buna-N	10	5454K88	000000	25	5454K21	00000


		10-32	10-32	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	Buna-N	10	5483T81	00000	25	5454K21	0000

Bushing Straight Reducing Adapters

Male x Female

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Thread Size (B)	Body Shape	Material	Max. Pressure @ Temp.	Pkg. Qty.		Pkg.
NPT Male × NPT Female



		1/4	1/8	—	Hex	360 Brass	1,000 psi @ 72° F	10	5454K57	000000


		1/4	1/8	—	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	5	5483T74	00000


		NPT Male × UN/UNF (SAE Straight) Female



				1/16	—	10-32	Hex	360 Brass	1,000 psi @ 72° F	10	5454K93	00000


				1/8	—	10-32	Hex	360 Brass	1,000 psi @ 72° F	10	5454K44	00000
				1/8	—	10-32	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	10	5483T72	00000
				1/4	—	10-32	Hex	360 Brass	1,000 psi @ 72° F	10	5454K54	00000

90° Elbow Adapters


Hex	Square

Female x male 90° elbow adapters are also known as street elbows.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size (B)	Body Shape	Material	Max. Pressure @ Temp.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × NPT Male



	10-32	1/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	5	5483T61	000000


	10-32	1/8	Square	360 Brass	1,000 psi @ 72° F	5	5454K83	00000

90° Elbow Adapters with Gasket

Female x Male

Female x male 90° elbow adapters are also known as street elbows.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Elbows									Replacement Gaskets
	Thread Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male



		10-32	10-32	Square	360 Brass	1,000 psi @ 72° F	Buna-N	10	5454K58	000000	25	5454K21	00000


		10-32	10-32	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	Buna-N	10	5483T62	00000	25	5454K21	0000

Inline Tee Adapters

Female

x Male

Inline tees are also known as branch tees.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Thread Size
	(A)	(C)	Pipe Size (B)	Body Shape	Material	Max. Pressure @ Temp.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × NPT Male × UN/UNF (SAE Straight) Female



		10-32	10-32	1/8	Hex	360 Brass	1,000 psi @ 72° F	5	5454K84	000000


		10-32	10-32	1/8	Hex	Nickel-Plated 360 Brass	1,000 psi @ 72° F	5	5483T63	00000

Inline Tee Adapters with Gasket

Female x

Male

Inline tees are also known as branch tees.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Tees										Replacement Gaskets
	Thread Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male × UN/UNF (SAE Straight) Female



		10-32	10-32	10-32	Square	360 Brass	1,000 psi @ 72° F	Buna-N	10	5454K59	000000	25	5454K21	00000


		10-32	10-32	10-32	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	Buna-N	10	5483T64	00000	25	5454K21	0000

Cross Adapters with Gasket

Female x

Male

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Crosses											Replacement Gaskets
	Thread Size
	(A)	(B)	(C)	(D)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male × UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Female



		10-32	10-32	10-32	10-32	Square	360 Brass	1,000 psi @ 72° F	Buna-N	10	5454K82	000000	25	5454K21	00000


		10-32	10-32	10-32	10-32	Square	Nickel-Plated 360 Brass	1,000 psi @ 72° F	Buna-N	10	5483T65	00000	25	5454K21	0000

Standard-Wall Brass and Bronze Threaded Pipe Nipples and Pipe Assortments for Drinking Water

Image of Product. Front orientation. Pipe and Fittings. Standard-Wall Brass and Bronze Threaded Pipe Nipples and Pipe Assortments for Drinking Water, Male.

Male

Keep various lengths of brass pipe on hand for applications requiring good corrosion resistance. The pipe in these assortments is threaded, so you can take apart its connections for maintenance and repair. They’re Schedule 40, so they should be used in low-pressure applications. This pipe is seamless, so it has a smooth interior for unrestricted flow, and it’s stronger than welded pipe. Fully threaded pipe nipples are also known as a close nipple; they are threaded on each end to the center.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	No. of Pieces	Pipe Schedule	Includes	Material	Mil. Spec.	Food Industry Std.		Each
NPT Male



	1/4	100	40	20 fully threaded 7/8" Lg. nipples 80 threaded-on-both-ends nipples in the following lengths: 1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.), 5 1/2" (5 ea.), 6" (5 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N11	0000000


	3/8	100	40	20 fully threaded 1" Lg. nipples 80 threaded-on-both-ends nipples in the following lengths: 1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.), 5 1/2" (5 ea.), 6" (5 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N12	000000
	1/2	66	40	6 fully threaded 1 1/8" Lg. nipples 60 threaded-on-both-ends nipples in the following lengths: 1 1/2” (6 ea.), 2” (6 ea.), 2 1/2” (6 ea.), 3” (6 ea.), 3 1/2” (6 ea.), 4” (6 ea.), 4 1/2” (6 ea.), 5” (6 ea.), 5 1/2" (6 ea.), 6" (6 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N13	000000
	1/2	100	40	20 fully threaded 1 1/8" Lg. nipples 80 threaded-on-both-ends nipples in the following lengths: 1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.), 5 1/2" (5 ea.), 6" (5 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N14	000000
	3/4	66	40	6 fully threaded 1 3/8" Lg. nipples 60 threaded-on-both-ends nipples in the following lengths: 1 1/2” (6 ea.), 2” (6 ea.), 2 1/2” (6 ea.), 3” (6 ea.), 3 1/2” (6 ea.), 4” (6 ea.), 4 1/2” (6 ea.), 5” (6 ea.), 5 1/2" (6 ea.), 6" (6 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N15	000000
	3/4	100	40	20 fully threaded 1 3/8" Lg. nipples 80 threaded-on-both-ends nipples in the following lengths: 1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.), 5 1/2" (5 ea.), 6" (5 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N16	000000
	1	30	40	3 fully threaded 1 1/2" Lg. nipples 27 threaded-on-both-ends nipples in the following lengths: 2” (3 ea.), 2 1/2” (3 ea.), 3” (3 ea.), 3 1/2” (3 ea.), 4” (3 ea.), 4 1/2” (3 ea.), 5” (3 ea.), 5 1/2” (3 ea.), 6" (3 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N17	000000
	1	75	40	15 fully threaded 1 1/2" Lg. nipples 60 threaded-on-both-ends nipples in the following lengths: 2” (15 ea.), 2 1/2” (10 ea.), 3” (12 ea.), 3 1/2” (5 ea.), 4” (5 ea.), 4 1/2” (4 ea.), 5” (3 ea.), 5 1/2” (3 ea.), 6" (3 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N18	000000
	1 1/4	25	40	6 fully threaded 1 5/8" Lg. nipples 19 threaded-on-both-ends nipples in the following lengths: 2” (4 ea.), 2 1/2” (3 ea.), 3” (2 ea.), 3 1/2” (2 ea.), 4” (2 ea.), 4 1/2” (1 ea.), 5” (2 ea.), 5 1/2” (1 ea.), 6" (2 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N19	000000
	1 1/2	25	40	5 fully threaded 1 3/4" Lg. nipples 20 threaded-on-both-ends nipples in the following lengths: 2” (5 ea.), 2 1/2” (3 ea.), 3” (2 ea.), 3 1/2” (2 ea.), 4” (2 ea.), 4 1/2” (1 ea.), 5” (2 ea.), 5 1/2” (1 ea.), 6" (2 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N21	000000
	2	25	40	6 fully threaded 2" Lg. nipples 19 threaded-on-both-ends nipples in the following lengths: 2 1/2” (3 ea.), 3” (3 ea.), 3 1/2” (2 ea.), 4” (3 ea.), 4 1/2” (1 ea.), 5” (3 ea.), 5 1/2” (1 ea.), 6” (3 ea.)	230 Brass	Fed. Spec. WW-N-351	NSF/ANSI 61	5292N22	000000

High-Pressure Brass and Bronze Threaded Pipe Fittings for Drinking Water

Use these heavy duty fittings for high-pressure drinking water applications. They are brass which has good corrosion resistance. They meet NSF/ANSI 61 safety standards for use with drinking water systems.

Straight Connectors

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female
Female


	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N154	00000


	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N155	0000
	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N156	0000
	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N157	0000
	3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N158	00000
	1	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N271	00000


	NPTF Male
	Male


			1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N232	0000


			1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N233	0000
			3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N234	0000
			1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N235	0000
			3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N236	00000
			1	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N237	00000

Union Straight Connectors

Exploded View

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female



	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N148	000000


	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N149	00000
	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N151	00000
	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N152	00000
	3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N153	00000

Straight Adapters

Female x Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Male



		1/8	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N212	00000


		1/4	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N214	0000
		3/8	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N217	0000
		1/2	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N221	00000
		3/4	3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N223	00000

Straight Reducing Adapters

Female × Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Male



		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N213	00000


		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N215	0000
		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N216	0000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N218	00000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N219	0000
		3/4	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N272	00000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N222	00000
		1	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N273	00000
		1	3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N274	00000

Bushing Straight Reducing Adapters

Male × Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Male × NPTF Female



		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N196	00000


		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N197	0000
		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N198	0000
		1/2	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N199	0000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N201	0000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N202	0000
		3/4	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N203	00000
		3/4	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N204	00000
		3/4	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N205	0000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N206	0000
		1	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N207	00000


		1	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N208	00000
		1	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N209	00000
		1	3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N211	00000

Straight Reducers

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Female
Female × Female


		1/4	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N224	00000


		3/8	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N225	0000
		3/8	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N226	0000
		1/2	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N227	00000
		1/2	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N228	0000
		1/2	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N229	0000
		3/4	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N231	00000


		NPTF Male × NPTF Male
		Male × Male


				1/4	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N238	0000


				3/8	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N239	0000
				3/8	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N241	0000
				1/2	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N242	0000
				1/2	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N243	0000
				3/4	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N275	00000
				3/4	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N244	00000
				1	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N276	00000
				1	3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N277	00000

90° Elbow Connectors

Female

Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female



	1/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N101	00000


	1/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N102	0000
	3/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N103	00000
	1/2	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N104	00000
	3/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N105	00000


	NPTF Male



			1/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N106	0000


			1/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N107	0000
			3/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N108	00000
			1/2	Square	Brass	1,200 psi @ 72° F	NSF/ANSI 61	1491N278	00000

90° Elbow Adapters

Female × Male

Female x male 90° elbow adapters are also known as street elbows.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Male



		1/8	1/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N111	00000


		1/4	1/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N112	0000
		3/8	3/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N113	00000
		1/2	1/2	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N114	00000
		3/4	3/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N115	00000

90° Elbow Reducing Adapters

Female × Male

Female x male 90° elbow adapters are also known as street elbows.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Male



		1/4	1/8	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N119	00000


		1/4	1/2	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N281	00000
		3/8	1/2	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N282	00000

45° Elbow Adapters

Female × Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Male



		1/8	1/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N122	00000


		1/4	1/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N123	0000
		3/8	3/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N124	00000
		1/2	1/2	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N125	00000
		3/4	3/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N126	00000

Tee Connectors

Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female



	1/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N127	00000


	1/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N128	00000
	3/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N129	00000
	1/2	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N131	00000
	3/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N132	00000

Inline Tee Adapters

Female × Male ×

Female

Inline tees are also known as branch tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Male × NPTF Female



		1/8	1/8	1/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N138	00000


		1/4	1/4	1/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N139	00000
		3/8	3/8	3/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N141	00000
		1/2	1/2	1/2	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N142	00000
		3/4	3/4	3/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N283	00000

Right Angle Tee Adapters

Female × Female ×

Male

Right-angle tees are also known as run tees.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female × NPTF Female × NPTF Male



		1/8	1/8	1/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N133	00000


		1/4	1/4	1/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N134	00000
		3/8	3/8	3/8	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N135	00000
		1/2	1/2	1/2	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N136	00000
		3/4	3/4	3/4	Square	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N137	00000

Cross Connectors

Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female



	1/8	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N143	00000


	1/4	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N144	00000
	3/8	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N145	00000
	1/2	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N146	00000
	3/4	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N147	00000

Caps

Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Female



	1/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N159	00000


	1/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N161	0000
	3/8	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N162	0000
	1/2	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N163	0000
	3/4	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N164	0000

Hex-Drive Plugs

Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Male



	1/8	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N186	00000


	1/4	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N187	0000
	3/8	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N188	0000
	1/2	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N189	0000
	3/4	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N191	0000

External-Hex-Drive Plugs

Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Construction	Body Shape	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPTF Male



	1/8	Hollow	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N176	00000


	1/8	Solid	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N182	0000
	1/4	Hollow	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N177	0000
	1/4	Solid	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N183	0000
	3/8	Hollow	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N178	0000
	3/8	Solid	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N184	0000
	1/2	Hollow	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N179	0000
	1/2	Solid	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N185	0000
	3/4	Hollow	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N181	0000
	3/4	Solid	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N285	00000
	1	Hollow	Hex	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1491N284	00000

High-Pressure Brass and Bronze Threaded Pipe Nipples and Pipe with Sealant

Not only does this pipe have the strength to handle high-pressure applications, the threads have a sealant applied for extra protection against leaks. Pipe is brass for good corrosion resistance.

Pipe—Fully Threaded

Male

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

	Lg.	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/16	5/8"	Brass	1,000 psi @ 72° F	50785K168	00000


	1/8	3/4"	Brass	1,000 psi @ 72° F	50785K201	0000
	1/4	7/8"	Brass	1,000 psi @ 72° F	50785K202	0000
	3/8	1"	Brass	1,000 psi @ 72° F	50785K203	0000
	1/2	1 1/8"	Brass	1,000 psi @ 72° F	50785K204	0000
	3/4	1 5/16"	Brass	1,000 psi @ 72° F	50785K205	00000

Pipe—Threaded on Both Ends

Male

		Each
NPT Male







	1/16 Pipe Size

	1 1/2"	Brass	1,000 psi @ 72° F	50785K157	00000


	2"	Brass	1,000 psi @ 72° F	50785K158	0000




			1/8 Pipe Size

			1 1/2"	Brass	1,000 psi @ 72° F	50785K911	0000


			2"	Brass	1,000 psi @ 72° F	50785K207	0000




					1/4 Pipe Size

					1 1/2"	Brass	1,000 psi @ 72° F	50785K912	0000


					2"	Brass	1,000 psi @ 72° F	50785K208	0000




							3/8 Pipe Size

							1 1/2"	Brass	1,000 psi @ 72° F	50785K913	0000


							2"	Brass	1,000 psi @ 72° F	50785K209	0000




									1/2 Pipe Size

									1 1/2"	Brass	1,000 psi @ 72° F	50785K915	00000


									2"	Brass	1,000 psi @ 72° F	50785K211	00000

Low-Pressure Brass and Bronze Threaded Pipe Fittings with Sealant

The male threads on these fittings have a sealant applied for extra protection against leaks. Also known as Pressure Class 125 fittings, they are built for use in low-pressure applications. They are brass for good corrosion resistance.

Straight Adapters

NPT Female × NPT

Male

	Pipe Size
	(A)	(B)	Pressure Class	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/2	1/2	125	Brass	200 psi @ 72° F	2725K33	000000

Bushing Straight Reducing Adapters

NPT Male × NPT

Female with Hex Body

NPT Male × NPT

Female with

Octagon Body

	Pipe Size
	(A)	(B)	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male × NPT Female



		3/8	1/8	125	Hex	Brass	200 psi @ 72° F	2725K51	00000


		1/2	1/8	125	Hex	Brass	200 psi @ 72° F	2725K53	0000
		1/2	1/4	125	Hex	Brass	200 psi @ 72° F	2725K54	0000
		1/2	3/8	125	Hex	Brass	200 psi @ 72° F	2725K55	0000
		3/4	1/8	125	Hex	Brass	200 psi @ 72° F	2725K56	00000
		3/4	1/4	125	Hex	Brass	200 psi @ 72° F	2725K57	00000
		3/4	3/8	125	Hex	Brass	200 psi @ 72° F	2725K58	0000
		3/4	1/2	125	Hex	Brass	200 psi @ 72° F	2725K59	00000
		1	1/8	125	Hex	Brass	200 psi @ 72° F	2725K61	00000
		1	1/4	125	Hex	Brass	200 psi @ 72° F	2725K62	00000
		1	3/8	125	Hex	Brass	200 psi @ 72° F	2725K63	00000


		1	1/2	125	Hex	Brass	200 psi @ 72° F	2725K64	00000
		1	3/4	125	Hex	Brass	200 psi @ 72° F	2725K65	00000
		1 1/4	3/8	125	Hex	Brass	200 psi @ 72° F	2725K77	00000
		1 1/4	1/2	125	Hex	Brass	200 psi @ 72° F	2725K78	00000
		1 1/4	3/4	125	Hex	Brass	200 psi @ 72° F	2725K79	00000
		1 1/4	1	125	Hex	Brass	200 psi @ 72° F	2725K81	00000
		1 1/2	1/4	125	Hex	Brass	200 psi @ 72° F	2725K66	00000
		1 1/2	1/2	125	Hex	Brass	200 psi @ 72° F	2725K67	00000
		1 1/2	3/4	125	Octagon	Brass	200 psi @ 72° F	2725K68	00000
		1 1/2	1	125	Hex	Brass	200 psi @ 72° F	2725K69	00000


		1 1/2	1 1/4	125	Hex	Brass	200 psi @ 72° F	2725K82	00000
		2	1/4	125	Hex	Brass	200 psi @ 72° F	2725K71	00000
		2	1/2	125	Hex	Brass	200 psi @ 72° F	2725K72	00000
		2	3/4	125	Hex	Brass	200 psi @ 72° F	2725K73	00000
		2	1	125	Octagon	Brass	200 psi @ 72° F	2725K74	00000
		2	1 1/4	125	Hex	Brass	200 psi @ 72° F	2725K75	00000
		2	1 1/2	125	Hex	Brass	200 psi @ 72° F	2725K76	00000
		2 1/2	1	125	Hex	Brass	200 psi @ 72° F	2725K83	00000
		2 1/2	2	125	Hex	Brass	200 psi @ 72° F	2725K84	000000

90° Elbow Adapters

NPT Female ×

NPT Male

Female x male 90° elbow adapters are also known as street elbows.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Female × NPT Male



		1/8	1/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K11	000000


		1/4	1/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K12	00000
		3/8	3/8	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K13	00000
		1/2	1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K14	00000
		3/4	3/4	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K15	00000
		1	1	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K16	00000
		1 1/2	1 1/2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K17	00000
		2	2	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K18	000000

45° Elbow Adapters

NPT Female

× NPT Male

	Pipe Size
	(A)	(B)	Pressure Class	Material	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/4	1/4	125	Brass	200 psi @ 72° F	2725K19	000000


		3/8	3/8	125	Brass	200 psi @ 72° F	2725K21	00000
		1/2	1/2	125	Brass	200 psi @ 72° F	2725K22	00000
		3/4	3/4	125	Brass	200 psi @ 72° F	2725K23	00000
		1	1	125	Brass	200 psi @ 72° F	2725K24	00000
		1 1/2	1 1/2	125	Brass	200 psi @ 72° F	2725K25	00000
		2	2	125	Brass	200 psi @ 72° F	2725K26	000000

Square-Drive Plugs

NPT Male

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Construction	Pressure Class	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Male



	1/2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K44	000000


	3/4	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K45	00000
	1	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K46	00000
	1 1/4	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K88	00000
	1 1/2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K47	00000
	2	Solid	125	Brass	200 psi @ 72° F	NSF/ANSI 61	2725K48	00000

External-Square-Drive Plugs

NPT Male

	Construction	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.		Each
NPT Male



	1/8	Solid	125	Square	Brass	200 psi @ 72° F	2725K85	00000


	1/4	Solid	125	Square	Brass	200 psi @ 72° F	2725K86	0000
	3/8	Solid	125	Square	Brass	200 psi @ 72° F	2725K87	0000
	1/2	Solid	125	Square	Brass	200 psi @ 72° F	2725K38	0000
	3/4	Solid	125	Square	Brass	200 psi @ 72° F	2725K39	00000
	1	Solid	125	Square	Brass	200 psi @ 72° F	2725K41	00000
	1 1/2	Solid	125	Square	Brass	200 psi @ 72° F	2725K42	00000
	2	Solid	125	Square	Brass	200 psi @ 72° F	2725K43	00000

Universal-Thread Medium-Pressure Brass and Bronze Threaded Pipe Fittings

When you're unsure of the exact thread type you need, these fittings have universal threads that are compatible with the most common ones (NPT, NPTF, BSPP, BSPT). Made of nickel-plated brass, they resist corrosion better than plain brass fittings. A reusable Buna-N O-ring protects against leaks. Connectors, adapters, and reducers all have a hex-shaped body, so you can tighten them with a wrench.

Intermittent-Swivel Straight Connectors

Male

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Body Shape	Material	Max. Pressure @ Temp.		Each
Universal, NPT, NPTF, BSPP, BSPT Male



	1/4	Hex	Nickel-Plated Brass	215 psi @ 72° F	9151K478	00000


	3/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	9151K479	00000
	1/2	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N241	0000

Intermittent-Swivel Straight Adapters

Female x Male

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPTF Female × Universal, NPT, NPTF, BSPP, BSPT Male



		1/4	1/4	Hex	Nickel-Plated Brass	215 psi @ 72° F	4948N211	00000


		3/8	3/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	4948N221	0000
		1/2	1/2	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N181	00000

Intermittent-Swivel Straight Reducing Adapters

Female x Male

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
NPTF Female × Universal, NPT, NPTF, BSPP, BSPT Male



		1/8	1/4	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N141	00000


		1/4	1/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N111	0000
		3/8	1/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N121	0000
		3/8	1/4	Hex	Nickel-Plated Brass	215 psi @ 72° F	4948N231	0000
		1/2	1/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N131	00000
		1/2	1/4	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N151	00000
		1/2	3/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N161	00000
		3/4	3/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N171	00000
		3/4	1/2	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N191	00000

Intermittent-Swivel Straight Reducers

Male x

Universal

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Pipe Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.		Each
Universal NPT, NPTF, BSPP, BSPT Male × Universal NPT, NPTF, BSPP, BSPT Male



		1/4	1/8	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N211	00000


		3/8	1/4	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N221	0000
		1/2	1/4	Hex	Nickel-Plated Brass	215 psi @ 72° F	3950N231	0000

Hex-Drive Plugs

Universal,

NPT, NPTF,

BSPP, BSPT

Male

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Nickel-Plated Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Construction	Material	Max. Pressure @ Temp.		Each
Universal, NPT, NPTF, BSPP, BSPT Male



	1/8	Solid	Nickel-Plated Brass	2,100 psi @ 72° F	4948N24	00000


	1/4	Solid	Nickel-Plated Brass	1,400 psi @ 72° F	4948N25	0000
	3/8	Solid	Nickel-Plated Brass	1,000 psi @ 72° F	4948N26	0000
	1/2	Solid	Nickel-Plated Brass	700 psi @ 72° F	4948N27	0000

Miniature Low-Pressure Brass and Bronze Threaded Pipe Fittings

Less than an inch in length, these miniature fittings work well in low-pressure pipe lines that are tight on space. They are brass, which has good corrosion resistance.

Straight Connectors

Female

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Body Shape	Material	Max. Pressure @ Temp.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female



	10-32	Hex	360 Brass	150 psi @ 72° F	10	5454K71	00000


	10-32	Hex	Nickel-Plated 360 Brass	150 psi @ 72° F	10	5483T31	00000

Straight Connectors with Gasket

Male

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Straights								Replacement Gaskets
	Thread Size	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Male



		10-32	Hex	360 Brass	150 psi @ 72° F	Buna-N	10	5454K72	000000	25	5454K21	00000


		10-32	Hex	Nickel-Plated 360 Brass	150 psi @ 72° F	Buna-N	10	5483T32	00000	25	5454K21	0000

Intermittent-Swivel Straight Adapters with Gasket

Female × Male

Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Straights										Replacement Gaskets
		Thread Size
	Pipe Size (A)	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
NPT Female × UN/UNF (SAE Straight) Male



		1/8	—	10-32	Hex	360 Brass	150 psi @ 72° F	Buna-N	5	5454K69	000000	25	5454K21	00000


		1/8	—	10-32	Hex	Nickel-Plated 360 Brass	150 psi @ 72° F	Buna-N	5	5483T22	00000	25	5454K21	0000


		UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male



				—	10-32	10-32	Hex	360 Brass	150 psi @ 72° F	Buna-N	5	5454K68	00000	25	5454K21	0000


				—	10-32	10-32	Hex	Nickel-Plated 360 Brass	150 psi @ 72° F	Buna-N	5	5483T21	00000	25	5454K21	0000

90° Elbow Adapters

Female × Male

Female x male 90° elbow adapters are also known as street elbows.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Elbows									Replacement O-Rings
	Thread Size
	(A)	(B)	Body Shape	Material	Max. Pressure @ Temp.	O-Ring Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male



		10-32	10-32	Square	360 Brass	150 psi @ 72° F	Buna-N	5	5454K78	000000	1	5454K533	00000


		10-32	10-32	Square	Nickel-Plated 360 Brass	150 psi @ 72° F	Buna-N	5	5483T11	00000	1	5454K533	0000

Inline Tee Adapters

Female × Male ×

Female

Inline tees are also known as branch tees.

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Tees										Replacement O-Rings
	Thread Size
	(A)	(B)	(C)	Body Shape	Material	Max. Pressure @ Temp.	O-Ring Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male × UN/UNF (SAE Straight) Female



		10-32	10-32	10-32	Square	360 Brass	150 psi @ 72° F	Buna-N	5	5454K79	000000	1	5454K533	00000


		10-32	10-32	10-32	Square	Nickel-Plated 360 Brass	150 psi @ 72° F	Buna-N	5	5483T12	00000	1	5454K533	0000

Slotted External-Hex-Drive Plugs with Gasket

Male

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Nickel-Plated 360 Brass—Nickel-plated brass pipe provides better corrosion resistance than unplated brass.

	Plugs									Replacement Gaskets
	Thread Size	Construction	Body Shape	Material	Max. Pressure @ Temp.	Gasket Material	Pkg. Qty.		Pkg.	Pkg. Qty.		Pkg.
UN/UNF (SAE Straight) Male



		10-32	Solid	Hex	360 Brass	150 psi @ 72° F	Buna-N	10	5454K81	00000	25	5454K21	00000


		10-32	Solid	Hex	Nickel-Plated 360 Brass	150 psi @ 72° F	Buna-N	10	5483T15	00000	25	5454K21	0000

Low-Pressure Brass and Bronze Threaded Pipe Flanges

Also known as Pressure Class 150 flanges, these are designed for low-pressure applications. Bolt two same-size flanges together with a gasket (sold separately) to create an access point within a line. Flanges have good corrosion resistance. To adhere to safety standards for drinking water systems, use flanges that meet NSF/ANSI 61.

Flanges


Front	Flat Surface on Back

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size					Bolt Hole
	(A)	(B)	Flanged Connection Surface (B)	Flange OD	For Bolt Dia.	Dia.	No. Of	Bolt Circle Dia.	Pressure Class	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Food Industry Std.		Each
NPT Female



		1/2	1/2	Flat	3 1/2"	1/2"	5/8"	4	2 3/8"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K551	000000


		3/4	3/4	Flat	3 7/8"	1/2"	5/8"	4	2 3/4"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K552	00000
		1	1	Flat	4 1/4"	1/2"	5/8"	4	3 1/8"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K553	00000
		1 1/4	1 1/4	Flat	4 5/8"	1/2"	5/8"	4	3 1/2"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K554	000000
		1 1/2	1 1/2	Flat	5"	1/2"	5/8"	4	3 7/8"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K555	000000
		2	2	Flat	6"	5/8"	3/4"	4	4 3/4"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K556	000000
		2 1/2	2 1/2	Flat	7"	5/8"	3/4"	4	5 1/2"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K557	000000
		3	3	Flat	7 1/2"	5/8"	3/4"	4	6"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K558	000000
		4	4	Flat	9"	5/8"	3/4"	8	7 1/2"	150	Brass	225 psi @ 72° F	—	NSF/ANSI 61	4429K559	000000


		BSPT Female



				1/2	1/2	Flat	3 1/2"	1/2"	5/8"	4	2 3/8"	150	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K194	00000


				3/4	3/4	Flat	3 7/8"	1/2"	5/8"	4	2 3/4"	150	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K195	00000
				1	1	Flat	4 1/4"	1/2"	5/8"	4	3 1/8"	150	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K196	000000
				1 1/2	1 1/2	Flat	5"	1/2"	5/8"	4	3 7/8"	150	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K198	000000
				2	2	Flat	6"	5/8"	3/4"	4	4 3/4"	150	Bronze	200 psi @ 72° F	125 psi @ 400° F	—	4978K199	000000

Standard-Wall Brass and Bronze Threaded Pipe Nipples and Pipe for Drinking Water

The polished chrome plating gives this brass pipe a bright, shiny appearance and provides extra corrosion resistance. Also known as Schedule 40 pipe, it is commonly used in low-pressure applications.

Pipe—Fully Threaded

Male

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

Chrome-Plated 230 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Lg.	Construction	Pipe Schedule	Material	Food Industry Std.		Each
NPT Male



	1/8	3/4"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K111	00000


	1/4	7/8"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K112	0000
	3/8	1"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K113	0000
	1/2	1 1/8"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K114	0000
	3/4	1 3/8"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K115	00000
	1	1 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K116	00000

Pipe—Threaded on Both Ends

Male

Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.

Chrome-Plated 230 Brass—Chrome-plated brass pipe has a mirror-like finish and provides better corrosion resistance than nickel- and black zinc–plated brass.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Lg.	Construction	Pipe Schedule	Material	Food Industry Std.		Each
NPT Male







				1/8 Pipe Size

				1 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K121	00000


				2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K131	0000
				3"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K141	00000
				3 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K221	00000
				4"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K151	00000
				5"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K161	00000
				6"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K171	00000
				8"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K181	00000
				10"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K191	00000
				12"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K211	00000




						1/4 Pipe Size

						1 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K122	0000


						2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K132	00000
						3"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K142	00000
						3 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K222	00000
						4"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K152	00000
						4 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K232	00000
						5"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K162	00000
						6"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K172	00000
						8"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K182	00000
						10"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K192	00000
						12"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K212	00000




								3/8 Pipe Size

								1 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K123	0000


								2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K133	0000
								3"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K143	00000
								3 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K223	00000
								4"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K153	00000
								4 1/2"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K233	00000
								5"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K163	00000
								6"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K173	00000
								8"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K183	00000
								10"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K193	00000
								12"	Seamless	40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K213	00000




										1/2 Pipe Size

1 1/2"	Seamless									40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K124	0000


2"	Seamless									40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K134	00000
3"	Seamless	40								Chrome-Plated 230 Brass	NSF/ANSI 61	9176K144	00000
3 1/2"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K224	00000
4"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K154	00000
4 1/2"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K234	00000
5"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K164	00000
6"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K174	00000
8"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K184	00000
10"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K194	00000
12"	Seamless	40	Chrome-Plated 230 Brass							NSF/ANSI 61	9176K214	00000




		3/4 Pipe Size

		1 1/2"	Seamless							40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K125	00000


		2"	Seamless							40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K135	00000
		3"	Seamless	40						Chrome-Plated 230 Brass	NSF/ANSI 61	9176K145	00000
		3 1/2"	Seamless	40	Chrome-Plated 230 Brass					NSF/ANSI 61	9176K225	00000
		4"	Seamless	40	Chrome-Plated 230 Brass					NSF/ANSI 61	9176K155	00000
		5"	Seamless	40	Chrome-Plated 230 Brass					NSF/ANSI 61	9176K165	00000
		6"	Seamless	40	Chrome-Plated 230 Brass					NSF/ANSI 61	9176K175	00000
		8"	Seamless	40	Chrome-Plated 230 Brass					NSF/ANSI 61	9176K185	00000
		10"	Seamless	40	Chrome-Plated 230 Brass					NSF/ANSI 61	9176K195	00000
		12"	Seamless	40	Chrome-Plated 230 Brass					NSF/ANSI 61	9176K215	00000




				1 Pipe Size

				2"	Seamless					40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K136	00000


				3"	Seamless					40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K146	00000
				3 1/2"	Seamless					40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K226	00000
				4"	Seamless					40	Chrome-Plated 230 Brass	NSF/ANSI 61	9176K156	00000
				5"	Seamless	40				Chrome-Plated 230 Brass	NSF/ANSI 61	9176K166	00000
				6"	Seamless	40	Chrome-Plated 230 Brass			NSF/ANSI 61	9176K176	00000
				8"	Seamless	40	Chrome-Plated 230 Brass			NSF/ANSI 61	9176K186	00000
				10"	Seamless	40	Chrome-Plated 230 Brass			NSF/ANSI 61	9176K196	000000
				12"	Seamless	40	Chrome-Plated 230 Brass			NSF/ANSI 61	9176K216	000000

Thick-Wall Plastic Pipe Fittings for Water

Connect these fittings to Schedule 80 pipe. With thicker, stronger walls than standard-wall fittings, they can handle heavy duty supply applications, such as water processing, wastewater treatment, and irrigation. Fittings are plastic for good corrosion resistance. They meet ASTM specifications and testing requirements for material quality.

To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.

Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.

Note: For fittings that are not rated for pressure, you can use the pressure rating of the plastic pipe as a reference. Threaded fittings are limited to 50% of the rated pressure of the pipe.

Straight Adapters

Cement Socket

Female × NPT Male

Cement-Socket Fitting Connection—Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

Thread Sealant Tape—Sealants cannot be sold to Colorado, Connecticut, District of Columbia, Delaware, Illinois, Indiana, Massachusetts, Maryland, Maine, Michigan, New Hampshire, New Jersey, Northern Virginia, New York, Ohio, Pennsylvania, Rhode Island, or Utah due to local VOC (Volatile Organic Compounds) regulations.

	Straights										Thread Sealant Tape
	Pipe Size
	(A)	(B)	Pipe Schedule	Body Shape	Material	Color	Max. Pressure @ Temp.	Threaded Insert Material		Each		Each
Cement Socket Female × NPT Male



		1/2	1/2	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K672	000000	6802K12	00000


		3/4	3/4	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K673	00000	6802K12	0000
		1	1	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K674	000000	6802K12	0000
		1 1/4	1 1/4	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K675	000000	6802K12	0000
		1 1/2	1 1/2	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K676	000000	6802K12	0000
		2	2	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K677	000000	6802K12	0000

Straight Adapters with Collar


Front	Back	Front	Back

Fittings with collar have a stainless steel reinforcement on the female threads to prevent the threads from cracking.

Cement-Socket Fitting Connection—Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

	Pipe Size
	(A)	(B)	Pipe Schedule	Body Shape	Material	Color	Max. Pressure @ Temp.	Threaded Insert Material		Each
Cement Socket Female × NPT Female



		1/2	1/2	80	Hex	PVC	Dark Gray	Not Rated	Brass	46695K71	000000


		3/4	3/4	80	Hex	PVC	Dark Gray	Not Rated	Brass	46695K73	00000
		1	1	80	Hex	PVC	Dark Gray	Not Rated	Brass	46695K74	000000
		1 1/4	1 1/4	80	Hex	PVC	Dark Gray	Not Rated	Brass	46695K75	000000
		1 1/2	1 1/2	80	Hex	PVC	Dark Gray	Not Rated	Brass	46695K76	000000
		2	2	80	Hex	PVC	Dark Gray	Not Rated	Brass	46695K77	000000


		Cement Socket Male × NPT Female



				1/2	1/2	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K311	00000


				3/4	3/4	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K312	00000
				1	1	80	Hex	PVC	Dark Gray	Not Rated	Brass	4596K313	000000

Union Straight Adapters with Collar


Front	Back

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

Fittings with collar have a stainless steel reinforcement on the female threads to prevent the threads from cracking.

Cement-Socket Fitting Connection—Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

	Pipe Size
	(A)	(B)	Pipe Schedule	Material	Color	Max. Pressure @ Temp.	Threaded Insert Material		Each
Cement Socket Female × NPT Female



		1/2	1/2	80	PVC	Dark Gray	Not Rated	Brass	4596K291	000000


		3/4	3/4	80	PVC	Dark Gray	Not Rated	Brass	4596K292	00000
		1	1	80	PVC	Dark Gray	Not Rated	Brass	4596K293	000000
		1 1/4	1 1/4	80	PVC	Dark Gray	Not Rated	Brass	4596K294	000000
		1 1/2	1 1/2	80	PVC	Dark Gray	Not Rated	Brass	4596K295	000000
		2	2	80	PVC	Dark Gray	Not Rated	Brass	4596K296	000000

Easy-Install High-Pressure Brass and Bronze Threaded Pipe Fittings

Install and remove these fittings with a socket wrench or hex key (sold separately). They are compact, so they require less clearance than traditional elbows. Use them in high-pressure applications. Fittings are brass for good corrosion resistance.

90° Elbow Connectors with Hex Drive

NPTF Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPTF Female



	1/16	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T31	000000


	1/8	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T32	0000
	1/4	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T34	00000
	3/8	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T36	00000
	1/2	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T38	00000

90° Elbow Connectors with External Hex Drive

NPTF Female

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPTF Female



	1/16	Hex	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T11	00000


	1/8	Hex	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T12	0000
	1/4	Hex	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T14	0000
	3/8	Hex	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T16	00000
	1/2	Hex	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T18	00000

90° Elbow Adapters with Hex Drive

NPTF Male × NPTF Female

Female x male 90° elbow adapters are also known as street elbows.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

	Pipe Size
	(A)	(B)	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPTF Male × NPTF Female



		1/16	1/16	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T51	000000


		1/8	1/8	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T52	0000
		1/4	1/4	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T54	00000
		3/8	3/8	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T56	00000
		1/2	1/2	360 Brass	1,000 psi @ 72° F	1,000 psi @ 250° F	5021T58	00000

High-Pressure Brass and Bronze Threaded Pipe Nipples and Pipe for Drinking Water

Use this heavy duty pipe for high-pressure drinking water applications. It is brass, which has good corrosion resistance. It meets NSF/ANSI 61 safety standards for use with drinking water systems.

Pipe—Fully Threaded

Male

Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Lg.	Material	Max. Pressure @ Temp.	Food Industry Std.		Each
NPT Male



	1/8	3/4"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N101	00000


	1/4	7/8"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N102	0000
	3/8	1"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N103	0000
	1/2	1 1/8"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N104	0000
	3/4	1 5/16"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N105	0000

Pipe—Threaded on Both Ends

Male

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Food Industry Std.		Each
NPT Male







	1/8 Pipe Size

	1 1/2"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N106	00000


	2"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N107	0000




			1/4 Pipe Size

			1 1/2"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N108	0000


			2"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N109	0000




					3/8 Pipe Size

					1 1/2"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N111	0000


					2"	Brass	1,000 psi @ 72° F	NSF/ANSI 61	1493N112	0000

Low-Pressure Galvanized Iron and Steel Threaded Pipe Fittings

The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.

Union Straight Connectors with Gasket

Exploded View

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

	Pressure Class	Body Shape	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Gasket Material	Certification		Each
NPT Female



	1/8	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	—	4638K402	000000


	1/4	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K731	00000
	3/8	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K732	00000
	1/2	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K733	00000
	3/4	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K734	00000
	1	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K735	00000
	1 1/4	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K736	00000
	1 1/2	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K737	00000
	2	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	UL Listed	4638K738	00000
	2 1/2	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	—	4638K741	000000
	3	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	—	4638K742	000000


	4	150	Hex	Galvanized Iron	300 psi @ 72° F	150 psi @ 350° F	Brass	—	4638K219	000000


	BSPT Female



			1/4	150	Hex	Galvanized Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4888K162	00000


			3/8	150	Hex	Galvanized Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4888K163	00000
			1/2	150	Hex	Galvanized Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4888K164	00000
			3/4	150	Hex	Galvanized Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4888K165	00000
			1	150	Hex	Galvanized Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4888K166	00000
			1 1/2	150	Hex	Galvanized Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4888K168	00000
			2	150	Hex	Galvanized Iron	150 psi @ 72° F	150 psi @ 360° F	Brass	—	4888K169	00000

180° Bend Connectors

Image of Product. Front orientation. Pipe Traps. Low-Pressure Galvanized Iron and Steel Threaded Pipe Fittings.

180° bend connectors are also known as U-bends.

	Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.	Certification	Shape		Each
NPT Female



	3/4	Galvanized Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	4638K299	000000


	1	Galvanized Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	4638K385	00000
	1 1/2	Galvanized Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	4638K556	000000
	2	Galvanized Iron	150 psi @ 72° F	150 psi @ 350° F	UL Listed	180° Bend	4638K557	000000

Standard-Wall Plastic Pipe Fittings for Water

Connect these fittings to Schedule 40 plastic pipe–they are the industry standard for residential and commercial low-pressure plumbing and water supply applications. They are plastic for good corrosion resistance.

Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.

Note: For fittings that are not rated for pressure, you can use the pressure rating of the plastic pipe as a reference. Threaded fittings are limited to 50% of the rated pressure of the pipe.

Union Straight Adapters with Collar


Front	Back

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

Fittings with collar have a stainless steel reinforcement on the female threads to prevent the threads from cracking.

Cement-Socket Fitting Connection—Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

	Pipe Size
	(A)	(B)	Pipe Schedule	Material	Color	Max. Pressure @ Temp.	Threaded Insert Material	Food Industry Std.		Each
Cement Socket Female × NPT Female



		1	1	40	PVC	White	Not Rated	Brass	NSF/ANSI 61	4880K366	0000000


		1 1/4	1 1/4	40	PVC	White	Not Rated	Brass	NSF/ANSI 61	4880K367	000000
		1 1/2	1 1/2	40	PVC	White	Not Rated	Brass	NSF/ANSI 61	4880K368	000000
		2	2	40	PVC	White	Not Rated	Brass	NSF/ANSI 61	4880K369	000000

Brass and Bronze Threaded Cleanout Plugs

Raised

Recessed

Close off your drain cleanout pipe with these threaded plugs. Note: If you do not know your pipe size, measure the OD of your existing cleanout plug or the ID of your cleanout fitting and match to the value listed.

				Recessed		Raised
Cleanout Plug OD/Fitting ID	For Pipe Size	Thread Type	Material		Each		Each
1 7/8"	1 1/2	NPT	Brass	2400K52	00000	2400K72	00000
2 3/8"	2	NPT	Brass	2400K53	0000	2400K73	0000
2 27/32"	2 1/2	NPT	Brass	———	0	2400K74	0000
3 15/32"	3	NPT	Brass	2400K55	0000	2400K75	0000
3 31/32"	3 1/2	NPT	Brass	2400K56	00000	2400K76	00000
4 15/32"	4	NPT	Brass	2400K57	00000	2400K77	00000
5 17/32"	5	NPT	Brass	2400K59	00000	2400K79	00000
6"	—	NPT	Brass	2400K61	00000	———	0
6 19/32"	6	NPT	Brass	2400K62	00000	2400K82	00000

Plug Wrenches
