Mil. Spec. Screw-Together Connectors
Rated to MIL-DTL-5015 specifications, these connectors are compatible with other products that meet the same standard. They can withstand high-vibration applications and frequent connection and disconnection. All come assembled with pins and sockets in place. When mating connectors, both the gender and housing thread location must be opposite.
Caps (sold separately) protect connectors when not in use.
For technical drawings and 3-D models, click on a part number.
Housing Thread | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Poles | Voltage | Current | For Wire Gauge | For Cable OD | Lg. | Wd. | Ht. | Housing Material | Size | Type | Temp. Range, °F | Connector Shell Size | Military Specifications Met | Each | |
| 17 | 500V AC/700V DC | 13A | 20-16 | 0.35"-0.74" | 2.8" | 1.3" | 1.5" | Cadmium-Plated Aluminum | 1 1/4"-18 | UNEF | -65° to 255° | 20 | MS3101F20-29P | 0000000 | 000000 |
Housing Thread | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Poles | Voltage | Current | For Wire Gauge | For Cable OD | OD | Lg. | Housing Material | Size | Type | Temp. Range, °F | Connector Shell Size | Military Specifications Met | Each | |
| 17 | 500V AC/700V DC | 13A | 20-16 | 0.35"-0.74" | 1.5" | 2.8" | Cadmium-Plated Aluminum | 1 1/4"-18 | UNEF | -65° to 255° | 20 | MS3106F20-29P | 0000000 | 000000 |
Housing Thread | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Poles | Voltage | Current | For Wire Gauge | For Cable OD | Lg. | Wd. | Ht. | Housing Material | Size | Type | Temp. Range, °F | Connector Shell Size | Military Specifications Met | Each | |
| 17 | 500V AC/700V DC | 13A | 20-16 | 0.35"-0.74" | 2.8" | 1.3" | 1.5" | Cadmium-Plated Aluminum | 1 1/4"-18 | UNEF | -65° to 255° | 20 | MS3101F20-29S | 0000000 | 000000 |
Housing Thread | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Poles | Voltage | Current | For Wire Gauge | For Cable OD | OD | Lg. | Housing Material | Size | Type | Temp. Range, °F | Connector Shell Size | Military Specifications Met | Each | |
| 17 | 500V AC/700V DC | 13A | 20-16 | 0.35"-0.74" | 1.5" | 2.8" | Cadmium-Plated Aluminum | 1 1/4"-18 | UNEF | -65° to 255° | 20 | MS3106F20-29S | 0000000 | 000000 |
Housing Thread | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Poles | Voltage | Current | For Wire Gauge | Lg. | Wd. | Ht. | Housing Material | Size | Type | For Panel Cutout Dia. | Temp. Range, °F | Connector Shell Size | Military Specifications Met | Each | |
| 17 | 500V AC/700V DC | 13A | 20-16 | 1.4" | 1.5" | 1.5" | Cadmium-Plated Aluminum | 1 1/4"-18 | UNEF | 1.125" | -65° to 255° | 20 | MS3102R20-29P | 0000000 | 000000 |
Housing Thread | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Poles | Voltage | Current | For Wire Gauge | Lg. | Wd. | Ht. | Housing Material | Size | Type | For Panel Cutout Dia. | Temp. Range, °F | Connector Shell Size | Military Specifications Met | Each | |
| 17 | 500V AC/700V DC | 13A | 20-16 | 1.5" | 1.5" | 1.5" | Cadmium-Plated Aluminum | 1 1/4"-18 | UNEF | 1.125" | -65° to 255° | 20 | MS3102R20-29S | 0000000 | 000000 |
Multipurpose Build-Your-Own Latching Connectors

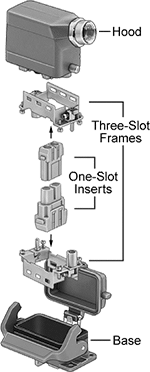

Combine power, USB, computer, and compressed air inserts to build a connector that sends signal, power, and data. A complete connector requires a hood, a base, two frames, and a male and female insert for each slot in the frame. The frames fit into the hood and base, and the inserts snap into the frame. Select components based on the number of slots needed. Once assembled, connectors are rated NEMA 4X, 12, and IP65 for protection against dirt, washdowns, and oil/coolant dripping.
Crimpers (sold separately) are required for wire installation for crimp-on connectors. They ratchet to ensure the correct pressure is applied to every crimp.
Extraction tools (sold separately) make it easier to remove pins or sleeves from 17- and 20-pole power inserts.
For technical drawings and 3-D models, click on a part number.
Servomotor M23 Connectors
with
Mounting Holes
Use these connectors with servomotor, servocontrollers, and servodrives in automated equipment and assembly lines. Rated NEMA 4X, IP67, and IP69K, they resist corrosion and protect against high-pressure, high-temperature washdowns. When mating connectors, the gender, housing thread location, and pole layout must be opposite. Poles are numbered on the face of the connector.
Signal connectors communicate between servocontrollers, servodrives, and servomotors.
For technical drawings and 3-D models, click on a part number.
Clockwise
(12 Pole Shown)
Counterclockwise
(12 Pole Shown)
Connectors | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Low-Current | Replacement Housings | Replacement Inserts | ||||||||||||
| No. of Poles | Pole Layout | No. of Poles | Current | For Wire Gauge | Voltage | For Cable OD | OD | For Panel Cutout Dia. | Each | Each | Each | |||
Plug—External Thread | ||||||||||||||
| 17 | Clockwise | 17 | 8A | 28-17 | 160V AC/160V DC | 0.12"-0.67" | 1" | __ | 0000000 | 000000 | 0000000 | 000000 | 0000000 | 000000 |
Socket—Internal Thread | ||||||||||||||
| 17 | Counterclockwise | 17 | 8A | 28-17 | 160V AC/160V DC | 0.12"-0.67" | 1" | __ | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
Receptacle with 4 Mounting Holes—External Thread | ||||||||||||||
| 17 | Clockwise | 17 | 8A | 28-17 | 160V AC/160V DC | __ | __ | 0.79" | 0000000 | 00000 | 0000000 | 00000 | 0000000 | 00000 |
