Serrated-Step Crossover Stairs

Filter by

Platform Height

Ground Clearance Height

Step Tread

Material

Number of Steps

Platform Depth

Overall Width

Overall Height

Ground Clearance Depth

Step Width

Platform Tread

Overall Depth

Step Shape

Climbing Angle

Platform Width

Ladder Type

Color

Width

Specifications Met

Height

U.S.–Mexico–Canada Agreement (USMCA) Qualifying

Yes

RoHS

Compliant

Not Compliant

DFARS Specialty Metals

Exempt

REACH

Not Compliant

Export Control Classification Number (ECCN)

Weight Capacity

Help me decide (beta)

124 Products

...

Space-Saver Crossover Stairs


Style 1	Style 3	Style 3 - Forward Descent

Set at a steeper angle than our other crossover stairs, these stairs require less floor space. They let you walk over conveyors, machines, and pipes. However, the steeper incline makes it more difficult to ascend and descend the stairs.

Powder-Coated Steel—Made of steel, these stairs withstand heavy use in most industrial applications. A powder coating adds protection from corrosion.

Serrated Step—Serrated treads prevent slipping and allow liquids and dirt to pass through.

Style 3—Style 3 have offset steps that let you descend comfortably and safely while facing forward.

Specifications Met—Crossover stairs with listed OSHA or Cal/OSHA specifications meet dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

		Overall			Ground Clearance		Platform			Step						Mounting Holes
	Style	Ht. (A)	Wd. (B)	Dp. (C)	Ht. (D)	Dp. (E)	Ht.	Wd.	Dp.	Wd.	Dp.	Wt. Cap., lb.	No. of Steps	Handrail Ht.	Mounting Hardware Included	No. of	Dia.	Assembly	Specs. Met		Each
Gray Powder-Coated Steel







				Flat Step with Serrated Tread

				1	74"	29"	54"	30"	25 9/16"	32"	24"	33"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	—	79865T11	000000000


				1	74"	29"	65"	30"	37 5/16"	32"	24"	44"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	—	79865T31	00000000
				1	82"	29"	60"	38"	25 9/16"	40"	24"	33"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	—	79865T12	00000000
				1	82"	29"	71"	38"	37 5/16"	40"	24"	44"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	—	79865T32	00000000
				1	90"	29"	65"	46"	25 9/16"	4 ft.	24"	33"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	—	79865T13	00000000
				1	90"	29"	77"	46"	37 5/16"	4 ft.	24"	44"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	—	79865T33	00000000
				1	98"	29"	71"	54"	25 9/16"	56"	24"	33"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	—	79865T14	00000000
				1	98"	29"	83"	54"	37 5/16"	56"	24"	44"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	—	79865T34	00000000


				Yellow Powder-Coated Steel







								Flat Step with Serrated Tread

								3	6 ft.	24"	60"	27"	26 7/8"	30"	21"	20"	20 1/8"	10 1/2"	350	8	42"	No	4	9/16"	Unassembled	ANSI-ASC A14.7, OSHA Compliant 29 CFR 1910.25	9862N11	00000000


								3	6 ft.	24"	66"	35"	27"	38"	21"	20"	20 1/8"	10 1/2"	350	10	42"	No	4	9/16"	Unassembled	ANSI-ASC A14.7, OSHA Compliant 29 CFR 1910.25	9862N12	00000000
								3	91"	24"	76"	46"	27"	49"	21"	20"	20 1/8"	10 1/2"	350	14	42"	No	4	9/16"	Unassembled	ANSI-ASC A14.7, OSHA Compliant 29 CFR 1910.25	9862N13	00000000
								3	102"	24"	85"	58"	27"	61"	21"	20"	20 1/8"	10 1/2"	350	16	42"	No	4	9/16"	Unassembled	ANSI-ASC A14.7, OSHA Compliant 29 CFR 1910.25	9862N14	00000000

Corrosion-Resistant Crossover Stairs

Use these stairs to walk over conveyors, machines, and pipes.

Aluminum—Aluminum is a good choice for damp areas and outdoor use.

Serrated Step—Serrated steps offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through.

Number of Steps—The number of steps listed is the number of steps on each side including platform.

Specifications Met—Crossover stairs meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.

	Overall			Ground Clearance		Platform			Step						Mounting Holes
	Ht. (A)	Wd. (B)	Dp. (C)	Ht. (D)	Dp. (E)	Ht.	Wd.	Dp.	Wd.	Dp.	Wt. Cap., lb.	No. of Steps	Handrail Ht.	Mounting Hardware Included	No. of	Dia.	Assembly	Specs. Met		Each
Aluminum







				Flat Step with Serrated Tread

				74"	29"	78"	30"	24 7/8"	32"	24"	37"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T75	000000000


				74"	29"	90"	30"	36 5/8"	32"	24"	49"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T95	00000000
				82"	29"	91"	38"	24 7/8"	40"	24"	37"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T76	00000000
				82"	29"	103"	38"	36 5/8"	40"	24"	49"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T96	00000000
				90"	29"	105"	46"	24 7/8"	4 ft.	24"	37"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T77	00000000
				90"	29"	116"	46"	36 5/8"	4 ft.	24"	49"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T97	00000000
				98"	29"	118"	54"	24 7/8"	56"	24"	37"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T78	00000000
				98"	29"	130"	54"	36 5/8"	56"	24"	49"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T98	00000000

Low-Height Crossover Stairs

1 Step

2 Steps

Take the safest, shortest route over pipes and other obstacles near the ground. For stability, bolt these stairs to your floor.

Powder-Coated Steel—Powder-coated steel stairs are both rust resistant and durable enough to withstand heavy use. They’re yellow, so they are easy to see and reduce tripping risks.

Aluminum—Aluminum stairs are more corrosion resistant than steel stairs. They’re a good choice for damp areas, including outdoors.

Serrated Step—The serrated steps and platform prevent slipping and allow liquids and debris to pass through.

Specifications Met—All stairs meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

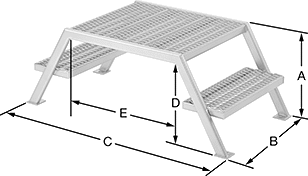

	Overall			Ground Clearance		Platform			Step					Mounting Holes
	Ht. (A)	Wd. (B)	Dp. (C)	Ht. (D)	Dp. (E)	Ht.	Wd.	Dp.	Wd.	Dp.	Wt. Cap., lb.	No. of Steps	Mounting Hardware Included	No. of	Dia.	Assembly	Specs. Met		Each
Yellow Powder-Coated Steel







				Flat Step with Serrated Tread

				9"	26 1/2"	40"	6 1/2"	24 9/16"	9"	25 7/8"	29"	25 7/8"	29"	500	1	No	4	9/16"	Assembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	9146N11	0000000


				19"	26 1/2"	51"	16"	24 9/16"	19"	25 7/8"	29"	23 1/2"	9 1/2"	500	2	No	4	9/16"	Assembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	9146N12	000000


				Aluminum







								Flat Step with Serrated Tread

								9"	26 1/2"	40"	6 1/2"	24 9/16"	9"	25 7/8"	29"	25 7/8"	29"	300	1	No	4	9/16"	Assembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	9146N13	000000


								19"	26 1/2"	51"	16"	24 9/16"	19"	25 7/8"	29"	23 1/2"	9 1/2"	300	2	No	4	9/16"	Assembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	9146N14	000000

Crossover Stairs

Use these stairs to walk over conveyors, machines, and pipes.

Serrated Step—Serrated steps offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through.

Number of Steps—The number of steps listed is the number of steps on each side including platform.

	Overall			Ground Clearance		Platform			Step						Mounting Holes
	Ht. (A)	Wd. (B)	Dp. (C)	Ht. (D)	Dp. (E)	Ht.	Wd.	Dp.	Wd.	Dp.	Wt. Cap., lb.	No. of Steps	Handrail Ht.	Mounting Hardware Included	No. of	Dia.	Assembly	Specs. Met		Each
Gray Powder-Coated Steel







				Flat Step with Serrated Tread

				74"	29"	78"	30"	24 7/8"	32"	24"	37"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T71	000000000


				74"	29"	90"	30"	36 5/8"	32"	24"	49"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T91	00000000
				82"	29"	91"	38"	24 7/8"	40"	24"	37"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T72	00000000
				82"	29"	103"	38"	36 5/8"	40"	24"	49"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T92	00000000
				90"	29"	105"	46"	24 7/8"	4 ft.	24"	37"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T73	00000000
				90"	29"	116"	46"	36 5/8"	4 ft.	24"	49"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T93	00000000
				98"	29"	118"	54"	24 7/8"	56"	24"	37"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T74	00000000
				98"	29"	130"	54"	36 5/8"	56"	24"	49"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	OSHA Compliant 29 CFR 1910.23, Cal/OSHA Compliant Title 8 Section 3622	8198T94	00000000

Build-Your-Own Fixed Work Platforms

Shown Assembled

Configure a work platform to fit your application.

First, determine how high your work platform needs to be and choose the stairs that accommodate that height. Then, choose a platform section based on the desired length. Next, choose platform supports that correspond to the height of your stairs—each end of the platform must be supported by a platform support. Finally, choose handrails for the stairs and platform. Assembled work platforms should be secured to a supporting surface (mounting hardware not included).

Stairs

Aluminum—Made of aluminum, these platforms are lightweight and corrosion resistant.

Serrated Step—Steps are serrated for maximum slip resistance.

Specifications Met—Work platforms meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices. Work platforms also meet CAL-OSHA standards, which is required for use in California.

			Steps								Mounting Holes
	Platform Ht.	Ground Clearance Ht.	No. of	Wd.	Dp.	Tread	Climbing Angle	Wt. Cap., lb.	Assembly	Mounting Hardware Included	No. of	Dia.	Specs. Met		Each
Aluminum



		18"	14"	1	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N41	0000000


		27"	23"	2	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N42	000000
		36"	32"	3	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N43	000000
		45"	41"	4	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N44	000000
		54"	50"	5	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N45	000000
		63"	59"	6	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N46	000000
		72"	68"	7	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N47	000000
		81"	77"	8	24"	9 1/2"	Serrated	45°	500	Unassembled	No	4	7/16"	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3209, Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910 Subpart D	4198N48	000000

Freestanding Crossover Stairs

Move these stairs as you update your facility layout. Unlike other crossover stairs, they do not need to be bolted to the floor. Use them to walk over pipes and conveyors. Their one-piece welded design adds even more rigidity and structural strength.

Powder-Coated Steel—Made of powder-coated steel, these stairs are rust resistant and durable for industrial use.

Serrated Step—These stairs have a serrated platform and steps to prevent slipping. They also allow liquids and debris to pass through.

Nonskid Feet—Nonskid rubber feet keep them stable when crossing.

Specifications Met—Crossover stairs meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

	Crossover Stairs																		Replacement Ladder Feet
	Overall			Ground Clearance		Platform			Step
	Ht. (A)	Wd. (B)	Dp. (C)	Ht. (D)	Dp. (E)	Ht.	Wd.	Dp.	Wd.	Dp.	Wt. Cap., lb.	No. of Steps	Handrail Ht.	Assembly	Features	Specs. Met		Each	Material	Pkg. Qty.		Pkg.
Gray Powder-Coated Steel







				Flat Step with Serrated Tread

				5 ft.	30"	58"	28"	10"	30"	24"	24"	24"	7"	350	3	30"	Assembled	Nonskid Feet	Cal/OSHA Compliant Title 8 Section 3626, OSHA Compliant 29 CFR 1910.23, ANSI-ASC A14.7	9834N12	0000000	Rubber	4	79975T99	000000


				5 ft.	30"	82"	28"	32"	30"	24"	48"	24"	7"	350	3	30"	Assembled	Nonskid Feet	Cal/OSHA Compliant Title 8 Section 3626, OSHA Compliant 29 CFR 1910.23, ANSI-ASC A14.7	9834N15	00000000	Rubber	4	79975T99	00000
				70"	30"	76"	38"	10"	40"	24"	24"	24"	7"	350	4	30"	Assembled	Nonskid Feet	Cal/OSHA Compliant Title 8 Section 3626, OSHA Compliant 29 CFR 1910.23, ANSI-ASC A14.7	9834N13	00000000	Rubber	4	79975T99	00000
				70"	30"	100"	38"	32"	40"	24"	48"	24"	7"	350	4	30"	Assembled	Nonskid Feet	Cal/OSHA Compliant Title 8 Section 3626, OSHA Compliant 29 CFR 1910.23, ANSI-ASC A14.7	9834N16	00000000	Rubber	4	79975T99	00000
				80"	30"	93"	48"	10"	50"	24"	24"	24"	7"	350	5	42"	Assembled	Nonskid Feet	Cal/OSHA Compliant Title 8 Section 3626, OSHA Compliant 29 CFR 1910.23, ANSI-ASC A14.7	9834N14	00000000	Rubber	4	79975T99	00000
				80"	30"	116"	48"	32"	50"	24"	48"	24"	7"	350	5	42"	Assembled	Nonskid Feet	Cal/OSHA Compliant Title 8 Section 3626, OSHA Compliant 29 CFR 1910.23, ANSI-ASC A14.7	9834N11	00000000	Rubber	4	79975T99	00000

Corrosion-Resistant Space-Saver Crossover Stairs

Set at a steeper angle than our other crossover stairs, these stairs require less floor space. Use them to walk over conveyors, machines, and pipes.

You are responsible for adhering to local, state, and federal safety codes, including OSHA.

Aluminum—Aluminum is a good choice for damp areas and outdoor use.

Serrated Step—Serrated steps offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through.

Number of Steps—The number of steps listed is the number of steps on each side including platform.

	Overall			Ground Clearance		Platform			Step						Mounting Holes
	Ht. (A)	Wd. (B)	Dp. (C)	Ht. (D)	Dp. (E)	Ht.	Wd.	Dp.	Wd.	Dp.	Wt. Cap., lb.	No. of Steps	Handrail Ht.	Mounting Hardware Included	No. of	Dia.	Assembly		Each
Aluminum







				Flat Step with Serrated Tread

				74"	29"	54"	30"	25 9/16"	32"	24"	33"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	79865T15	000000000


				74"	29"	65"	30"	37 5/16"	32"	24"	44"	24 1/8"	4 7/8"	500	4	42"	No	4	5/8"	Unassembled	79865T35	00000000
				82"	29"	60"	38"	25 9/16"	40"	24"	33"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	79865T16	00000000
				82"	29"	71"	38"	37 5/16"	40"	24"	44"	24 1/8"	4 7/8"	500	5	42"	No	4	5/8"	Unassembled	79865T36	00000000
				90"	29"	65"	46"	25 9/16"	4 ft.	24"	33"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	79865T17	00000000
				90"	29"	77"	46"	37 5/16"	4 ft.	24"	44"	24 1/8"	4 7/8"	500	6	42"	No	4	5/8"	Unassembled	79865T37	00000000
				98"	29"	71"	54"	25 9/16"	56"	24"	33"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	79865T18	00000000
				98"	29"	83"	54"	37 5/16"	56"	24"	44"	24 1/8"	4 7/8"	500	7	42"	No	4	5/8"	Unassembled	79865T38	00000000

Fixed Work Platforms


Style 1	Style 2	Style 3

Style 4	Style 5	Style 6

Install these platforms for easy access to elevated areas. They’re large enough to provide plenty of space for working. Platform and steps are serrated for maximum slip resistance and to allow dirt and debris to fall through. Without work boots, standing on them for extended periods may be uncomfortable.

Also Available: Other platform sizes. Please select 8031T999 and specify style number, platform size, and platform height.

Style 1

Style 1 allows you to lower the platform up to 3" by sliding the U-bolts. They don’t have handrails, so you can work freely in any direction.

Number of Steps—The number of steps listed includes the platform.

Specifications Met—Work platforms meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

				Steps			Overall
	Platform Ht. (A)	Ground Clearance Ht. (B)	Wt. Cap., lb.	No. of	Wd.	Dp.	Ht. (C)	Wd. (D)	Dp. (E)	Assembly	Specs. Met		Each
Gray Powder-Coated Steel







				36" Wide Platform × 39" Deep Platform

				18" to 21"	12 1/4" to 15"	500	2	36"	9 1/2"	21"	38 1/4"	49"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T8	0000000


				30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	33"	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T9	000000

Replacements for Platforms

Component	For Platform Dp.		Each
Platform	39", 77"	8031T134	0000000

Component	For No. of Steps		Each
Steps	2, 3, 4	8031T137	0000000

Replacement Posts


Platform Legs	Step Connector Posts	Step Legs

	For Platform Dp.	For No. of Steps		Each
Platform Legs



	21"	—	—	8031T116	000000


	33"	—	—	8031T118	00000


	Step Connector Posts



			—	39", 77"	3, 4	8031T135	00000


			Step Legs



					21", 33"	—	—	8031T136	00000

Style 2


	Replacement Connectors

Style 2 allows you to lower the platform up to 3" by sliding the U-bolts. They are open on one side. They’re often used beside conveyors or assembly stations.

Number of Steps—The number of steps listed includes the platform.

Specifications Met—Work platforms meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

	Platforms													Replacement Connectors
				Steps			Overall
	Platform Ht. (A)	Ground Clearance Ht. (B)	Wt. Cap., lb.	No. of	Wd.	Dp.	Ht. (C)	Wd. (D)	Dp. (E)	Assembly	Specs. Met		Each		Each
Gray Powder-Coated Steel







				36" Wide Platform × 39" Deep Platform

				18" to 21"	12 1/4" to 15"	500	2	36"	9 1/2"	5 ft.	38 1/4"	49"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T12	0000000	———	0


				24" to 27"	18 1/4" to 21"	500	3	36"	9 1/2"	66"	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T41	00000000	———	0
				30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6 ft.	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T42	00000000	———	0
				42" to 45"	36 1/4" to 39"	500	4	36"	9 1/2"	7 ft.	38 1/4"	67"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T43	00000000	———	0




						36" Wide Platform × 77" Deep Platform

						18" to 21"	12 1/4" to 15"	500	2	36"	9 1/2"	5 ft.	38 1/4"	86"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T52	00000000	8031T139	000000


						24" to 27"	18 1/4" to 21"	500	3	36"	9 1/2"	66"	38 1/4"	95"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T68	00000000	8031T139	00000
						30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6 ft.	38 1/4"	95"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T65	00000000	8031T139	00000
						42" to 45"	36 1/4" to 39"	500	4	36"	9 1/2"	7 ft.	38 1/4"	104"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T44	00000000	8031T139	00000

Replacements for Platforms

Component	For Platform Dp.		Each
Platform	39", 77"	8031T134	0000000

Component	For No. of Steps		Each
Steps	2, 3, 4	8031T137	0000000

Replacement Handrails


Back Handrails	Platform Handrails	Stair Handrails

	For Platform Wd.		Each
Back Handrails



	—	36"	8031T122	0000000


	Platform Handrails



			21"	—	8031T123	000000


			27"	—	8031T124	000000
			33"	—	8031T125	000000
			45"	—	8031T127	000000


			Stair Handrails



					21"	—	8031T128	000000


					27"	—	8031T129	000000
					33"	—	8031T131	000000
					45"	—	8031T133	000000

Replacement Posts


Platform Legs	Platform Posts	Step Connector Posts	Step Legs

	For Platform Dp.	For No. of Steps		Each
Platform Legs



	21"	—	—	8031T116	000000


	27"	—	—	8031T117	00000
	33"	—	—	8031T118	00000
	45"	—	—	8031T121	00000


	Platform Posts



			21"	—	—	8031T111	00000


			27"	—	—	8031T112	00000
			33"	—	—	8031T113	00000
			45"	—	—	8031T115	00000


			Step Connector Posts



					—	39", 77"	3, 4	8031T135	00000


					Step Legs



							21", 33"	—	—	8031T136	00000


							27"	—	—	8031T79	00000

Style 3


	Replacement Connectors

Style 3 allows you to lower the platform up to 3" by sliding the U-bolts. They are open on one side. They’re often used beside conveyors or assembly stations.

Number of Steps—The number of steps listed includes the platform.

Specifications Met—Work platforms meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

	Platforms													Replacement Connectors
				Steps			Overall
	Platform Ht. (A)	Ground Clearance Ht. (B)	Wt. Cap., lb.	No. of	Wd.	Dp.	Ht. (C)	Wd. (D)	Dp. (E)	Assembly	Specs. Met		Each		Each
Gray Powder-Coated Steel







				36" Wide Platform × 39" Deep Platform

				18" to 21"	12 1/4" to 15"	500	2	36"	9 1/2"	5 ft.	38 1/4"	49"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T14	0000000	———	0


				24" to 27"	18 1/4" to 21"	500	3	36"	9 1/2"	66"	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T77	00000000	———	0
				30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6 ft.	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T31	00000000	———	0
				36" to 39"	30 1/4" to 33"	500	4	36"	9 1/2"	78"	38 1/4"	67"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T78	00000000	———	0
				42" to 45"	36 1/4" to 39"	500	4	36"	9 1/2"	7 ft.	38 1/4"	67"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T32	00000000	———	0




						36" Wide Platform × 77" Deep Platform

						18" to 21"	12 1/4" to 15"	500	2	36"	9 1/2"	5 ft.	38 1/4"	86"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T24	00000000	8031T139	000000


						30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6 ft.	38 1/4"	95"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T61	00000000	8031T139	00000

Replacements for Platforms

Component	For Platform Dp.		Each
Platform	39", 77"	8031T134	0000000

Component	For No. of Steps		Each
Steps	2, 3, 4	8031T137	0000000

Replacement Handrails


Platform Handrails	Stair Handrails

		Each
Platform Handrails



	21"	8031T123	0000000


	27"	8031T124	000000
	33"	8031T125	000000
	39"	8031T126	000000
	45"	8031T127	000000


	Stair Handrails



			21"	8031T128	000000


			27"	8031T129	000000
			33"	8031T131	000000
			39"	8031T132	000000
			45"	8031T133	000000

Replacement Posts


Platform Legs	Step Connector Posts	Step Legs

	For Platform Dp.	For No. of Steps		Each
Platform Legs



	21"	—	—	8031T116	000000


	27"	—	—	8031T117	00000
	33"	—	—	8031T118	00000
	39"	—	—	8031T119	00000
	45"	—	—	8031T121	00000


	Step Connector Posts



			—	39", 77"	3, 4	8031T135	00000


			Step Legs



					21", 33"	—	—	8031T136	00000


					27"	—	—	8031T79	00000

Style 4


	Replacement Connectors

Style 4 allows you to lower the platform up to 3" by sliding the U-bolts. They have handrails on multiple sides of the platform to reduce fall risk.

Number of Steps—The number of steps listed includes the platform.

Specifications Met—Work platforms meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

	Platforms													Replacement Connectors
				Steps			Overall
	Platform Ht. (A)	Ground Clearance Ht. (B)	Wt. Cap., lb.	No. of	Wd.	Dp.	Ht. (C)	Wd. (D)	Dp. (E)	Assembly	Specs. Met		Each		Each
Gray Powder-Coated Steel







				36" Wide Platform × 39" Deep Platform

				18" to 21"	12 1/4" to 15"	500	2	36"	9 1/2"	5 ft.	38 1/4"	49"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T13	0000000	———	0


				24" to 27"	18 1/4" to 21"	500	3	36"	9 1/2"	66"	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T21	00000000	———	0
				30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6 ft.	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T22	00000000	———	0




						36" Wide Platform × 77" Deep Platform

						18" to 21"	12 1/4" to 15"	500	2	36"	9 1/2"	5 ft.	38 1/4"	86"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T23	00000000	8031T139	000000


						24" to 27"	18 1/4" to 21"	500	3	36"	9 1/2"	66"	38 1/4"	95"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T11	00000000	8031T139	00000
						30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6 ft.	38 1/4"	95"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T62	00000000	8031T139	00000

Replacements for Platforms

Component	For Platform Dp.		Each
Platform	39", 77"	8031T134	0000000

Component	For No. of Steps		Each
Steps	2, 3, 4	8031T137	0000000

Replacement Handrails


Back Handrails	Platform Handrails	Stair Handrails

	For Platform Wd.		Each
Back Handrails



	—	36"	8031T122	0000000


	Platform Handrails



			21"	—	8031T123	000000


			27"	—	8031T124	000000
			33"	—	8031T125	000000


			Stair Handrails



					21"	—	8031T128	000000


					27"	—	8031T129	000000
					33"	—	8031T131	000000

Style 5


	Replacement Connectors

Style 5 allows you to lower the platform up to 3" by sliding the U-bolts. They have handrails on multiple sides of the platform to reduce fall risk.

Number of Steps—The number of steps listed includes the platform.

Specifications Met—Work platforms meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

	Platforms													Replacement Connectors
				Steps			Overall
	Platform Ht. (A)	Ground Clearance Ht. (B)	Wt. Cap., lb.	No. of	Wd.	Dp.	Ht. (C), ft.	Wd. (D)	Dp. (E)	Assembly	Specs. Met		Each		Each
Gray Powder-Coated Steel







				36" Wide Platform × 39" Deep Platform

				30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6	38 1/4"	58"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T54	000000000	———	0




						36" Wide Platform × 77" Deep Platform

						30" to 33"	24 1/4" to 27"	500	3	36"	9 1/2"	6	38 1/4"	95"	Unassembled	Cal/OSHA Compliant Title 8 Section 3210, Cal/OSHA Compliant Title 8 Section 3273, OSHA Compliant 29 CFR 1910.23, OSHA Compliant 29 CFR 1910.25, OSHA Compliant 29 CFR 1910.28	8031T64	00000000	8031T139	000000

Replacements for Platforms

Style 6

Style 6 have a hinged access panel that you can flip up and remove to inspect and maintain nearby machinery, such as conveyor systems.

Number of Steps—The number of steps listed includes the platform.

Specifications Met—Work platforms meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

				Steps			Overall
	Platform Ht. (A)	Ground Clearance Ht. (B)	Wt. Cap., lb.	No. of	Wd.	Dp.	Ht. (C)	Wd. (D)	Dp. (E)	Assembly	Specs. Met		Each
Gray Painted Steel







				30" Wide Platform × 30" Deep Platform

				18"	14"	500	2	27"	9 1/2"	18"	42"	40"	Unassembled	Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25	4191N11	000000000


				27"	23"	500	3	27"	9 1/2"	27"	42"	49"	Unassembled	Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25	4191N12	00000000
				36"	32"	500	4	27"	9 1/2"	3 ft.	42"	59"	Unassembled	Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25	4191N13	00000000
				45"	41"	500	5	27"	9 1/2"	45"	42"	68"	Unassembled	Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25	4191N14	00000000




						30" Wide Platform × 60" Deep Platform

						18"	14"	500	2	27"	9 1/2"	18"	42"	70"	Unassembled	Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25	4191N15	00000000


						27"	23"	500	3	27"	9 1/2"	27"	42"	79"	Unassembled	Cal/OSHA Compliant Title 8 Section 3234, OSHA Compliant 29 CFR 1910.25	4191N16	00000000

Replacements for Platforms

Rolling Work Platforms

Equipped with four casters, these platforms are easy to move between work areas. When you stand on these platforms, the spring-loaded casters automatically retract for a stable surface.

Style 3

Style 3 have a handrail on only one side for unrestricted access to a conveyor or machinery.

Aluminum—Aluminum platforms are lighter weight than steel platforms and resist corrosion.

Serrated Step—Serrated treads give you maximum slip resistance and allow liquids and debris to pass through.

Specifications Met—Work platforms meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

		Platform		Overall		Steps
	Max. Platform Ht.	Wd.	Dp.	Wd. (B)	Dp. (C)	Wd.	Dp.	Tread	Wt. Cap., lb.	Wt., lb.	Assembly	Wheel Configuration	Features	Specs. Met		Each
Aluminum







				50" Overall Height (A)

				20"	24"	24"	28"	46"	24"	10 1/2"	Serrated	500	40	Unassembled	Four Swivel Casters	Handrail, Nonskid Feet	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3622, Cal/OSHA Compliant Title 8 Section 3626, Cal/OSHA Compliant Title 8 Section 3627, OSHA Compliant 29 CFR 1910 Subpart D	8561T1	0000000


				20"	24"	39 1/2"	28"	62"	24"	10 1/2"	Serrated	500	50	Unassembled	Four Swivel Casters	Handrail, Nonskid Feet	ANSI/ASSP A1264.1, Cal/OSHA Compliant Title 8 Section 3622, Cal/OSHA Compliant Title 8 Section 3626, Cal/OSHA Compliant Title 8 Section 3627, OSHA Compliant 29 CFR 1910 Subpart D	8561T2	000000

Component	For No. of Steps		Each
Steps	2	4191N117	0000000
Steps	3	4191N118	000000
Steps	4	4191N119	000000
Steps	5	4191N121	000000

		Each
Support Frames



	18"	4191N113	0000000


	27"	4191N114	000000
	36"	4191N115	000000
	45"	4191N116	000000
