19 Products

Beam Clamps for Hooks and Hangers


Style A	Style B

Style C	Style D

Clamp to both sides of a beam to add an anchor point for hoists and other overhead equipment.

Style A—Style A clamps fit in low-headroom areas. Two bolts with spacers grip each side of the beam. Note: Capacity applies only to vertical loads.

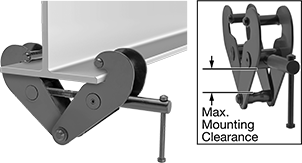

Style B—Style B clamps have a T-handle for quick and easy attachment and removal. To use, attach hooks to the mounting bar at the bottom of the clamp. Note: Capacity applies only to vertical loads.

Style C—Style C clamps have a T-handle for quick and easy attachment and removal. Note: Capacity applies only to vertical loads.

Style D—Style D clamps grip the sides and center of the beam for securely hanging equipment such as chain hoists and slings. They have a T-handle for quick and easy attachment and removal. Note: Capacity applies to loads 0° to 90° from vertical.

				For Beam Thk.		Mounting Bar		Eye
	Style	For Beam Shape	For Beam Wd.	Min.	Max.	Lg.	Thk.	Dia.	Thk.	Max. Mounting Clearance	Wt. Cap., lb.	Mount Type	Lg.	Wd.	Ht.		Each
Bottom-Center Beam Mount







				Steel

				A	Flat, Taper	4" to 8"	1/8"	15/16"	—	—	1 3/16"	1/2"	—	5,000	Clamp On	12"	6 1/2"	2 1/2"	0000000	0000000


				A	Flat, Taper	8" to 12"	1/8"	1 1/8"	—	—	1 3/16"	1/2"	—	5,000	Clamp On	16"	6 1/4"	2 1/2"	0000000	000000
				A	Flat, Taper	12" to 16"	1/8"	1 13/16"	—	—	1 3/16"	1/2"	—	5,000	Clamp On	20"	6"	2 1/2"	0000000	000000
				A	Flat, Taper	16" to 20"	1/8"	1 13/16"	—	—	1 3/16"	1/2"	—	5,000	Clamp On	24"	7"	2 1/2"	0000000	000000
				B	Flat, Taper	3" to 9"	—	13/16"	1/8"	25/32"	—	—	1 1/4"	2,000	Clamp On	14 1/2"	3"	9 1/8"	0000000	000000
				B	Flat, Taper	3" to 9"	—	13/16"	1/8"	25/32"	—	—	1 1/4"	4,000	Clamp On	15"	3"	9 1/4"	0000000	000000
				B	Flat, Taper	3 1/4" to 12 1/2"	—	1 5/16"	3/16"	7/8"	—	—	2 3/8"	6,000	Clamp On	16 3/4"	4"	13 1/4"	0000000	000000
				B	Flat, Taper	3 5/8" to 12 1/8"	—	1 5/16"	3/16"	1 1/8"	—	—	1 3/4"	10,000	Clamp On	18 3/4"	4"	13 1/2"	0000000	000000
				B	Flat, Taper	3 5/8" to 12 1/2"	—	1 3/8"	3/16"	1 5/8"	—	—	2 5/8"	20,000	Clamp On	19"	4 5/8"	13 7/8"	0000000	000000
				C	Flat, Taper	3" to 7 1/2"	—	7/8"	—	—	3 3/4"	25/32"	—	4,475	Clamp On	11 1/4"	6 3/8"	9 7/8"	0000000	000000
				C	Flat, Taper	3" to 7 1/2"	—	7/8"	—	—	3 3/4"	25/32"	—	6,700	Clamp On	11 1/4"	6 1/2"	9 7/8"	0000000	000000


				C	Flat, Taper	3" to 7 1/2"	—	7/8"	—	—	4 1/8"	1"	—	11,200	Clamp On	12 1/4"	7 3/4"	11 7/8"	0000000	000000
				C	Flat, Taper	3 1/2" to 12"	—	1"	—	—	3 3/4"	25/32"	—	6,700	Clamp On	16 1/4"	8 3/8"	14 1/4"	0000000	000000
				C	Flat, Taper	3 1/2" to 12"	—	1"	—	—	4 1/2"	1"	—	11,200	Clamp On	16 1/4"	8 3/8"	14 7/8"	0000000	000000
				C	Flat, Taper	6" to 10"	—	7/8"	—	—	3 7/8"	1"	—	8,950	Clamp On	16 1/4"	7 3/4"	13"	0000000	000000
				C	Flat, Taper	6" to 12"	—	1 5/8"	—	—	4 1/8"	1"	—	11,200	Clamp On	18 1/4"	8 3/8"	14 1/4"	0000000	000000
				C	Flat, Taper	8" to 18"	—	1 5/8"	—	—	4 1/8"	1"	—	13,425	Clamp On	22 1/4"	8 3/8"	18"	0000000	000000
				D	Flat, Taper	6" to 8"	—	1"	—	—	2 5/8"	25/32"	—	6,700	Clamp On	16 1/4"	2 3/4"	9"	0000000	00000000
				D	Flat, Taper	6" to 12"	—	1"	—	—	2 7/8"	1 25/32"	—	11,200	Clamp On	23 1/4"	3 3/4"	10 3/4"	0000000	00000000
